Solid Carbide Coolant Fed Twister® Micro XD Drill 12X

Designed for high performance drilling in a broad range of materials. The web thinned point helps to reduce cutting forces during the drilling operation. All sizes have post coating polish to improve chip evacuation and honed cutting edges on the point which increases the strength of the cutting edges.

2 Flute
Micro sizes
12X Regular length
Carbide, Coolant Fed
Single margin
135°-140° Point, web thinned
30° Helix
ALtima® Coated, A=ALtima® coated
Recommended max drill depth = L2 - 1.5 x D1

Materials

Series Attributes

Downloads

Speed and Feed Data

Drill Technical Data

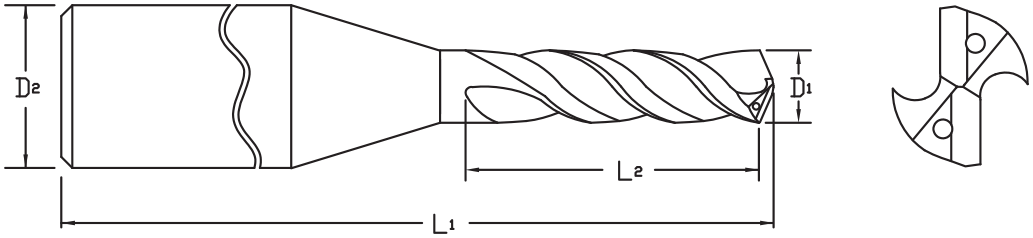

Line Drawing

Product Range

	Tool No.	EDP	Diameter (D/D1)	Diameter Dec	Shank Diameter (D2)	Overall Length (L1)	Flute Length (L2)	Coating	Shank Type	Available	List Price

.0394	MXDCLM0100A	04834	1mm	.0394	3mm	60mm	16mm	ALtima®	Straight	0.00	101.61
.0413	MXDCLM0105A	04835	1.05mm	.0413	3mm	60mm	17mm	ALtima®	Straight	44.00	101.61
.0433	MXDCLM0110A	04836	1.1mm	.0433	3mm	60mm	18mm	ALtima®	Straight	40.00	101.61
.0453	MXDCLM0115A	04837	1.15mm	.0453	3mm	60mm	19mm	ALtima®	Straight	44.00	101.61
.0472	MXDCLM0120A	04838	1.2mm	.0472	3mm	65mm	20mm	ALtima®	Straight	15.00	101.61
.0492	MXDCLM0125A	04839	1.25mm	.0492	3mm	65mm	20mm	ALtima®	Straight	30.00	101.61
.0512	MXDCLM0130A	04840	1.3mm	.0512	3mm	65mm	21mm	ALtima®	Straight	21.00	101.61
.0531	MXDCLM0135A	04841	1.35mm	.0531	3mm	65mm	22mm	ALtima®	Straight	29.00	101.61
.0551	MXDCLM0140A	04842	1.4mm	.0551	3mm	65mm	23mm	ALtima®	Straight	35.00	101.61
.0571	MXDCLM0145A	04843	1.45mm	.0571	3mm	65mm	24mm	ALtima®	Straight	60.00	101.61
.0591	MXDCLM0150A	04844	1.5mm	.0591	3mm	65mm	24mm	ALtima®	Straight	26.00	101.61
.0610	MXDCLM0155A	04845	1.55mm	.0610	3mm	65mm	25mm	ALtima®	Straight	30.00	101.61
.0630	MXDCLM0160A	04846	1.6mm	.0630	3mm	70mm	26mm	ALtima®	Straight	1.00	101.61
.0650	MXDCLM0165A	04847	1.65mm	.0650	3mm	70mm	27mm	ALtima®	Straight	16.00	101.61
.0669	MXDCLM0170A	04848	1.7mm	.0669	3mm	70mm	28mm	ALtima®	Straight	20.00	101.61
.0689	MXDCLM0175A	04849	1.75mm	.0689	3mm	70mm	28mm	ALtima®	Straight	36.00	101.61
.0709	MXDCLM0180A	04850	1.8mm	.0709	3mm	70mm	29mm	ALtima®	Straight	7.00	101.61
.0728	MXDCLM0185A	04851	1.85mm	.0728	3mm	70mm	30mm	ALtima®	Straight	34.00	101.61
.0748	MXDCLM0190A	04852	1.9mm	.0748	3mm	75mm	31mm	ALtima®	Straight	20.00	101.61
.0768	MXDCLM0195A	04853	1.95mm	.0768	3mm	75mm	32mm	ALtima®	Straight	75.00	101.61
.0787	MXDCLM0200A	04854	2mm	.0787	3mm	75mm	32mm	ALtima®	Straight	4.00	101.61
.0807	MXDCLM0205A	04855	2.05mm	.0807	3mm	75mm	33mm	ALtima®	Straight	38.00	101.61
.0827	MXDCLM0210A	04856	2.1mm	.0827	3mm	75mm	34mm	ALtima®	Straight	56.00	101.61
.0846	MXDCLM0215A	04857	2.15mm	.0846	3mm	75mm	35mm	ALtima®	Straight	16.00	101.61
.0866	MXDCLM0220A	04858	2.2mm	.0866	3mm	75mm	36mm	ALtima®	Straight	31.00	101.61
.0886	MXDCLM0225A	04859	2.25mm	.0886	3mm	75mm	36mm	ALtima®	Straight	52.00	101.61
.0906	MXDCLM0230A	04860	2.3mm	.0906	3mm	75mm	37mm	ALtima®	Straight	34.00	101.61
.0925	MXDCLM0235A	04861	2.35mm	.0925	3mm	75mm	38mm	ALtima®	Straight	35.00	101.61
.0945	MXDCLM0240A	04862	2.4mm	.0945	3mm	75mm	39mm	ALtima®	Straight	10.00	101.61
.0965	MXDCLM0245A	04863	2.45mm	.0965	3mm	75mm	40mm	ALtima®	Straight	34.00	101.61
.0984	MXDCLM0250A	04864	2.5mm	.0984	3mm	75mm	40mm	ALtima®	Straight	52.00	101.61
.1004	MXDCLM0255A	04865	2.55mm	.1004	3mm	80mm	41mm	ALtima®	Straight	47.00	101.61
.1024	MXDCLM0260A	04866	2.6mm	.1024	3mm	80mm	42mm	ALtima®	Straight	14.00	101.61
.1043	MXDCLM0265A	04867	2.65mm	.1043	3mm	80mm	43mm	ALtima®	Straight	33.00	101.61
.1063	MXDCLM0270A	04868	2.7mm	.1063	3mm	80mm	44mm	ALtima®	Straight	15.00	101.61
.1083	MXDCLM0275A	04869	2.75mm	.1083	3mm	80mm	44mm	ALtima®	Straight	53.00	101.61
.1102	MXDCLM0280A	04870	2.8mm	.1102	3mm	80mm	45mm	ALtima®	Straight	33.00	101.61
.1122	MXDCLM0285A	04871	2.85mm	.1122	3mm	80mm	46mm	ALtima®	Straight	27.00	101.61
.1142	MXDCLM0290A	04872	2.9mm	.1142	3mm	85mm	47mm	ALtima®	Straight	38.00	101.61
.1161	MXDCLM0295A	04873	2.95mm	.1161	3mm	85mm	48mm	ALtima®	Straight	55.00	101.61
