Solid Carbide Coolant Fed Twister® Micro Pilot XD Drill

Designed for high performance drilling in a broad range of materials. The web thinned point helps to reduce cutting forces during the drilling operation. All sizes have honed cutting edges on the point which increases the strength of the cutting edges.

2 Flute
Pilot Drill for MXDCR and MXDCL
2X Regular length
Carbide, Coolant Fed
Single margin
141°-143° Point, web thinned
30° Helix
ALtima® Coated, A=ALtima® coated
Tolerance on D1 +.004/+.014mm, h6 D2
Recommended max drill depth = L2 - 1.5 x D1

Materials

Series Attributes

Downloads

Speed and Feed Data

Drill Technical Data

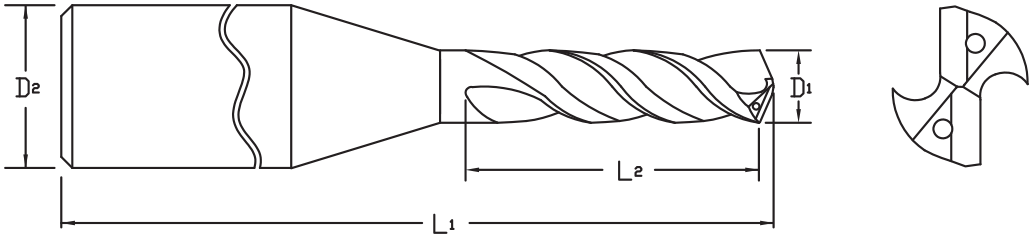

Line Drawing

Product Range

	Tool No.	EDP	Diameter (D/D1)	Diameter Dec	Shank Diameter (D2)	Overall Length (L1)	Flute Length (L2)	Coating	Shank Type	Available	List Price

.0394	MPDCSM0100A	04874	1mm	.0394	3mm	45mm	4mm	ALtima®	Straight	42.00	67.75
.0413	MPDCSM0105A	04875	1.05mm	.0413	3mm	45mm	4mm	ALtima®	Straight	28.00	67.75
.0433	MPDCSM0110A	04876	1.1mm	.0433	3mm	45mm	4mm	ALtima®	Straight	20.00	67.75
.0453	MPDCSM0115A	04877	1.15mm	.0453	3mm	45mm	5mm	ALtima®	Straight	15.00	67.75
.0472	MPDCSM0120A	04878	1.2mm	.0472	3mm	45mm	5mm	ALtima®	Straight	32.00	67.75
.0492	MPDCSM0125A	04879	1.25mm	.0492	3mm	45mm	5mm	ALtima®	Straight	41.00	67.75
.0512	MPDCSM0130A	04880	1.3mm	.0512	3mm	45mm	5mm	ALtima®	Straight	31.00	67.75
.0531	MPDCSM0135A	04881	1.35mm	.0531	3mm	45mm	5mm	ALtima®	Straight	37.00	67.75
.0551	MPDCSM0140A	04882	1.4mm	.0551	3mm	45mm	6mm	ALtima®	Straight	22.00	67.75
.0571	MPDCSM0145A	04883	1.45mm	.0571	3mm	45mm	6mm	ALtima®	Straight	55.00	67.75
.0591	MPDCSM0150A	04884	1.5mm	.0591	3mm	45mm	6mm	ALtima®	Straight	50.00	67.75
.0610	MPDCSM0155A	04885	1.55mm	.0610	3mm	45mm	6mm	ALtima®	Straight	17.00	67.75
.0630	MPDCSM0160A	04886	1.6mm	.0630	3mm	45mm	6mm	ALtima®	Straight	51.00	67.75
.0650	MPDCSM0165A	04887	1.65mm	.0650	3mm	50mm	7mm	ALtima®	Straight	39.00	67.75
.0669	MPDCSM0170A	04888	1.7mm	.0669	3mm	50mm	7mm	ALtima®	Straight	40.00	67.75
.0689	MPDCSM0175A	04889	1.75mm	.0689	3mm	50mm	7mm	ALtima®	Straight	23.00	67.75
.0709	MPDCSM0180A	04890	1.8mm	.0709	3mm	50mm	7mm	ALtima®	Straight	37.00	67.75
.0728	MPDCSM0185A	04891	1.85mm	.0728	3mm	50mm	7mm	ALtima®	Straight	41.00	67.75
.0748	MPDCSM0190A	04892	1.9mm	.0748	3mm	50mm	8mm	ALtima®	Straight	41.00	67.75
.0768	MPDCSM0195A	04893	1.95mm	.0768	3mm	50mm	8mm	ALtima®	Straight	19.00	67.75
.0787	MPDCSM0200A	04894	2mm	.0787	3mm	50mm	8mm	ALtima®	Straight	23.00	67.75
.0807	MPDCSM0205A	04895	2.05mm	.0807	3mm	60mm	8mm	ALtima®	Straight	45.00	67.75
.0827	MPDCSM0210A	04896	2.1mm	.0827	3mm	60mm	8mm	ALtima®	Straight	52.00	67.75
.0846	MPDCSM0215A	04897	2.15mm	.0846	3mm	60mm	9mm	ALtima®	Straight	20.00	67.75
.0866	MPDCSM0220A	04898	2.2mm	.0866	3mm	60mm	9mm	ALtima®	Straight	13.00	67.75
.0886	MPDCSM0225A	04899	2.25mm	.0886	3mm	60mm	9mm	ALtima®	Straight	50.00	67.75
.0906	MPDCSM0230A	04900	2.3mm	.0906	3mm	60mm	9mm	ALtima®	Straight	43.00	67.75
.0925	MPDCSM0235A	04901	2.35mm	.0925	3mm	60mm	9mm	ALtima®	Straight	57.00	67.75
.0945	MPDCSM0240A	04902	2.4mm	.0945	3mm	60mm	10mm	ALtima®	Straight	51.00	67.75
.0965	MPDCSM0245A	04903	2.45mm	.0965	3mm	60mm	10mm	ALtima®	Straight	30.00	67.75
.0984	MPDCSM0250A	04904	2.5mm	.0984	3mm	60mm	10mm	ALtima®	Straight	22.00	67.75
.1004	MPDCSM0255A	04905	2.55mm	.1004	3mm	60mm	10mm	ALtima®	Straight	10.00	67.75
.1024	MPDCSM0260A	04906	2.6mm	.1024	3mm	60mm	10mm	ALtima®	Straight	20.00	67.75
.1043	MPDCSM0265A	04907	2.65mm	.1043	3mm	60mm	11mm	ALtima®	Straight	16.00	67.75
.1063	MPDCSM0270A	04908	2.7mm	.1063	3mm	60mm	11mm	ALtima®	Straight	5.00	67.75
.1083	MPDCSM0275A	04909	2.75mm	.1083	3mm	60mm	11mm	ALtima®	Straight	44.00	67.75
.1102	MPDCSM0280A	04910	2.8mm	.1102	3mm	60mm	11mm	ALtima®	Straight	29.00	67.75
.1122	MPDCSM0285A	04911	2.85mm	.1122	3mm	60mm	11mm	ALtima®	Straight	55.00	67.75
.1142	MPDCSM0290A	04912	2.9mm	.1142	3mm	60mm	12mm	ALtima®	Straight	65.00	67.75
.1161	MPDCSM0295A	04913	2.95mm	.1161	3mm	60mm	12mm	ALtima®	Straight	18.00	67.75
