PCD Tipped End Mill
A straight flute PCD tipped square end mill available with 1 to 9 flutes depending on tool size and configuration.  These end mills combine a PCD tip with a carbide body for maximum rigidity and optimal performance.  Offers excellent results in CFRP (Carbon-Fiber-Reinforced Polymer), fiberglass, aluminum and other very abrasive materials.
  • 1 to 9 flute options
  • Straight flute
  • Center cutting 1 and 2 flute options
  • Non-center cutting 3 - 9 flute options
  • Square end
  • PCD tipped with a carbide body
  • Inch and metric sizes

Materials

  • Non ISO
  • Non-Ferrous

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing

Series Attributes

Downloads

Product Range

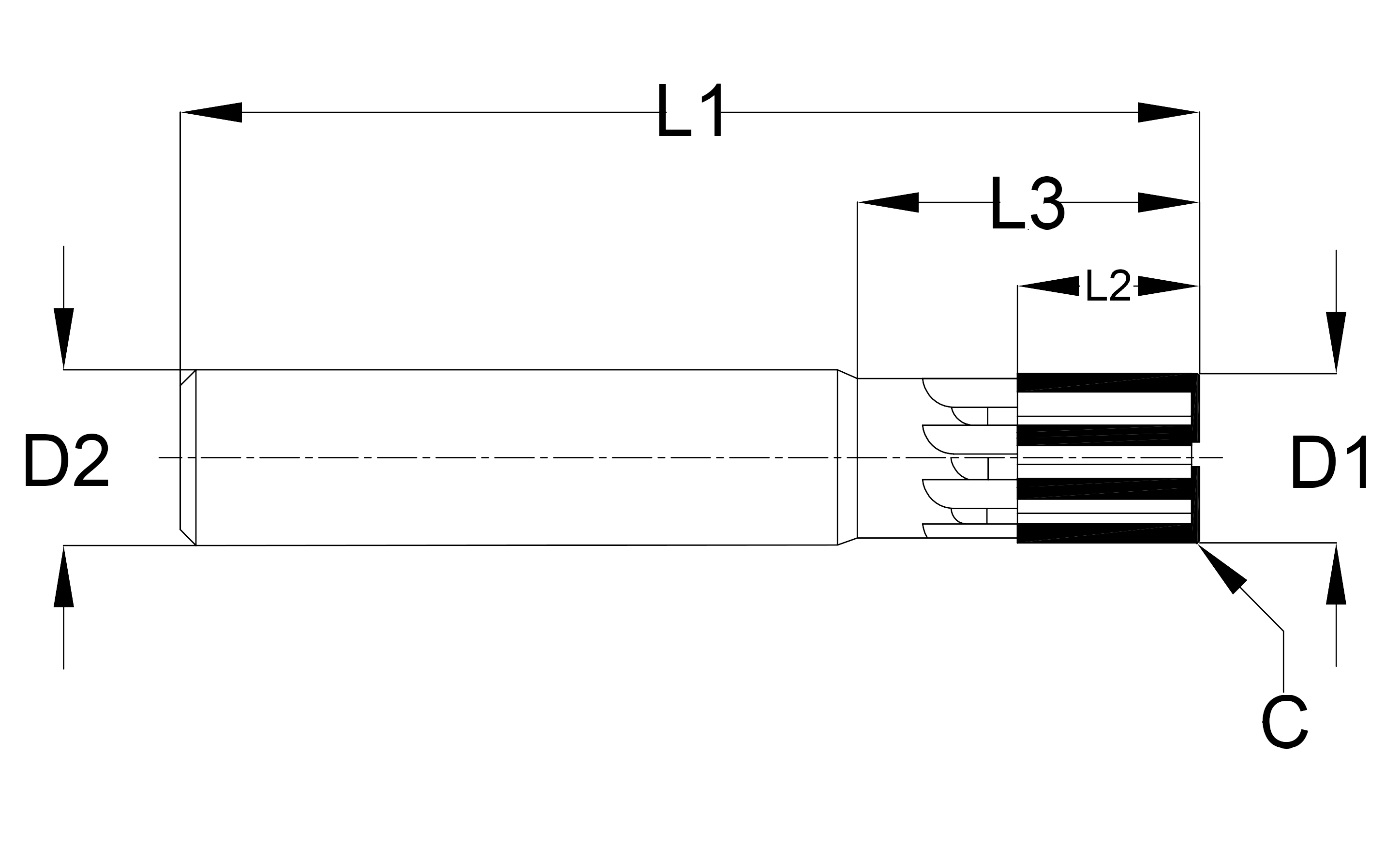

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Chamfer Coating Shank Type # Flutes RH Available List Price
.1181 DE1SM0300 90107 3mm 3mm 38mm 6mm 14mm .13mm Uncoated Straight 1 3.00 283.38
.1250 DE1S1250 90100 1/8 1/8 1-1/2 1/4 5/8 .005 Uncoated Straight 1 4.00 283.38
.1575 DE1SM0400 90108 4mm 4mm 50mm 6mm 15mm .13mm Uncoated Straight 1 4.00 293.24
.1875 DE1S1875 90101 3/16 3/16 2 5/16 7/8 .005 Uncoated Straight 1 5.00 299.69
.1968 DE2SM0500 90109 5mm 5mm 50mm 8mm 18mm .25mm Uncoated Straight 2 2.00 449.85
.2362 DE2SM0600 90110 6mm 6mm 64mm 10mm 22mm .25mm Uncoated Straight 2 5.00 481.9
.2362 DE2SM0601 90111 6mm 6mm 64mm 15mm 26mm .25mm Uncoated Straight 2 5.00 562.9
.2500 DE2S2500 90102 1/4 1/4 2 3/8 7/8 .010 Uncoated Straight 2 3.00 460.57
.3150 DE2SM0800 90112 8mm 8mm 64mm 10mm 24mm .25mm Uncoated Straight 2 5.00 528.73
.3150 DE2SM0801 90113 8mm 8mm 64mm 15mm 29mm .25mm Uncoated Straight 2 5.00 634.94
.3150 DE3SM0800 90153 8mm 8mm 64mm 11mm 26mm .25mm Uncoated Straight 3 5.00 580.03
.3750 DE2S3750 90103 3/8 3/8 2-1/2 1/2 1.0000 .010 Uncoated Straight 2 4.00 568.16
.3750 DE3S3750 90143 3/8 3/8 2-1/2 1/2 1.0000 .010 Uncoated Straight 3 5.00 625.42
.3750 DE5S3750 90144 3/8 3/8 2-1/2 1/2 1.1500 .010 Uncoated Straight 5 4.00 955.91
.3937 DE2SM1000 90114 10mm 10mm 75mm 15mm 30mm .25mm Uncoated Straight 2 5.00 696.9
.3937 DE3SM1000 90154 10mm 10mm 75mm 13mm 30mm .25mm Uncoated Straight 3 5.00 630.24
.3937 DE5SM1000 90155 10mm 10mm 75mm 13mm 30mm .25mm Uncoated Straight 5 4.00 975.67
.4724 DE2SM1200 90115 12mm 12mm 75mm 15mm 30mm .25mm Uncoated Straight 2 5.00 706.89
.4724 DE2SM1201 90116 12mm 12mm 75mm 25mm 40mm .25mm Uncoated Straight 2 4.00 854.29
.4724 DE3SM1200 90156 12mm 12mm 75mm 13mm 32mm .25mm Uncoated Straight 3 5.00 654.92
.4724 DE5SM1200 90157 12mm 12mm 75mm 13mm 32mm .25mm Uncoated Straight 5 4.00 1018.21
.4724 DE7SM1200 90158 12mm 12mm 75mm 13mm 32mm .25mm Uncoated Straight 7 4.00 1365
.4724 DE9SM1200 90159 12mm 12mm 75mm 13mm 32mm .25mm Uncoated Straight 9 4.00 1744.71
.5000 DE2S5000 90104 1/2 1/2 3 5/8 1-3/8 .010 Uncoated Straight 2 12.00 698.94
.5000 DE3S5000 90145 1/2 1/2 3 1/2 1-1/4 .010 Uncoated Straight 3 4.00 656.09
.5000 DE5S5000 90146 1/2 1/2 3 1/2 1-1/4 .010 Uncoated Straight 5 3.00 1019.37
.5000 DE7S5000 90147 1/2 1/2 3 1/2 1-1/4 .010 Uncoated Straight 7 3.00 1366.17
.5000 DE9S5000 90148 1/2 1/2 3 1/2 1-1/4 .010 Uncoated Straight 9 3.00 1745.87
.6250 DE2S6250 90105 5/8 5/8 3-1/2 7/8 1-3/4 .010 Uncoated Straight 2 4.00 912.4
.6250 DE3S6250 90149 5/8 5/8 3-1/2 5/8 1-1/2 .010 Uncoated Straight 3 4.00 807.63
.6250 DE5S6250 90150 5/8 5/8 3-1/2 5/8 1-3/8 .010 Uncoated Straight 5 4.00 1254
.6250 DE7S6250 90151 5/8 5/8 3-1/2 5/8 1-3/8 .015 Uncoated Straight 7 4.00 1686.13
.6250 DE9S6250 90152 5/8 5/8 3-1/2 5/8 1-3/8 .015 Uncoated Straight 9 3.00 2130.19
.6299 DE2SM1600 90117 16mm 16mm 92mm 20mm 42mm .25mm Uncoated Straight 2 4.00 881.78
.6299 DE3SM1600 90160 16mm 16mm 92mm 16mm 38mm .25mm Uncoated Straight 3 4.00 809.11
.6299 DE5SM1600 90161 16mm 16mm 92mm 16mm 42mm .25mm Uncoated Straight 5 4.00 1255.48
.6299 DE7SM1600 90162 16mm 16mm 92mm 16mm 42mm .25mm Uncoated Straight 7 4.00 1687.61
.6299 DE9SM1600 90163 16mm 16mm 92mm 16mm 37mm .25mm Uncoated Straight 9 3.00 2131.67
.7500 DE2S7500 90106 3/4 3/4 4 1 2.0000 .015 Uncoated Straight 2 3.00 1292.16
.7874 DE2SM2000 90118 20mm 20mm 100mm 25mm 50mm .25mm Uncoated Straight 2 3.00 1336.18
