Countersinks / 60

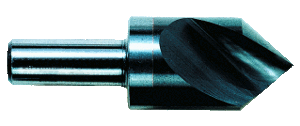

Carbide Uniflute® Countersink

Recommended for use on abrasive, non-metallic and non-ferrous materials. May be used on hardened steel and work hardening alloys.

Single flute
Solid carbide 1/8 - 1/4" sizes
Solid carbide head brazed to steel shank on sizes 3/8" and above
Available with 60°, 82°, 90° and 100° included angles
Included Angle Code (8th character of tool number): 1=60°, 2=82°, 3=90°, 4=100°
Uncoated, coating available upon request
Easily resharpened
Rigid set-ups and good machinery maintenance are a must
Not recommended for use in hand-held tools
Standard angles may be modified from 55° to 99°

Materials

Series Attributes

Downloads

Speed and Feed Data
Tolerance Chart

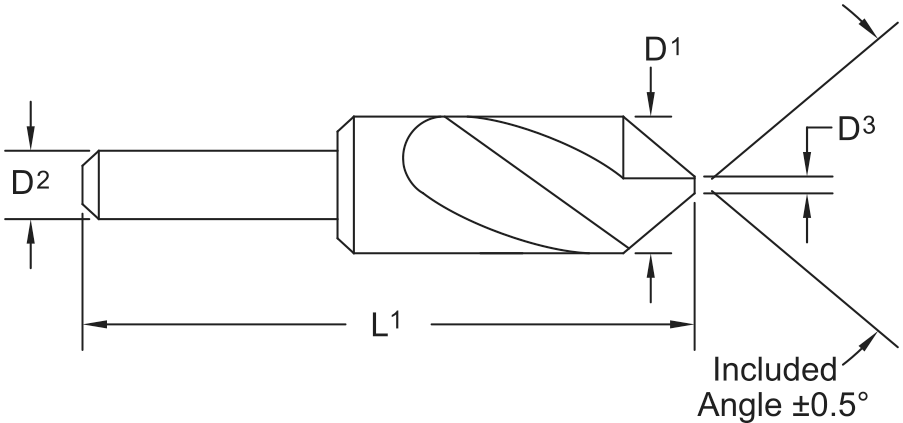

Line Drawing

Product Range

	Tool No.	EDP	Diameter (D/D1)	Shank Diameter (D2)	Overall Length (L1)	Non-Cutting Tip Dia Max (D3)	Included Angle (A)	Material	Coating	Shank Type	Available	List Price

.1250	60012501	60001	1/8	1/8	1-1/2	.015	60°	Carbide	Uncoated	Straight	192.00	16.05
.1250	60012502	60006	1/8	1/8	1-1/2	.015	82°	Carbide	Uncoated	Straight	130.00	16.05
.1250	60012503	60011	1/8	1/8	1-1/2	.015	90°	Carbide	Uncoated	Straight	1630.00	16.05
.1250	60012504	60016	1/8	1/8	1-1/2	.015	100°	Carbide	Uncoated	Straight	118.00	16.05
.1250	60012507	60018	1/8	1/8	1-1/2	.030	45°	Carbide	Uncoated	Straight	58.00	16.05
.1250	60012508	60019	1/8	1/8	1-1/2	.030	30°	Carbide	Uncoated	Straight	133.00	16.05
.1250	60012501F	76432	1/8	1/8	1-1/2	.015	60°	Carbide	Fordlube	Straight	0.00	21.68
.1250	60012502C	76433	1/8	1/8	1-1/2	.030	82°	Carbide	TiCN	Straight	0.00	20.33
.1250	60012502TIN	76434	1/8	1/8	1-1/2	.030	82°	Carbide	TiN	Straight	0.00	20.33
.1250	60012503A	76435	1/8	1/8	1-1/2	.030	90°	Carbide	ALtima®	Straight	5.00	20.33
.1250	60012503B	78065	1/8	1/8	1-1/2	.030	90°	Carbide	ALtima® Blaze	Straight	0.00	21.68
.1250	60012503C	76436	1/8	1/8	1-1/2	.030	90°	Carbide	TiCN	Straight	0.00	20.33
.1250	60012503TIN	76438	1/8	1/8	1-1/2	.030	90°	Carbide	TiN	Straight	79.00	20.33
.1250	60012504C	76439	1/8	1/8	1-1/2	.030	100°	Carbide	TiCN	Straight	0.00	20.33
.1250	60012501TIN	17032	1/8	1/8	1-1/2	.015	60°	Carbide	TiN	Straight	0.00	20.33
.1875	60018701	60021	3/16	3/16	1-1/2	.045	60°	Carbide	Uncoated	Straight	22.00	20.08
.1875	60018702	60026	3/16	3/16	1-1/2	.045	82°	Carbide	Uncoated	Straight	217.00	20.08
.1875	60018703	60031	3/16	3/16	1-1/2	.045	90°	Carbide	Uncoated	Straight	1274.00	20.08
.1875	60018704	60036	3/16	3/16	1-1/2	.045	100°	Carbide	Uncoated	Straight	191.00	20.08
.1875	60018701TIN	76440	3/16	3/16	1-1/2	.045	60°	Carbide	TiN	Straight	0.00	25.47
.1875	60018702A	76441	3/16	3/16	1-1/2	.045	82°	Carbide	ALtima®	Straight	0.00	25.47
.1875	60018702C	76442	3/16	3/16	1-1/2	.045	82°	Carbide	TiCN	Straight	0.00	25.47
.1875	60018703C	76443	3/16	3/16	1-1/2	.045	90°	Carbide	TiCN	Straight	0.00	25.47
.1875	60018703TIN	76444	3/16	3/16	1-1/2	.045	90°	Carbide	TiN	Straight	0.00	25.47
.1875	60018704C	76445	3/16	3/16	1-1/2	.045	100°	Carbide	TiCN	Straight	0.00	25.47
.1875	60018702TIN	17326	3/16	3/16	1-1/2	.045	82°	Carbide	TiN	Straight	0.00	27.73
.2500	60025001	60041	1/4	1/4	2	.045	60°	Carbide	Uncoated	Straight	231.00	24.27
.2500	60025002	60046	1/4	1/4	2	.045	82°	Carbide	Uncoated	Straight	438.00	24.27
.2500	60025003	60051	1/4	1/4	2	.045	90°	Carbide	Uncoated	Straight	957.00	24.27
.2500	60025004	60056	1/4	1/4	2	.045	100°	Carbide	Uncoated	Straight	626.00	24.27
.2500	60025001TIN	76446	1/4	1/4	2	.045	60°	Carbide	TiN	Straight	0.00	35.23
.2500	60025002A	78067	1/4	1/4	2	.045	82°	Carbide	ALtima®	Straight	0.00	35.23
.2500	60025002C	76447	1/4	1/4	2	.045	82°	Carbide	TiCN	Straight	0.00	35.23
.2500	60025002F	76448	1/4	1/4	2	.045	82°	Carbide	Fordlube	Straight	0.00	35.19
.2500	60025002TIN	76449	1/4	1/4	2	.045	82°	Carbide	TiN	Straight	0.00	35.23
.2500	60025003A	76450	1/4	1/4	2	.045	90°	Carbide	ALtima®	Straight	0.00	35.23
.2500	60025003B	78068	1/4	1/4	2	.045	90°	Carbide	ALtima® Blaze	Straight	0.00	35.23
.2500	60025003C	76451	1/4	1/4	2	.045	90°	Carbide	TiCN	Straight	8.00	35.23
.2500	60025003F	76452	1/4	1/4	2	.045	90°	Carbide	Fordlube	Straight	15.00	35.19
.2500	60025003TIN	76453	1/4	1/4	2	.045	90°	Carbide	TiN	Straight	29.00	35.23
.2500	60025004C	76454	1/4	1/4	2	.045	100°	Carbide	TiCN	Straight	0.00	35.23
.2500	60025004TIN	76455	1/4	1/4	2	.045	100°	Carbide	TiN	Straight	0.00	35.23
.3750	60037501	60061	3/8	1/4	2	.060	60°	Carbide	Uncoated	Straight	4.00	47.2
.3750	60037502	60066	3/8	1/4	2	.060	82°	Carbide	Uncoated	Straight	0.00	47.2
.3750	60037503	60071	3/8	1/4	2	.060	90°	Carbide	Uncoated	Straight	125.00	47.2
.3750	60037504	60076	3/8	1/4	2	.060	100°	Carbide	Uncoated	Straight	0.00	47.2
.3750	60037501A	14100	3/8	1/4	2	.060	60°	Carbide	ALtima®	Straight	0.00	66.9
.3750	60037501C	76456	3/8	1/4	2	.060	60°	Carbide	TiCN	Straight	0.00	58.98
.3750	60037502B	78069	3/8	1/4	2	.060	82°	Carbide	ALtima® Blaze	Straight	0.00	73.52
.3750	60037502C	76457	3/8	1/4	2	.060	82°	Carbide	TiCN	Straight	0.00	58.98
.3750	60037502TIN	78070	3/8	1/4	2	.060	82°	Carbide	TiN	Straight	0.00	58.98
.3750	60037503B	78072	3/8	1/4	2	.060	90°	Carbide	ALtima® Blaze	Straight	0.00	73.52
.3750	60037503C	76458	3/8	1/4	2	.060	90°	Carbide	TiCN	Straight	23.00	58.98
.3750	60037503F	76459	3/8	1/4	2	.060	90°	Carbide	Fordlube	Straight	0.00	61.97
.3750	60037503TIN	76460	3/8	1/4	2	.060	90°	Carbide	TiN	Straight	0.00	58.98
.3750	60037503A	18348	3/8	1/4	2	.060	90°	Carbide	ALtima®	Straight	0.00	66.89
.5000	60050001	60081	1/2	1/4	2-3/8	.060	60°	Carbide	Uncoated	Straight	121.00	65.48
.5000	60050002	60086	1/2	1/4	2-3/8	.060	82°	Carbide	Uncoated	Straight	185.00	65.48
.5000	60050004	60096	1/2	1/4	2-3/8	.060	100°	Carbide	Uncoated	Straight	88.00	65.48
.5000	60050003	60091	1/2	1/4	2-3/8	.060	90°	Carbide	Uncoated	Straight	215.00	65.48
.5000	60050001A	14101	1/2	1/4	2-3/8	.060	60°	Carbide	ALtima®	Straight	0.00	87.98
.5000	60050002C	78073	1/2	1/4	2-3/8	.060	82°	Carbide	TiCN	Straight	0.00	81.84
.5000	60050002TIN	76461	1/2	1/4	2-3/8	.060	82°	Carbide	TiN	Straight	0.00	81.84
.5000	60050003A	76462	1/2	1/4	2-3/8	.060	90°	Carbide	ALtima®	Straight	0.00	81.84
.5000	60050003B	78074	1/2	1/4	2-3/8	.060	90°	Carbide	ALtima® Blaze	Straight	16.00	95.51
.5000	60050003C	76463	1/2	1/4	2-3/8	.060	90°	Carbide	TiCN	Straight	0.00	81.84
.5000	60050003TIN	78075	1/2	1/4	2-3/8	.060	90°	Carbide	TiN	Straight	0.00	95.51
.5000	60050004C	78077	1/2	1/4	2-3/8	.060	100°	Carbide	TiCN	Straight	1.00	81.84
.7500	60075001	60101	3/4	1/2	3	.120	60°	Carbide	Uncoated	Straight	11.00	121.8
.7500	60075002	60106	3/4	1/2	3	.120	82°	Carbide	Uncoated	Straight	37.00	121.8
.7500	60075003	60111	3/4	1/2	3	.120	90°	Carbide	Uncoated	Straight	0.00	121.8
.7500	60075004	60116	3/4	1/2	3	.120	100°	Carbide	Uncoated	Straight	5.00	121.8
.7500	60075003T	12749	3/4	1/2	3	.120	90°	Carbide	Uncoated	Tang	0.00	137.34
.7500	60075002A	76464	3/4	1/2	3	.120	82°	Carbide	ALtima®	Straight	0.00	152.23
.7500	60075003A	76465	3/4	1/2	3	.120	90°	Carbide	ALtima®	Straight	0.00	152.23
.7500	60075003TIN	78078	3/4	1/2	3	.120	90°	Carbide	TiN	Straight	0.00	152.23
.7500	60075001A	14606	3/4	1/2	3	.120	60°	Carbide	ALtima®	Straight	0.00	164
.7500	60075003B	17158	3/4	1/2	3	.120	90°	Carbide	ALtima® Blaze	Straight	0.00	178.06
.7500	60075002ZR	17306	3/4	1/2	3	.120	82°	Carbide	ZRN	Straight	0.00	187.23
1.0000	60100001	60121	1	1/2	3	.120	60°	Carbide	Uncoated	Straight	25.00	199.23
1.0000	60100002	60126	1	1/2	3	.120	82°	Carbide	Uncoated	Straight	0.00	199.23
1.0000	60100003	60131	1	1/2	3	.120	90°	Carbide	Uncoated	Straight	0.00	199.23
1.0000	60100004	60136	1	1/2	3	.120	100°	Carbide	Uncoated	Straight	8.00	199.23
1.0000	60100003A	10899	1	1/2	3	.120	90°	Carbide	ALtima®	Straight	0.00	258.29
1.0000	60100001T	76466	1	1/2	3	.120	60°	Carbide	Uncoated	Tang	0.00	258.29
1.0000	60100003C	76467	1	1/2	3	.120	90°	Carbide	TiCN	Straight	0.00	258.29
1.0000	60100003T	76468	1	1/2	3	.120	90°	Carbide	Uncoated	Tang	0.00	258.29
1.0000	60100002B	14927	1	1/2	3	.120	82°	Carbide	ALtima® Blaze	Straight	4.00	258.29
