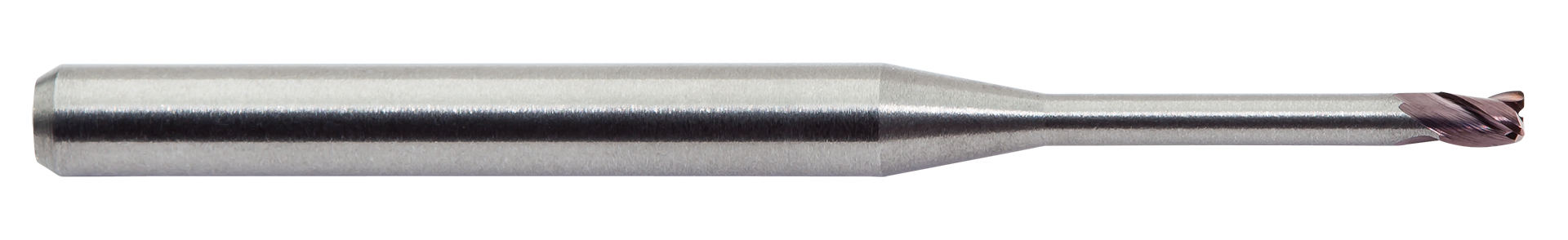

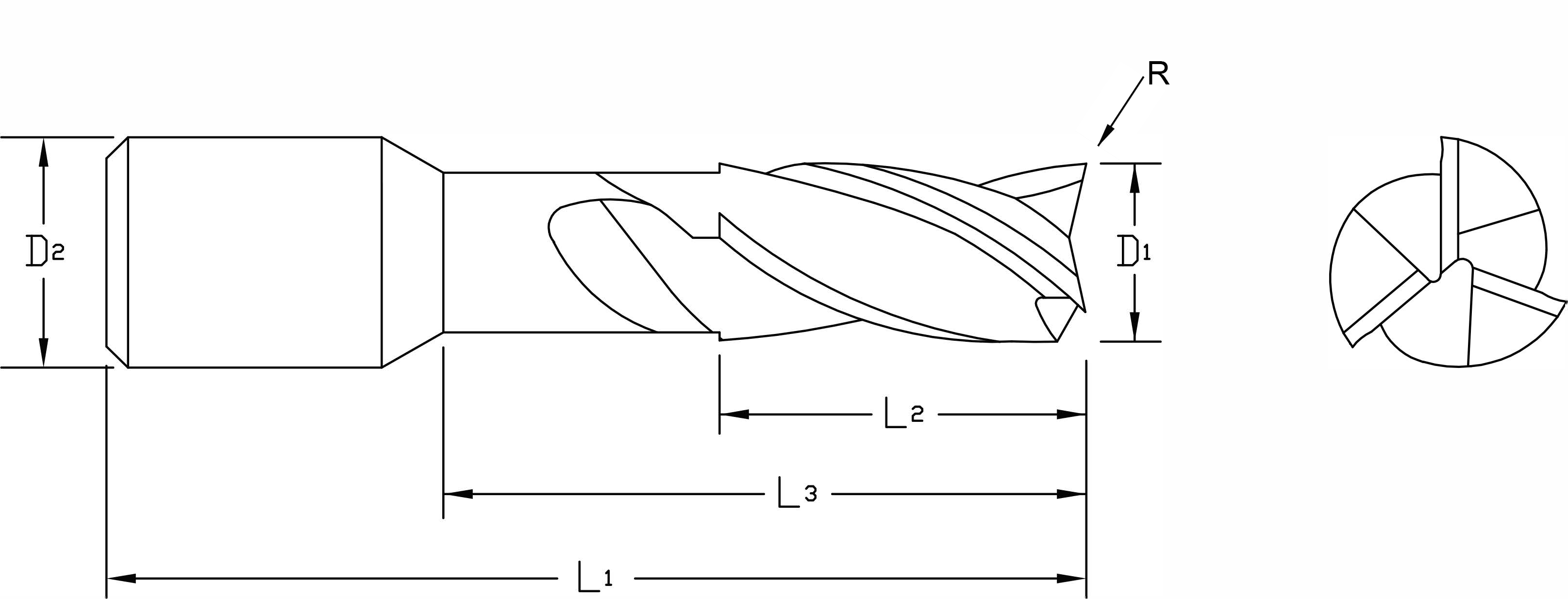

product photo product drawing

End Mills / 3MVS

Solid Carbide TuffCut® 3MVS 3 Flute Micro End Mill
For high performance micro milling on any ferrous material, especially material used in medical and aerospace manufacturing.
  • 3 Flute
  • Solid carbide
  • Stub length
  • Coated with ALtima® 52, AH=ALtima® 52 coated
  • 31°-35° Variable helix
  • Manufactured from premium grade ultrafine carbide material for extended tool life
  • Center cutting
  • Square end or corner radius styles and neck relief options
  • Common Shanks

Materials

  • Stainless steel
  • Super-alloys and titanium

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Corner Radius Coating Shank Type Available List Price
.0156 3MVS0156AH 39000 1/64 1/8 1-1/2 .023 ALtima® 52 Straight 139.00 62.42
.0156 3MVS0156N5AH 39002 1/64 1/8 2-1/2 .023 .0780 ALtima® 52 Straight 70.00 72.31
.0156 3MVS0156N8AH 39003 1/64 1/8 2-1/2 .023 .1250 ALtima® 52 Straight 11.00 72.31
.0156 3MVS0156R.003AH 39066 1/64 1/8 1-1/2 .023 0.003 ALtima® 52 Straight 92.00 63.63
.0156 3MVS0156R.003N5AH 39068 1/64 1/8 2-1/2 .023 .0780 0.003 ALtima® 52 Straight 37.00 77.32
.0156 3MVS0156R.003N8AH 39069 1/64 1/8 2-1/2 .023 .1250 0.003 ALtima® 52 Straight 10.00 78.89
.0197 3MVSM0050AH 39004 0.50mm 4mm 50mm 0.75mm ALtima® 52 Straight 47.00 60
.0197 3MVSM0050R.10AH 39070 0.50mm 4mm 50mm 0.75mm 0.1mm ALtima® 52 Straight 46.00 60.91
.0197 3MVSM0050R.10N5AH 39072 0.50mm 4mm 50mm 0.75mm 2.5mm 0.1mm ALtima® 52 Straight 9.00 81.33
.0197 3MVSM0050R.10N8AH 39073 0.50mm 4mm 50mm 0.75mm 4mm 0.1mm ALtima® 52 Straight 9.00 83.05
.0312 3MVS0312AH 39006 1/32 1/8 1-1/2 .047 ALtima® 52 Straight 86.00 42.67
.0312 3MVS0312N3AH 39008 1/32 1/8 1-1/2 .047 .0930 ALtima® 52 Straight 14.00 66.15
.0312 3MVS0312N5AH 39009 1/32 1/8 2-1/2 .047 .1560 ALtima® 52 Straight 51.00 67.73
.0312 3MVS0312N10AH 39011 1/32 1/8 2-1/2 .047 .3120 ALtima® 52 Straight 6.00 74.45
.0312 3MVS0312N12AH 39012 1/32 1/8 2-1/2 .047 .3750 ALtima® 52 Straight 11.00 76.89
.0312 3MVS0312N8AH 39010 1/32 1/8 2-1/2 .047 .2500 ALtima® 52 Straight 7.00 69.16
.0312 3MVS0312N15AH 39013 1/32 1/8 2-1/2 .047 .4800 ALtima® 52 Straight 6.00 78.32
.0312 3MVS0312R.005AH 39074 1/32 1/8 1-1/2 .047 0.005 ALtima® 52 Straight 69.00 46.25
.0312 3MVS0312R.005N5AH 39076 1/32 1/8 2-1/2 .047 .1560 0.005 ALtima® 52 Straight 36.00 68.44
.0312 3MVS0312R.005N8AH 39077 1/32 1/8 2-1/2 .047 .2500 0.005 ALtima® 52 Straight 7.00 70.02
.0312 3MVS0312R.010AH 39078 1/32 1/8 1-1/2 .047 0.01 ALtima® 52 Straight 83.00 49.72
.0312 3MVS0312R.010N5AH 39080 1/32 1/8 2-1/2 .047 .1560 0.01 ALtima® 52 Straight 49.00 68.01
.0312 3MVS0312R.010N8AH 39081 1/32 1/8 2-1/2 .047 .2500 0.01 ALtima® 52 Straight 10.00 70.02
.0394 3MVSM0100AH 39014 1mm 4mm 50mm 1.5mm ALtima® 52 Straight 48.00 50.48
.0394 3MVSM0100N5AH 39016 1mm 4mm 50mm 1.5mm 5mm ALtima® 52 Straight 22.00 73.02
.0394 3MVSM0100N8AH 39017 1mm 4mm 50mm 1.5mm 8.0mm ALtima® 52 Straight 5.00 73.45
.0394 3MVSM0100R.10AH 39082 1mm 4mm 50mm 1.5mm 0.1mm ALtima® 52 Straight 101.00 51.24
.0394 3MVSM0100R.10N5AH 39084 1mm 4mm 50mm 1.5mm 5mm 0.1mm ALtima® 52 Straight 11.00 73.45
.0394 3MVSM0100R.10N8AH 39085 1mm 4mm 50mm 1.5mm 8.0mm 0.1mm ALtima® 52 Straight 11.00 77.32
.0394 3MVSM0100R.20AH 39165 1mm 4mm 50mm 1.5mm 0.2mm ALtima® 52 Straight 110.00 51.24
.0468 3MVS0468AH 39018 3/64 1/8 1-1/2 .070 ALtima® 52 Straight 127.00 45.04
.0468 3MVS0468N10AH 39022 3/64 1/8 2-1/2 .070 .4800 ALtima® 52 Straight 8.00 72.45
.0468 3MVS0468N5AH 39020 3/64 1/8 2-1/2 .070 .2500 ALtima® 52 Straight 104.00 66.15
.0468 3MVS0468N8AH 39021 3/64 1/8 2-1/2 .070 .3750 ALtima® 52 Straight 5.00 67.73
.0468 3MVS0468R.005AH 39086 3/64 1/8 1-1/2 .070 0.005 ALtima® 52 Straight 59.00 46.25
.0468 3MVS0468R.005N5AH 39088 3/64 1/8 2-1/2 .070 .2500 0.005 ALtima® 52 Straight 39.00 68.44
.0468 3MVS0468R.005N8AH 39089 3/64 1/8 2-1/2 .070 .3750 0.005 ALtima® 52 Straight 5.00 70.02
.0468 3MVS0468R.010AH 39090 3/64 1/8 1-1/2 .070 0.01 ALtima® 52 Straight 93.00 49.72
.0468 3MVS0468R.010N5AH 39092 3/64 1/8 2-1/2 .070 .2500 0.01 ALtima® 52 Straight 43.00 68.44
.0468 3MVS0468R.010N8AH 39093 3/64 1/8 2-1/2 .070 .3750 0.01 ALtima® 52 Straight 10.00 70.02
.0591 3MVSM0150AH 39023 1.5mm 4mm 50mm 2.25mm ALtima® 52 Straight 56.00 47.46
.0591 3MVSM0150R.20AH 39094 1.5mm 4mm 50mm 2.25mm 0.2mm ALtima® 52 Straight 60.00 48.06
.0591 3MVSM0150R.20N5AH 39096 1.5mm 4mm 50mm 2.25mm 7.5mm 0.2mm ALtima® 52 Straight 7.00 73.45
.0591 3MVSM0150R.20N8AH 39097 1.5mm 4mm 50mm 2.25mm 12mm 0.2mm ALtima® 52 Straight 7.00 75.31
.0591 3MVSM0150R.50AH 39162 1.5mm 4mm 50mm 2.25mm 0.5mm ALtima® 52 Straight 56.00 48.07
.0591 3MVSM0150R.50N6AH 39163 1.5mm 4mm 50mm 2.25mm 10mm 0.5mm ALtima® 52 Straight 22.00 73.45
.0591 3MVSM0150R.50N8AH 39164 1.5mm 4mm 50mm 2.25mm 12mm 0.5mm ALtima® 52 Straight 21.00 75.32
.0625 3MVS0625AH 39025 1/16 1/8 1-1/2 .094 ALtima® 52 Straight 33.00 42.17
.0625 3MVS0625N3AH 39027 1/16 1/8 1-1/2 .094 .1870 ALtima® 52 Straight 5.00 66.15
.0625 3MVS0625N5AH 39028 1/16 1/8 2-1/2 .094 .3120 ALtima® 52 Straight 72.00 67.73
.0625 3MVS0625N10AH 39030 1/16 1/8 2-1/2 .094 .6250 ALtima® 52 Straight 10.00 74.45
.0625 3MVS0625N12AH 39031 1/16 1/8 2-1/2 .094 .7500 ALtima® 52 Straight 29.00 76.89
.0625 3MVS0625N8AH 39029 1/16 1/8 2-1/2 .094 .5000 ALtima® 52 Straight 21.00 69.16
.0625 3MVS0625N15AH 39032 1/16 1/8 2-1/2 .094 .9500 ALtima® 52 Straight 13.00 78.32
.0625 3MVS0625R.005AH 39098 1/16 1/8 1-1/2 .094 0.005 ALtima® 52 Straight 78.00 43.07
.0625 3MVS0625R.005N5AH 39100 1/16 1/8 2-1/2 .094 .3120 0.005 ALtima® 52 Straight 86.00 68.01
.0625 3MVS0625R.005N8AH 39101 1/16 1/8 2-1/2 .094 .5000 0.005 ALtima® 52 Straight 9.00 70.02
.0625 3MVS0625R.010AH 39102 1/16 1/8 1-1/2 .094 0.01 ALtima® 52 Straight 53.00 43.07
.0625 3MVS0625R.010N5AH 39104 1/16 1/8 2-1/2 .094 .3120 0.01 ALtima® 52 Straight 48.00 68.44
.0625 3MVS0625R.010N8AH 39105 1/16 1/8 2-1/2 .094 .5000 0.01 ALtima® 52 Straight 10.00 70.02
.0625 3MVS0625R.015AH 39106 1/16 1/8 1-1/2 .094 0.015 ALtima® 52 Straight 97.00 43.07
.0625 3MVS0625R.015N5AH 39108 1/16 1/8 2-1/2 .094 .3120 0.015 ALtima® 52 Straight 78.00 68.01
.0625 3MVS0625R.015N8AH 39109 1/16 1/8 2-1/2 .094 .5000 0.015 ALtima® 52 Straight 15.00 70.02
.0781 3MVS0781AH 39033 5/64 1/8 1-1/2 .117 ALtima® 52 Straight 333.00 42.17
.0781 3MVS0781N5AH 39035 5/64 1/8 2-1/2 .117 .4060 ALtima® 52 Straight 48.00 66.15
.0781 3MVS0781N10AH 39037 5/64 1/8 2-1/2 .117 .8000 ALtima® 52 Straight 11.00 72.45
.0781 3MVS0781N8AH 39036 5/64 1/8 2-1/2 .117 .6250 ALtima® 52 Straight 8.00 67.73
.0781 3MVS0781R.005AH 39110 5/64 1/8 1-1/2 .117 0.005 ALtima® 52 Straight 92.00 43.07
.0781 3MVS0781R.005N5AH 39112 5/64 1/8 2-1/2 .117 .4060 0.005 ALtima® 52 Straight 46.00 68.44
.0781 3MVS0781R.005N8AH 39113 5/64 1/8 2-1/2 .117 .6250 0.005 ALtima® 52 Straight 10.00 70.02
.0781 3MVS0781R.010AH 39114 5/64 1/8 1-1/2 .117 0.01 ALtima® 52 Straight 93.00 43.07
.0781 3MVS0781R.010N5AH 39116 5/64 1/8 2-1/2 .117 .4060 0.01 ALtima® 52 Straight 35.00 68.44
.0781 3MVS0781R.010N8AH 39117 5/64 1/8 2-1/2 .117 .6250 0.01 ALtima® 52 Straight 9.00 70.02
.0781 3MVS0781R.015AH 39118 5/64 1/8 1-1/2 .117 0.015 ALtima® 52 Straight 88.00 47.76
.0781 3MVS0781R.015N5AH 39120 5/64 1/8 2-1/2 .117 .4060 0.015 ALtima® 52 Straight 55.00 68.44
.0781 3MVS0781R.015N8AH 39121 5/64 1/8 2-1/2 .117 .6250 0.015 ALtima® 52 Straight 17.00 70.02
.0787 3MVSM0200AH 39038 2mm 4mm 50mm 3mm ALtima® 52 Straight 179.00 47.46
.0787 3MVSM0200N5AH 39040 2mm 4mm 50mm 3mm 10mm ALtima® 52 Straight 15.00 74.17
.0787 3MVSM0200N8AH 39041 2mm 4mm 50mm 3mm 16mm ALtima® 52 Straight 109.00 74.88
.0787 3MVSM0200R.20AH 39122 2mm 4mm 50mm 3mm 0.2mm ALtima® 52 Straight 52.00 48.06
.0787 3MVSM0200R.20N5AH 39124 2mm 4mm 50mm 3mm 10mm 0.2mm ALtima® 52 Straight 4.00 73.45
.0787 3MVSM0200R.20N8AH 39125 2mm 4mm 50mm 3mm 16mm 0.2mm ALtima® 52 Straight 14.00 75.31
.0938 3MVS0938AH 39042 3/32 1/8 1-1/2 .141 ALtima® 52 Straight 107.00 42.17
.0938 3MVS0938N3AH 39044 3/32 1/8 1-1/2 .141 .2790 ALtima® 52 Straight 10.00 66.15
.0938 3MVS0938N5AH 39045 3/32 1/8 2-1/2 .141 .5000 ALtima® 52 Straight 84.00 67.73
.0938 3MVS0938N10AH 39047 3/32 1/8 2-1/2 .141 .9500 ALtima® 52 Straight 4.00 74.45
.0938 3MVS0938N12AH 39048 3/32 1/8 2-1/2 .141 1.1250 ALtima® 52 Straight 4.00 76.89
.0938 3MVS0938N15AH 39049 3/32 1/8 2-1/2 .281 1.4000 ALtima® 52 Straight 10.00 78.32
.0938 3MVS0938N8AH 39046 3/32 1/8 2-1/2 .141 .7500 ALtima® 52 Straight 10.00 69.16
.0938 3MVS0938R.005AH 39126 3/32 1/8 1-1/2 .141 0.005 ALtima® 52 Straight 90.00 43.07
.0938 3MVS0938R.005N5AH 39128 3/32 1/8 2-1/2 .141 .5000 0.005 ALtima® 52 Straight 73.00 68.01
.0938 3MVS0938R.005N8AH 39129 3/32 1/8 2-1/2 .141 .7500 0.005 ALtima® 52 Straight 10.00 70.02
.0938 3MVS0938R.010N8AH 39133 3/32 1/8 2-1/2 .141 .7500 0.01 ALtima® 52 Straight 10.00 70.02
.0938 3MVS0938R.015AH 39134 3/32 1/8 1-1/2 .141 0.015 ALtima® 52 Straight 87.00 43.07
.0938 3MVS0938R.015N5AH 39136 3/32 1/8 2-1/2 .141 .5000 0.015 ALtima® 52 Straight 62.00 68.01
.0938 3MVS0938R.010AH 39130 3/32 1/8 1-1/2 .141 0.01 ALtima® 52 Straight 76.00 43.07
.0938 3MVS0938R.015N8AH 39137 3/32 1/8 2-1/2 .141 .7500 0.015 ALtima® 52 Straight 4.00 70.02
.0938 3MVS0938R.020AH 39138 3/32 1/8 1-1/2 .141 0.02 ALtima® 52 Straight 87.00 43.07
.0938 3MVS0938R.020N8AH 39141 3/32 1/8 2-1/2 .141 .7500 0.02 ALtima® 52 Straight 20.00 70.02
.0938 3MVS0938R.020N5AH 39140 3/32 1/8 2-1/2 .141 .5000 0.02 ALtima® 52 Straight 41.00 68.01
.0938 3MVS0938R.010N5AH 39132 3/32 1/8 2-1/2 .141 .5000 0.01 ALtima® 52 Straight 48.00 68.44
.0984 3MVSM0250AH 39050 2.5mm 4mm 50mm 3.75mm ALtima® 52 Straight 79.00 47.46
.1094 3MVS1094AH 39052 7/64 1/8 1-1/2 .164 ALtima® 52 Straight 108.00 42.17
.1094 3MVS1094N5AH 39054 7/64 1/8 2-1/2 .164 .5700 ALtima® 52 Straight 67.00 66.15
.1094 3MVS1094N8AH 39055 7/64 1/8 2-1/2 .164 .9000 ALtima® 52 Straight 9.00 67.73
.1181 3MVSM0300AH 39056 3mm 4mm 50mm 4.5mm ALtima® 52 Straight 105.00 47.46
.1181 3MVSM0300N5AH 39058 3mm 4mm 50mm 4.5mm 15mm ALtima® 52 Straight 11.00 67.44
.1181 3MVSM0300N8AH 39059 3mm 4mm 50mm 4.5mm 24mm ALtima® 52 Straight 8.00 67.73
.1181 3MVSM0300R.20AH 39142 3mm 4mm 50mm 4.5mm 0.2mm ALtima® 52 Straight 47.00 48.06
.1181 3MVSM0300R.20N5AH 39144 3mm 4mm 50mm 4.5mm 15mm 0.2mm ALtima® 52 Straight 4.00 69.73
.1181 3MVSM0300R.20N8AH 39145 3mm 4mm 50mm 4.5mm 24mm 0.2mm ALtima® 52 Straight 6.00 69.87
.1250 3MVS1250AH 39060 1/8 1/8 1-1/2 .188 ALtima® 52 Straight 60.00 40.96
.1250 3MVS1250N5AH 39063 1/8 1/8 2-1/2 .188 .6250 ALtima® 52 Straight 41.00 67.73
.1250 3MVS1250N10AH 39065 1/8 1/8 2-1/2 .188 1.2500 ALtima® 52 Straight 6.00 74.45
.1250 3MVS1250N3AH 39062 1/8 1/8 1-1/2 .188 .3750 ALtima® 52 Straight 7.00 66.15
.1250 3MVS1250N8AH 39064 1/8 1/8 2-1/2 .188 1.0000 ALtima® 52 Straight 5.00 69.16
.1250 3MVS1250R.005AH 39146 1/8 1/8 1-1/2 .188 0.005 ALtima® 52 Straight 84.00 43.07
.1250 3MVS1250R.005N5AH 39148 1/8 1/8 2-1/2 .188 .6250 0.005 ALtima® 52 Straight 40.00 71.11
.1250 3MVS1250R.005N8AH 39149 1/8 1/8 2-1/2 .188 1.0000 0.005 ALtima® 52 Straight 12.00 73.34
.1250 3MVS1250R.010AH 39150 1/8 1/8 1-1/2 .188 0.01 ALtima® 52 Straight 98.00 41.86
.1250 3MVS1250R.010N5AH 39152 1/8 1/8 2-1/2 .188 .6250 0.01 ALtima® 52 Straight 61.00 74.93
.1250 3MVS1250R.010N8AH 39153 1/8 1/8 2-1/2 .188 1.0000 0.01 ALtima® 52 Straight 5.00 77.16
.1250 3MVS1250R.015AH 39154 1/8 1/8 1-1/2 .188 0.015 ALtima® 52 Straight 92.00 41.86
.1250 3MVS1250R.015N5AH 39156 1/8 1/8 2-1/2 .188 .6250 0.015 ALtima® 52 Straight 58.00 75.25
.1250 3MVS1250R.015N8AH 39157 1/8 1/8 2-1/2 .188 1.0000 0.015 ALtima® 52 Straight 8.00 77.16
.1250 3MVS1250R.020AH 39158 1/8 1/8 1-1/2 .188 0.02 ALtima® 52 Straight 95.00 50.48
.1250 3MVS1250R.020N5AH 39160 1/8 1/8 2-1/2 .188 .6250 0.02 ALtima® 52 Straight 40.00 74.93
.1250 3MVS1250R.020N8AH 39161 1/8 1/8 2-1/2 .188 1.0000 0.02 ALtima® 52 Straight 20.00 77.16
