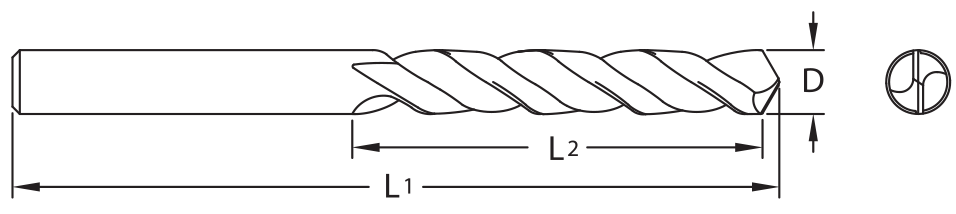

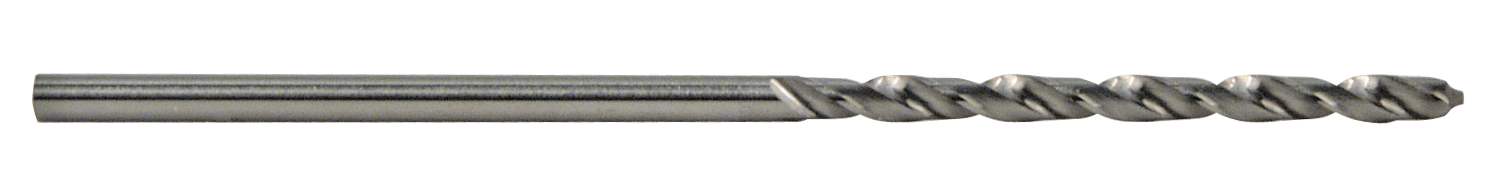

product photo product drawing

Drills / 300

Solid Carbide Twister® GP Drill
Designed for drilling soft metals as well as glass reinforced circuit boards, phenolic-epoxies and other abrasive materials.
  • 2 Flute
  • Solid carbide
  • 3 Drilling lengths available
  • Single margin
  • 118° Point
  • 35° Helix
  • Uncoated
  • Uncoated tools available coated upon request.  Contact Customer Service
  • Straight shank
  • Size range .0135-.2500", 0.50-3.15mm
  • Recommended max drill depth = L2 - 1.5 x D1

Materials

  • Steel
  • Cast iron
  • Non-Ferrous

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Diameter Dec Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Coating Shank Type Available List Price
.0135 30001350 30001 #80 .0135 .0135 1-1/2 1/4 Uncoated Straight 94.00 16.28
.0145 30001450 30005 #79 .0145 .0145 1-1/2 1/4 Uncoated Straight 39.00 16.28
.0156 30001560 30009 1/64 .0156 1/64 1-1/2 1/4 Uncoated Straight 160.00 15.97
.0160 30001600 30013 #78 .0160 .0160 1-1/2 1/4 Uncoated Straight 73.00 16.12
.0180 30001800 30017 #77 .0180 .0180 1-1/2 1/4 Uncoated Straight 137.00 15.5
.0197 30001970 30021 0.50mm .0197 0.5mm 38mm 9.5mm Uncoated Straight 331.00 15.66
.0200 30002000 30025 #76 .0200 .0200 1-1/2 3/8 Uncoated Straight 90.00 15.03
.0210 30002100 30029 #75 .0210 .0210 1-1/2 3/8 Uncoated Straight 66.00 14.89
.0217 30002170 30033 0.55mm .0217 0.55mm 38mm 9.5mm Uncoated Straight 252.00 16.28
.0225 30002250 30037 #74 .0225 .0225 1-1/2 3/8 Uncoated Straight 289.00 14.72
.0236 30002360 30041 0.60mm .0236 0.6mm 38mm 9.5mm Uncoated Straight 629.00 15.5
.0240 30002400 30045 #73 .0240 .0240 1-1/2 3/8 Uncoated Straight 73.00 14.56
.0250 30002500 30049 #72 .0250 .0250 1-1/2 1/2 Uncoated Straight 20.00 14.41
.0256 30002560 30053 0.65mm .0256 0.65mm 38mm 12.5mm Uncoated Straight 0.00 15.97
.0260 30002600 30057 #71 .0260 .0260 1-1/2 1/2 Uncoated Straight 119.00 14.56
.0276 30002760 30061 0.70mm .0276 0.7mm 38mm 12.5mm Uncoated Straight 316.00 15.66
.0280 30002800 30065 #70 .0280 .0280 1-1/2 1/2 Uncoated Straight 49.00 13.94
.0292 30002920 30069 #69 .0292 .0292 1-1/2 1/2 Uncoated Straight 84.00 13.64
.0295 30002950 30073 0.75mm .0295 0.75mm 38mm 12.5mm Uncoated Straight 235.00 14.89
.0310 30003100 30077 #68 .0310 .0310 1-1/2 1/2 Uncoated Straight 260.00 13.49
.0312 30003120 30081 1/32 .0312 1/32 1-1/2 1/2 Uncoated Straight 96.00 12.87
.0312 30003120A 76029 1/32 .0312 1/32 1-1/2 1/2 ALtima® Straight 38.00 18.49
.0315 30003150 30085 0.8mm .0315 0.8mm 38mm 12.5mm Uncoated Straight 0.00 14.89
.0320 30003200 30089 #67 .0320 .0320 1-1/2 1/2 Uncoated Straight 25.00 13.32
.0330 30003300 30093 #66 .0330 .0330 1-1/2 1/2 Uncoated Straight 0.00 13.49
.0335 30003350 30097 0.85mm .0335 0.85mm 38mm 12.5mm Uncoated Straight 4.00 16.58
.0350 30003500 30101 #65 .0350 .0350 1-1/2 5/8 Uncoated Straight 0.00 14.72
.0350 30003500A 16062 #65 .0350 .0350 1-1/2 5/8 ALtima® Straight 0.00 20.34
.0354 30003540 30105 0.9mm .0354 0.9mm 38mm 16mm Uncoated Straight 225.00 15.66
.0360 30003600 30109 #64 .0360 .0360 1-1/2 5/8 Uncoated Straight 114.00 15.03
.0370 30003700 30113 #63 .0370 .0370 1-1/2 5/8 Uncoated Straight 46.00 14.89
.0374 30003740 30117 0.95mm .0374 0.95mm 38mm 16mm Uncoated Straight 171.00 16.58
.0380 30003800 30121 #62 .0380 .0380 1-1/2 5/8 Uncoated Straight 67.00 15.03
.0390 30003900 30125 #61 .0390 .0390 1-1/2 5/8 Uncoated Straight 128.00 15.35
.0394 30003940 30129 1mm .0394 1mm 38mm 16mm Uncoated Straight 599.00 14.72
.0400 30004000 30133 #60 .0400 .0400 1-1/2 5/8 Uncoated Straight 52.00 15.03
.0410 30004100 30137 #59 .0410 .0410 1-1/2 5/8 Uncoated Straight 218.00 14.72
.0413 30004130 30141 1.05mm .0413 1.05mm 38mm 16mm Uncoated Straight 2.00 14.72
.0420 30004200 30145 #58 .0420 .0420 1-1/2 5/8 Uncoated Straight 60.00 14.72
.0430 30004300 30149 #57 .0430 .0430 1-1/2 5/8 Uncoated Straight 250.00 14.11
.0433 30004330 30153 1.1mm .0433 1.1mm 38mm 16mm Uncoated Straight 319.00 14.11
.0452 30004520 30157 1.15mm .0452 1.15mm 38mm 16mm Uncoated Straight 239.00 14.11
.0465 30004650 30161 #56 .0465 .0465 1-1/2 5/8 Uncoated Straight 24.00 13.49
.0469 30004690 30165 3/64 .0469 3/64 1-1/2 5/8 Uncoated Straight 115.00 13.49
.0472 30004720 30169 1.2mm .0472 1.2mm 38mm 16mm Uncoated Straight 198.00 13.49
.0472 30004720A 77957 1.2mm .0472 1.2mm 38mm 16mm ALtima® Straight 0.00 19.13
.0492 30004920 30173 1.25mm .0492 1.25mm 38mm 16mm Uncoated Straight 191.00 12.87
.0492 30004920A 10825 1.25mm .0492 1.25mm 38mm 16mm ALtima® Straight 21.00 18.49
.0511 30005110 30177 1.3mm .0511 1.3mm 38mm 16mm Uncoated Straight 801.00 12.87
.0520 30005200 30181 #55 .0520 .0520 1-1/2 5/8 Uncoated Straight 299.00 12.87
.0531 30005310 30185 1.35mm .0531 1.35mm 38mm 16mm Uncoated Straight 255.00 12.24
.0550 30005500 30189 #54 .0550 .0550 1-1/2 5/8 Uncoated Straight 53.00 12.24
.0550 30005500GP 16866 #54 .0550 .0550 1-1/2 5/8 Gem Plus Straight 0.00 25.98
.0551 30005510 30193 1.4mm .0551 1.4mm 38mm 16mm Uncoated Straight 200.00 12.24
.0571 30005710 30197 1.45mm .0571 1.45mm 38mm 16mm Uncoated Straight 282.00 11.63
.0590 30005900 30201 1.5mm .0590 1.5mm 38mm 16mm Uncoated Straight 298.00 11.63
.0595 30005950 30205 #53 .0595 .0595 1-1/2 5/8 Uncoated Straight 295.00 11.63
.0610 30006100 30209 1.55mm .0610 1.55mm 38mm 16mm Uncoated Straight 1076.00 11.63
.0610 30006100A 77959 1.55mm .0610 1.55mm 38mm 16mm ALtima® Straight 19.00 17.26
.0625 30006250 30213 1/16 .0625 1/16 1-1/2 5/8 Uncoated Straight 173.00 11.63
.0630 30006300 30217 1.6mm .0630 1.6mm 38mm 16mm Uncoated Straight 112.00 10.98
.0635 30006350 30221 #52 .0635 .0635 1-1/2 5/8 Uncoated Straight 110.00 10.98
.0635 30006350A 15154 #52 .0635 .0635 1-1/2 5/8 ALtima® Straight 0.00 16.61
.0649 30006490 30225 1.65mm .0649 1.65mm 38mm 16mm Uncoated Straight 361.00 10.98
.0649 30006490A 76030 1.65mm .0649 1.65mm 38mm 16mm ALtima® Straight 20.00 16.61
.0669 30006690 30229 1.7mm .0669 1.7mm 38mm 16mm Uncoated Straight 206.00 10.98
.0670 30006700 30233 #51 .0670 .0670 1-1/2 5/8 Uncoated Straight 181.00 10.38
.0670 30006700A 77960 #51 .0670 .0670 1-1/2 5/8 ALtima® Straight 0.00 16
.0689 30006890 30237 1.75mm .0689 1.75mm 38mm 16mm Uncoated Straight 606.00 10.38
.0689 30006890A 77961 1.75mm .0689 1.75mm 38mm 16mm ALtima® Straight 3.00 16
.0700 30007000 30241 #50 .0700 .0700 1-1/2 5/8 Uncoated Straight 886.00 10.38
.0708 30007080 30245 1.8mm .0708 1.8mm 38mm 16mm Uncoated Straight 144.00 10.38
.0728 30007280 30249 1.85mm .0728 1.85mm 38mm 16mm Uncoated Straight 199.00 10.38
.0730 30007300 30253 #49 .0730 .0730 1-1/2 5/8 Uncoated Straight 199.00 10.22
.0730 30007300A 13583 #49 .0730 .0730 1-1/2 5/8 ALtima® Straight 0.00 15.84
.0748 30007480 30257 1.9mm .0748 1.9mm 38mm 16mm Uncoated Straight 232.00 10.98
.0760 30007600 30261 #48 .0760 .0760 1-1/2 5/8 Uncoated Straight 65.00 10.71
.0767 30007670 30265 1.95mm .0767 1.95mm 38mm 16mm Uncoated Straight 331.00 10.98
.0781 30007810 30269 5/64 .0781 5/64 1-1/2 5/8 Uncoated Straight 248.00 11.32
.0785 30007850 30273 #47 .0785 .0785 1-1/2 5/8 Uncoated Straight 140.00 11.32
.0787 30007870 30277 2mm .0787 2mm 38mm 16mm Uncoated Straight 58.00 11.46
.0807 30008070 30281 2.05mm .0807 2.05mm 38mm 16mm Uncoated Straight 4.00 11.46
.0807 30008070A 77962 2.05mm .0807 2.05mm 38mm 16mm ALtima® Straight 0.00 17.07
.0810 30008100 30285 #46 .0810 .0810 1-1/2 5/8 Uncoated Straight 121.00 11.78
.0820 30008200 30289 #45 .0820 .0820 1-1/2 5/8 Uncoated Straight 35.00 11.95
.0827 30008270 30293 2.1mm .0827 2.1mm 38mm 16mm Uncoated Straight 120.00 12.09
.0846 30008460 30297 2.15mm .0846 2.15mm 38mm 16mm Uncoated Straight 284.00 12.09
.0860 30008600 30301 #44 .0860 .0860 1-1/2 5/8 Uncoated Straight 1179.00 12.39
.0866 30008660 30305 2.2mm .0866 2.2mm 38mm 16mm Uncoated Straight 62.00 12.72
.0886 30008860 30309 2.25mm .0886 2.25mm 38mm 16mm Uncoated Straight 174.00 12.24
.0890 30008900 30313 #43 .0890 .0890 1-1/2 5/8 Uncoated Straight 68.00 11.95
.0906 30009060 30317 2.3mm .0906 2.3mm 38mm 16mm Uncoated Straight 78.00 12.87
.0925 30009250 30321 2.35mm .0925 2.35mm 38mm 16mm Uncoated Straight 187.00 12.87
.0925 30009250A 14765 2.35mm .0925 2.35mm 38mm 16mm ALtima® Straight 0.00 18.49
.0935 30009350 30325 #42 .0935 .0935 1-1/2 5/8 Uncoated Straight 129.00 13.02
.0938 30009380 30329 3/32 .0938 3/32 1-1/2 5/8 Uncoated Straight 325.00 12.24
.0945 30009450 30333 2.4mm .0945 2.4mm 38mm 16mm Uncoated Straight 1205.00 13.18
.0960 30009600 30337 #41 .0960 .0960 1-1/2 5/8 Uncoated Straight 90.00 12.24
.0960 30009600T 77963 #41 .0960 .0960 1-1/2 5/8 TiN Straight 0.00 16.2
.0965 30009650 30341 2.45mm .0965 2.45mm 38mm 16mm Uncoated Straight 127.00 12.72
.0980 30009800 30345 #40 .0980 .0980 1-1/2 5/8 Uncoated Straight 58.00 12.87
.0984 30009840 30349 2.5mm .0984 2.5mm 38mm 16mm Uncoated Straight 17.00 13.64
.0995 30009950 30353 #39 .0995 .0995 1-1/2 5/8 Uncoated Straight 74.00 13.32
.1004 30010040 30357 2.55mm .1004 2.55mm 38mm 16mm Uncoated Straight 144.00 13.8
.1015 30010150 30361 #38 .1015 .1015 1-1/2 5/8 Uncoated Straight 156.00 14.11
.1024 30010240 30365 2.6mm .1024 2.6mm 38mm 16mm Uncoated Straight 55.00 14.56
.1040 30010400 30369 #37 .1040 .1040 1-1/2 5/8 Uncoated Straight 69.00 14.27
.1043 30010430 30371 2.65mm .1043 2.65mm 38mm 16mm Uncoated Straight 110.00 14.56
.1063 30010630 30373 2.7mm .1063 2.7mm 38mm 16mm Uncoated Straight 32.00 15.03
.1065 30010650 30377 #36 .1065 .1065 1-1/2 5/8 Uncoated Straight 88.00 14.27
.1083 30010830 30381 2.75mm .1083 2.75mm 38mm 16mm Uncoated Straight 20.00 13.8
.1094 30010940 30385 7/64 .1094 7/64 1-1/2 5/8 Uncoated Straight 109.00 13.8
.1100 30011000 30389 #35 .1100 .1100 1-1/2 5/8 Uncoated Straight 0.00 16.12
.1102 30011020 30393 2.8mm .1102 2.8mm 38mm 16mm Uncoated Straight 111.00 16.73
.1110 30011100 30397 #34 .1110 .1110 1-1/2 5/8 Uncoated Straight 148.00 16.42
.1110 30011100CE 77964 #34 .1110 .1110 1-1/2 5/8 CERAedge® Straight 0.00 25.98
.1122 30011220 30401 2.85mm .1122 2.85mm 38mm 16mm Uncoated Straight 92.00 16.12
.1130 30011300 30405 #33 .1130 .1130 1-1/2 5/8 Uncoated Straight 0.00 15.97
.1142 30011420 30409 2.9mm .1142 2.9mm 38mm 16mm Uncoated Straight 69.00 16.42
.1160 30011600 30413 #32 .1160 .1160 1-1/2 5/8 Uncoated Straight 202.00 16.12
.1161 30011610 30415 2.95mm .1161 2.95mm 38mm 16mm Uncoated Straight 2.00 15.66
.1161 30011610A 77965 2.95mm .1161 2.95mm 38mm 16mm ALtima® Straight 0.00 21.28
.1181 30011810 30417 3mm .1181 3mm 38mm 16mm Uncoated Straight 39.00 15.5
.1200 30012000 30421 #31 .1200 .1200 1-1/2 5/8 Uncoated Straight 200.00 15.66
.1201 30012010 30423 3.05mm .1201 3.05mm 38mm 16mm Uncoated Straight 68.00 15.97
.1220 30012200 30425 3.1mm .1220 3.1mm 38mm 16mm Uncoated Straight 91.00 17.35
.1240 30012400 30427 3.15mm .1240 3.15mm 38mm 16mm Uncoated Straight 44.00 16.42
.1240 30012400A 77966 3.15mm .1240 3.15mm 38mm 16mm ALtima® Straight 0.00 22.04
.1250 30012500 30429 1/8 .1250 1/8 1-1/2 5/8 Uncoated Straight 203.00 15.66
.1250 30012500A 15153 1/8 .1250 1/8 1-1/2 5/8 ALtima® Straight 0.00 21.28
.1285 30012850 30437 #30 .1285 .1285 1-1/2 3/4 Uncoated Straight 51.00 16.12
.1285 30012850T 10826 #30 .1285 .1285 1-1/2 3/4 TiN Straight 0.00 21.16
.1360 30013600 30441 #29 .1360 .1360 1-1/2 3/4 Uncoated Straight 39.00 16.12
.1360 30013600A 76031 #29 .1360 .1360 1-1/2 3/4 ALtima® Straight 21.00 21.74
.1405 30014050 30445 #28 .1405 .1405 1-1/2 3/4 Uncoated Straight 12.00 16.73
.1406 30014060 30449 9/64 .1406 9/64 1-1/2 3/4 Uncoated Straight 156.00 16.88
.1440 30014400 30453 #27 .1440 .1440 1-1/2 3/4 Uncoated Straight 46.00 18.59
.1440 30014400T 10827 #27 .1440 .1440 1-1/2 3/4 TiN Straight 0.00 28.72
.1470 30014700 30457 #26 .1470 .1470 1-1/2 3/4 Uncoated Straight 94.00 18.74
.1470 30014700A 17036 #26 .1470 .1470 1-1/2 3/4 ALtima® Straight 0.00 28.86
.1495 30014950 30461 #25 .1495 .1495 1-1/2 3/4 Uncoated Straight 63.00 17.97
.1520 30015200 30465 #24 .1520 .1520 1-1/2 3/4 Uncoated Straight 0.00 19.38
.1540 30015400 30469 #23 .1540 .1540 1-1/2 3/4 Uncoated Straight 12.00 18.91
.1562 30015620 30473 5/32 .1562 5/32 1-1/2 3/4 Uncoated Straight 287.00 19.07
.1570 30015700 30477 #22 .1570 .1570 1-1/2 3/4 Uncoated Straight 119.00 21.38
.1590 30015900 30481 #21 .1590 .1590 1-1/2 3/4 Uncoated Straight 0.00 20.15
.1610 30016100 30485 #20 .1610 .1610 1-1/2 3/4 Uncoated Straight 123.00 20.31
.1660 30016600 30489 #19 .1660 .1660 1-1/2 3/4 Uncoated Straight 69.00 23.39
.1695 30016950 30493 #18 .1695 .1695 1-1/2 3/4 Uncoated Straight 101.00 24.8
.1719 30017190 30497 11/64 .1719 11/64 1-1/2 3/4 Uncoated Straight 34.00 23.71
.1730 30017300 30501 #17 .1730 .1730 1-1/2 3/4 Uncoated Straight 18.00 25.43
.1770 30017700 30505 #16 .1770 .1770 1-1/2 3/4 Uncoated Straight 80.00 24.32
.1770 30017700C 76032 #16 .1770 .1770 1-1/2 3/4 TiCN Straight 0.00 27.99
.1800 30018000 30509 #15 .1800 .1800 1-1/2 3/4 Uncoated Straight 19.00 25.73
.1820 30018200 30513 #14 .1820 .1820 1-1/2 3/4 Uncoated Straight 103.00 25.1
.1850 30018500 30517 #13 .1850 .1850 1-1/2 3/4 Uncoated Straight 123.00 25.25
.1875 30018750 30521 3/16 .1875 3/16 1-1/2 3/4 Uncoated Straight 528.00 24.8
.1890 30018900 30525 #12 .1890 .1890 1-1/2 3/4 Uncoated Straight 40.00 28.21
.1910 30019100 30529 #11 .1910 .1910 1-1/2 3/4 Uncoated Straight 42.00 27.13
.1935 30019350 30533 #10 .1935 .1935 1-1/2 3/4 Uncoated Straight 17.00 27.44
.1960 30019600 30537 #9 .1960 .1960 1-1/2 3/4 Uncoated Straight 31.00 29.3
.1990 30019900 30541 #8 .1990 .1990 1-1/2 3/4 Uncoated Straight 3.00 31
.2010 30020100 30545 #7 .2010 .2010 1-1/2 3/4 Uncoated Straight 119.00 29.14
.2031 30020310 30549 13/64 .2031 13/64 1-1/2 3/4 Uncoated Straight 1.00 29.3
.2040 30020400 30553 #6 .2040 .2040 1-1/2 3/4 Uncoated Straight 13.00 32.08
.2055 30020550 30557 #5 .2055 .2055 1-1/2 3/4 Uncoated Straight 82.00 32.7
.2090 30020900 30561 #4 .2090 .2090 1-1/2 3/4 Uncoated Straight 60.00 32.08
.2130 30021300 30565 #3 .2130 .2130 1-1/2 3/4 Uncoated Straight 28.00 31.29
.2187 30021870 30569 7/32 .2187 7/32 1-1/2 3/4 Uncoated Straight 15.00 32.7
.2210 30022100 30573 #2 .2210 .2210 1-1/2 3/4 Uncoated Straight 50.00 34.58
.2280 30022800 30577 #1 .2280 .2280 1-1/2 3/4 Uncoated Straight 14.00 35.19
.2340 30023400 30581 A .2340 .2340 1-1/2 3/4 Uncoated Straight 45.00 37.65
.2344 30023440 30585 15/64 .2344 15/64 1-1/2 3/4 Uncoated Straight 0.00 35.32
.2380 30023800 30589 B .2380 .2380 1-1/2 3/4 Uncoated Straight 33.00 39.98
.2420 30024200 30593 C .2420 .2420 1-1/2 3/4 Uncoated Straight 20.00 38.42
.2460 30024600 30597 D .2460 .2460 1-1/2 3/4 Uncoated Straight 21.00 38.9
.2500 30025000 30601 1/4 .2500 1/4 1-1/2 3/4 Uncoated Straight 80.00 38.28
