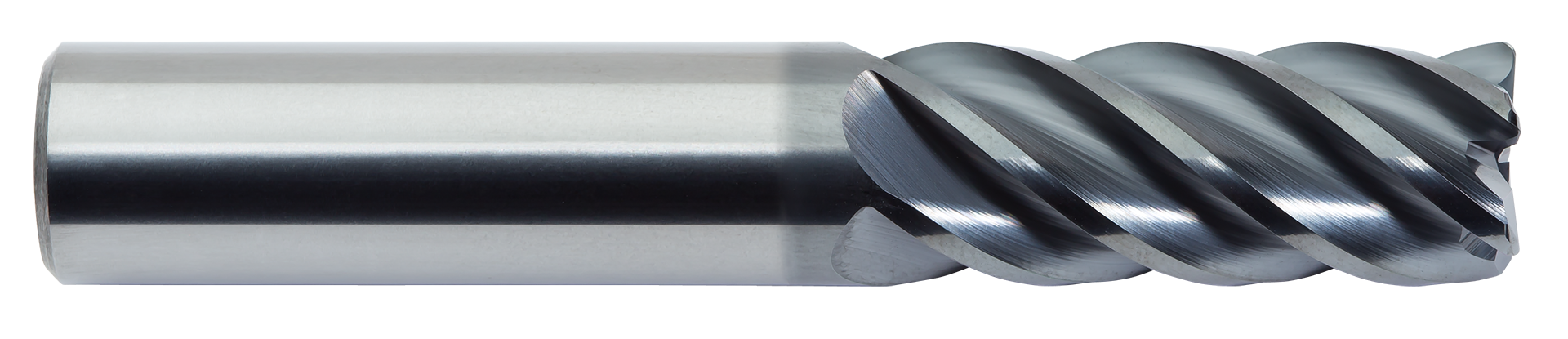

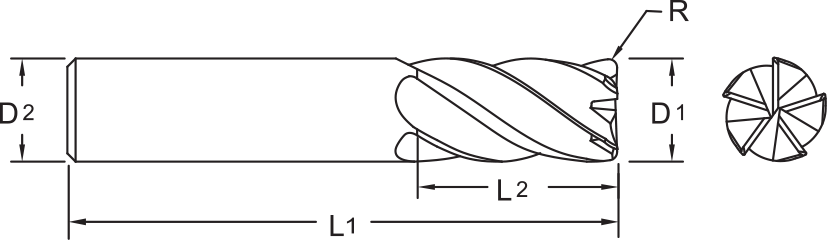

product photo product drawing

End Mills / 278

Solid Carbide TuffCut® XT 5 Flute End Mill
Designed specifically for specific applications in steels, stainless steels, special alloys, cast irons and hardenend steel.
  • 5 Flute
  • ALtima® Blaze coating. B=ALtima® Blaze (ALCrN) coated
  • Center cutting
  • Stub, standard, long and extra long flute lengths
  • 40° Helix angle
  • Square end and corner radius options
  • Weldon shank flat options
  • Whisper blend transition between OD and Neck

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Super-alloys and titanium

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Corner Radius Coating Shank Type Available List Price
.1250 27812500B 36992 1/8 1/8 1-1/2 1/4 ALtima® Blaze Straight 129.00 22
.1250 27812510B 36993 1/8 1/8 1-1/2 3/8 ALtima® Blaze Straight 6.00 23.37
.1250 27812500BW 13422 1/8 1/8 1-1/2 1/4 ALtima® Blaze Weldon 0.00 25.95
.1250 27812510BW 14201 1/8 1/8 1-1/2 3/8 ALtima® Blaze Weldon 0.00 27.32
.1250 27812502B 97002 1/8 1/8 1-1/2 1/4 0.015 ALtima® Blaze Straight 31.00 31.15
.1250 27812504B 97003 1/8 1/8 1-1/2 1/4 0.03 ALtima® Blaze Straight 232.00 31.15
.1250 27812520B 97005 1/8 1/8 1-1/2 1/2 ALtima® Blaze Straight 60.00 27.55
.1250 27812522B 97006 1/8 1/8 1-1/2 1/2 0.015 ALtima® Blaze Straight 0.00 35.67
.1250 27812524B 97007 1/8 1/8 1-1/2 1/2 0.03 ALtima® Blaze Straight 0.00 35.67
.1250 27812530B 97009 1/8 1/8 2-1/2 3/4 ALtima® Blaze Straight 31.00 37.01
.1250 27812532B 97010 1/8 1/8 2-1/2 3/4 0.015 ALtima® Blaze Straight 2.00 46.54
.1250 27812534B 97011 1/8 1/8 2-1/2 3/4 0.03 ALtima® Blaze Straight 3.00 46.54
.1250 27812521B 18957 1/8 1/8 1-1/2 1/2 0.01 ALtima® Blaze Straight 20.00 35.67
.1562 27815600B 36994 5/32 3/16 2 3/16 ALtima® Blaze Straight 235.00 31.1
.1562 27815610B 36995 5/32 3/16 2 7/16 ALtima® Blaze Straight 41.00 33.02
.1562 27815600BW 13445 5/32 3/16 2 3/16 ALtima® Blaze Weldon 0.00 35.05
.1562 27815610BW 13447 5/32 3/16 2 7/16 ALtima® Blaze Weldon 0.00 36.97
.1875 27818700B 36996 3/16 3/16 2 5/16 ALtima® Blaze Straight 129.00 30.43
.1875 27818710B 36997 3/16 3/16 2 7/16 ALtima® Blaze Straight 286.00 32.32
.1875 27818700BW 13449 3/16 3/16 2 5/16 ALtima® Blaze Weldon 0.00 34.38
.1875 27818710BW 13451 3/16 3/16 2 7/16 ALtima® Blaze Weldon 0.00 36.27
.1875 27818702B 97014 3/16 3/16 2 5/16 0.015 ALtima® Blaze Straight 37.00 41.9
.1875 27818704B 97015 3/16 3/16 2 5/16 0.03 ALtima® Blaze Straight 93.00 41.9
.1875 27818720B 97017 3/16 3/16 2 9/16 ALtima® Blaze Straight 48.00 36.15
.1875 27818722B 97018 3/16 3/16 2 9/16 0.015 ALtima® Blaze Straight 137.00 45.71
.1875 27818724B 97019 3/16 3/16 2 9/16 0.03 ALtima® Blaze Straight 13.00 45.71
.1875 27818730B 97021 3/16 3/16 2-1/2 3/4 ALtima® Blaze Straight 48.00 44.68
.1875 27818732B 97022 3/16 3/16 2-1/2 3/4 0.015 ALtima® Blaze Straight 31.00 54.2
.1875 27818734B 97023 3/16 3/16 2-1/2 3/4 0.03 ALtima® Blaze Straight 0.00 54.2
.1875 27818721B 18958 3/16 3/16 2 9/16 0.01 ALtima® Blaze Straight 25.00 45.71
.2187 27821800B 36998 7/32 1/4 2 1/4 ALtima® Blaze Straight 38.00 40.39
.2187 27821810B 36999 7/32 1/4 2-1/2 7/16 ALtima® Blaze Straight 0.00 42.98
.2187 27821800BW 13453 7/32 1/4 2 1/4 ALtima® Blaze Weldon 0.00 44.34
.2187 27821810BW 13455 7/32 1/4 2-1/2 7/16 ALtima® Blaze Weldon 0.00 46.92
.2500 27825000B 37000 1/4 1/4 2 3/8 ALtima® Blaze Straight 131.00 37.14
.2500 27825002B 37001 1/4 1/4 2 3/8 0.015 ALtima® Blaze Straight 124.00 38.83
.2500 27825004B 37002 1/4 1/4 2 3/8 0.03 ALtima® Blaze Straight 55.00 38.83
.2500 27825010B 37003 1/4 1/4 2-1/2 3/4 ALtima® Blaze Straight 603.00 39.55
.2500 27825012B 37004 1/4 1/4 2-1/2 3/4 0.015 ALtima® Blaze Straight 125.00 41.24
.2500 27825014B 37005 1/4 1/4 2-1/2 3/4 0.03 ALtima® Blaze Straight 30.00 41.24
.2500 278L25000B 37006 1/4 1/4 3 1-1/4 ALtima® Blaze Straight 404.00 72.43
.2500 278L25002B 37007 1/4 1/4 3 1-1/4 0.015 ALtima® Blaze Straight 103.00 76.14
.2500 278L25004B 37008 1/4 1/4 3 1-1/4 0.03 ALtima® Blaze Straight 12.00 76.14
.2500 278X25000B 37009 1/4 1/4 4 1-3/4 ALtima® Blaze Straight 25.00 78.72
.2500 278X25002B 37010 1/4 1/4 4 1-3/4 0.015 ALtima® Blaze Straight 48.00 81.68
.2500 278X25004B 37075 1/4 1/4 4 1-3/4 0.03 ALtima® Blaze Straight 21.00 81.68
.2500 278L25000BW 13469 1/4 1/4 3 1-1/4 ALtima® Blaze Weldon 0.00 76.38
.2500 278X25000BW 13475 1/4 1/4 4 1-3/4 ALtima® Blaze Weldon 0.00 82.67
.2500 27825000BW 13457 1/4 1/4 2 3/8 ALtima® Blaze Weldon 0.00 41.09
.2500 27825002BW 13459 1/4 1/4 2 3/8 0.015 ALtima® Blaze Weldon 0.00 42.78
.2500 27825004BW 13461 1/4 1/4 2 3/8 0.03 ALtima® Blaze Weldon 0.00 42.78
.2500 27825010BW 13463 1/4 1/4 2-1/2 3/4 ALtima® Blaze Weldon 25.00 43.5
.2500 27825012BW 13465 1/4 1/4 2-1/2 3/4 0.015 ALtima® Blaze Weldon 26.00 45.19
.2500 27825014BW 13467 1/4 1/4 2-1/2 3/4 0.03 ALtima® Blaze Weldon 0.00 45.19
.2500 278L25002BW 13471 1/4 1/4 3 1-1/4 0.015 ALtima® Blaze Weldon 0.00 80.08
.2500 278L25004BW 13473 1/4 1/4 3 1-1/4 0.03 ALtima® Blaze Weldon 0.00 80.08
.2500 278X25002BW 13477 1/4 1/4 4 1-3/4 0.015 ALtima® Blaze Weldon 0.00 85.63
.2500 278X25004BW 13479 1/4 1/4 4 1-3/4 0.03 ALtima® Blaze Weldon 0.00 85.63
.2500 27825006B 97028 1/4 1/4 2 3/8 0.06 ALtima® Blaze Straight 123.00 40.83
.2500 27825007B 97029 1/4 1/4 2 3/8 0.09 ALtima® Blaze Straight 1435.00 47.17
.2500 27825016B 97052 1/4 1/4 2-1/2 3/4 0.06 ALtima® Blaze Straight 77.00 50.49
.2500 27825017B 97053 1/4 1/4 2-1/2 3/4 0.09 ALtima® Blaze Straight 39.00 56.83
.2500 278L25006B 97058 1/4 1/4 3 1-1/4 0.06 ALtima® Blaze Straight 28.00 59.07
.2500 278L25007B 97059 1/4 1/4 3 1-1/4 0.09 ALtima® Blaze Straight 15.00 65.42
.2500 27825011B 18959 1/4 1/4 2-1/2 3/4 0.01 ALtima® Blaze Straight 46.00 41.24
.2500 27825013B 18960 1/4 1/4 2-1/2 3/4 0.02 ALtima® Blaze Straight 120.00 41.24
.2500 27825000BR.025 18682 1/4 1/4 2 3/8 0.025 ALtima® Blaze Straight 3.00 55.26
.3125 27831200B 97061 5/16 5/16 2 7/16 ALtima® Blaze Straight 81.00 48.78
.3125 27831202B 97062 5/16 5/16 2 7/16 0.015 ALtima® Blaze Straight 23.00 58.33
.3125 27831204B 97063 5/16 5/16 2 7/16 0.03 ALtima® Blaze Straight 36.00 58.33
.3125 27831206B 97064 5/16 5/16 2 7/16 0.06 ALtima® Blaze Straight 29.00 60.6
.3125 27831207B 97065 5/16 5/16 2 7/16 0.09 ALtima® Blaze Straight 24.00 66.94
.3125 27831210B 97067 5/16 5/16 2-1/2 13/16 ALtima® Blaze Straight 20.00 51.44
.3125 27831212B 97068 5/16 5/16 2-1/2 13/16 0.015 ALtima® Blaze Straight 7.00 60.98
.3125 27831214B 97069 5/16 5/16 2-1/2 13/16 0.03 ALtima® Blaze Straight 12.00 60.98
.3125 27831216B 97070 5/16 5/16 2-1/2 13/16 0.06 ALtima® Blaze Straight 11.00 63.24
.3125 27831217B 97071 5/16 5/16 2-1/2 13/16 0.09 ALtima® Blaze Straight 26.00 69.58
.3125 27831220B 97073 5/16 5/16 3 1-1/4 ALtima® Blaze Straight 52.00 81.08
.3125 27831222B 97074 5/16 5/16 3 1-1/4 0.015 ALtima® Blaze Straight 5.00 90.62
.3125 27831224B 97075 5/16 5/16 3 1-1/4 0.03 ALtima® Blaze Straight 28.00 90.62
.3125 27831226B 97076 5/16 5/16 3 1-1/4 0.06 ALtima® Blaze Straight 17.00 92.89
.3125 27831227B 97077 5/16 5/16 3 1-1/4 0.09 ALtima® Blaze Straight 12.00 99.23
.3125 27831230B 97079 5/16 5/16 4 2-1/8 ALtima® Blaze Straight 30.00 113.37
.3125 27831232B 97080 5/16 5/16 4 2-1/8 0.015 ALtima® Blaze Straight 46.00 122.91
.3125 27831234B 97081 5/16 5/16 4 2-1/8 0.03 ALtima® Blaze Straight 7.00 122.91
.3125 27831236B 97082 5/16 5/16 4 2-1/8 0.06 ALtima® Blaze Straight 11.00 125.18
.3125 27831237B 97083 5/16 5/16 4 2-1/8 0.09 ALtima® Blaze Straight 7.00 131.51
.375 27837523B 18326 3/8 3/8 3 1-1/4 0.02 ALtima® Blaze Straight 96.39
.3750 27837500B 37013 3/8 3/8 2-1/2 1/2 ALtima® Blaze Straight 236.00 61.19
.3750 27837502B 37014 3/8 3/8 2-1/2 1/2 0.015 ALtima® Blaze Straight 90.00 64.3
.3750 27837504B 37015 3/8 3/8 2-1/2 1/2 0.03 ALtima® Blaze Straight 363.00 64.3
.3750 27837510B 37016 3/8 3/8 2-1/2 1 ALtima® Blaze Straight 301.00 65.16
.3750 27837512B 37017 3/8 3/8 2-1/2 1 0.015 ALtima® Blaze Straight 1.00 68.41
.3750 27837514B 37018 3/8 3/8 2-1/2 1 0.03 ALtima® Blaze Straight 237.00 68.41
.3750 278L37500B 37019 3/8 3/8 4 1-5/8 ALtima® Blaze Straight 15.00 101.36
.3750 278L37502B 37020 3/8 3/8 4 1-5/8 0.015 ALtima® Blaze Straight 81.00 103.44
.3750 278L37504B 37076 3/8 3/8 4 1-5/8 0.03 ALtima® Blaze Straight 31.00 103.44
.3750 278X37500B 37021 3/8 3/8 4 2-1/2 ALtima® Blaze Straight 11.00 114.91
.3750 278X37502B 37022 3/8 3/8 4 2-1/2 0.015 ALtima® Blaze Straight 26.00 117.26
.3750 278X37504B 37077 3/8 3/8 4 2-1/2 0.03 ALtima® Blaze Straight 16.00 117.26
.3750 27837510BW 13487 3/8 3/8 2-1/2 1 ALtima® Blaze Weldon 68.00 69.11
.3750 27837512BW 13489 3/8 3/8 2-1/2 1 0.015 ALtima® Blaze Weldon 52.00 72.36
.3750 27837500BW 13481 3/8 3/8 2-1/2 1/2 ALtima® Blaze Weldon 0.00 65.14
.3750 27837502BW 13483 3/8 3/8 2-1/2 1/2 0.015 ALtima® Blaze Weldon 24.00 68.25
.3750 27837504BW 13485 3/8 3/8 2-1/2 1/2 0.03 ALtima® Blaze Weldon 0.00 68.25
.3750 27837514BW 13491 3/8 3/8 2-1/2 1 0.03 ALtima® Blaze Weldon 0.00 72.36
.3750 278L37500BW 13493 3/8 3/8 4 1-5/8 ALtima® Blaze Weldon 0.00 105.3
.3750 278L37502BW 13495 3/8 3/8 4 1-5/8 0.015 ALtima® Blaze Weldon 3.00 107.38
.3750 278L37504BW 13496 3/8 3/8 4 1-5/8 0.03 ALtima® Blaze Weldon 0.00 107.38
.3750 278X37500BW 13497 3/8 3/8 4 2-1/2 ALtima® Blaze Weldon 0.00 118.86
.3750 278X37502BW 13498 3/8 3/8 4 2-1/2 0.015 ALtima® Blaze Weldon 0.00 121.21
.3750 278X37504BW 13499 3/8 3/8 4 2-1/2 0.03 ALtima® Blaze Weldon 0.00 121.21
.3750 278375011B 97091 3/8 3/8 2-1/2 1/2 0.156 ALtima® Blaze Straight 17.00 82.32
.3750 27837506B 97088 3/8 3/8 2-1/2 1/2 0.06 ALtima® Blaze Straight 1260.00 68.99
.3750 27837507B 97089 3/8 3/8 2-1/2 1/2 0.09 ALtima® Blaze Straight 19.00 75.3
.3750 27837508B 97090 3/8 3/8 2-1/2 1/2 0.12 ALtima® Blaze Straight 16.00 78.29
.3750 278375111B 97139 3/8 3/8 2-1/2 1 0.156 ALtima® Blaze Straight 20.00 90.22
.3750 27837516B 97136 3/8 3/8 2-1/2 1 0.06 ALtima® Blaze Straight 69.00 76.85
.3750 27837517B 97137 3/8 3/8 2-1/2 1 0.09 ALtima® Blaze Straight 21.00 83.18
.3750 27837518B 97138 3/8 3/8 2-1/2 1 0.12 ALtima® Blaze Straight 21.00 86.16
.3750 27837520B 97141 3/8 3/8 3 1-1/4 ALtima® Blaze Straight 161.00 86.85
.3750 278375211B 97147 3/8 3/8 3 1-1/4 0.156 ALtima® Blaze Straight 44.00 112.04
.3750 27837522B 97142 3/8 3/8 3 1-1/4 0.015 ALtima® Blaze Straight 14.00 96.39
.3750 27837524B 97143 3/8 3/8 3 1-1/4 0.03 ALtima® Blaze Straight 13.00 96.39
.3750 27837526B 97144 3/8 3/8 3 1-1/4 0.06 ALtima® Blaze Straight 16.00 98.66
.3750 27837527B 97145 3/8 3/8 3 1-1/4 0.09 ALtima® Blaze Straight 12.00 104.99
.3750 27837528B 97146 3/8 3/8 3 1-1/4 0.12 ALtima® Blaze Straight 19.00 107.98
.3750 27837530B 97149 3/8 3/8 3-1/2 1-5/8 ALtima® Blaze Straight 79.00 92.54
.3750 278375311B 97155 3/8 3/8 3-1/2 1-5/8 0.156 ALtima® Blaze Straight 31.00 117.73
.3750 27837532B 97150 3/8 3/8 3-1/2 1-5/8 0.015 ALtima® Blaze Straight 5.00 102.06
.3750 27837534B 97151 3/8 3/8 3-1/2 1-5/8 0.03 ALtima® Blaze Straight 25.00 102.06
.3750 27837536B 97152 3/8 3/8 3-1/2 1-5/8 0.06 ALtima® Blaze Straight 24.00 104.34
.3750 27837537B 97153 3/8 3/8 3-1/2 1-5/8 0.09 ALtima® Blaze Straight 20.00 110.68
.3750 27837538B 97154 3/8 3/8 3-1/2 1-5/8 0.12 ALtima® Blaze Straight 53.00 113.65
.3750 27837540B 97165 3/8 3/8 6 1-5/8 ALtima® Blaze Straight 5.00 123.65
.3750 278375411B 97171 3/8 3/8 6 1-5/8 0.156 ALtima® Blaze Straight 17.00 148.85
.3750 27837542B 97166 3/8 3/8 6 1-5/8 0.015 ALtima® Blaze Straight 16.00 133.18
.3750 27837544B 97167 3/8 3/8 6 1-5/8 0.03 ALtima® Blaze Straight 3.00 133.18
.3750 27837546B 97168 3/8 3/8 6 1-5/8 0.06 ALtima® Blaze Straight 10.00 135.47
.3750 27837547B 97169 3/8 3/8 6 1-5/8 0.09 ALtima® Blaze Straight 17.00 141.79
.3750 27837548B 97170 3/8 3/8 6 1-5/8 0.12 ALtima® Blaze Straight 25.00 144.78
.3750 27837550B 97173 3/8 3/8 4 2 ALtima® Blaze Straight 96.00 107.7
.3750 278375511B 97179 3/8 3/8 4 2 0.156 ALtima® Blaze Straight 19.00 132.89
.3750 27837552B 97174 3/8 3/8 4 2 0.015 ALtima® Blaze Straight 15.00 117.22
.3750 27837554B 97175 3/8 3/8 4 2 0.03 ALtima® Blaze Straight 20.00 117.22
.3750 27837556B 97176 3/8 3/8 4 2 0.06 ALtima® Blaze Straight 39.00 119.51
.3750 27837557B 97177 3/8 3/8 4 2 0.09 ALtima® Blaze Straight 17.00 125.84
.3750 27837558B 97178 3/8 3/8 4 2 0.12 ALtima® Blaze Straight 15.00 128.82
.3750 27837560B 97181 3/8 3/8 6 2-1/2 ALtima® Blaze Straight 9.00 141.6
.3750 278375611B 97187 3/8 3/8 6 2-1/2 0.156 ALtima® Blaze Straight 23.00 166.79
.3750 27837562B 97182 3/8 3/8 6 2-1/2 0.015 ALtima® Blaze Straight 14.00 151.15
.3750 27837564B 97183 3/8 3/8 6 2-1/2 0.03 ALtima® Blaze Straight 8.00 151.15
.3750 27837566B 97184 3/8 3/8 6 2-1/2 0.06 ALtima® Blaze Straight 18.00 153.43
.3750 27837567B 97185 3/8 3/8 6 2-1/2 0.09 ALtima® Blaze Straight 20.00 159.75
.3750 27837568B 97186 3/8 3/8 6 2-1/2 0.12 ALtima® Blaze Straight 18.00 162.73
.3750 278L375011B 97163 3/8 3/8 4 1-5/8 0.156 ALtima® Blaze Straight 21.00 125.21
.3750 278L37506B 97160 3/8 3/8 4 1-5/8 0.06 ALtima® Blaze Straight 20.00 111.85
.3750 278L37507B 97161 3/8 3/8 4 1-5/8 0.09 ALtima® Blaze Straight 19.00 118.18
.3750 278L37508B 97162 3/8 3/8 4 1-5/8 0.12 ALtima® Blaze Straight 17.00 121.16
.3750 27837530BW 16260 3/8 3/8 3-1/2 1-5/8 ALtima® Blaze Weldon 0.00 96.48
.3750 27837524BW 17175 3/8 3/8 3 1-1/4 0.03 ALtima® Blaze Weldon 0.00 100.34
.3750 27837511B 18961 3/8 3/8 2-1/2 1 0.01 ALtima® Blaze Straight 61.00 68.41
.3750 27837513B 18962 3/8 3/8 2-1/2 1 0.02 ALtima® Blaze Straight 336.00 68.41
.4375 27843700B 97189 7/16 7/16 2-1/2 5/8 ALtima® Blaze Straight 15.00 87.68
.4375 278437011B 97195 7/16 7/16 2-1/2 5/8 0.156 ALtima® Blaze Straight 24.00 112.86
.4375 27843702B 97190 7/16 7/16 2-1/2 5/8 0.015 ALtima® Blaze Straight 21.00 97.21
.4375 27843704B 97191 7/16 7/16 2-1/2 5/8 0.03 ALtima® Blaze Straight 27.00 97.21
.4375 27843706B 97192 7/16 7/16 2-1/2 5/8 0.06 ALtima® Blaze Straight 42.00 99.49
.4375 27843707B 97193 7/16 7/16 2-1/2 5/8 0.09 ALtima® Blaze Straight 27.00 105.82
.4375 27843708B 97194 7/16 7/16 2-1/2 5/8 0.12 ALtima® Blaze Straight 30.00 108.79
.4375 27843710B 97197 7/16 7/16 2-3/4 1 ALtima® Blaze Straight 110.00 92.37
.4375 278437111B 97203 7/16 7/16 2-3/4 1 0.156 ALtima® Blaze Straight 29.00 117.56
.4375 27843712B 97198 7/16 7/16 2-3/4 1 0.015 ALtima® Blaze Straight 0.00 101.91
.4375 27843714B 97199 7/16 7/16 2-3/4 1 0.03 ALtima® Blaze Straight 23.00 101.91
.4375 27843716B 97200 7/16 7/16 2-3/4 1 0.06 ALtima® Blaze Straight 20.00 104.19
.4375 27843717B 97201 7/16 7/16 2-3/4 1 0.09 ALtima® Blaze Straight 24.00 110.5
.4375 27843718B 97202 7/16 7/16 2-3/4 1 0.12 ALtima® Blaze Straight 4.00 113.51
.4375 27843720B 97205 7/16 7/16 4 2 ALtima® Blaze Straight 18.00 136.74
.4375 278437211B 97211 7/16 7/16 4 2 0.156 ALtima® Blaze Straight 18.00 161.93
.4375 27843722B 97206 7/16 7/16 4 2 0.015 ALtima® Blaze Straight 3.00 146.29
.4375 27843724B 97207 7/16 7/16 4 2 0.03 ALtima® Blaze Straight 15.00 146.29
.4375 27843726B 97208 7/16 7/16 4 2 0.06 ALtima® Blaze Straight 3.00 148.56
.4375 27843727B 97209 7/16 7/16 4 2 0.09 ALtima® Blaze Straight 10.00 154.89
.4375 27843728B 97210 7/16 7/16 4 2 0.12 ALtima® Blaze Straight 4.00 157.87
.4375 27843710BW 14967 7/16 7/16 2-3/4 1 ALtima® Blaze Weldon 49.00 97.44
.4375 27843712BW 14968 7/16 7/16 2-3/4 1 0.015 ALtima® Blaze Weldon 23.00 106.98
.5000 27850000B 37025 1/2 1/2 3 5/8 ALtima® Blaze Straight 96.00 100.05
.5000 27850002B 37026 1/2 1/2 3 5/8 0.015 ALtima® Blaze Straight 108.00 105.2
.5000 27850004B 37027 1/2 1/2 3 5/8 0.03 ALtima® Blaze Straight 130.00 105.2
.5000 27850020B 37028 1/2 1/2 3 1-1/4 ALtima® Blaze Straight 128.00 106.59
.5000 27850022B 37029 1/2 1/2 3 1-1/4 0.015 ALtima® Blaze Straight 391.00 111.91
.5000 27850024B 37030 1/2 1/2 3 1-1/4 0.03 ALtima® Blaze Straight 140.00 111.91
.5000 27850026B 37078 1/2 1/2 3 1-1/4 0.06 ALtima® Blaze Straight 481.00 111.9
.5000 278L50000B 37031 1/2 1/2 4 2 ALtima® Blaze Straight 43.00 140.44
.5000 278L50002B 37032 1/2 1/2 4 2 0.015 ALtima® Blaze Straight 19.00 149.02
.5000 278L50004B 37033 1/2 1/2 4 2 0.03 ALtima® Blaze Straight 46.00 149.02
.5000 278X50000B 37034 1/2 1/2 5 3 ALtima® Blaze Straight 17.00 175.55
.5000 278X50002B 37035 1/2 1/2 5 3 0.015 ALtima® Blaze Straight 28.00 186.17
.5000 278X50004B 37036 1/2 1/2 5 3 0.03 ALtima® Blaze Straight 5.00 186.17
.5000 27850024BW 12761 1/2 1/2 3 1-1/4 0.03 ALtima® Blaze Weldon 100.00 116.99
.5000 27850000BW 13528 1/2 1/2 3 5/8 ALtima® Blaze Weldon 0.00 105.13
.5000 27850004BW 13550 1/2 1/2 3 5/8 0.03 ALtima® Blaze Weldon 19.00 110.27
.5000 27850020BW 13551 1/2 1/2 3 1-1/4 ALtima® Blaze Weldon 44.00 111.66
.5000 27850022BW 13579 1/2 1/2 3 1-1/4 0.015 ALtima® Blaze Weldon 109.00 116.99
.5000 27850026BW 13584 1/2 1/2 3 1-1/4 0.06 ALtima® Blaze Weldon 2.00 116.97
.5000 278L50000BW 13588 1/2 1/2 4 2 ALtima® Blaze Weldon 0.00 145.51
.5000 278L50002BW 13589 1/2 1/2 4 2 0.015 ALtima® Blaze Weldon 3.00 154.09
.5000 278X50000BW 13606 1/2 1/2 5 3 ALtima® Blaze Weldon 0.00 180.62
.5000 278L50004BW 13593 1/2 1/2 4 2 0.03 ALtima® Blaze Weldon 0.00 154.09
.5000 278X50002BW 13607 1/2 1/2 5 3 0.015 ALtima® Blaze Weldon 0.00 191.24
.5000 278X50004BW 13608 1/2 1/2 5 3 0.03 ALtima® Blaze Weldon 0.00 191.24
.5000 27850022NBW 14834 1/2 1/2 4 1-1/4 2-1/8 0.015 ALtima® Blaze Weldon 0.00 183.83
.5000 278500011B 97219 1/2 1/2 3 5/8 0.156 ALtima® Blaze Straight 38.00 123.43
.5000 27850006B 97216 1/2 1/2 3 5/8 0.06 ALtima® Blaze Straight 250.00 110.05
.5000 27850007B 97217 1/2 1/2 3 5/8 0.09 ALtima® Blaze Straight 14.00 110.05
.5000 27850008B 97218 1/2 1/2 3 5/8 0.12 ALtima® Blaze Straight 673.00 119.36
.5000 27850009B 97220 1/2 1/2 3 5/8 0.19 ALtima® Blaze Straight 0.00 125.39
.5000 27850010B 97258 1/2 1/2 3 1 ALtima® Blaze Straight 26.00 105.74
.5000 278500111B 97264 1/2 1/2 3 1 0.156 ALtima® Blaze Straight 31.00 130.92
.5000 27850012B 97259 1/2 1/2 3 1 0.015 ALtima® Blaze Straight 133.00 115.28
.5000 27850014B 97260 1/2 1/2 3 1 0.03 ALtima® Blaze Straight 151.00 115.28
.5000 27850016B 97261 1/2 1/2 3 1 0.06 ALtima® Blaze Straight 73.00 117.56
.5000 27850017B 97262 1/2 1/2 3 1 0.09 ALtima® Blaze Straight 819.00 123.89
.5000 27850018B 97263 1/2 1/2 3 1 0.12 ALtima® Blaze Straight 124.00 126.87
.5000 27850019B 97265 1/2 1/2 3 1 0.19 ALtima® Blaze Straight 20.00 132.89
.5000 278500211B 97273 1/2 1/2 3 1-1/4 0.156 ALtima® Blaze Straight 8.00 134.93
.5000 27850027B 97271 1/2 1/2 3 1-1/4 0.09 ALtima® Blaze Straight 49.00 127.88
.5000 27850028B 97272 1/2 1/2 3 1-1/4 0.12 ALtima® Blaze Straight 39.00 130.86
.5000 27850029B 97274 1/2 1/2 3 1-1/4 0.19 ALtima® Blaze Straight 5.00 136.87
.5000 27850030B 97276 1/2 1/2 4 1-5/8 ALtima® Blaze Straight 64.00 138.79
.5000 278500311B 97282 1/2 1/2 4 1-5/8 0.156 ALtima® Blaze Straight 26.00 163.99
.5000 27850032B 97277 1/2 1/2 4 1-5/8 0.015 ALtima® Blaze Straight 0.00 148.32
.5000 27850034B 97278 1/2 1/2 4 1-5/8 0.03 ALtima® Blaze Straight 42.00 148.32
.5000 27850036B 97279 1/2 1/2 4 1-5/8 0.06 ALtima® Blaze Straight 26.00 150.61
.5000 27850037B 97280 1/2 1/2 4 1-5/8 0.09 ALtima® Blaze Straight 13.00 156.92
.5000 27850038B 97281 1/2 1/2 4 1-5/8 0.12 ALtima® Blaze Straight 0.00 159.92
.5000 27850039B 97283 1/2 1/2 4 1-5/8 0.19 ALtima® Blaze Straight 24.00 165.9
.5000 27850040B 97294 1/2 1/2 4 2-1/8 ALtima® Blaze Straight 83.00 145.44
.5000 278500411B 97300 1/2 1/2 4 2-1/8 0.156 ALtima® Blaze Straight 18.00 170.63
.5000 27850042B 97295 1/2 1/2 4 2-1/8 0.015 ALtima® Blaze Straight 14.00 154.98
.5000 27850044B 97296 1/2 1/2 4 2-1/8 0.03 ALtima® Blaze Straight 84.00 154.98
.5000 27850046B 97297 1/2 1/2 4 2-1/8 0.06 ALtima® Blaze Straight 14.00 157.26
.5000 27850047B 97298 1/2 1/2 4 2-1/8 0.09 ALtima® Blaze Straight 8.00 163.58
.5000 27850048B 97299 1/2 1/2 4 2-1/8 0.12 ALtima® Blaze Straight 7.00 166.56
.5000 27850049B 97301 1/2 1/2 4 2-1/8 0.19 ALtima® Blaze Straight 15.00 172.59
.5000 27850050B 97303 1/2 1/2 5 2-5/8 ALtima® Blaze Straight 16.00 194.62
.5000 278500511B 97309 1/2 1/2 5 2-5/8 0.156 ALtima® Blaze Straight 8.00 219.8
.5000 27850052B 97304 1/2 1/2 5 2-5/8 0.015 ALtima® Blaze Straight 3.00 204.15
.5000 27850054B 97305 1/2 1/2 5 2-5/8 0.03 ALtima® Blaze Straight 15.00 204.15
.5000 27850056B 97306 1/2 1/2 5 2-5/8 0.06 ALtima® Blaze Straight 2.00 206.44
.5000 27850057B 97307 1/2 1/2 5 2-5/8 0.09 ALtima® Blaze Straight 11.00 204.15
.5000 27850058B 97308 1/2 1/2 5 2-5/8 0.12 ALtima® Blaze Straight 17.00 215.73
.5000 27850059B 97310 1/2 1/2 5 2-5/8 0.19 ALtima® Blaze Straight 5.00 221.75
.5000 27850060B 97285 1/2 1/2 6 1-5/8 ALtima® Blaze Straight 10.00 184.94
.5000 278500611B 97291 1/2 1/2 6 1-5/8 0.156 ALtima® Blaze Straight 10.00 210.13
.5000 27850062B 97286 1/2 1/2 6 1-5/8 0.015 ALtima® Blaze Straight 11.00 194.48
.5000 27850064B 97287 1/2 1/2 6 1-5/8 0.03 ALtima® Blaze Straight 8.00 194.48
.5000 27850066B 97288 1/2 1/2 6 1-5/8 0.06 ALtima® Blaze Straight 20.00 196.75
.5000 27850067B 97289 1/2 1/2 6 1-5/8 0.09 ALtima® Blaze Straight 10.00 203.08
.5000 27850068B 97290 1/2 1/2 6 1-5/8 0.12 ALtima® Blaze Straight 25.00 206.07
.5000 27850069B 97292 1/2 1/2 6 1-5/8 0.19 ALtima® Blaze Straight 22.00 212.06
.5000 27850070B 97312 1/2 1/2 6 3-1/4 ALtima® Blaze Straight 17.00 211.01
.5000 278500711B 97318 1/2 1/2 6 3-1/4 0.156 ALtima® Blaze Straight 9.00 220.55
.5000 27850072B 97313 1/2 1/2 6 3-1/4 0.015 ALtima® Blaze Straight 23.00 220.55
.5000 27850074B 97314 1/2 1/2 6 3-1/4 0.03 ALtima® Blaze Straight 28.00 220.55
.5000 27850076B 97315 1/2 1/2 6 3-1/4 0.06 ALtima® Blaze Straight 52.00 222.81
.5000 27850077B 97316 1/2 1/2 6 3-1/4 0.09 ALtima® Blaze Straight 10.00 229.16
.5000 27850078B 97317 1/2 1/2 6 3-1/4 0.12 ALtima® Blaze Straight 4.00 232.14
.5000 27850079B 97319 1/2 1/2 6 3-1/4 0.19 ALtima® Blaze Straight 8.00 238.14
.5000 27850010BW 14871 1/2 1/2 3 1 ALtima® Blaze Weldon 67.00 110.81
.5000 27850012BW 14870 1/2 1/2 3 1 0.015 ALtima® Blaze Weldon 767.00 120.35
.5000 27850002BW 13529 1/2 1/2 3 5/8 0.015 ALtima® Blaze Weldon 1.00 110.27
.5000 27850012BCS 15418 1/2 1/2 3 1 0.015 ALtima® Blaze Straight 0.00 120.35
.5000 27850014BW 15255 1/2 1/2 3 1 0.03 ALtima® Blaze Weldon 0.00 120.35
.5000 27850018BW 15823 1/2 1/2 3 1 0.12 ALtima® Blaze Weldon 0.00 131.94
.5000 27850042BW 16162 1/2 1/2 4 2-1/8 0.015 ALtima® Blaze Weldon 0.00 160.05
.5000 27850050BW 17041 1/2 1/2 5 2-5/8 ALtima® Blaze Weldon 0.00 199.69
.5000 27850030BW 17494 1/2 1/2 4 1-5/8 ALtima® Blaze Weldon 2.00 143.86
.5000 27850023B 18966 1/2 1/2 3 1-1/4 0.02 ALtima® Blaze Straight 1013.00 111.91
.5000 27850021B 18965 1/2 1/2 3 1-1/4 0.01 ALtima® Blaze Straight 29.00 111.91
.5000 27850011B 18963 1/2 1/2 3 1 0.01 ALtima® Blaze Straight 25.00 115.28
.5000 27850013B 18964 1/2 1/2 3 1 0.02 ALtima® Blaze Straight 8.00 115.28
.6250 27862510B 37039 5/8 5/8 3-1/2 1-1/4 ALtima® Blaze Straight 142.00 197.46
.6250 27862512B 37040 5/8 5/8 3-1/2 1-1/4 0.015 ALtima® Blaze Straight 18.00 207.56
.6250 27862514B 37041 5/8 5/8 3-1/2 1-1/4 0.03 ALtima® Blaze Straight 79.00 207.56
.6250 27862516B 37042 5/8 5/8 3-1/2 1-1/4 0.06 ALtima® Blaze Straight 35.00 207.56
.6250 27862518B 37043 5/8 5/8 3-1/2 1-1/4 0.12 ALtima® Blaze Straight 115.00 207.56
.6250 278L62500B 37044 5/8 5/8 5 2-1/4 ALtima® Blaze Straight 34.00 250.97
.6250 278L62502B 37045 5/8 5/8 5 2-1/4 0.015 ALtima® Blaze Straight 1.00 263.52
.6250 278L62504B 37046 5/8 5/8 5 2-1/4 0.03 ALtima® Blaze Straight 27.00 263.52
.6250 278X62500B 37047 5/8 5/8 6 3 ALtima® Blaze Straight 31.00 328.18
.6250 278X62502B 37048 5/8 5/8 6 3 0.015 ALtima® Blaze Straight 6.00 334.89
.6250 278X62504B 37049 5/8 5/8 6 3 0.03 ALtima® Blaze Straight 30.00 334.89
.6250 27862522BW 12550 5/8 5/8 3-1/2 1-5/8 0.015 ALtima® Blaze Weldon 6.00 238.18
.6250 27862524BW 12551 5/8 5/8 3-1/2 1-5/8 0.03 ALtima® Blaze Weldon 0.00 238.18
.6250 27862510BW 13609 5/8 5/8 3-1/2 1-1/4 ALtima® Blaze Weldon 27.00 203.88
.6250 27862514BW 13612 5/8 5/8 3-1/2 1-1/4 0.03 ALtima® Blaze Weldon 57.00 213.98
.6250 27862512BW 13611 5/8 5/8 3-1/2 1-1/4 0.015 ALtima® Blaze Weldon 0.00 213.98
.6250 27862516BW 13613 5/8 5/8 3-1/2 1-1/4 0.06 ALtima® Blaze Weldon 0.00 213.98
.6250 27862518BW 13614 5/8 5/8 3-1/2 1-1/4 0.12 ALtima® Blaze Weldon 0.00 213.98
.6250 278L62500BW 13616 5/8 5/8 5 2-1/4 ALtima® Blaze Weldon 0.00 257.39
.6250 278L62502BW 13617 5/8 5/8 5 2-1/4 0.015 ALtima® Blaze Weldon 0.00 269.93
.6250 278L62504BW 13618 5/8 5/8 5 2-1/4 0.03 ALtima® Blaze Weldon 0.00 269.93
.6250 278X62500BW 13619 5/8 5/8 6 3 ALtima® Blaze Weldon 0.00 334.59
.6250 278X62502BW 13621 5/8 5/8 6 3 0.015 ALtima® Blaze Weldon 0.00 341.3
.6250 278X62504BW 13622 5/8 5/8 6 3 0.03 ALtima® Blaze Weldon 0.00 341.3
.6250 27862500B 97321 5/8 5/8 3 3/4 ALtima® Blaze Straight 6.00 204.62
.6250 278625011B 97327 5/8 5/8 3 3/4 0.156 ALtima® Blaze Straight 12.00 229.78
.6250 278625012B 97329 5/8 5/8 3 3/4 0.25 ALtima® Blaze Straight 3.00 234.81
.6250 27862502B 97322 5/8 5/8 3 3/4 0.015 ALtima® Blaze Straight 16.00 214.16
.6250 27862504B 97323 5/8 5/8 3 3/4 0.03 ALtima® Blaze Straight 6.00 214.16
.6250 27862506B 97324 5/8 5/8 3 3/4 0.06 ALtima® Blaze Straight 4.00 216.43
.6250 27862507B 97325 5/8 5/8 3 3/4 0.09 ALtima® Blaze Straight 17.00 222.74
.6250 27862508B 97326 5/8 5/8 3 3/4 0.12 ALtima® Blaze Straight 8.00 225.74
.6250 27862509B 97328 5/8 5/8 3 3/4 0.19 ALtima® Blaze Straight 9.00 231.75
.6250 27862520B 97361 5/8 5/8 3-1/2 1-5/8 ALtima® Blaze Straight 96.00 222.21
.6250 278625211B 97368 5/8 5/8 3-1/2 1-5/8 0.156 ALtima® Blaze Straight 7.00 249.36
.6250 278625212B 97369 5/8 5/8 3-1/2 1-5/8 0.25 ALtima® Blaze Straight 5.00 252.44
.6250 27862522B 97362 5/8 5/8 3-1/2 1-5/8 0.015 ALtima® Blaze Straight 20.00 231.77
.6250 27862524B 97363 5/8 5/8 3-1/2 1-5/8 0.03 ALtima® Blaze Straight 56.00 231.77
.6250 27862526B 97364 5/8 5/8 3-1/2 1-5/8 0.06 ALtima® Blaze Straight 15.00 234.03
.6250 27862527B 97365 5/8 5/8 3-1/2 1-5/8 0.09 ALtima® Blaze Straight 6.00 240.37
.6250 27862528B 97366 5/8 5/8 3-1/2 1-5/8 0.12 ALtima® Blaze Straight 75.00 243.35
.6250 27862529B 97367 5/8 5/8 3-1/2 1-5/8 0.19 ALtima® Blaze Straight 4.00 249.36
.6250 27862530B 97371 5/8 5/8 4 2-1/8 ALtima® Blaze Straight 8.00 256.76
.6250 278625311B 97377 5/8 5/8 4 2-1/8 0.156 ALtima® Blaze Straight 9.00 281.94
.6250 278625312B 97379 5/8 5/8 4 2-1/8 0.25 ALtima® Blaze Straight 29.00 286.97
.6250 27862532B 97372 5/8 5/8 4 2-1/8 0.015 ALtima® Blaze Straight 34.00 266.31
.6250 27862534B 97373 5/8 5/8 4 2-1/8 0.03 ALtima® Blaze Straight 0.00 266.31
.6250 27862536B 97374 5/8 5/8 4 2-1/8 0.06 ALtima® Blaze Straight 27.00 268.57
.6250 27862537B 97375 5/8 5/8 4 2-1/8 0.09 ALtima® Blaze Straight 8.00 274.91
.6250 27862538B 97376 5/8 5/8 4 2-1/8 0.12 ALtima® Blaze Straight 15.00 277.89
.6250 27862539B 97378 5/8 5/8 4 2-1/8 0.19 ALtima® Blaze Straight 3.00 283.91
.6250 27862540B 97391 5/8 5/8 5 2-5/8 ALtima® Blaze Straight 15.00 308.01
.6250 278625411B 97397 5/8 5/8 5 2-5/8 0.156 ALtima® Blaze Straight 9.00 333.2
.6250 278625412B 97399 5/8 5/8 5 2-5/8 0.25 ALtima® Blaze Straight 7.00 338.23
.6250 27862542B 97392 5/8 5/8 5 2-5/8 0.015 ALtima® Blaze Straight 11.00 317.55
.6250 27862544B 97393 5/8 5/8 5 2-5/8 0.03 ALtima® Blaze Straight 21.00 317.55
.6250 27862546B 97394 5/8 5/8 5 2-5/8 0.06 ALtima® Blaze Straight 27.00 319.82
.6250 27862547B 97395 5/8 5/8 5 2-5/8 0.09 ALtima® Blaze Straight 76.00 326.16
.6250 27862548B 97396 5/8 5/8 5 2-5/8 0.12 ALtima® Blaze Straight 21.00 329.13
.6250 27862549B 97398 5/8 5/8 5 2-5/8 0.19 ALtima® Blaze Straight 7.00 335.14
.6250 27862550B 97381 5/8 5/8 6 2-1/8 ALtima® Blaze Straight 7.00 319.24
.6250 278625511B 97387 5/8 5/8 6 2-1/8 0.156 ALtima® Blaze Straight 5.00 344.42
.6250 278625512B 97389 5/8 5/8 6 2-1/8 0.25 ALtima® Blaze Straight 10.00 349.46
.6250 27862552B 97382 5/8 5/8 6 2-1/8 0.015 ALtima® Blaze Straight 5.00 328.78
.6250 27862554B 97383 5/8 5/8 6 2-1/8 0.03 ALtima® Blaze Straight 20.00 328.78
.6250 27862556B 97384 5/8 5/8 6 2-1/8 0.06 ALtima® Blaze Straight 22.00 331.05
.6250 27862557B 97385 5/8 5/8 6 2-1/8 0.09 ALtima® Blaze Straight 8.00 337.39
.6250 27862558B 97386 5/8 5/8 6 2-1/8 0.12 ALtima® Blaze Straight 17.00 340.37
.6250 27862559B 97388 5/8 5/8 6 2-1/8 0.19 ALtima® Blaze Straight 10.00 346.38
.6250 27862560B 97401 5/8 5/8 6 3-1/4 ALtima® Blaze Straight 17.00 338.12
.6250 278625611B 97407 5/8 5/8 6 3-1/4 0.156 ALtima® Blaze Straight 7.00 363.31
.6250 278625612B 97409 5/8 5/8 6 3-1/4 0.25 ALtima® Blaze Straight 10.00 368.34
.6250 27862562B 97402 5/8 5/8 6 3-1/4 0.015 ALtima® Blaze Straight 16.00 347.67
.6250 27862564B 97403 5/8 5/8 6 3-1/4 0.03 ALtima® Blaze Straight 10.00 347.67
.6250 27862566B 97404 5/8 5/8 6 3-1/4 0.06 ALtima® Blaze Straight 27.00 349.93
.6250 27862567B 97405 5/8 5/8 6 3-1/4 0.09 ALtima® Blaze Straight 8.00 356.27
.6250 27862568B 97406 5/8 5/8 6 3-1/4 0.12 ALtima® Blaze Straight 14.00 359.26
.6250 27862569B 97408 5/8 5/8 6 3-1/4 0.19 ALtima® Blaze Straight 10.00 365.25
.6250 27862570B 97411 5/8 5/8 6 4 ALtima® Blaze Straight 16.00 361.92
.6250 278625711B 97417 5/8 5/8 6 4 0.156 ALtima® Blaze Straight 8.00 387.11
.6250 278625712B 97419 5/8 5/8 6 4 0.25 ALtima® Blaze Straight 6.00 392.14
.6250 27862572B 97412 5/8 5/8 6 4 0.015 ALtima® Blaze Straight 4.00 371.46
.6250 27862574B 97413 5/8 5/8 6 4 0.03 ALtima® Blaze Straight 6.00 371.46
.6250 27862576B 97414 5/8 5/8 6 4 0.06 ALtima® Blaze Straight 11.00 373.75
.6250 27862577B 97415 5/8 5/8 6 4 0.09 ALtima® Blaze Straight 4.00 380.07
.6250 27862578B 97416 5/8 5/8 6 4 0.12 ALtima® Blaze Straight 10.00 383.06
.6250 27862579B 97418 5/8 5/8 6 4 0.19 ALtima® Blaze Straight 8.00 389.05
.6250 27862562BW 14961 5/8 5/8 6 3-1/4 0.015 ALtima® Blaze Weldon 0.00 354.08
.6250 27862502BW 15821 5/8 5/8 3 3/4 0.015 ALtima® Blaze Weldon 0.00 220.57
.6250 27862528BW 15200 5/8 5/8 3-1/2 1-5/8 0.12 ALtima® Blaze Weldon 0.00 249.76
.6250 27862504BW 18355 5/8 5/8 3 3/4 0.03 ALtima® Blaze Weldon 0.00 220.57
.6250 27862534BW 18358 5/8 5/8 4 2-1/8 0.03 ALtima® Blaze Weldon 0.00 272.72
.7500 27875010B 37052 3/4 3/4 4 1-1/2 ALtima® Blaze Straight 94.00 290.27
.7500 27875012B 37053 3/4 3/4 4 1-1/2 0.015 ALtima® Blaze Straight 32.00 305.47
.7500 27875014B 37054 3/4 3/4 4 1-1/2 0.03 ALtima® Blaze Straight 54.00 305.47
.7500 27875016B 37055 3/4 3/4 4 1-1/2 0.06 ALtima® Blaze Straight 17.00 305.47
.7500 27875018B 37056 3/4 3/4 4 1-1/2 0.12 ALtima® Blaze Straight 8.00 305.47
.7500 278L75000B 37057 3/4 3/4 5 2-1/4 ALtima® Blaze Straight 20.00 354.27
.7500 278L75002B 37058 3/4 3/4 5 2-1/4 0.015 ALtima® Blaze Straight 3.00 371.98
.7500 278L75004B 37059 3/4 3/4 5 2-1/4 0.03 ALtima® Blaze Straight 40.00 371.98
.7500 278X75000B 37060 3/4 3/4 6 3 ALtima® Blaze Straight 36.00 429.37
.7500 278X75002B 37061 3/4 3/4 6 3 0.015 ALtima® Blaze Straight 12.00 437.96
.7500 278X75004B 37062 3/4 3/4 6 3 0.03 ALtima® Blaze Straight 47.00 437.96
.7500 27875019B 37079 3/4 3/4 4 1-1/2 0.19 ALtima® Blaze Straight 4.00 305.46
.7500 27875010BW 13623 3/4 3/4 4 1-1/2 ALtima® Blaze Weldon 23.00 296.69
.7500 27875014BW 13627 3/4 3/4 4 1-1/2 0.03 ALtima® Blaze Weldon 27.00 311.88
.7500 278X75000BW 13637 3/4 3/4 6 3 ALtima® Blaze Weldon 13.00 435.78
.7500 27875012BW 13624 3/4 3/4 4 1-1/2 0.015 ALtima® Blaze Weldon 7.00 311.88
.7500 27875016BW 13628 3/4 3/4 4 1-1/2 0.06 ALtima® Blaze Weldon 4.00 311.88
.7500 27875018BW 13629 3/4 3/4 4 1-1/2 0.12 ALtima® Blaze Weldon 0.00 311.88
.7500 27875019BW 13632 3/4 3/4 4 1-1/2 0.19 ALtima® Blaze Weldon 0.00 311.87
.7500 278L75000BW 13633 3/4 3/4 5 2-1/4 ALtima® Blaze Weldon 0.00 360.69
.7500 278L75002BW 13634 3/4 3/4 5 2-1/4 0.015 ALtima® Blaze Weldon 3.00 378.4
.7500 278L75004BW 13636 3/4 3/4 5 2-1/4 0.03 ALtima® Blaze Weldon 0.00 378.4
.7500 278X75002BW 13639 3/4 3/4 6 3 0.015 ALtima® Blaze Weldon 0.00 444.37
.7500 278X75004BW 13656 3/4 3/4 6 3 0.03 ALtima® Blaze Weldon 25.00 444.37
.7500 27875004BW 14202 3/4 3/4 3 1 0.03 ALtima® Blaze Weldon 3.00 305.92
.7500 27875000B 97421 3/4 3/4 3 1 ALtima® Blaze Straight 10.00 289.95
.7500 278750011B 97427 3/4 3/4 3 1 0.156 ALtima® Blaze Straight 4.00 315.15
.7500 278750012B 97429 3/4 3/4 3 1 0.25 ALtima® Blaze Straight 20.00 320.18
.7500 27875002B 97422 3/4 3/4 3 1 0.015 ALtima® Blaze Straight 2.00 299.5
.7500 27875004B 97423 3/4 3/4 3 1 0.03 ALtima® Blaze Straight 16.00 299.5
.7500 27875006B 97424 3/4 3/4 3 1 0.06 ALtima® Blaze Straight 11.00 301.77
.7500 27875007B 97425 3/4 3/4 3 1 0.09 ALtima® Blaze Straight 10.00 308.1
.7500 27875008B 97426 3/4 3/4 3 1 0.12 ALtima® Blaze Straight 12.00 311.08
.7500 27875009B 97428 3/4 3/4 3 1 0.19 ALtima® Blaze Straight 21.00 317.1
.7500 27875020B 97461 3/4 3/4 4 1-5/8 ALtima® Blaze Straight 4.00 317.34
.7500 278750211B 97467 3/4 3/4 4 1-5/8 0.156 ALtima® Blaze Straight 12.00 342.52
.7500 278750212B 97469 3/4 3/4 4 1-5/8 0.25 ALtima® Blaze Straight 9.00 347.54
.7500 27875022B 97462 3/4 3/4 4 1-5/8 0.015 ALtima® Blaze Straight 12.00 326.88
.7500 27875024B 97463 3/4 3/4 4 1-5/8 0.03 ALtima® Blaze Straight 17.00 326.88
.7500 27875026B 97464 3/4 3/4 4 1-5/8 0.06 ALtima® Blaze Straight 24.00 329.14
.7500 27875027B 97465 3/4 3/4 4 1-5/8 0.09 ALtima® Blaze Straight 18.00 335.5
.7500 27875028B 97466 3/4 3/4 4 1-5/8 0.12 ALtima® Blaze Straight 15.00 338.47
.7500 27875029B 97468 3/4 3/4 4 1-5/8 0.19 ALtima® Blaze Straight 15.00 344.47
.7500 27875030B 97471 3/4 3/4 5 2-3/8 ALtima® Blaze Straight 44.00 364.67
.7500 278750311B 97477 3/4 3/4 5 2-3/8 0.156 ALtima® Blaze Straight 3.00 389.87
.7500 278750312B 97479 3/4 3/4 5 2-3/8 0.25 ALtima® Blaze Straight 21.00 394.88
.7500 27875032B 97472 3/4 3/4 5 2-3/8 0.015 ALtima® Blaze Straight 8.00 374.21
.7500 27875034B 97473 3/4 3/4 5 2-3/8 0.03 ALtima® Blaze Straight 0.00 374.21
.7500 27875036B 97474 3/4 3/4 5 2-3/8 0.06 ALtima® Blaze Straight 7.00 376.48
.7500 27875037B 97475 3/4 3/4 5 2-3/8 0.09 ALtima® Blaze Straight 3.00 382.81
.7500 27875038B 97476 3/4 3/4 5 2-3/8 0.12 ALtima® Blaze Straight 18.00 385.81
.7500 27875039B 97478 3/4 3/4 5 2-3/8 0.19 ALtima® Blaze Straight 5.00 391.81
.7500 27875040B 97481 3/4 3/4 6 2-3/8 ALtima® Blaze Straight 8.00 419.21
.7500 278750411B 97487 3/4 3/4 6 2-3/8 0.156 ALtima® Blaze Straight 4.00 444.4
.7500 278750412B 97489 3/4 3/4 6 2-3/8 0.25 ALtima® Blaze Straight 4.00 449.42
.7500 27875042B 97482 3/4 3/4 6 2-3/8 0.015 ALtima® Blaze Straight 10.00 428.74
.7500 27875044B 97483 3/4 3/4 6 2-3/8 0.03 ALtima® Blaze Straight 16.00 428.74
.7500 27875046B 97484 3/4 3/4 6 2-3/8 0.06 ALtima® Blaze Straight 11.00 431.01
.7500 27875047B 97485 3/4 3/4 6 2-3/8 0.09 ALtima® Blaze Straight 6.00 437.34
.7500 27875048B 97486 3/4 3/4 6 2-3/8 0.12 ALtima® Blaze Straight 11.00 440.34
.7500 27875049B 97488 3/4 3/4 6 2-3/8 0.19 ALtima® Blaze Straight 7.00 446.33
.7500 27875050B 97491 3/4 3/4 6 3-1/4 ALtima® Blaze Straight 30.00 438.2
.7500 278750511B 97497 3/4 3/4 6 3-1/4 0.156 ALtima® Blaze Straight 10.00 463.38
.7500 278750512B 97499 3/4 3/4 6 3-1/4 0.25 ALtima® Blaze Straight 4.00 468.42
.7500 27875052B 97492 3/4 3/4 6 3-1/4 0.015 ALtima® Blaze Straight 3.00 447.73
.7500 27875054B 97493 3/4 3/4 6 3-1/4 0.03 ALtima® Blaze Straight 17.00 447.73
.7500 27875056B 97494 3/4 3/4 6 3-1/4 0.06 ALtima® Blaze Straight 21.00 449.99
.7500 27875057B 97495 3/4 3/4 6 3-1/4 0.09 ALtima® Blaze Straight 10.00 456.35
.7500 27875058B 97496 3/4 3/4 6 3-1/4 0.12 ALtima® Blaze Straight 15.00 459.32
.7500 27875059B 97498 3/4 3/4 6 3-1/4 0.19 ALtima® Blaze Straight 4.00 465.33
.7500 27875060B 97501 3/4 3/4 7 4-1/8 ALtima® Blaze Straight 15.00 513.15
.7500 278750611B 97507 3/4 3/4 7 4-1/8 0.156 ALtima® Blaze Straight 8.00 538.3
.7500 278750612B 97509 3/4 3/4 7 4-1/8 0.25 ALtima® Blaze Straight 5.00 543.36
.7500 27875062B 97502 3/4 3/4 7 4-1/8 0.015 ALtima® Blaze Straight 10.00 522.68
.7500 27875064B 97503 3/4 3/4 7 4-1/8 0.03 ALtima® Blaze Straight 12.00 522.68
.7500 27875066B 97504 3/4 3/4 7 4-1/8 0.06 ALtima® Blaze Straight 12.00 524.97
.7500 27875067B 97505 3/4 3/4 7 4-1/8 0.09 ALtima® Blaze Straight 31.00 531.28
.7500 27875068B 97506 3/4 3/4 7 4-1/8 0.12 ALtima® Blaze Straight 15.00 534.27
.7500 27875069B 97508 3/4 3/4 7 4-1/8 0.19 ALtima® Blaze Straight 10.00 540.28
.7500 27875034BW 14935 3/4 3/4 5 2-3/8 0.03 ALtima® Blaze Weldon 1.00 380.63
.7500 27875058BW 16506 3/4 3/4 6 3-1/4 0.12 ALtima® Blaze Weldon 1.00 465.74
.7500 27875027BW 17221 3/4 3/4 4 1-5/8 0.09 ALtima® Blaze Weldon 10.00 341.91
.7500 27875013B 18257 3/4 3/4 4 1-1/2 0.02 ALtima® Blaze Straight 21.00 305.47
.7500 27875030BW 18336 3/4 3/4 5 2-3/8 ALtima® Blaze Weldon 0.00 371.08
.7874 278 2000N3-2.0RB 27906 20mm 20mm 112mm 40mm 62mm 2mm ALtima® Blaze Straight 28.00 352.78
1.0000 27810010B 37065 1 1 4 1-1/2 ALtima® Blaze Straight 7.00 442.14
1.0000 27810014B 37066 1 1 4 1-1/2 0.03 ALtima® Blaze Straight 15.00 462.4
1.0000 27810016B 37067 1 1 4 1-1/2 0.06 ALtima® Blaze Straight 8.00 462.4
1.0000 27810018B 37068 1 1 4 1-1/2 0.12 ALtima® Blaze Straight 7.00 462.4
1.0000 278L10000B 37069 1 1 5 2-1/4 ALtima® Blaze Straight 22.00 491.58
1.0000 278L10002B 37070 1 1 5 2-1/4 0.015 ALtima® Blaze Straight 4.00 516.16
1.0000 278L10004B 37071 1 1 5 2-1/4 0.03 ALtima® Blaze Straight 10.00 516.16
1.0000 278X10000B 37072 1 1 6 3 ALtima® Blaze Straight 13.00 593.58
1.0000 278X10002B 37073 1 1 6 3 0.015 ALtima® Blaze Straight 20.00 623.26
1.0000 278X10004B 37074 1 1 6 3 0.03 ALtima® Blaze Straight 13.00 623.26
1.0000 27810019B 37080 1 1 4 1-1/2 0.19 ALtima® Blaze Straight 17.00 462.4
1.0000 27810010BW 13657 1 1 4 1-1/2 ALtima® Blaze Weldon 1.00 449.8
1.0000 27810014BW 13658 1 1 4 1-1/2 0.03 ALtima® Blaze Weldon 18.00 470.04
1.0000 27810016BW 13659 1 1 4 1-1/2 0.06 ALtima® Blaze Weldon 0.00 470.04
1.0000 27810018BW 13677 1 1 4 1-1/2 0.12 ALtima® Blaze Weldon 0.00 470.04
1.0000 27810019BW 14112 1 1 4 1-1/2 0.19 ALtima® Blaze Weldon 0.00 470.04
1.0000 278L10000BW 14113 1 1 5 2-1/4 ALtima® Blaze Weldon 0.00 499.22
1.0000 278L10002BW 14114 1 1 5 2-1/4 0.015 ALtima® Blaze Weldon 0.00 523.8
1.0000 278L10004BW 14115 1 1 5 2-1/4 0.03 ALtima® Blaze Weldon 0.00 523.8
1.0000 278X10000BW 14116 1 1 6 3 ALtima® Blaze Weldon 3.00 601.22
1.0000 278X10002BW 14117 1 1 6 3 0.015 ALtima® Blaze Weldon 0.00 630.9
1.0000 278X10004BW 14118 1 1 6 3 0.03 ALtima® Blaze Weldon 0.00 630.9
1.0000 27810020B 97555 1 1 4 1-3/4 ALtima® Blaze Straight 12.00 512.36
1.0000 278100211B 97561 1 1 4 1-3/4 0.156 ALtima® Blaze Straight 8.00 537.55
1.0000 278100212B 97563 1 1 4 1-3/4 0.25 ALtima® Blaze Straight 10.00 542.57
1.0000 278100213B 97564 1 1 4 1-3/4 0.375 ALtima® Blaze Straight 7.00 549.8
1.0000 27810022B 97556 1 1 4 1-3/4 0.015 ALtima® Blaze Straight 0.00 521.89
1.0000 27810024B 97557 1 1 4 1-3/4 0.03 ALtima® Blaze Straight 4.00 521.89
1.0000 27810026B 97558 1 1 4 1-3/4 0.06 ALtima® Blaze Straight 6.00 524.16
1.0000 27810027B 97559 1 1 4 1-3/4 0.09 ALtima® Blaze Straight 6.00 530.52
1.0000 27810028B 97560 1 1 4 1-3/4 0.12 ALtima® Blaze Straight 6.00 533.49
1.0000 27810029B 97562 1 1 4 1-3/4 0.19 ALtima® Blaze Straight 1.00 539.48
1.0000 27810030B 97566 1 1 5 2-5/8 ALtima® Blaze Straight 6.00 561.27
1.0000 278100311B 97572 1 1 5 2-5/8 0.156 ALtima® Blaze Straight 9.00 586.44
1.0000 278100312B 97574 1 1 5 2-5/8 0.25 ALtima® Blaze Straight 4.00 591.48
1.0000 278100313B 97575 1 1 5 2-5/8 0.375 ALtima® Blaze Straight 8.00 598.71
1.0000 27810032B 97567 1 1 5 2-5/8 0.015 ALtima® Blaze Straight 27.00 570.8
1.0000 27810034B 97568 1 1 5 2-5/8 0.03 ALtima® Blaze Straight 6.00 570.8
1.0000 27810036B 97569 1 1 5 2-5/8 0.06 ALtima® Blaze Straight 9.00 573.07
1.0000 27810037B 97570 1 1 5 2-5/8 0.09 ALtima® Blaze Straight 7.00 579.39
1.0000 27810038B 97571 1 1 5 2-5/8 0.12 ALtima® Blaze Straight 7.00 582.4
1.0000 27810039B 97573 1 1 5 2-5/8 0.19 ALtima® Blaze Straight 7.00 588.4
1.0000 27810040B 97588 1 1 6 3-1/4 ALtima® Blaze Straight 10.00 631.44
1.0000 278100411B 97594 1 1 6 3-1/4 0.156 ALtima® Blaze Straight 8.00 656.64
1.0000 278100412B 97596 1 1 6 3-1/4 0.25 ALtima® Blaze Straight 8.00 661.63
1.0000 278100413B 97597 1 1 6 3-1/4 0.375 ALtima® Blaze Straight 7.00 668.88
1.0000 27810042B 97589 1 1 6 3-1/4 0.015 ALtima® Blaze Straight 5.00 640.98
1.0000 27810044B 97590 1 1 6 3-1/4 0.03 ALtima® Blaze Straight 9.00 640.98
1.0000 27810046B 97591 1 1 6 3-1/4 0.06 ALtima® Blaze Straight 16.00 643.25
1.0000 27810047B 97592 1 1 6 3-1/4 0.09 ALtima® Blaze Straight 6.00 649.58
1.0000 27810048B 97593 1 1 6 3-1/4 0.12 ALtima® Blaze Straight 4.00 652.55
1.0000 27810049B 97595 1 1 6 3-1/4 0.19 ALtima® Blaze Straight 12.00 658.58
1.0000 27810050B 97599 1 1 7 4-1/4 ALtima® Blaze Straight 8.00 701.54
1.0000 278100511B 97605 1 1 7 4-1/4 0.156 ALtima® Blaze Straight 4.00 726.73
1.0000 278100512B 97607 1 1 7 4-1/4 0.25 ALtima® Blaze Straight 3.00 731.77
1.0000 278100513B 97608 1 1 7 4-1/4 0.375 ALtima® Blaze Straight 15.00 739
1.0000 27810052B 97600 1 1 7 4-1/4 0.015 ALtima® Blaze Straight 0.00 711.06
1.0000 27810054B 97601 1 1 7 4-1/4 0.03 ALtima® Blaze Straight 8.00 711.06
1.0000 27810056B 97602 1 1 7 4-1/4 0.06 ALtima® Blaze Straight 15.00 713.36
1.0000 27810057B 97603 1 1 7 4-1/4 0.09 ALtima® Blaze Straight 7.00 709.95
1.0000 27810058B 97604 1 1 7 4-1/4 0.12 ALtima® Blaze Straight 11.00 722.67
1.0000 27810059B 97606 1 1 7 4-1/4 0.19 ALtima® Blaze Straight 1.00 728.69
1.0000 278100313BW 15338 1 1 5 2-5/8 0.375 ALtima® Blaze Weldon 0.00 606.35
1.0000 27810050BW 15527 1 1 7 4-1/4 ALtima® Blaze Weldon 0.00 709.18
1.0000 27810024BW 17233 1 1 4 1-3/4 0.03 ALtima® Blaze Weldon 0.00 529.54
1.0000 27810054BW 18686 1 1 7 4-1/4 0.03 ALtima® Blaze Weldon 0.00 718.71
