End Mills / 180

Solid Carbide TuffCut® XR7, 7 Flute End Mill
Designed specifically for Titanium, Inconel and similar materials
40% Increase In Productivity Over A 5 Flute Tool
  • 7 Flute
  • Solid carbide
  • ALtima® Blaze coating, B=ALtima® Blaze (ALCrN) coated
  • Stub and standard flute lengths
  • 38° Helix angle
  • For roughing and finishing applications
  • Non-center cutting
  • Square end and corner radius options

Materials

  • Steel
  • Stainless steel
  • Super-alloys and titanium

Applications

  • High Efficiency Milling
  • Finishing

Series Attributes

Downloads

Product Range

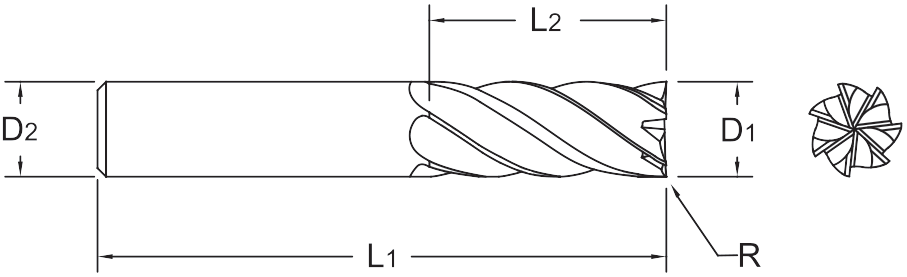

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Corner Radius Coating Shank Type Available List Price
.2362 18023600B 18936 6mm 6mm 57mm 13mm ALtima® Blaze Straight 89.00 43.52
.2362 18023601B 18938 6mm 6mm 57mm 13mm 0.5mm ALtima® Blaze Straight 55.00 45.7
.2500 18025000B 18900 1/4 1/4 2 3/8 ALtima® Blaze Straight 596.00 40.85
.2500 18025010B 18902 1/4 1/4 2-1/2 3/4 ALtima® Blaze Straight 144.00 43.52
.2500 18025002B 18901 1/4 1/4 2 3/8 0.015 ALtima® Blaze Straight 468.00 42.89
.2500 18025012B 18903 1/4 1/4 2-1/2 3/4 0.015 ALtima® Blaze Straight 146.00 45.7
.2500 18025000BR.030 77233 1/4 1/4 2 3/8 0.03 ALtima® Blaze Straight 0.00 29.97
.2500 18025011B 18967 1/4 1/4 2-1/2 3/4 0.01 ALtima® Blaze Straight 35.00 45.7
.2500 18025013B 18968 1/4 1/4 2-1/2 3/4 0.02 ALtima® Blaze Straight 33.00 45.7
.3150 18031500B 18944 8mm 8mm 63mm 19mm ALtima® Blaze Straight 4.00 51.36
.3150 18031501B 18946 8mm 8mm 63mm 19mm 0.5mm ALtima® Blaze Straight 41.00 53.93
.3750 18037500B 18908 3/8 3/8 2-1/2 1/2 ALtima® Blaze Straight 109.00 67.31
.3750 18037510B 18910 3/8 3/8 2-1/2 1 ALtima® Blaze Straight 288.00 71.68
.3750 18037502B 18909 3/8 3/8 2-1/2 1/2 0.015 ALtima® Blaze Straight 422.00 70.67
.3750 18037504B 18932 3/8 3/8 2-1/2 1/2 0.03 ALtima® Blaze Straight 196.00 70.67
.3750 18037512B 18911 3/8 3/8 2-1/2 1 0.015 ALtima® Blaze Straight 682.00 75.26
.3750 18037514B 18934 3/8 3/8 2-1/2 1 0.03 ALtima® Blaze Straight 353.00 75.26
.3750 18037512BW 14962 3/8 3/8 2-1/2 1 0.015 ALtima® Blaze Weldon 0.00 79.21
.3750 18037500BCS 15443 3/8 3/8 2-1/2 1/2 ALtima® Blaze Straight 0.00 71.25
.3750 18037512BCS 15466 3/8 3/8 2-1/2 1 0.015 ALtima® Blaze Straight 10.00 79.21
.3750 18037514BW 17319 3/8 3/8 2-1/2 1 0.03 ALtima® Blaze Weldon 0.00 79.2
.3750 18037511B 18969 3/8 3/8 2-1/2 1 0.01 ALtima® Blaze Straight 38.00 75.26
.3750 18037513B 18970 3/8 3/8 2-1/2 1 0.02 ALtima® Blaze Straight 33.00 75.26
.3750 180P37504B 18939 3/8 3/8 2-1/2 1/2 0.03 ALtima® Blaze Straight 34.00 31.09
.3937 18039300B 18940 10mm 10mm 72mm 22mm ALtima® Blaze Straight 0.00 71.68
.3937 18039301B 18942 10mm 10mm 72mm 22mm 0.5mm ALtima® Blaze Straight 41.00 75.26
.4724 18047201B 18501 12mm 12mm 84mm 32mm 0.5mm ALtima® Blaze Straight 217.00 111.95
.4724 18047203B 18503 12mm 12mm 84mm 32mm 1mm ALtima® Blaze Straight 311.00 111.95
.4724 18047205B 18505 12mm 12mm 84mm 32mm 2mm ALtima® Blaze Straight 18.00 111.95
.4724 18047207B 18507 12mm 12mm 84mm 32mm 3mm ALtima® Blaze Straight 119.00 111.95
.4724 18047209B 18508 12mm 12mm 84mm 32mm 4mm ALtima® Blaze Straight 134.00 111.95
.500 18050016B 18520 .500 .500 3.00 1.25 ALtima® Blaze Straight 304.00 111.9
.5000 18050012B 18516 1/2 1/2 3 1-1/4 0.015 ALtima® Blaze Straight 587.00 111.9
.5000 18050018B 18524 1/2 1/2 3 1-1/4 0.125 ALtima® Blaze Straight 179.00 111.9
.5000 18050000B 18512 1/2 1/2 3 5/8 ALtima® Blaze Straight 31.00 101.26
.5000 18050002B 18515 1/2 1/2 3 5/8 0.015 ALtima® Blaze Straight 765.00 106.3
.5000 18050004B 18517 1/2 1/2 3 5/8 0.03 ALtima® Blaze Straight 499.00 106.3
.5000 18050006B 18519 1/2 1/2 3 5/8 0.06 ALtima® Blaze Straight 131.00 106.3
.5000 18050007B 18521 1/2 1/2 3 5/8 0.09 ALtima® Blaze Straight 976.00 106.3
.5000 18050008B 18523 1/2 1/2 3 5/8 ALtima® Blaze Straight 540.00 106.3
.5000 18050010B 18514 1/2 1/2 3 1-1/4 ALtima® Blaze Straight 473.00 106.58
.5000 18050014B 18518 1/2 1/2 3 1-1/4 0.03 ALtima® Blaze Straight 385.00 111.9
.5000 18050017B 18522 1/2 1/2 3 1-1/4 0.09 ALtima® Blaze Straight 120.00 111.9
.5000 18050014BW 59021 1/2 1/2 3 1-1/4 0.03 ALtima® Blaze Weldon 5.00 120.99
.5000 18050010BW 12597 1/2 1/2 3 1-1/4 ALtima® Blaze Weldon 0.00 115.63
.5000 18050000BW 12760 1/2 1/2 3 5/8 ALtima® Blaze Weldon 0.00 110.32
.5000 18050000BR.010 77234 1/2 1/2 3 5/8 0.01 ALtima® Blaze Straight 0.00 115.33
.5000 18050004BW 77235 1/2 1/2 3 5/8 0.03 ALtima® Blaze Weldon 0.00 115.38
.5000 18050011B 18971 1/2 1/2 3 1-1/4 0.01 ALtima® Blaze Straight 28.00 111.9
.5000 18050013B 18972 1/2 1/2 3 1-1/4 0.02 ALtima® Blaze Straight 37.00 111.9
.5000 18050008BW 18905 1/2 1/2 3 5/8 ALtima® Blaze Weldon 0.00 111.37
.6250 18062500B 18532 5/8 5/8 3-1/2 3/4 ALtima® Blaze Straight 39.00 191.06
.6250 18062504B 18537 5/8 5/8 3-1/2 3/4 0.03 ALtima® Blaze Straight 193.00 200.85
.6250 18062506B 18539 5/8 5/8 3-1/2 3/4 0.06 ALtima® Blaze Straight 93.00 200.85
.6250 18062507B 18541 5/8 5/8 3-1/2 3/4 0.09 ALtima® Blaze Straight 95.00 200.85
.6250 18062508B 18543 5/8 5/8 3-1/2 3/4 0.125 ALtima® Blaze Straight 18.00 200.85
.6250 18062510B 18534 5/8 5/8 3-1/2 1-1/4 ALtima® Blaze Straight 190.00 201.11
.6250 18062512B 18536 5/8 5/8 3-1/2 1-1/4 0.015 ALtima® Blaze Straight 56.00 211.44
.6250 18062514B 18538 5/8 5/8 3-1/2 1-1/4 0.03 ALtima® Blaze Straight 216.00 211.44
.6250 18062516B 18540 5/8 5/8 3-1/2 1-1/4 0.06 ALtima® Blaze Straight 22.00 211.44
.6250 18062517B 18542 5/8 5/8 3-1/2 1-1/4 0.09 ALtima® Blaze Straight 15.00 211.44
.6250 18062518B 18544 5/8 5/8 3-1/2 1-1/4 0.125 ALtima® Blaze Straight 114.00 211.44
.6250 18062502B 18535 5/8 5/8 3-1/2 3/4 0.015 ALtima® Blaze Straight 134.00 200.85
.6250 18062514BW 16771 5/8 5/8 3-1/2 1-1/4 0.03 ALtima® Blaze Weldon 0.00 217.84
.6250 18062504BW 17409 5/8 5/8 3-1/2 3/4 0.03 ALtima® Blaze Weldon 0.00 207.26
.629 18062905B 18511 .629 .629 3.62 1.65 ALtima® Blaze Straight 238.00 197.02
.6299 18062901B 18509 16mm 16mm 92mm 42mm 0.5mm ALtima® Blaze Straight 92.00 197.02
.6299 18062903B 18510 16mm 16mm 92mm 42mm 1mm ALtima® Blaze Straight 76.00 197.02
.6299 18062907B 18513 16mm 16mm 92mm 42mm 3mm ALtima® Blaze Straight 21.00 197.02
.6299 18062909B 18527 16mm 16mm 92mm 42mm 4mm ALtima® Blaze Straight 210.00 197.02
.7500 18075000B 18570 3/4 3/4 4 1 ALtima® Blaze Straight 13.00 280.86
.7500 180750012B 18585 3/4 3/4 4 1 0.25 ALtima® Blaze Straight 35.00 295.58
.7500 18075002B 18573 3/4 3/4 4 1 0.015 ALtima® Blaze Straight 30.00 295.58
.7500 18075004B 18575 3/4 3/4 4 1 0.03 ALtima® Blaze Straight 22.00 295.58
.7500 18075006B 18577 3/4 3/4 4 1 0.06 ALtima® Blaze Straight 114.00 295.58
.7500 18075008B 18581 3/4 3/4 4 1 0.125 ALtima® Blaze Straight 11.00 295.58
.7500 18075009B 18583 3/4 3/4 4 1 0.19 ALtima® Blaze Straight 17.00 295.58
.7500 18075010B 18572 3/4 3/4 4 1-1/2 ALtima® Blaze Straight 39.00 295.64
.7500 180750112B 18586 3/4 3/4 4 1-1/2 0.25 ALtima® Blaze Straight 66.00 311.12
.7500 18075012B 18574 3/4 3/4 4 1-1/2 0.015 ALtima® Blaze Straight 37.00 311.12
.7500 18075014B 18576 3/4 3/4 4 1-1/2 0.03 ALtima® Blaze Straight 124.00 311.12
.7500 18075016B 18578 3/4 3/4 4 1-1/2 0.06 ALtima® Blaze Straight 234.00 311.12
.7500 18075017B 18580 3/4 3/4 4 1-1/2 0.09 ALtima® Blaze Straight 46.00 311.12
.7500 18075018B 18582 3/4 3/4 4 1-1/2 0.125 ALtima® Blaze Straight 39.00 311.12
.7500 18075019B 18584 3/4 3/4 4 1-1/2 0.19 ALtima® Blaze Straight 24.00 311.12
.7500 18075018BW 77236 3/4 3/4 4 1-1/2 0.125 ALtima® Blaze Weldon 0.00 321.46
.7500 18075007B 18579 3/4 3/4 4 1 0.09 ALtima® Blaze Straight 25.00 295.58
.7500 18075014BW 16770 3/4 3/4 4 1-1/2 0.03 ALtima® Blaze Weldon 0.00 321.46
.7874 18078701B 18528 20mm 20mm 102mm 52mm 0.5mm ALtima® Blaze Straight 176.00 325.96
.7874 18078703B 18529 20mm 20mm 102mm 52mm 1mm ALtima® Blaze Straight 0.00 325.96
.7874 18078705B 18530 20mm 20mm 102mm 52mm 2mm ALtima® Blaze Straight 20.00 325.96
.7874 18078707B 18531 20mm 20mm 102mm 52mm 3mm ALtima® Blaze Straight 4.00 325.96
.7874 18078709B 18533 20mm 20mm 102mm 52mm 4mm ALtima® Blaze Straight 6.00 325.96
1.0000 18010000B 18597 1 1 4 1 ALtima® Blaze Straight 7.00 427.84
1.0000 180100012B 18611 1 1 4 1 0.25 ALtima® Blaze Straight 8.00 447.42
1.0000 18010002B 18599 1 1 4 1 0.015 ALtima® Blaze Straight 7.00 447.42
1.0000 18010006B 18603 1 1 4 1 0.06 ALtima® Blaze Straight 11.00 447.42
1.0000 18010008B 18607 1 1 4 1 0.125 ALtima® Blaze Straight 2.00 447.42
1.0000 18010010B 18598 1 1 4 1-1/2 ALtima® Blaze Straight 21.00 450.33
1.0000 180100112B 18612 1 1 4 1-1/2 0.25 ALtima® Blaze Straight 2.00 470.97
1.0000 18010012B 18613 1 1 4 1-1/2 0.015 ALtima® Blaze Straight 24.00 470.97
1.0000 18010014B 18602 1 1 4 1-1/2 0.03 ALtima® Blaze Straight 27.00 470.97
1.0000 18010016B 18604 1 1 4 1-1/2 0.06 ALtima® Blaze Straight 56.00 470.97
1.0000 18010017B 18606 1 1 4 1-1/2 0.09 ALtima® Blaze Straight 4.00 470.97
1.0000 18010018B 18608 1 1 4 1-1/2 0.125 ALtima® Blaze Straight 16.00 470.97
1.0000 18010019B 18616 1 1 4 1-1/2 0.19 ALtima® Blaze Straight 2.00 470.97
1.0000 18010004B 18601 1 1 4 1 0.03 ALtima® Blaze Straight 6.00 447.42
1.0000 18010007B 18615 1 1 4 1 0.09 ALtima® Blaze Straight 5.00 447.42
1.0000 18010009B 18609 1 1 4 1 0.19 ALtima® Blaze Straight 5.00 447.42
1.0000 18010006BW 17060 1 1 4 1 0.06 ALtima® Blaze Weldon 0.00 455.06
1.0000 18010016BW 18436 1 1 4 1-1/2 0.06 ALtima® Blaze Weldon 0.00 478.62
