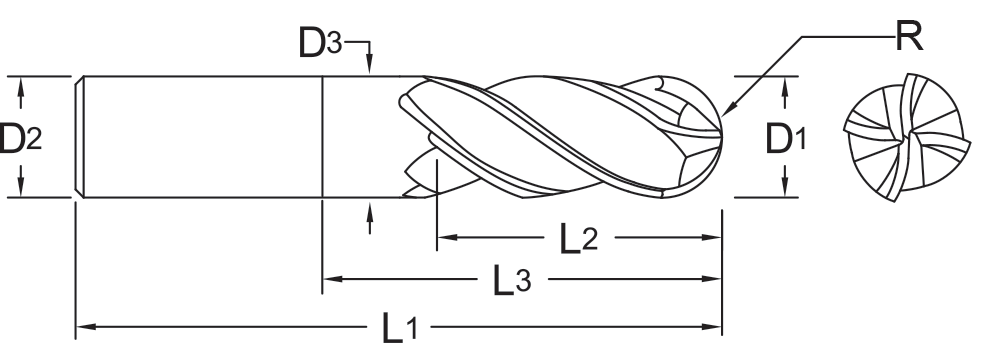

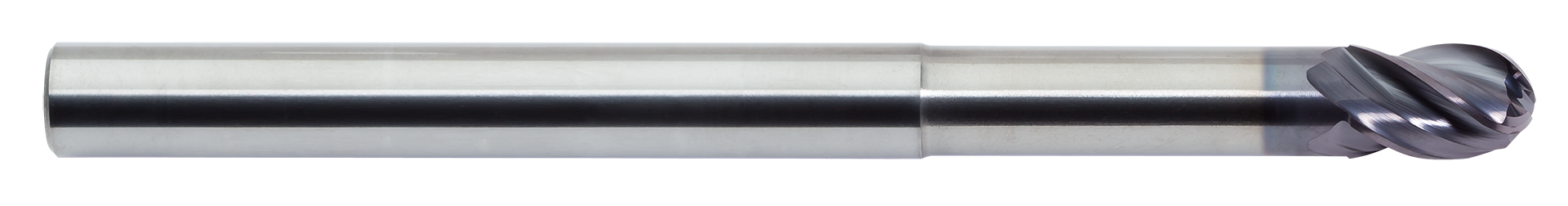

product photo product drawing

End Mills / 179L

Solid Carbide TuffCut® XR, 4 Flute, Ball Nose End Mill
Designed for extreme productivity. Long Length.
  • 4 Flute
  • Ball nose
  • Neck relief
  • ALtima®  Coated,  A=ALtima® (ALTiN) coated
  • Center cutting
  • Long flute length
  • 35°/38° Variable helix angle
  • Neck length options

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Super-alloys and titanium

Applications

  • Slotting
  • Traditional Roughing
  • Finishing
  • 3D Surfacing
  • High Efficiency Milling

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Ball Radius (C) Coating Shank Type Available List Price
.1181 179L1181N5A 18290 3mm 6mm 75mm 4.5mm 17mm 1.5mm ALtima® Straight 131.00 53.42
.1575 179L1575N5A 18292 4mm 6mm 75mm 6mm 22mm 2mm ALtima® Straight 72.00 52.75
.1968 179L1968N5A 18294 5mm 6mm 75mm 7.5mm 27mm 2.5mm ALtima® Straight 77.00 53.26
.2362 179L2362N5A 18296 6mm 6mm 101mm 9mm 32mm 3mm ALtima® Straight 281.00 58.54
.3150 179L3150N5A 18298 8mm 8mm 101mm 12mm 42mm 4mm ALtima® Straight 50.00 74.27
.3937 179L3937N5A 18302 10mm 10mm 127mm 15mm 52mm 5mm ALtima® Straight 17.00 122.42
.4724 179L4724N5A 18304 12mm 12mm 152mm 18mm 62mm 6mm ALtima® Straight 17.00 151.77
.6299 179L6299N5A 18306 16mm 16mm 152mm 24mm 82mm 8mm ALtima® Straight 31.00 305.12
