End Mills / 178N

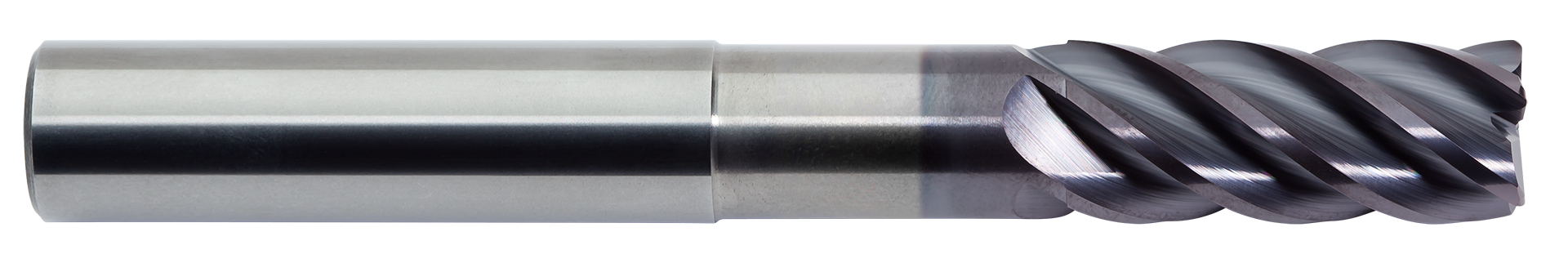

Solid Carbide TuffCut® XR 5 Flute End Mill, Neck Relief
Designed for extreme productivity.
  • 5 Flute
  • Solid carbide
  • Neck relief
  • ALtima® coated,  A=ALtima® (ALTiN) coated
  • Center cutting
  • Standard and long flute length
  • 38° Helix angle
  • For roughing and finishing applications
  • Corner radius and neck length options

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Super-alloys and titanium

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Corner Radius Coating Shank Type Available List Price
.2500 17825022NA 17833 1/4 1/4 4 3/4 2-1/8 0.015 ALtima® Straight 7.00 65.77
.2500 17825024NA 17834 1/4 1/4 4 3/4 2-1/8 0.03 ALtima® Straight 11.00 65.77
.3125 17831222NA 17841 5/16 5/16 4 1 2-1/8 0.015 ALtima® Straight 4.00 124.86
.3125 17831224NA 17842 5/16 5/16 4 1 2-1/8 0.03 ALtima® Straight 24.00 124.86
.3750 17837522NA 17849 3/8 3/8 4 1 2-1/8 0.015 ALtima® Straight 31.00 118.45
.3750 17837524NA 17850 3/8 3/8 4 1 2-1/8 0.03 ALtima® Straight 31.00 118.45
.3750 17837532NA 17851 3/8 3/8 6 1-1/4 3-3/8 0.015 ALtima® Straight 11.00 178.13
.3750 17837534NA 17852 3/8 3/8 6 1-1/4 3-3/8 0.03 ALtima® Straight 19.00 178.13
.4375 17843722NA 17859 7/16 7/16 4 1-1/4 2-1/8 0.015 ALtima® Straight 5.00 157.83
.4375 17843724NA 17860 7/16 7/16 4 1-1/4 2-1/8 0.03 ALtima® Straight 10.00 157.83
.4375 17843732NA 17861 7/16 7/16 6 1-1/2 3-3/8 0.015 ALtima® Straight 6.00 218.76
.4375 17843734NA 17862 7/16 7/16 6 1-1/2 3-3/8 0.03 ALtima® Straight 19.00 218.76
.5000 17850022NA 17925 1/2 1/2 4 1-1/4 2-1/8 0.015 ALtima® Straight 9.00 162.51
.5000 17850024NA 17870 1/2 1/2 4 1-1/4 2-1/8 0.03 ALtima® Straight 15.00 162.51
.5000 17850032NA 17871 1/2 1/2 5 1-3/8 3-1/8 0.015 ALtima® Straight 56.00 210.97
.5000 17850034NA 17872 1/2 1/2 5 1-3/8 3-1/8 0.03 ALtima® Straight 2.00 210.97
.5000 17850042NA 17873 1/2 1/2 6 1-1/2 4-1/8 0.015 ALtima® Straight 14.00 265.63
.5000 17850044NA 17874 1/2 1/2 6 1-1/2 4-1/8 0.03 ALtima® Straight 5.00 265.63
.5000 17850022NAW 75138 1/2 1/2 4 1-1/4 2-1/8 0.015 ALtima® Weldon 0.00 171.58
.6250 17862522NA 18008 5/8 5/8 4 1-1/2 2-1/8 0.015 ALtima® Straight 6.00 256.26
.6250 17862524NA 17881 5/8 5/8 4 1-1/2 2-1/8 0.03 ALtima® Straight 11.00 256.26
.6250 17862532NA 18009 5/8 5/8 5 1-3/4 3-1/8 0.015 ALtima® Straight 2.00 332.83
.6250 17862534NA 17883 5/8 5/8 5 1-3/4 3-1/8 0.03 ALtima® Straight 15.00 332.83
.6250 17862535NA 17884 5/8 5/8 5 1-3/4 3-1/8 0.045 ALtima® Straight 12.00 332.83
.6250 17862542NA 18010 5/8 5/8 6 2 4.0000 0.015 ALtima® Straight 21.00 398.45
.6250 17862525NA 17882 5/8 5/8 4 1-1/2 2-1/8 0.045 ALtima® Straight 9.00 256.26
.6250 17862544NA 17885 5/8 5/8 6 2 4.0000 0.03 ALtima® Straight 18.00 398.45
.6250 17862545NA 17886 5/8 5/8 6 2 4.0000 0.045 ALtima® Straight 8.00 398.45
.7500 17875022NA 18013 3/4 3/4 5 1-7/8 3.0000 0.015 ALtima® Straight 20.00 371.91
.7500 17875024NA 17891 3/4 3/4 5 1-7/8 3.0000 0.03 ALtima® Straight 15.00 371.91
.7500 17875025NA 17892 3/4 3/4 5 1-7/8 3.0000 0.045 ALtima® Straight 11.00 371.91
.7500 17875032NA 18014 3/4 3/4 6 2-1/4 4.0000 0.015 ALtima® Straight 2.00 409.41
.7500 17875034NA 17893 3/4 3/4 6 2-1/4 4.0000 0.03 ALtima® Straight 5.00 409.41
.7500 17875035NA 17894 3/4 3/4 6 2-1/4 4.0000 0.045 ALtima® Straight 15.00 409.41
1.0000 17810022NA 18016 1 1 5 2-1/4 3.0000 0.015 ALtima® Straight 8.00 562.52
1.0000 17810024NA 17897 1 1 5 2-1/4 3.0000 0.03 ALtima® Straight 19.00 562.52
1.0000 17810025NA 17898 1 1 5 2-1/4 3.0000 0.045 ALtima® Straight 16.00 562.52
1.0000 17810032NA 18017 1 1 6 3 4.0000 0.015 ALtima® Straight 7.00 606.28
1.0000 17810034NA 17899 1 1 6 3 4.0000 0.03 ALtima® Straight 13.00 606.28
1.0000 17810034NAW 75136 1 1 6 3 4 0.03 ALtima® Weldon 0.00 621.16
1.0000 17810035NA 17900 1 1 6 3 4.0000 0.045 ALtima® Straight 6.00 606.28
