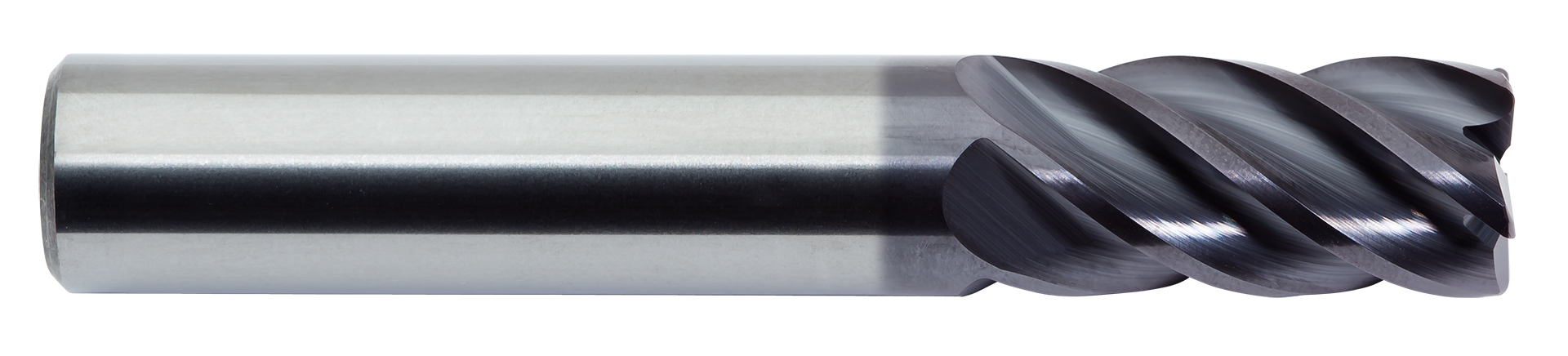

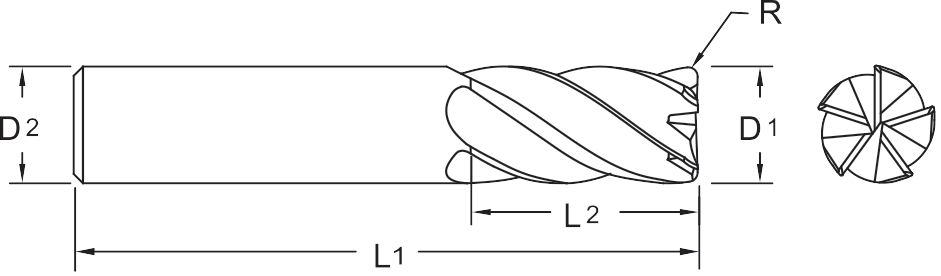

product photo product drawing

End Mills / 178

Solid Carbide TuffCut® XR 5 Flute End Mill
Designed for extreme productivity. Gain 20% or more in productivity over four flute styles. Smooth cutting action to eliminate vibration.
  • 5 Flute
  • Solid carbide
  • ALtima® coated, A=ALtima® (ALTiN) coated
  • Center cutting
  • Standard and long flute lengths
  • 38° Helix angle
  • For roughing and finishing applications
  • Square end and corner radius options
  • Weldon shank flat options

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Super-alloys and titanium

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Corner Radius Coating Shank Type Available List Price
17800000A 99232 Set 1/4, 3/8, 1/2, 1/2 Corner Radius ALtima® ALtima® Straight 0.00 311.43
.1181 17811800A 17959 3mm 6mm 57mm 8mm ALtima® Straight 75.00 38.21
.1181 17811810A 17998 3mm 3mm 75mm 25mm ALtima® Straight 17.00 65.49
.1250 17812500A 17800 1/8 1/8 1-1/2 1/8 ALtima® Straight 140.00 19.98
.1250 17812510A 17801 1/8 1/8 1-1/2 3/8 ALtima® Straight 162.00 21.25
.1250 17812500AW 12768 1/8 1/8 1-1/2 1/8 ALtima® Weldon 0.00 23.93
.1250 17812510AW 13216 1/8 1/8 1-1/2 3/8 ALtima® Weldon 0.00 25.2
.1562 17815600A 17802 5/32 3/16 2 3/16 ALtima® Straight 46.00 28.28
.1562 17815610A 17803 5/32 3/16 2 7/16 ALtima® Straight 26.00 30.01
.1562 17815600AW 13218 5/32 3/16 2 3/16 ALtima® Weldon 0.00 32.22
.1562 17815610AW 13220 5/32 3/16 2 7/16 ALtima® Weldon 0.00 33.96
.1575 17815700A 17961 4mm 6mm 57mm 11mm ALtima® Straight 741.00 38.21
.1575 17815710A 17999 4mm 4mm 75mm 25mm ALtima® Straight 155.00 58.64
.1875 17818700A 17804 3/16 3/16 2 3/16 ALtima® Straight 0.00 27.67
.1875 17818710A 17805 3/16 3/16 2 7/16 ALtima® Straight 251.00 29.37
.1875 17818700AW 13222 3/16 3/16 2 3/16 ALtima® Weldon 0.00 31.62
.1875 17818710AW 13224 3/16 3/16 2 7/16 ALtima® Weldon 0.00 33.32
.1968 17819600A 17963 5mm 6mm 57mm 13mm ALtima® Straight 110.00 36.42
.1968 17819610A 18026 5mm 5mm 75mm 25mm ALtima® Straight 102.00 51.93
.2187 17821800A 17806 7/32 1/4 2 1/4 ALtima® Straight 94.00 36.73
.2187 17821810A 17807 7/32 1/4 2-1/2 7/16 ALtima® Straight 24.00 39.07
.2187 17821800AW 13226 7/32 1/4 2 1/4 ALtima® Weldon 0.00 40.68
.2187 17821810AW 13228 7/32 1/4 2-1/2 7/16 ALtima® Weldon 0.00 43.02
.2362 17823600A 17965 6mm 6mm 57mm 13mm ALtima® Straight 600.00 35.96
.2362 17823601A 17966 6mm 6mm 57mm 13mm 0.5mm ALtima® Straight 727.00 37.82
.2362 17823610A 18027 6mm 6mm 75mm 25mm ALtima® Straight 322.00 55.37
.2362 17823600AW 17294 6mm 6mm 57mm 13mm ALtima® Weldon 51.00 39.9
.2362 17823610AW 17316 6mm 6mm 75mm 25mm ALtima® Weldon 59.00 59.31
.2500 17825000A 17808 1/4 1/4 2 3/8 ALtima® Straight 88.00 33.77
.2500 17825002A 17829 1/4 1/4 2 3/8 0.015 ALtima® Straight 183.00 35.29
.2500 17825004A 17830 1/4 1/4 2 3/8 0.03 ALtima® Straight 104.00 35.29
.2500 17825010A 17809 1/4 1/4 2-1/2 5/8 ALtima® Straight 30.00 35.96
.2500 17825012A 17831 1/4 1/4 2-1/2 5/8 0.015 ALtima® Straight 35.00 37.5
.2500 17825014A 17832 1/4 1/4 2-1/2 5/8 0.03 ALtima® Straight 10.00 37.5
.2500 17825022A 18105 1/4 1/4 2-1/2 3/4 0.015 ALtima® Straight 218.00 37.5
.2500 17825000AW 10654 1/4 1/4 2 3/8 ALtima® Weldon 8.00 37.72
.2500 17825002AW 13232 1/4 1/4 2 3/8 0.015 ALtima® Weldon 0.00 39.24
.2500 17825004AW 13234 1/4 1/4 2 3/8 0.03 ALtima® Weldon 0.00 39.24
.2500 17825012AW 13239 1/4 1/4 2-1/2 5/8 0.015 ALtima® Weldon 0.00 41.44
.2500 17825014AW 13241 1/4 1/4 2-1/2 5/8 0.03 ALtima® Weldon 0.00 41.44
.2812 17828100A 17810 9/32 5/16 2-1/2 5/8 ALtima® Straight 20.00 49.22
.2812 17828102A 17835 9/32 5/16 2-1/2 5/8 0.015 ALtima® Straight 18.00 51.43
.2812 17828104A 17836 9/32 5/16 2-1/2 5/8 0.03 ALtima® Straight 13.00 51.43
.2812 17828100AW 13243 9/32 5/16 2-1/2 5/8 ALtima® Weldon 0.00 53.16
.2812 17828102AW 13245 9/32 5/16 2-1/2 5/8 0.015 ALtima® Weldon 0.00 55.38
.2812 17828104AW 13247 9/32 5/16 2-1/2 5/8 0.03 ALtima® Weldon 0.00 55.38
.3125 17831200A 17811 5/16 5/16 2 7/16 ALtima® Straight 55.00 46.25
.3125 17831202A 17837 5/16 5/16 2 7/16 0.015 ALtima® Straight 40.00 48.43
.3125 17831204A 17838 5/16 5/16 2 7/16 0.03 ALtima® Straight 51.00 48.43
.3125 17831210A 17812 5/16 5/16 2-1/2 13/16 ALtima® Straight 114.00 49.22
.3125 17831212A 17839 5/16 5/16 2-1/2 13/16 0.015 ALtima® Straight 162.00 51.43
.3125 17831214A 17840 5/16 5/16 2-1/2 13/16 0.03 ALtima® Straight 15.00 51.43
.3125 17831202AW 12713 5/16 5/16 2 7/16 0.015 ALtima® Weldon 0.00 52.37
.3125 17831200AW 13249 5/16 5/16 2 7/16 ALtima® Weldon 0.00 50.2
.3125 17831204AW 13253 5/16 5/16 2 7/16 0.03 ALtima® Weldon 0.00 52.37
.3125 17831212AW 13257 5/16 5/16 2-1/2 13/16 0.015 ALtima® Weldon 0.00 55.38
.3125 17831214AW 13259 5/16 5/16 2-1/2 13/16 0.03 ALtima® Weldon 0.00 55.38
.3150 17831500A 17968 8mm 8mm 63mm 19mm ALtima® Straight 75.00 44.55
.3150 17831501A 17969 8mm 8mm 63mm 19mm 0.5mm ALtima® Straight 74.00 46.88
.3150 17831510A 18028 8mm 8mm 75mm 30mm ALtima® Straight 40.00 73.38
.3150 17831500AW 14119 8mm 8mm 63mm 19mm ALtima® Weldon 30.00 48.5
.3150 17831510AW 17317 8mm 8mm 75mm 30mm ALtima® Weldon 18.00 77.32
.3438 17834300A 17813 11/32 3/8 2-1/2 13/16 ALtima® Straight 29.00 59.23
.3438 17834302A 17843 11/32 3/8 2-1/2 13/16 0.015 ALtima® Straight 12.00 62.19
.3438 17834304A 17844 11/32 3/8 2-1/2 13/16 0.03 ALtima® Straight 5.00 62.19
.3738 17834300AW 13261 11/32 3/8 2-1/2 13/16 ALtima® Weldon 0.00 63.18
.3738 17834302AW 13263 11/32 3/8 2-1/2 13/16 0.015 ALtima® Weldon 0.00 66.13
.3738 17834304AW 13265 11/32 3/8 2-1/2 13/16 0.03 ALtima® Weldon 0.00 66.13
.3750 17837500A 17814 3/8 3/8 2 1/2 ALtima® Straight 199.00 55.62
.3750 17837502A 17845 3/8 3/8 2 1/2 0.015 ALtima® Straight 59.00 58.46
.3750 17837504A 17846 3/8 3/8 2 1/2 0.03 ALtima® Straight 360.00 58.46
.3750 17837510A 17815 3/8 3/8 2-1/2 7/8 ALtima® Straight 205.00 59.23
.3750 17837512A 17847 3/8 3/8 2-1/2 7/8 0.015 ALtima® Straight 258.00 62.19
.3750 17837514A 17848 3/8 3/8 2-1/2 7/8 0.03 ALtima® Straight 73.00 62.19
.3750 17837512AW 13307 3/8 3/8 2-1/2 7/8 0.015 ALtima® Weldon 30.00 66.13
.3750 17837500AW 13267 3/8 3/8 2 1/2 ALtima® Weldon 0.00 59.57
.3750 17837510AW 13305 3/8 3/8 2-1/2 7/8 ALtima® Weldon 0.00 63.18
.3750 17837514AW 13309 3/8 3/8 2-1/2 7/8 0.03 ALtima® Weldon 0.00 66.13
.3750 17837504AW 13303 3/8 3/8 2 1/2 0.03 ALtima® Weldon 0.00 62.41
.3750 17837502AW 13301 3/8 3/8 2 1/2 0.015 ALtima® Weldon 0.00 62.41
.3750 17837512ACS 15430 3/8 3/8 2-1/2 7/8 0.015 ALtima® Straight 0.00 66.13
.3937 17839300A 17971 10mm 10mm 72mm 22mm ALtima® Straight 624.00 73.12
.3937 17839301A 17972 10mm 10mm 72mm 22mm 0.5mm ALtima® Straight 451.00 76.87
.3937 17839310A 18029 10mm 10mm 100mm 45mm ALtima® Straight 103.00 111.46
.3937 17839300AW 75137 10mm 10mm 72mm 22mm ALtima® Weldon 38.00 82.18
.3937 17839310AW 16065 10mm 10mm 100mm 45mm ALtima® Weldon 18.00 120.5
.4062 17840600A 17816 13/32 7/16 2-3/4 7/8 ALtima® Straight 20.00 76.25
.4062 17840602A 17853 13/32 7/16 2-3/4 7/8 0.015 ALtima® Straight 3.00 79.86
.4062 17840604A 17854 13/32 7/16 2-3/4 7/8 0.03 ALtima® Straight 7.00 79.86
.4062 17840600AW 13311 13/32 7/16 2-3/4 7/8 ALtima® Weldon 0.00 81.32
.4062 17840602AW 13313 13/32 7/16 2-3/4 7/8 0.015 ALtima® Weldon 0.00 84.93
.4062 17840604AW 13315 13/32 7/16 2-3/4 7/8 0.03 ALtima® Weldon 0.00 84.93
.4375 17843700A 17817 7/16 7/16 2-1/2 9/16 ALtima® Straight 18.00 71.73
.4375 17843702A 17855 7/16 7/16 2-1/2 9/16 0.015 ALtima® Straight 22.00 75.01
.4375 17843704A 17856 7/16 7/16 2-1/2 9/16 0.03 ALtima® Straight 32.00 75.01
.4375 17843710A 17818 7/16 7/16 2-3/4 1 ALtima® Straight 58.00 76.25
.4375 17843712A 17857 7/16 7/16 2-3/4 1 0.015 ALtima® Straight 1.00 79.86
.4375 17843714A 17858 7/16 7/16 2-3/4 1 0.03 ALtima® Straight 34.00 79.86
.4375 17843700AW 13317 7/16 7/16 2-1/2 9/16 ALtima® Weldon 0.00 76.8
.4375 17843702AW 13319 7/16 7/16 2-1/2 9/16 0.015 ALtima® Weldon 0.00 80.08
.4375 17843704AW 13321 7/16 7/16 2-1/2 9/16 0.03 ALtima® Weldon 0.00 80.08
.4375 17843712AW 13325 7/16 7/16 2-3/4 1 0.015 ALtima® Weldon 0.00 84.93
.4375 17843714AW 13327 7/16 7/16 2-3/4 1 0.03 ALtima® Weldon 0.00 84.93
.4375 17843732NAW 15263 7/16 7/16 6 1-1/2 3-3/8 0.015 ALtima® Weldon 0.00 223.83
.4688 17846800A 17819 15/32 1/2 3 1 ALtima® Straight 33.00 96.89
.4688 17846802A 17863 15/32 1/2 3 1 0.015 ALtima® Straight 7.00 101.73
.4688 17846804A 17864 15/32 1/2 3 1 0.03 ALtima® Straight 10.00 101.73
.4688 17846800AW 13329 15/32 1/2 3 1 ALtima® Weldon 2.00 101.97
.4688 17846802AW 13331 15/32 1/2 3 1 0.015 ALtima® Weldon 0.00 106.81
.4688 17846804AW 13333 15/32 1/2 3 1 0.03 ALtima® Weldon 0.00 106.81
.4724 17847200A 17974 12mm 12mm 83mm 26mm ALtima® Straight 180.00 89.7
.4724 17847210A 18030 12mm 12mm 150mm 75mm ALtima® Straight 10.00 148.83
.4724 17847202A 17975 12mm 12mm 83mm 26mm 0.75mm ALtima® Straight 265.00 94.22
.4724 17847200AW 19534 12mm 12mm 83mm 26mm ALtima® Weldon 51.00 98.74
.4724 17847210AW 19536 12mm 12mm 150mm 75mm ALtima® Weldon 22.00 157.88
.5000 17850000A 17820 1/2 1/2 2-1/2 5/8 ALtima® Straight 30.00 90.95
.5000 17850002A 17865 1/2 1/2 2-1/2 5/8 0.015 ALtima® Straight 105.00 95.63
.5000 17850004A 17866 1/2 1/2 2-1/2 5/8 0.03 ALtima® Straight 169.00 95.63
.5000 17850010A 17821 1/2 1/2 3 1 ALtima® Straight 198.00 96.89
.5000 17850012A 17867 1/2 1/2 3 1 0.015 ALtima® Straight 95.00 101.73
.5000 17850014A 17868 1/2 1/2 3 1 0.03 ALtima® Straight 191.00 101.73
.5000 17850015A 17869 1/2 1/2 3 1 0.045 ALtima® Straight 77.00 101.73
.5000 17850016A 17913 1/2 1/2 3 1 0.06 ALtima® Straight 96.00 101.73
.5000 17850017A 17914 1/2 1/2 3 1 0.09 ALtima® Straight 41.00 101.73
.5000 17850018A 17915 1/2 1/2 3 1 0.125 ALtima® Straight 73.00 101.73
.5000 17850004AW 13339 1/2 1/2 2-1/2 5/8 0.03 ALtima® Weldon 24.00 100.71
.5000 17850010AW 13341 1/2 1/2 3 1 ALtima® Weldon 50.00 101.97
.5000 17850014AW 13345 1/2 1/2 3 1 0.03 ALtima® Weldon 13.00 106.81
.5000 17850000AW 10655 1/2 1/2 2-1/2 5/8 ALtima® Weldon 23.00 96.02
.5000 17850002AW 13337 1/2 1/2 2-1/2 5/8 0.015 ALtima® Weldon 40.00 100.71
.5000 17850012AW 13343 1/2 1/2 3 1 0.015 ALtima® Weldon 4.00 106.81
.5000 17850016AW 13349 1/2 1/2 3 1 0.06 ALtima® Weldon 5.00 106.81
.5000 17850015AW 13347 1/2 1/2 3 1 0.045 ALtima® Weldon 0.00 106.81
.5000 17850017AW 13351 1/2 1/2 3 1 0.09 ALtima® Weldon 0.00 106.81
.5000 17850018AW 13353 1/2 1/2 3 1 0.125 ALtima® Weldon 3.00 106.81
.5512 17855100A 17977 14mm 14mm 83mm 26mm ALtima® Straight 32.00 138.59
.5512 17855102A 17978 14mm 14mm 83mm 26mm 0.75mm ALtima® Straight 10.00 145.64
.5512 17855100AW 75139 14mm 14mm 83mm 26mm ALtima® Weldon 0.00 148.94
.5625 17856200A 17822 9/16 9/16 3-1/2 1-1/8 ALtima® Straight 13.00 165.63
.5625 17856202A 17875 9/16 9/16 3-1/2 1-1/8 0.015 ALtima® Straight 7.00 171.87
.5625 17856204A 17876 9/16 9/16 3-1/2 1-1/8 0.03 ALtima® Straight 33.00 171.87
.5625 17856200AW 13355 9/16 9/16 3-1/2 1-1/8 ALtima® Weldon 0.00 172.04
.5625 17856202AW 13357 9/16 9/16 3-1/2 1-1/8 0.015 ALtima® Weldon 3.00 178.29
.5625 17856204AW 13359 9/16 9/16 3-1/2 1-1/8 0.03 ALtima® Weldon 7.00 178.29
.6250 17862500A 17823 5/8 5/8 3 3/4 ALtima® Straight 15.00 171.87
.6250 17862502A 18006 5/8 5/8 3 3/4 0.015 ALtima® Straight 28.00 181.25
.6250 17862504A 17877 5/8 5/8 3 3/4 0.03 ALtima® Straight 17.00 181.25
.6250 17862505A 17878 5/8 5/8 3 3/4 0.045 ALtima® Straight 7.00 181.25
.6250 17862510A 17824 5/8 5/8 3-1/2 1-1/4 ALtima® Straight 34.00 182.83
.6250 17862512A 18007 5/8 5/8 3-1/2 1-1/4 0.015 ALtima® Straight 21.00 192.18
.6250 17862514A 17879 5/8 5/8 3-1/2 1-1/4 0.03 ALtima® Straight 39.00 192.18
.6250 17862515A 17880 5/8 5/8 3-1/2 1-1/4 0.045 ALtima® Straight 53.00 192.18
.6250 17862516A 17916 5/8 5/8 3-1/2 1-1/4 0.06 ALtima® Straight 1.00 192.18
.6250 17862517A 17917 5/8 5/8 3-1/2 1-1/4 0.09 ALtima® Straight 47.00 192.18
.6250 17862518A 17918 5/8 5/8 3-1/2 1-1/4 0.125 ALtima® Straight 10.00 192.18
.6250 17862510AW 13369 5/8 5/8 3-1/2 1-1/4 ALtima® Weldon 1.00 189.24
.6250 17862514AW 13373 5/8 5/8 3-1/2 1-1/4 0.03 ALtima® Weldon 5.00 198.6
.6250 17862505AW 13367 5/8 5/8 3 3/4 0.045 ALtima® Weldon 0.00 187.67
.6250 17862512AW 13371 5/8 5/8 3-1/2 1-1/4 0.015 ALtima® Weldon 6.00 198.6
.6250 17862516AW 13377 5/8 5/8 3-1/2 1-1/4 0.06 ALtima® Weldon 3.00 198.6
.6250 17862500AW 13361 5/8 5/8 3 3/4 ALtima® Weldon 0.00 178.29
.6250 17862502AW 13363 5/8 5/8 3 3/4 0.015 ALtima® Weldon 0.00 187.67
.6250 17862504AW 13365 5/8 5/8 3 3/4 0.03 ALtima® Weldon 6.00 187.67
.6250 17862515AW 13375 5/8 5/8 3-1/2 1-1/4 0.045 ALtima® Weldon 0.00 198.6
.6250 17862517AW 13379 5/8 5/8 3-1/2 1-1/4 0.09 ALtima® Weldon 0.00 198.6
.6250 17862518AW 13381 5/8 5/8 3-1/2 1-1/4 0.125 ALtima® Weldon 3.00 198.6
.6299 17862900A 17981 16mm 16mm 92mm 32mm ALtima® Straight 112.00 155.17
.6299 17862903A 17982 16mm 16mm 92mm 32mm 1mm ALtima® Straight 54.00 164.06
.6299 17862910A 18031 16mm 16mm 150mm 75mm ALtima® Straight 0.00 251.51
.6299 17862900AW 75141 16mm 16mm 92mm 32mm ALtima® Weldon 54.00 165.52
.6299 17862903AW 75142 16mm 16mm 92mm 32mm 1mm ALtima® Weldon 13.00 174.43
.6299 17862910AW 19537 16mm 16mm 150mm 75mm ALtima® Weldon 21.00 261.85
.7087 17870800A 17983 18mm 18mm 92mm 32mm ALtima® Straight 14.00 229.69
.7087 17870803A 17984 18mm 18mm 92mm 32mm 1mm ALtima® Straight 22.00 242.22
.7500 17875000A 17825 3/4 3/4 3 1 ALtima® Straight 41.00 251.58
.7500 17875002A 18011 3/4 3/4 3 1 0.015 ALtima® Straight 28.00 265.63
.7500 17875004A 17887 3/4 3/4 3 1 0.03 ALtima® Straight 20.00 265.63
.7500 17875005A 17888 3/4 3/4 3 1 0.045 ALtima® Straight 10.00 265.63
.7500 17875010A 17826 3/4 3/4 4 1-1/2 ALtima® Straight 82.00 268.78
.7500 17875012A 18012 3/4 3/4 4 1-1/2 0.015 ALtima® Straight 0.00 282.84
.7500 17875014A 17889 3/4 3/4 4 1-1/2 0.03 ALtima® Straight 77.00 282.84
.7500 17875015A 17890 3/4 3/4 4 1-1/2 0.045 ALtima® Straight 12.00 282.84
.7500 17875016A 17919 3/4 3/4 4 1-1/2 0.06 ALtima® Straight 15.00 282.84
.7500 17875017A 17920 3/4 3/4 4 1-1/2 0.09 ALtima® Straight 0.00 282.84
.7500 17875018A 17921 3/4 3/4 4 1-1/2 0.125 ALtima® Straight 14.00 282.84
.7500 17875014AW 13396 3/4 3/4 4 1-1/2 0.03 ALtima® Weldon 34.00 289.24
.7500 17875000AW 10656 3/4 3/4 3 1 ALtima® Weldon 21.00 258
.7500 17875010AW 13394 3/4 3/4 4 1-1/2 ALtima® Weldon 27.00 275.18
.7500 17875012AW 13395 3/4 3/4 4 1-1/2 0.015 ALtima® Weldon 11.00 289.24
.7500 17875002AW 13385 3/4 3/4 3 1 0.015 ALtima® Weldon 4.00 272.04
.7500 17875005AW 13389 3/4 3/4 3 1 0.045 ALtima® Weldon 0.00 272.04
.7500 17875015AW 13397 3/4 3/4 4 1-1/2 0.045 ALtima® Weldon 0.00 289.24
.7500 17875017AW 13399 3/4 3/4 4 1-1/2 0.09 ALtima® Weldon 0.00 289.24
.7500 17875018AW 13402 3/4 3/4 4 1-1/2 0.125 ALtima® Weldon 7.00 289.24
.7500 17875004AW 13387 3/4 3/4 3 1 0.03 ALtima® Weldon 4.00 272.04
.7500 17875016AW 13398 3/4 3/4 4 1-1/2 0.06 ALtima® Weldon 3.00 289.24
.7500 17875022NAW 14963 3/4 3/4 5 1-7/8 3 0.015 ALtima® Weldon 0.00 378.32
.7874 17878700A 17986 20mm 20mm 104mm 38mm ALtima® Straight 47.00 318.77
.7874 17878703A 17987 20mm 20mm 104mm 38mm 1mm ALtima® Straight 25.00 335.98
.7874 17878710A 18032 20mm 20mm 150mm 75mm ALtima® Straight 0.00 477.7
.7874 17878703AW 75143 20mm 20mm 104mm 38mm 1mm ALtima® Weldon 5.00 346.32
.7874 17878710AW 15828 20mm 20mm 150mm 75mm ALtima® Weldon 30.00 488.05
.7874 17878700AW 19535 20mm 20mm 104mm 38mm ALtima® Weldon 11.00 329.12
.9843 17898400A 17988 25mm 25mm 104mm 38mm ALtima® Straight 14.00 409.41
.9843 17898403A 17989 25mm 25mm 104mm 38mm 1mm ALtima® Straight 9.00 431.27
1.0000 17810000A 17827 1 1 4 1 ALtima® Straight 15.00 384.39
1.0000 17810010A 17828 1 1 4 1-1/2 ALtima® Straight 16.00 409.41
1.0000 17810012A 18015 1 1 4 1-1/2 0.015 ALtima® Straight 2.00 428.16
1.0000 17810014A 17895 1 1 4 1-1/2 0.03 ALtima® Straight 19.00 428.16
1.0000 17810015A 17896 1 1 4 1-1/2 0.045 ALtima® Straight 29.00 428.16
1.0000 17810016A 17922 1 1 4 1-1/2 0.06 ALtima® Straight 5.00 428.16
1.0000 17810017A 17923 1 1 4 1-1/2 0.09 ALtima® Straight 3.00 428.16
1.0000 17810018A 17924 1 1 4 1-1/2 0.125 ALtima® Straight 5.00 428.16
1.0000 17810010AW 13404 1 1 4 1-1/2 ALtima® Weldon 0.00 417.05
1.0000 17810000AW 13403 1 1 4 1 ALtima® Weldon 0.00 392.05
1.0000 17810015AW 13407 1 1 4 1-1/2 0.045 ALtima® Weldon 0.00 435.8
1.0000 17810016AW 13408 1 1 4 1-1/2 0.06 ALtima® Weldon 0.00 435.8
1.0000 17810017AW 13420 1 1 4 1-1/2 0.09 ALtima® Weldon 0.00 435.8
1.0000 17810018AW 13421 1 1 4 1-1/2 0.125 ALtima® Weldon 3.00 435.8
1.0000 17810012AW 13405 1 1 4 1-1/2 0.015 ALtima® Weldon 2.00 435.8
1.0000 17810014AW 13406 1 1 4 1-1/2 0.03 ALtima® Weldon 0.00 435.8
