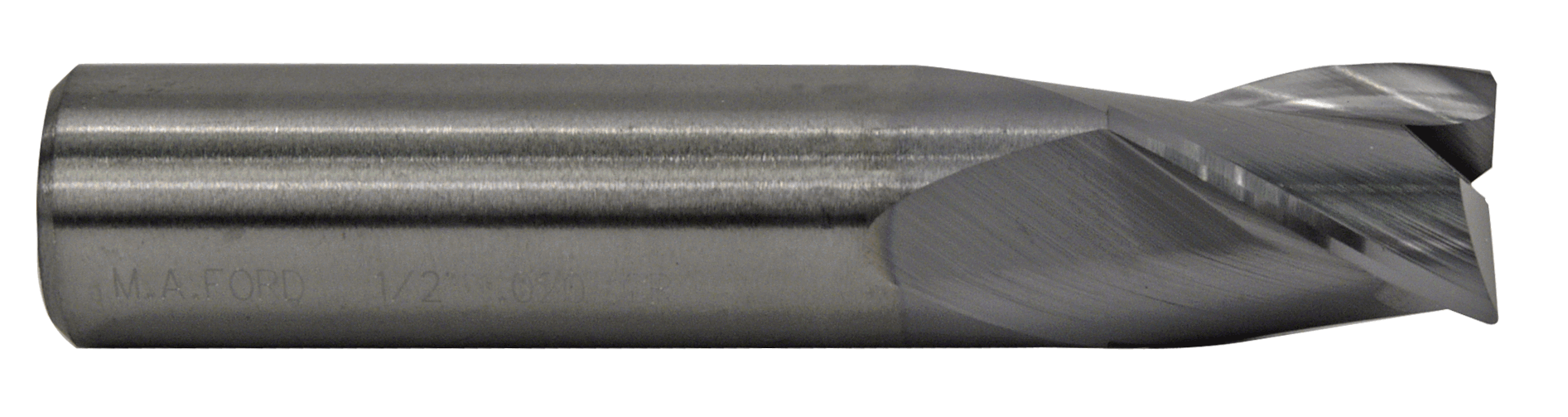

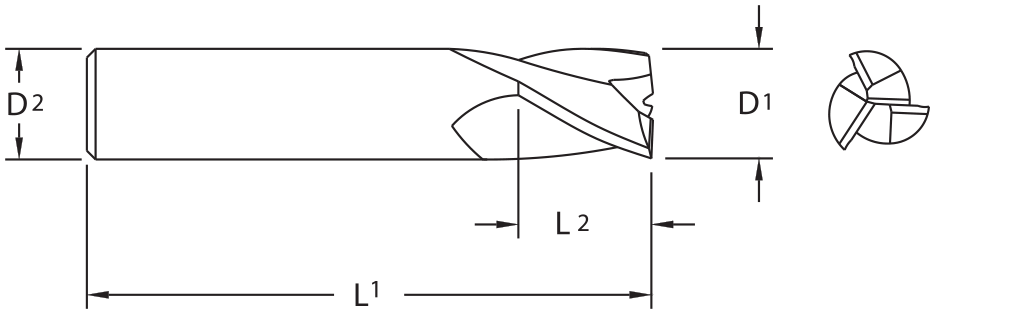

product photo product drawing

End Mills / 169C

Solid Carbide TuffCut® GP 3 Flute End Mill, Corner Radius with
TiCN Coating, Stub Length
Performs well in all materials including Stainless Steel, Inconel and Stellite. Produces long cuts at reasonable speeds on everyday equipment.  Excpetional tool life at moderate speeds and feeds.  Ideal for long cuts requiring accuracy and minimal tool wear deflection.  Perfect job shop tool.
  • 3 Flute
  • Solid carbide
  • TiCN coated, C=TiCN coated
  • Center cutting
  • Stub flute lengths
  • Corner Radius
  • 30° Helix angle
  • For roughing and finishing applications

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Corner Radius Coating Shank Type Available List Price
.1250 16912508C 16978 1/8 1/8 1-1/2 1/4 0.01 TiCN Straight 87.00 24.12
.1562 16915628C 16979 5/32 3/16 2 5/16 0.01 TiCN Straight 26.00 34.62
.1875 16918758C 16980 3/16 3/16 2 3/8 0.01 TiCN Straight 27.00 33.69
.2187 16921872C 16981 7/32 1/4 2 1/2 0.02 TiCN Straight 5.00 44.78
.2500 16925002C 16982 1/4 1/4 2 1/2 0.02 TiCN Straight 47.00 41.19
.2812 16928122C 11381 9/32 5/16 2 1/2 0.02 TiCN Straight 127.00 54.68
.3125 16931252C 16983 5/16 5/16 2 1/2 0.02 TiCN Straight 4.00 56.31
.3438 16934382C 16984 11/32 3/8 2 1/2 0.02 TiCN Straight 8.00 50.17
.3750 16937502C 16985 3/8 3/8 2 5/8 0.02 TiCN Straight 3.00 67.56
.4062 16940622C 16986 13/32 7/16 2-1/2 9/16 0.02 TiCN Straight 11.00 102.74
.4375 16943752C 16987 7/16 7/16 2-1/2 5/8 0.02 TiCN Straight 4.00 87.63
.4688 16946882C 16988 15/32 1/2 2-1/2 1/2 0.02 TiCN Straight 4.00 103.07
.5000 16950002C 16989 1/2 1/2 2-1/2 5/8 0.02 TiCN Straight 3.00 110.69
.5000 16950003C 16990 1/2 1/2 2-1/2 5/8 0.03 TiCN Straight 12.00 110.69
.6250 16962502C 16991 5/8 5/8 3 3/4 0.02 TiCN Straight 7.00 218.39
.6250 16962503C 16992 5/8 5/8 3 3/4 0.03 TiCN Straight 17.00 218.39
.7500 16975002C 16993 3/4 3/4 3 1 0.02 TiCN Straight 5.00 319.5
.7500 16975003C 16994 3/4 3/4 3 1 0.03 TiCN Straight 5.00 319.5
