End Mills / 163GX

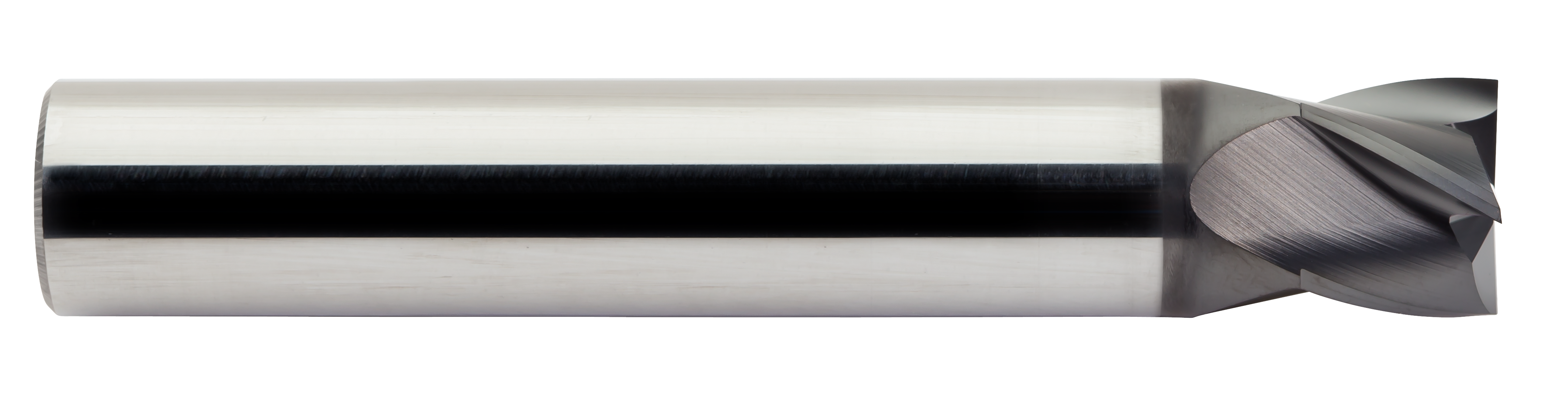

Solid Carbide TuffCut® GX 4 Flute End Mill GemX Coated
Excellent for high performance milling of graphite and similar materials, with reduced deflection, improved tool life and overall economy.
  • 4 Flute
  • Solid carbide
  • GemX coating, GX= GemX coated - for longer tool life
  • Center cutting
  • Stub flute length
  • 30° Helix angle
  • For roughing and finishing applications
  • Square end and corner radius options

Materials

  • Non ISO
  • Non-Ferrous

Applications

  • High Efficiency Milling
  • Finishing
  • Slotting
  • Traditional Roughing

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Corner Radius Coating Shank Type Available List Price
.0625 163S062R.010N8GX 03658 1/16 1/8 2-1/2 3/32 1/2 0.01 GemX Straight 34.00 184.38
.0781 163S078R.010N5GX 03659 5/64 1/8 2-1/2 1/8 13/32 0.01 GemX Straight 24.00 178.13
.1250 163S125R.015N12GX 03660 1/8 1/8 3 3/16 1-1/2 0.015 GemX Straight 31.00 184.38
.1250 163S125R.015N5GX 03672 1/8 1/8 3 1/8 5/8 0.015 GemX Straight 37.00 119.66
.1875 16318750GX 03641 3/16 3/16 2 3/8 GemX Straight 24.00 156.25
.1875 163S187R.030N8GX 03661 3/16 3/16 3 7/32 1-1/2 0.03 GemX Straight 31.00 215.63
.2500 163S2500GX 03642 1/4 1/4 2-1/2 3/8 GemX Straight 29.00 209.38
.2500 163S250R.030N5GX 03662 1/4 1/4 4 3/8 1-1/4 0.03 GemX Straight 29.00 279.69
.2500 163S250R.015N3GX 03674 1/4 1/4 4 1/4 3/4 0.015 GemX Straight 35.00 226.66
.3750 163S3750GX 03644 3/8 3/8 2-1/2 3/8 GemX Straight 26.00 331.25
.5000 163S5000GX 03646 1/2 1/2 3 3/8 GemX Straight 25.00 531.25
.5000 163S500R.015N2.5GX 03675 1/2 1/2 6 1/2 1-1/4 0.015 GemX Straight 13.00 562.53
