End Mills / 158

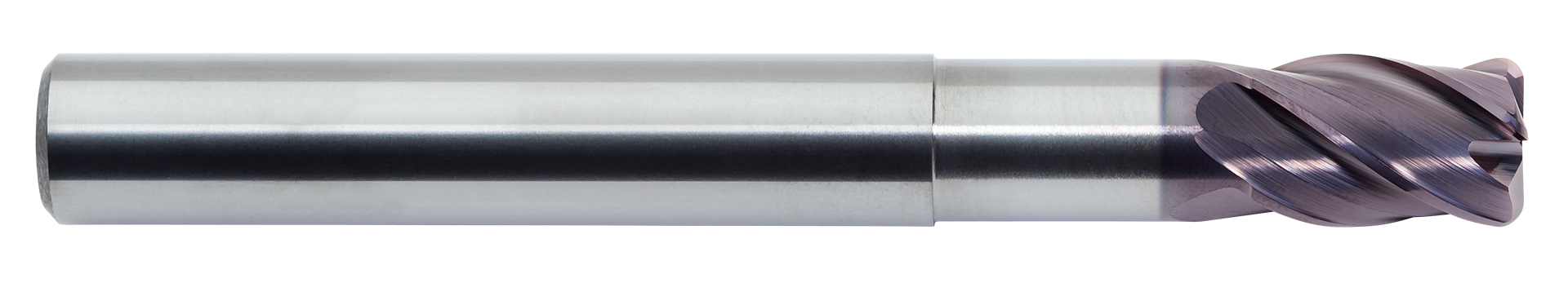

Solid Carbide TuffCut DM® 4 Flute End Mill, Neck Relief
Similar TuffCut® XR geometry designed for die and mold steels and hard to machine materials up to 65 Rc.
  • 4 Flute
  • Solid carbide
  • Coated with ALtima® 52, A=ALtima® 52 coated
  • Center cutting
  • Stub, standard and long flute length
  • 35°/38° Variable helix angle
  • Square end and corner radius options with high feed roughing options available
  • Neck relief
  • For roughing and finishing applications

Materials

  • Hard material

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing

Series Attributes

Downloads

Product Range

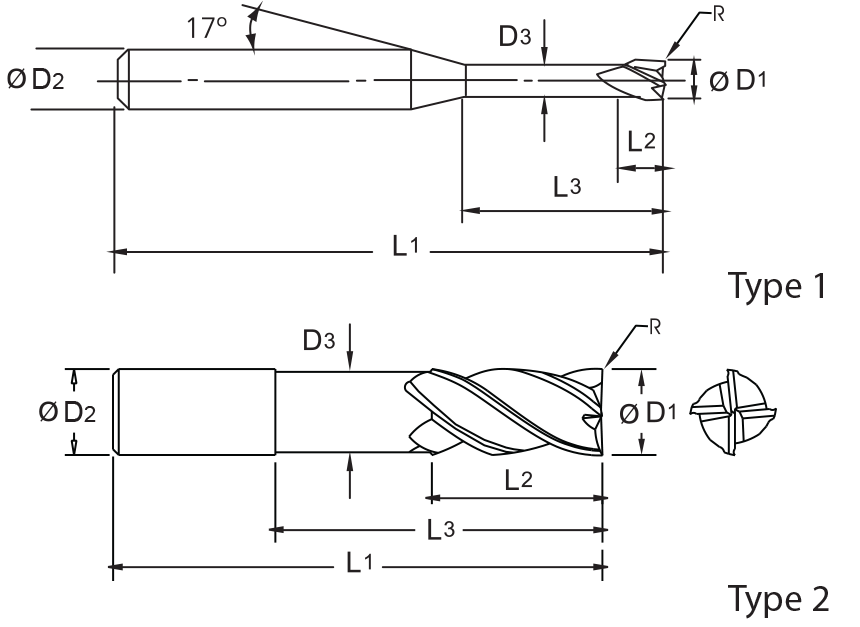

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Neck Diameter (D3) Overall Length (L1) Flute Length (L2) Neck Length (L3) Corner Radius Coating Shank Type Available List Price
.0787 158M02N08-0.1RA 99151 2mm 6mm 1.9mm 63mm 3mm 8.0mm 0.1mm ALtima® 52 Straight 3.00 53.2
.0787 158M02N08-0.2RA 99156 2mm 6mm 1.9mm 63mm 3mm 8.0mm 0.2mm ALtima® 52 Straight 13.00 53.2
.0787 158M02N08-0.5RA 99160 2mm 6mm 1.9mm 63mm 3mm 8.0mm 0.5mm ALtima® 52 Straight 4.00 53.2
.0787 158M02N12-0.1RA 99152 2mm 6mm 1.9mm 63mm 3mm 12mm 0.1mm ALtima® 52 Straight 11.00 53.2
.0787 158M02N12-0.2RA 99157 2mm 6mm 1.9mm 63mm 3mm 12mm 0.2mm ALtima® 52 Straight 12.00 53.2
.0787 158M02N16-0.1RA 99153 2mm 6mm 1.9mm 63mm 3mm 16mm 0.1mm ALtima® 52 Straight 19.00 53.2
.0787 158M02N16-0.2RA 99158 2mm 6mm 1.9mm 63mm 3mm 16mm 0.2mm ALtima® 52 Straight 16.00 53.2
.0787 158M02N20-0.1RA 99154 2mm 6mm 1.9mm 75mm 3mm 20mm 0.1mm ALtima® 52 Straight 0.00 53.2
.0787 158M02N20-0.2RA 99159 2mm 6mm 1.9mm 75mm 3mm 20mm 0.2mm ALtima® 52 Straight 14.00 53.2
.0787 158M02N06-0.1RA 99150 2mm 6mm 1.9mm 63mm 3mm 6mm 0.1mm ALtima® 52 Straight 12.00 53.2
.0787 158M02N06-0.2RA 99155 2mm 6mm 1.9mm 63mm 3mm 6mm 0.2mm ALtima® 52 Straight 49.00 53.2
.1181 15811800N3A 15522 3mm 6mm 2.9mm 50mm 5mm 9mm ALtima® 52 Straight 11.00 77.19
.1181 15811800N5A 15524 3mm 6mm 2.9mm 50mm 5mm 15mm ALtima® 52 Straight 27.00 77.19
.1181 15811800R012N3A 15526 3mm 6mm 2.9mm 50mm 5mm 9mm 0.3mm ALtima® 52 Straight 29.00 88.39
.1181 15811800R012N5A 15528 3mm 6mm 2.9mm 50mm 5mm 15mm 0.3mm ALtima® 52 Straight 4.00 88.39
.1181 15811800R031N5A 15530 3mm 6mm 2.9mm 50mm 5mm 15mm 0.8mm ALtima® 52 Straight 57.00 88.39
.1181 158M03N10-0.2RA 99161 3mm 6mm 2.9mm 63mm 5mm 10mm 0.2mm ALtima® 52 Straight 48.00 53.2
.1181 158M03N10-0.5RA 99167 3mm 6mm 2.9mm 63mm 5mm 10mm 0.5mm ALtima® 52 Straight 31.00 53.2
.1181 158M03N10-0.8RA 99173 3mm 6mm 2.9mm 63mm 5mm 10mm 0.8mm ALtima® 52 Straight 13.00 53.2
.1181 158M03N12-0.2RA 99162 3mm 6mm 2.9mm 63mm 5mm 12mm 0.2mm ALtima® 52 Straight 8.00 53.2
.1181 158M03N12-0.5RA 99168 3mm 6mm 2.9mm 63mm 5mm 12mm 0.5mm ALtima® 52 Straight 7.00 53.2
.1181 158M03N16-0.2RA 99163 3mm 6mm 2.9mm 63mm 5mm 16mm 0.2mm ALtima® 52 Straight 18.00 53.2
.1181 158M03N16-0.5RA 99169 3mm 6mm 2.9mm 63mm 5mm 16mm 0.5mm ALtima® 52 Straight 88.00 53.2
.1181 158M03N20-0.2RA 99164 3mm 6mm 2.9mm 75mm 5mm 20mm 0.2mm ALtima® 52 Straight 41.00 53.2
.1181 158M03N20-0.5RA 99170 3mm 6mm 2.9mm 75mm 5mm 20mm 0.5mm ALtima® 52 Straight 84.00 53.2
.1181 158M03N25-0.2RA 99165 3mm 6mm 2.9mm 75mm 5mm 25mm 0.2mm ALtima® 52 Straight 42.00 53.2
.1181 158M03N25-0.5RA 99171 3mm 6mm 2.9mm 75mm 5mm 25mm 0.5mm ALtima® 52 Straight 14.00 53.2
.1181 158M03N30-0.2RA 99166 3mm 6mm 2.9mm 75mm 5mm 30mm 0.2mm ALtima® 52 Straight 10.00 53.2
.1181 158M03N30-0.5RA 99172 3mm 6mm 2.9mm 75mm 5mm 30mm 0.5mm ALtima® 52 Straight 59.00 53.2
.1575 158M04N10-0.2RA 99174 4mm 6mm 3.9mm 63mm 6mm 10mm 0.2mm ALtima® 52 Straight 52.00 53.2
.1575 158M04N10-0.5RA 99180 4mm 6mm 3.9mm 63mm 6mm 10mm 0.5mm ALtima® 52 Straight 35.00 53.2
.1575 158M04N12-0.2RA 99175 4mm 6mm 3.9mm 63mm 6mm 12mm 0.2mm ALtima® 52 Straight 22.00 53.2
.1575 158M04N12-0.5RA 99181 4mm 6mm 3.9mm 63mm 6mm 12mm 0.5mm ALtima® 52 Straight 9.00 53.2
.1575 158M04N12-1.0RA 99186 4mm 6mm 3.9mm 63mm 6mm 12mm 1mm ALtima® 52 Straight 66.00 53.2
.1575 158M04N16-0.2RA 99176 4mm 6mm 3.9mm 63mm 6mm 16mm 0.2mm ALtima® 52 Straight 7.00 53.2
.1575 158M04N16-0.5RA 99182 4mm 6mm 3.9mm 63mm 6mm 16mm 0.5mm ALtima® 52 Straight 25.00 53.2
.1575 158M04N20-0.2RA 99177 4mm 6mm 3.9mm 75mm 6mm 20mm 0.2mm ALtima® 52 Straight 23.00 53.2
.1575 158M04N20-0.5RA 99183 4mm 6mm 3.9mm 75mm 6mm 20mm 0.5mm ALtima® 52 Straight 7.00 53.2
.1575 158M04N25-0.2RA 99178 4mm 6mm 3.9mm 75mm 6mm 25mm 0.2mm ALtima® 52 Straight 136.00 53.2
.1575 158M04N25-0.5RA 99184 4mm 6mm 3.9mm 75mm 6mm 25mm 0.5mm ALtima® 52 Straight 18.00 53.2
.1575 158M04N30-0.2RA 99179 4mm 6mm 3.9mm 75mm 6mm 30mm 0.2mm ALtima® 52 Straight 43.00 53.2
.1575 158M04N30-0.5RA 99185 4mm 6mm 3.9mm 75mm 6mm 30mm 0.5mm ALtima® 52 Straight 0.00 53.2
.2362 15823600N3A 15532 6mm 6mm 5.8mm 100mm 9mm 18mm ALtima® 52 Straight 60.00 81.09
.2362 15823600N5A 15534 6mm 6mm 5.8mm 100mm 9mm 30mm ALtima® 52 Straight 26.00 81.09
.2362 15823600R012N3A 15536 6mm 6mm 5.8mm 100mm 9mm 18mm 0.3mm ALtima® 52 Straight 0.00 84.48
.2362 15823600R012N5A 15538 6mm 6mm 5.8mm 100mm 9mm 30mm 0.3mm ALtima® 52 Straight 22.00 84.48
.2362 15823600R059N5A 15540 6mm 6mm 5.8mm 100mm 9mm 30mm 1.5mm ALtima® 52 Straight 23.00 84.48
.2362 158M06N20-0.3RA 99187 6mm 6mm 5.8mm 75mm 9mm 20mm 0.3mm ALtima® 52 Straight 56.00 57.47
.2362 158M06N20-0.5RA 99188 6mm 6mm 5.8mm 75mm 9mm 20mm 0.5mm ALtima® 52 Straight 3.00 57.47
.2362 158M06N20-1.0RA 99189 6mm 6mm 5.8mm 75mm 9mm 20mm 1mm ALtima® 52 Straight 18.00 57.47
.2362 158M06N20-1.5RA 99190 6mm 6mm 5.8mm 75mm 9mm 20mm 1.5mm ALtima® 52 Straight 30.00 57.47
.2362 158M06N30-0.3RA 99191 6mm 6mm 5.8mm 100mm 9mm 30mm 0.3mm ALtima® 52 Straight 7.00 57.86
.2362 158M06N30-0.5RA 99192 6mm 6mm 5.8mm 100mm 9mm 30mm 0.5mm ALtima® 52 Straight 102.00 57.86
.2362 158M06N30-1.0RA 99193 6mm 6mm 5.8mm 100mm 9mm 30mm 1mm ALtima® 52 Straight 28.00 57.86
.2362 158M06N30-1.5RA 99194 6mm 6mm 5.8mm 100mm 9mm 30mm 1.5mm ALtima® 52 Straight 46.00 57.86
.3150 15831500N3A 15542 8mm 8mm 7.6mm 100mm 12mm 24mm ALtima® 52 Straight 1.00 95.12
.3150 15831500N5A 15544 8mm 8mm 7.6mm 100mm 12mm 40mm ALtima® 52 Straight 22.00 95.12
.3150 15831500R012N3A 15546 8mm 8mm 7.6mm 100mm 12mm 24mm 0.3mm ALtima® 52 Straight 30.00 99.14
.3150 15831500R012N5A 15548 8mm 8mm 7.6mm 100mm 12mm 40mm 0.3mm ALtima® 52 Straight 20.00 99.14
.3150 15831500R079N5A 15550 8mm 8mm 7.6mm 100mm 12mm 40mm 2mm ALtima® 52 Straight 48.00 99.14
.3150 158M08N30-0.3RA 99195 8mm 8mm 7.6mm 75mm 12mm 30mm 0.3mm ALtima® 52 Straight 13.00 69.37
.3150 158M08N30-0.5RA 99196 8mm 8mm 7.6mm 75mm 12mm 30mm 0.5mm ALtima® 52 Straight 41.00 69.37
.3150 158M08N30-1.0RA 99197 8mm 8mm 7.6mm 75mm 12mm 30mm 1mm ALtima® 52 Straight 74.00 69.37
.3150 158M08N30-2.0RA 99198 8mm 8mm 7.6mm 75mm 12mm 30mm 2mm ALtima® 52 Straight 16.00 69.37
.3150 158M08N40-0.3RA 99199 8mm 8mm 7.6mm 100mm 12mm 40mm 0.3mm ALtima® 52 Straight 26.00 75.53
.3150 158M08N40-0.5RA 99200 8mm 8mm 7.6mm 100mm 12mm 40mm 0.5mm ALtima® 52 Straight 15.00 75.53
.3150 158M08N40-1.0RA 99201 8mm 8mm 7.6mm 100mm 12mm 40mm 1mm ALtima® 52 Straight 33.00 75.53
.3150 158M08N40-2.0RA 99202 8mm 8mm 7.6mm 100mm 12mm 40mm 2mm ALtima® 52 Straight 27.00 75.53
.3150 158M08N50-0.3RA 99203 8mm 8mm 7.6mm 120mm 12mm 50mm 0.3mm ALtima® 52 Straight 22.00 97.44
.3150 158M08N50-0.5RA 99204 8mm 8mm 7.6mm 120mm 12mm 50mm 0.5mm ALtima® 52 Straight 20.00 97.44
.3150 158M08N50-1.0RA 99205 8mm 8mm 7.6mm 120mm 12mm 50mm 1mm ALtima® 52 Straight 14.00 97.44
.3150 158M08N50-2.0RA 99206 8mm 8mm 7.6mm 120mm 12mm 50mm 2mm ALtima® 52 Straight 30.00 97.44
.3937 15839300N3A 15552 10mm 10mm 9.6mm 100mm 15mm 30mm ALtima® 52 Straight 37.00 138.66
.3937 15839300N5A 15554 10mm 10mm 9.6mm 100mm 15mm 50mm ALtima® 52 Straight 35.00 138.66
.3937 15839300R012N3A 15556 10mm 10mm 9.6mm 100mm 15mm 30mm 0.3mm ALtima® 52 Straight 26.00 144.77
.3937 15839300R012N5A 15558 10mm 10mm 9.6mm 100mm 15mm 50mm 0.3mm ALtima® 52 Straight 59.00 144.77
.3937 15839300R079N5A 15560 10mm 10mm 9.6mm 100mm 15mm 50mm 2mm ALtima® 52 Straight 70.00 144.77
.3937 158M10N30-0.3RA 99207 10mm 10mm 9.6mm 75mm 15mm 30mm 0.3mm ALtima® 52 Straight 30.00 78.26
.3937 158M10N30-0.5RA 99208 10mm 10mm 9.6mm 75mm 15mm 30mm 0.5mm ALtima® 52 Straight 19.00 78.26
.3937 158M10N30-1.0RA 99209 10mm 10mm 9.6mm 75mm 15mm 30mm 1mm ALtima® 52 Straight 92.00 78.26
.3937 158M10N30-2.0RA 99210 10mm 10mm 9.6mm 75mm 15mm 30mm 2mm ALtima® 52 Straight 57.00 78.26
.3937 158M10N50-0.3RA 99211 10mm 10mm 9.6mm 100mm 15mm 50mm 0.3mm ALtima® 52 Straight 19.00 97.68
.3937 158M10N50-0.5RA 99212 10mm 10mm 9.6mm 100mm 15mm 50mm 0.5mm ALtima® 52 Straight 28.00 97.68
.3937 158M10N50-1.0RA 99213 10mm 10mm 9.6mm 100mm 15mm 50mm 1mm ALtima® 52 Straight 50.00 97.68
.3937 158M10N50-2.0RA 99214 10mm 10mm 9.6mm 100mm 15mm 50mm 2mm ALtima® 52 Straight 31.00 97.68
.3937 158M10N60-0.3RA 99215 10mm 10mm 9.6mm 130mm 15mm 60mm 0.3mm ALtima® 52 Straight 25.00 133.28
.3937 158M10N60-0.5RA 99216 10mm 10mm 9.6mm 130mm 15mm 60mm 0.5mm ALtima® 52 Straight 23.00 133.28
.3937 158M10N60-1.0RA 99217 10mm 10mm 9.6mm 130mm 15mm 60mm 1mm ALtima® 52 Straight 25.00 133.28
.3937 158M10N60-2.0RA 99218 10mm 10mm 9.6mm 130mm 15mm 60mm 2mm ALtima® 52 Straight 33.00 133.28
.4724 15847200N3A 15562 12mm 12mm 11.4mm 100mm 18mm 36mm ALtima® 52 Straight 10.00 162
.4724 15847200N5A 15564 12mm 12mm 11.4mm 130mm 18mm 60mm ALtima® 52 Straight 4.00 213.84
.4724 15847200R012N3A 15566 12mm 12mm 11.4mm 100mm 18mm 36mm 0.3mm ALtima® 52 Straight 42.00 168.91
.4724 15847200R012N5A 15568 12mm 12mm 11.4mm 130mm 18mm 60mm 0.3mm ALtima® 52 Straight 6.00 220.77
.4724 15847200R079N5A 15570 12mm 12mm 11.4mm 130mm 18mm 60mm 2mm ALtima® 52 Straight 32.00 220.77
.4724 158M12N40-0.3RA 99219 12mm 12mm 11.4mm 100mm 18mm 40mm 0.3mm ALtima® 52 Straight 7.00 130.31
.4724 158M12N40-1.0RA 99220 12mm 12mm 11.4mm 100mm 18mm 40mm 1mm ALtima® 52 Straight 8.00 130.31
.4724 158M12N40-2.0RA 99221 12mm 12mm 11.4mm 100mm 18mm 40mm 2mm ALtima® 52 Straight 8.00 130.31
.4724 158M12N60-0.3RA 99222 12mm 12mm 11.4mm 140mm 18mm 60mm 0.3mm ALtima® 52 Straight 50.00 175.17
.4724 158M12N60-1.0RA 99223 12mm 12mm 11.4mm 140mm 18mm 60mm 1mm ALtima® 52 Straight 1.00 175.17
.4724 158M12N60-2.0RA 99224 12mm 12mm 11.4mm 140mm 18mm 60mm 2mm ALtima® 52 Straight 7.00 175.17
.6299 15862900N3A 15572 16mm 16mm 15.2mm 130mm 24mm 48mm ALtima® 52 Straight 6.00 310.32
.6299 15862900N5A 15574 16mm 16mm 15.2mm 150mm 24mm 80mm ALtima® 52 Straight 2.00 316.72
.6299 15862900R012N3A 15576 16mm 16mm 15.2mm 130mm 24mm 48mm 0.3mm ALtima® 52 Straight 12.00 323.04
.6299 15862900R012N5A 15578 16mm 16mm 15.2mm 150mm 24mm 80mm 0.3mm ALtima® 52 Straight 9.00 329.44
.6299 15862900R118N5A 15580 16mm 16mm 15.2mm 150mm 24mm 80mm 3mm ALtima® 52 Straight 7.00 329.44
.6299 158M16N50-0.3RA 99225 16mm 16mm 15.2mm 100mm 24mm 50mm 0.3mm ALtima® 52 Straight 2.00 174.72
.6299 158M16N50-1.0RA 99226 16mm 16mm 15.2mm 100mm 24mm 50mm 1mm ALtima® 52 Straight 10.00 174.72
.6299 158M16N50-3.0RA 99227 16mm 16mm 15.2mm 100mm 24mm 50mm 3mm ALtima® 52 Straight 16.00 174.72
.6299 158M16N70-0.3RA 99228 16mm 16mm 15.2mm 150mm 24mm 70mm 0.3mm ALtima® 52 Straight 8.00 233.38
.6299 158M16N70-1.0RA 99229 16mm 16mm 15.2mm 150mm 24mm 70mm 1mm ALtima® 52 Straight 9.00 233.38
.6299 158M16N70-3.0RA 99230 16mm 16mm 15.2mm 150mm 24mm 70mm 3mm ALtima® 52 Straight 11.00 233.38
.7874 15878700N5A 15582 20mm 20mm 19.2mm 150mm 30mm 100mm ALtima® 52 Straight 3.00 588.3
.7874 15878700R012N5A 15584 20mm 20mm 19.2mm 150mm 30mm 100mm 0.3mm ALtima® 52 Straight 7.00 611.17
.7874 15878700R118N5A 15586 20mm 20mm 19.2mm 150mm 30mm 100mm 3mm ALtima® 52 Straight 13.00 611.17
