End Mills / 157

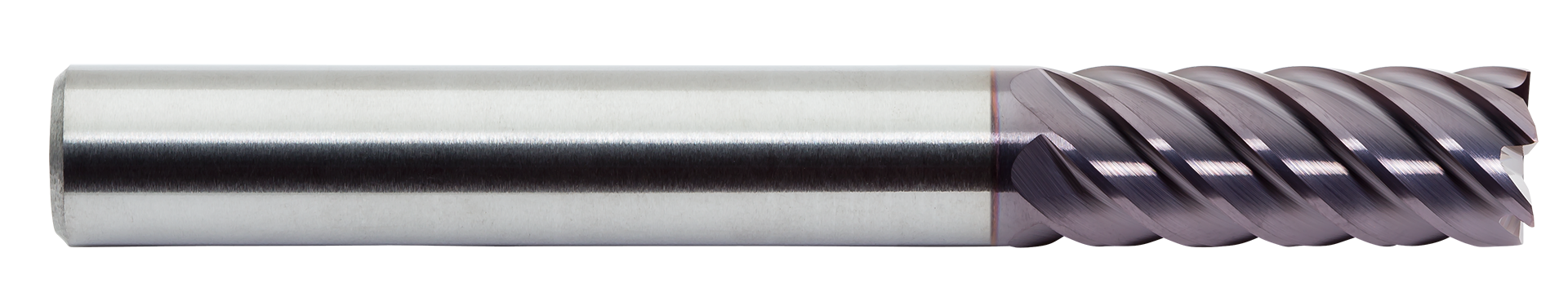

Solid Carbide TuffCut DM® Multi Flute End Mill

Designed for high-productivity milling of hard and difficult to cut materials Rc 50-65.

Multi Flute
Solid carbide
Coated with ALtima® 52, A=ALtima® 52 coated
Center cutting
Standard flute length
45° Helix angle
For finishing applications
Square end and corner radius options

Materials

Applications

Series Attributes

Downloads

Speed and Feed Data

End Mill Technical Data

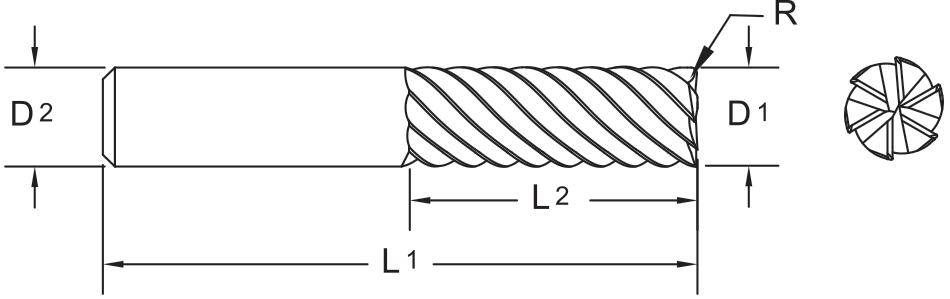

Line Drawing

Product Range

	Tool No.	EDP	Diameter (D/D1)	Shank Diameter (D2)	Overall Length (L1)	Flute Length (L2)	Corner Radius	Coating	Shank Type	# Flutes RH	Available	List Price

.1181	15711810A	15700	3mm	6mm	75mm	10mm		ALtima® 52	Straight	4	29.00	94.09
.1181	15711811A	15701	3mm	6mm	75mm	10mm	0.5mm	ALtima® 52	Straight	4	25.00	108.2
.1250	15712500A	15702	1/8	1/4	3	3/8		ALtima® 52	Straight	4	49.00	94.09
.1250	15712501A	15703	1/8	1/4	3	3/8	0.015	ALtima® 52	Straight	4	122.00	108.2
.1250	15712502A	15704	1/8	1/4	3	3/8	0.02	ALtima® 52	Straight	4	38.00	108.2
.1562	15715620A	15705	5/32	1/4	3	15/32		ALtima® 52	Straight	4	171.00	94.09
.1562	15715621A	15706	5/32	1/4	3	15/32	0.015	ALtima® 52	Straight	4	5.00	108.2
.1562	15715622A	15707	5/32	1/4	3	15/32	0.02	ALtima® 52	Straight	4	12.00	108.2
.1575	15715750A	15708	4mm	6mm	75mm	12mm		ALtima® 52	Straight	4	26.00	94.09
.1575	15715751A	15709	4mm	6mm	75mm	12mm	0.5mm	ALtima® 52	Straight	4	202.00	108.2
.1575	15715752A	15710	4mm	6mm	75mm	12mm	0.75mm	ALtima® 52	Straight	4	25.00	108.2
.1875	15718750A	15711	3/16	1/4	3	9/16		ALtima® 52	Straight	4	621.00	94.09
.1875	15718751A	15712	3/16	1/4	3	9/16	0.015	ALtima® 52	Straight	4	52.00	108.2
.1875	15718752A	15713	3/16	1/4	3	9/16	0.02	ALtima® 52	Straight	4	20.00	108.2
.1875	15718753A	15714	3/16	1/4	3	9/16	0.03	ALtima® 52	Straight	4	0.00	108.2
.1968	15719680A	15715	5mm	6mm	90mm	15mm		ALtima® 52	Straight	4	12.00	94.09
.1968	15719681A	15716	5mm	6mm	90mm	15mm	0.5mm	ALtima® 52	Straight	4	16.00	108.2
.1968	15719682A	15717	5mm	6mm	90mm	15mm	0.75mm	ALtima® 52	Straight	4	2.00	108.2
.1968	15719683A	15718	5mm	6mm	90mm	15mm	1mm	ALtima® 52	Straight	4	9.00	108.2
.2362	15723620A	15719	6mm	6mm	90mm	15mm		ALtima® 52	Straight	6	64.00	94.09
.2362	15723621A	15720	6mm	6mm	90mm	15mm	0.5mm	ALtima® 52	Straight	6	18.00	108.2
.2362	15723622A	15721	6mm	6mm	90mm	15mm	0.75mm	ALtima® 52	Straight	6	12.00	108.2
.2362	15723623A	15722	6mm	6mm	90mm	15mm	1mm	ALtima® 52	Straight	6	28.00	108.2
.2500	15725000A	15723	1/4	1/4	3-1/2	5/8		ALtima® 52	Straight	6	17.00	94.09
.2500	15725001A	15724	1/4	1/4	3-1/2	5/8	0.015	ALtima® 52	Straight	6	4.00	108.2
.2500	15725002A	15725	1/4	1/4	3-1/2	5/8	0.02	ALtima® 52	Straight	6	47.00	108.2
.2500	15725003A	15726	1/4	1/4	3-1/2	5/8	0.03	ALtima® 52	Straight	6	9.00	108.2
.2500	15725004A	15727	1/4	1/4	3-1/2	5/8	0.045	ALtima® 52	Straight	6	9.00	108.2
.3125	15731250A	15728	5/16	5/16	4	3/4		ALtima® 52	Straight	6	6.00	118.01
.3125	15731251A	15729	5/16	5/16	4	3/4	0.015	ALtima® 52	Straight	6	0.00	135.69
.3125	15731252A	15730	5/16	5/16	4	3/4	0.02	ALtima® 52	Straight	6	5.00	135.69
.3125	15731253A	15731	5/16	5/16	4	3/4	0.03	ALtima® 52	Straight	6	16.00	135.69
.3125	15731254A	15732	5/16	5/16	4	3/4	0.045	ALtima® 52	Straight	6	18.00	135.69
.3150	15731500A	15733	8mm	8mm	102mm	20mm		ALtima® 52	Straight	6	10.00	118.01
.3150	15731501A	15734	8mm	8mm	102mm	20mm	0.5mm	ALtima® 52	Straight	6	33.00	135.69
.3150	15731503A	15736	8mm	8mm	102mm	20mm	1mm	ALtima® 52	Straight	6	17.00	135.69
.3150	15731504A	15737	8mm	8mm	102mm	20mm	1.5mm	ALtima® 52	Straight	6	1.00	135.69
.3150	15731505A	15810	8mm	8mm	102mm	20mm	2mm	ALtima® 52	Straight	6	4.00	135.69
.3150	15731502A	15735	8mm	8mm	102mm	20mm	0.75mm	ALtima® 52	Straight	6	2.00	135.69
.3750	15737500A	15738	3/8	3/8	4	1		ALtima® 52	Straight	6	5.00	160.95
.3750	15737501A	15739	3/8	3/8	4	1	0.015	ALtima® 52	Straight	6	26.00	185.11
.3750	15737502A	15740	3/8	3/8	4	1	0.02	ALtima® 52	Straight	6	31.00	185.11
.3750	15737503A	15741	3/8	3/8	4	1	0.03	ALtima® 52	Straight	6	37.00	185.11
.3750	15737504A	15742	3/8	3/8	4	1	0.045	ALtima® 52	Straight	6	10.00	185.11
.3937	15739370A	15743	10mm	10mm	102mm	25mm		ALtima® 52	Straight	6	32.00	160.95
.3937	15739371A	15744	10mm	10mm	102mm	25mm	0.5mm	ALtima® 52	Straight	6	13.00	185.11
.3937	15739373A	15746	10mm	10mm	102mm	25mm	1mm	ALtima® 52	Straight	6	32.00	185.11
.3937	15739374A	15747	10mm	10mm	102mm	25mm	1.5mm	ALtima® 52	Straight	6	6.00	185.11
.3937	15739375A	15812	10mm	10mm	102mm	25mm	2mm	ALtima® 52	Straight	6	3.00	185.11
.3937	15739372A	15745	10mm	10mm	102mm	25mm	0.75mm	ALtima® 52	Straight	6	18.00	185.11
.4724	15747240A	15748	12mm	12mm	102mm	30mm		ALtima® 52	Straight	6	27.00	209.59
.4724	15747241A	15749	12mm	12mm	102mm	30mm	0.5mm	ALtima® 52	Straight	6	11.00	241.04
.4724	15747243A	15751	12mm	12mm	102mm	30mm	1mm	ALtima® 52	Straight	6	115.00	241.04
.4724	15747244A	15752	12mm	12mm	102mm	30mm	1.5mm	ALtima® 52	Straight	6	22.00	241.04
.4724	15747245A	15753	12mm	12mm	102mm	30mm	2mm	ALtima® 52	Straight	6	45.00	241.04
.4724	15747247A	15814	12mm	12mm	102mm	30mm	3mm	ALtima® 52	Straight	6	13.00	241.04
.4724	15747242A	15750	12mm	12mm	102mm	30mm	0.75mm	ALtima® 52	Straight	6	0.00	241.04
.5000	15750000A	15754	1/2	1/2	4	1-1/4		ALtima® 52	Straight	6	42.00	209.59
.5000	15750001A	15755	1/2	1/2	4	1-1/4	0.015	ALtima® 52	Straight	6	16.00	241.04
.5000	15750002A	15756	1/2	1/2	4	1-1/4	0.02	ALtima® 52	Straight	6	64.00	241.04
.5000	15750003A	15757	1/2	1/2	4	1-1/4	0.03	ALtima® 52	Straight	6	39.00	241.04
.5000	15750004A	15758	1/2	1/2	4	1-1/4	0.045	ALtima® 52	Straight	6	9.00	241.04
.5000	15750005A	15759	1/2	1/2	4	1-1/4	0.06	ALtima® 52	Straight	6	12.00	241.04
.5000	15750000AW	16458	1/2	1/2	4	1-1/4		ALtima® 52	Weldon	6	0.00	214.83
.6250	15762500A	15760	5/8	5/8	6	1-9/16		ALtima® 52	Straight	6	4.00	440.42
.6250	15762501A	15761	5/8	5/8	6	1-9/16	0.015	ALtima® 52	Straight	6	21.00	489.39
.6250	15762502A	15762	5/8	5/8	6	1-9/16	0.02	ALtima® 52	Straight	6	6.00	489.39
.6250	15762503A	15763	5/8	5/8	6	1-9/16	0.03	ALtima® 52	Straight	6	3.00	489.39
.6250	15762505A	15765	5/8	5/8	6	1-9/16	0.06	ALtima® 52	Straight	6	6.00	489.39
.6250	15762506A	15766	5/8	5/8	6	1-9/16	0.09	ALtima® 52	Straight	6	8.00	489.39
.6250	15762504A	15764	5/8	5/8	6	1-9/16	0.045	ALtima® 52	Straight	6	2.00	489.39
.6299	15762990A	15767	16mm	16mm	152mm	40mm		ALtima® 52	Straight	6	9.00	440.42
.6299	15762991A	15768	16mm	16mm	152mm	40mm	0.5mm	ALtima® 52	Straight	6	4.00	489.39
.6299	15762993A	15770	16mm	16mm	152mm	40mm	1mm	ALtima® 52	Straight	6	11.00	489.39
.6299	15762994A	15771	16mm	16mm	152mm	40mm	1.5mm	ALtima® 52	Straight	6	3.00	489.39
.6299	15762995A	15772	16mm	16mm	152mm	40mm	2mm	ALtima® 52	Straight	6	4.00	489.39
.6299	15762997A	15774	16mm	16mm	152mm	40mm	3mm	ALtima® 52	Straight	6	3.00	489.39
.6299	15762992A	15769	16mm	16mm	152mm	40mm	0.75mm	ALtima® 52	Straight	6	4.00	489.39
.6299	15762996A	15773	16mm	16mm	152mm	40mm	2.5mm	ALtima® 52	Straight	6	4.00	489.39
.7874	15778740A	15783	20mm	20mm	152mm	45mm		ALtima® 52	Straight	8	4.00	582.75
.7874	15778741A	15784	20mm	20mm	152mm	45mm	0.5mm	ALtima® 52	Straight	8	7.00	647.52
.7874	15778742A	15785	20mm	20mm	152mm	45mm	0.75mm	ALtima® 52	Straight	8	0.00	647.52
.7874	15778743A	15786	20mm	20mm	152mm	45mm	1mm	ALtima® 52	Straight	8	1.00	647.52
.7874	15778744A	15787	20mm	20mm	152mm	45mm	1.5mm	ALtima® 52	Straight	8	4.00	647.52
.7874	15778745A	15788	20mm	20mm	152mm	45mm	2mm	ALtima® 52	Straight	8	0.00	647.52
.7874	15778746A	15789	20mm	20mm	152mm	45mm	2.5mm	ALtima® 52	Straight	8	3.00	647.52
.7874	15778747A	15790	20mm	20mm	152mm	45mm	3mm	ALtima® 52	Straight	8	0.00	647.52
.9843	15798431A	15792	25mm	25mm	152mm	50mm	0.5mm	ALtima® 52	Straight	10	11.00	1042.4
.9843	15798430A	15791	25mm	25mm	152mm	50mm		ALtima® 52	Straight	10	0.00	938.13
.9843	15798432A	15793	25mm	25mm	152mm	50mm	0.75mm	ALtima® 52	Straight	10	9.00	1042.4
.9843	15798433A	15794	25mm	25mm	152mm	50mm	1mm	ALtima® 52	Straight	10	0.00	1042.4
.9843	15798434A	15795	25mm	25mm	152mm	50mm	1.5mm	ALtima® 52	Straight	10	0.00	1042.4
.9843	15798435A	15796	25mm	25mm	152mm	50mm	2mm	ALtima® 52	Straight	10	0.00	1042.4
.9843	15798436A	15797	25mm	25mm	152mm	50mm	2.5mm	ALtima® 52	Straight	10	2.00	1042.4
.9843	15798437A	15798	25mm	25mm	152mm	50mm	3mm	ALtima® 52	Straight	10	4.00	1042.4
