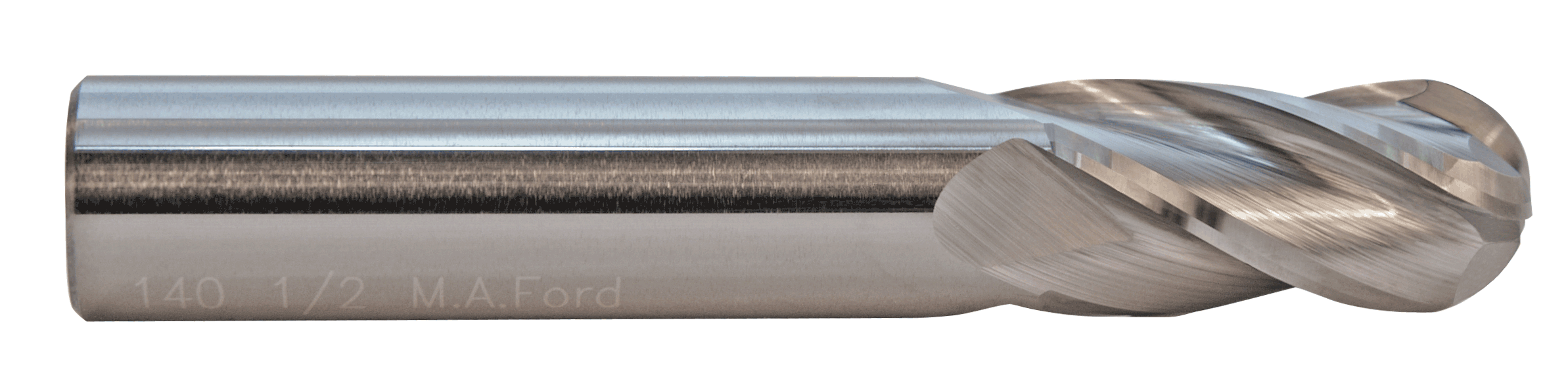

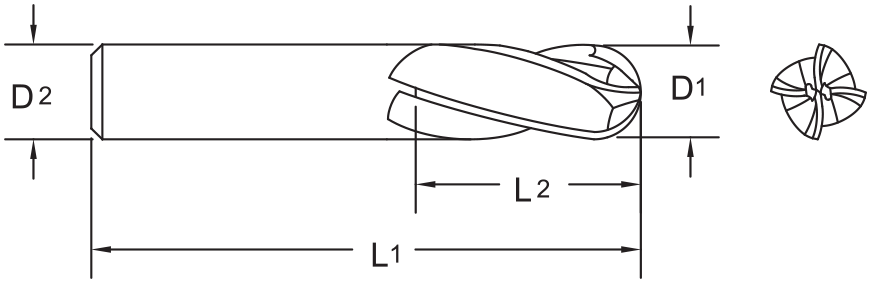

product photo product drawing

End Mills / 140

Solid Carbide TuffCut® GP 4 Flute End Mill Ball Nose
Designed for milling fillets or similar rounded corners in the bottom of a cut. Ideal for most ferrous metal applications.
  • 4 Flute
  • Solid carbide
  • Uncoated or available with TiN, ALtima® and TiCN coating. T=TiN, A=ALtima® (ALTiN), C=TiCN coated
  • Center cutting
  • Standard flute lengths
  • Ball nose
  • 30° Helix angle
  • For roughing and finishing applications

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing
  • 3D Surfacing

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Ball Radius (C) Coating Shank Type Available List Price
.0312 14003120 14001 1/32 1/8 1-1/2 5/64 1/64 Uncoated Straight 88.00 32.66
.0312 14003120A 59000 1/32 1/8 1-1/2 5/64 1/64 ALtima® Straight 22.00 39.12
.0312 14003120B 77177 1/32 1/8 1-1/2 5/64 1/64 ALtima® Blaze Straight 0.00 39.12
.0394 14003940 14003 1mm 3mm 38mm 3mm 0.5mm Uncoated Straight 189.00 31.91
.0394 14003940A 14108 1mm 3mm 38mm 3mm 0.5mm ALtima® Straight 67.00 35.72
.0468 14004680 14005 3/64 1/8 1-1/2 7/64 .0234 Uncoated Straight 33.00 32.66
.0468 14004680A 11490 3/64 1/8 1-1/2 7/64 .0234 ALtima® Straight 0.00 36.62
.0468 14004680C 11491 3/64 1/8 1-1/2 7/64 .0234 TiCN Straight 2.00 36.62
.0468 14004680T 12975 3/64 1/8 1-1/2 7/64 .0234 TiN Straight 0.00 36.92
.0591 14005910 14007 1.5mm 3mm 38mm 6mm 0.75mm Uncoated Straight 137.00 29.06
.0591 14005910A 14109 1.5mm 3mm 38mm 6mm 0.75mm ALtima® Straight 19.00 32.56
.0625 14006250 14009 1/16 1/8 1-1/2 3/16 1/32 Uncoated Straight 140.00 25.47
.0625 14006250T 58025 1/16 1/8 1-1/2 3/16 1/32 TiN Straight 25.00 29.43
.0625 14006250A 11493 1/16 1/8 1-1/2 3/16 1/32 ALtima® Straight 7.00 29.43
.0781 14007810 14011 5/64 1/8 1-1/2 3/16 .0391 Uncoated Straight 169.00 26.07
.0787 14007870 14013 2mm 3mm 38mm 9mm 1mm Uncoated Straight 290.00 25.47
.0787 14007870A 14110 2mm 3mm 38mm 9mm 1mm ALtima® Straight 109.00 28.53
.0787 14007870C 11494 2mm 3mm 38mm 9mm 1mm TiCN Straight 10.00 29.43
.0937 14009370 14015 3/32 1/8 1-1/2 9/32 3/64 Uncoated Straight 16.00 26.07
.0937 14009370T 58026 3/32 1/8 1-1/2 9/32 3/64 TiN Straight 0.00 30.35
.0937 14009370A 11495 3/32 1/8 1-1/2 9/32 3/64 ALtima® Straight 28.00 30.35
.0937 14009370C 16804 3/32 1/8 1-1/2 9/32 3/64 TiCN Straight 24.00 30.35
.0984 14009840 14017 2.5mm 3mm 38mm 12mm 1.25mm Uncoated Straight 17.00 26.07
.0984 14009840A 14111 2.5mm 3mm 38mm 12mm 1.25mm ALtima® Straight 23.00 29.2
.1093 14010930 14021 7/64 1/8 1-1/2 3/8 .0547 Uncoated Straight 21.00 26.07
.1093 14010930T 58058 7/64 1/8 1-1/2 3/8 .0547 TiN Straight 0.00 30.02
.1093 14010930A 11496 7/64 1/8 1-1/2 3/8 .0547 ALtima® Straight 0.00 30.35
.1181 14011810 14023 3mm 3mm 38mm 12mm 1.5mm Uncoated Straight 23.00 24.27
.1181 14011810A 14000 3mm 3mm 38mm 12mm 1.5mm ALtima® Straight 20.00 27.12
.1181 14011810T 14072 3mm 3mm 38mm 12mm 1.5mm TiN Straight 0.00 27.12
.1181 14011810B 77178 3mm 3mm 38mm 12mm 1.5mm ALtima® Blaze Straight 0.00 27.12
.1181 14011810C 14036 3mm 3mm 38mm 12mm 1.5mm TiCN Straight 6.00 27.12
.1250 14012500 14025 1/8 1/8 1-1/2 3/8 1/16 Uncoated Straight 193.00 24.27
.1250 14012500A 14002 1/8 1/8 1-1/2 3/8 1/16 ALtima® Straight 81.00 27.12
.1250 14012500C 14038 1/8 1/8 1-1/2 3/8 1/16 TiCN Straight 12.00 27.12
.1250 14012500T 14074 1/8 1/8 1-1/2 3/8 1/16 TiN Straight 13.00 27.12
.1378 14013780 14027 3.5mm 4mm 51mm 12mm 1.75mm Uncoated Straight 23.00 34.77
.1378 14013780A 14099 3.5mm 4mm 51mm 12mm 1.75mm ALtima® Straight 0.00 38.93
.1562 14015620 14029 5/32 3/16 2 1/2 5/64 Uncoated Straight 1.00 34.77
.1562 14015620T 58027 5/32 3/16 2 1/2 5/64 TiN Straight 11.00 39.81
.1562 14015620A 11498 5/32 3/16 2 1/2 5/64 ALtima® Straight 3.00 39.81
.1575 14015750 14031 4mm 4mm 51mm 14mm 2mm Uncoated Straight 123.00 33.85
.1575 14015750A 14004 4mm 4mm 51mm 14mm 2mm ALtima® Straight 23.00 37.91
.1575 14015750C 14040 4mm 4mm 51mm 14mm 2mm TiCN Straight 1.00 37.91
.1575 14015750CE 77179 4mm 4mm 51mm 14mm 2mm CERAedge® Straight 0.00 48.59
.1575 14015750T 14076 4mm 4mm 51mm 14mm 2mm TiN Straight 0.00 37.91
.1772 14017720 14033 4.5mm 5mm 51mm 14mm 2.25mm Uncoated Straight 33.00 35.95
.1772 14017720A 11501 4.5mm 5mm 51mm 14mm 2.25mm ALtima® Straight 0.00 41
.1875 14018750 14035 3/16 3/16 2 5/8 3/32 Uncoated Straight 22.00 33.85
.1875 14018750A 14006 3/16 3/16 2 5/8 3/32 ALtima® Straight 57.00 37.91
.1875 14018750C 14042 3/16 3/16 2 5/8 3/32 TiCN Straight 5.00 37.91
.1875 14018750T 14078 3/16 3/16 2 5/8 3/32 TiN Straight 7.00 37.91
.1968 14019680 14037 5mm 5mm 51mm 20mm 2.5mm Uncoated Straight 46.00 35.95
.1968 14019680A 14008 5mm 5mm 51mm 20mm 2.5mm ALtima® Straight 25.00 40.29
.1968 14019680C 14044 5mm 5mm 51mm 20mm 2.5mm TiCN Straight 0.00 40.29
.1968 14019680T 14080 5mm 5mm 51mm 20mm 2.5mm TiN Straight 13.00 40.29
.2165 14021650 14039 5.5mm 6mm 64mm 20mm 2.75mm Uncoated Straight 4.00 44.95
.2165 14021650A 77180 5.5mm 6mm 64mm 20mm 2.75mm ALtima® Straight 8.00 54.3
.2187 14021870 14041 7/32 1/4 2-1/2 5/8 7/64 Uncoated Straight 20.00 44.95
.2187 14021870T 58028 7/32 1/4 2-1/2 5/8 7/64 TiN Straight 0.00 55.22
.2187 14021870A 11502 7/32 1/4 2-1/2 5/8 7/64 ALtima® Straight 2.00 55.22
.2187 14021870AV 77181 7/32 1/4 2-1/2 5/8 7/64 ALtima® V Straight 0.00 55.22
.2362 14023620 14043 6mm 6mm 64mm 20mm 3mm Uncoated Straight 157.00 41.35
.2362 14023620A 14010 6mm 6mm 64mm 20mm 3mm ALtima® Straight 141.00 46.28
.2362 14023620C 14046 6mm 6mm 64mm 20mm 3mm TiCN Straight 0.00 46.28
.2362 14023620T 14082 6mm 6mm 64mm 20mm 3mm TiN Straight 0.00 46.28
.2362 14023620B 18757 6mm 6mm 64mm 20mm ALtima® Blaze Straight 0.00 50.69
.2500 14025000 14045 1/4 1/4 2-1/2 3/4 1/8 Uncoated Straight 282.00 41.35
.2500 14025000A 14012 1/4 1/4 2-1/2 3/4 1/8 ALtima® Straight 44.00 46.28
.2500 14025000C 14048 1/4 1/4 2-1/2 3/4 1/8 TiCN Straight 7.00 46.28
.2500 14025000T 14084 1/4 1/4 2-1/2 3/4 1/8 TiN Straight 118.00 46.28
.2500 14025000TW 99139 1/4 1/4 2-1/2 3/4 1/8 TiN Weldon 4.00 51.36
.2500 14025000W 77183 1/4 1/4 2-1/2 3/4 1/8 Uncoated Weldon 0.00 46.41
.2756 14027560 14047 7mm 8mm 64mm 20mm 3.5mm Uncoated Straight 46.00 54.99
.2756 14027560A 11504 7mm 8mm 64mm 20mm 3.5mm ALtima® Straight 10.00 68.29
.2812 14028120 14049 9/32 5/16 2-1/2 3/4 9/64 Uncoated Straight 13.00 54.99
.2812 14028120T 58029 9/32 5/16 2-1/2 3/4 9/64 TiN Straight 4.00 68.29
.2812 14028120A 11505 9/32 5/16 2-1/2 3/4 9/64 ALtima® Straight 5.00 68.29
.3125 14031250 14051 5/16 5/16 2-1/2 13/16 5/32 Uncoated Straight 63.00 54.38
.3125 14031250A 14014 5/16 5/16 2-1/2 13/16 5/32 ALtima® Straight 31.00 60.8
.3125 14031250T 14086 5/16 5/16 2-1/2 13/16 5/32 TiN Straight 3.00 60.8
.3125 14031250C 14050 5/16 5/16 2-1/2 13/16 5/32 TiCN Straight 10.00 60.8
.3150 14031500 14053 8mm 8mm 64mm 20mm 4mm Uncoated Straight 11.00 48.53
.3150 14031500A 14016 8mm 8mm 64mm 20mm 4mm ALtima® Straight 14.00 54.22
.3150 14031500C 14052 8mm 8mm 64mm 20mm 4mm TiCN Straight 0.00 54.22
.3150 14031500T 14088 8mm 8mm 64mm 20mm 4mm TiN Straight 0.00 54.22
.3543 14035430 14055 9mm 9mm 64mm 20mm 4.5mm Uncoated Straight 19.00 72.35
.3543 14035430A 11506 9mm 9mm 64mm 20mm 4.5mm ALtima® Straight 0.00 87.08
.3750 14037500 14057 3/8 3/8 2-1/2 1 3/16 Uncoated Straight 331.00 65.3
.3750 14037500A 14018 3/8 3/8 2-1/2 1 3/16 ALtima® Straight 129.00 73.09
.3750 14037500C 14054 3/8 3/8 2-1/2 1 3/16 TiCN Straight 6.00 73.09
.3750 14037500T 14090 3/8 3/8 2-1/2 1 3/16 TiN Straight 13.00 73.09
.3750 14037500TW 99140 3/8 3/8 2-1/2 1 3/16 TiN Weldon 0.00 82.15
.3937 14039370 14059 10mm 10mm 70mm 25mm 5mm Uncoated Straight 61.00 81.17
.3937 14039370A 14020 10mm 10mm 70mm 25mm 5mm ALtima® Straight 17.00 90.92
.3937 14039370C 14056 10mm 10mm 70mm 25mm 5mm TiCN Straight 46.00 90.92
.3937 14039370T 14091 10mm 10mm 70mm 25mm 5mm TiN Straight 0.00 90.92
.4331 14043310 14061 11mm 11mm 70mm 25mm 5.5mm Uncoated Straight 9.00 99.31
.4375 14043750 14063 7/16 7/16 2-3/4 1 7/32 Uncoated Straight 40.00 84.46
.4375 14043750A 14022 7/16 7/16 2-3/4 1 7/32 ALtima® Straight 13.00 94.68
.4375 14043750T 14092 7/16 7/16 2-3/4 1 7/32 TiN Straight 0.00 94.68
.4375 14043750C 14058 7/16 7/16 2-3/4 1 7/32 TiCN Straight 0.00 94.68
.4724 14047240 14065 12mm 12mm 76mm 25mm 6mm Uncoated Straight 130.00 99.47
.4724 14047240A 14024 12mm 12mm 76mm 25mm 6mm ALtima® Straight 15.00 111.3
.4724 14047240T 14093 12mm 12mm 76mm 25mm 6mm TiN Straight 0.00 111.3
.4724 14047240C 14060 12mm 12mm 76mm 25mm 6mm TiCN Straight 0.00 111.3
.5000 14050000 14067 1/2 1/2 3 1 1/4 Uncoated Straight 87.00 106.8
.5000 14050000A 14026 1/2 1/2 3 1 1/4 ALtima® Straight 14.00 119.69
.5000 14050000C 14062 1/2 1/2 3 1 1/4 TiCN Straight 12.00 119.69
.5000 14050000T 14094 1/2 1/2 3 1 1/4 TiN Straight 11.00 119.69
.5000 14050000TW 99141 1/2 1/2 3 1 1/4 TiN Weldon 0.00 129.42
.5512 14055120 14069 14mm 14mm 89mm 30mm 7mm Uncoated Straight 3.00 160.26
.5512 14055120A 17976 14mm 14mm 89mm 30mm 7mm ALtima® Straight 0.00 185.58
.5625 14056250 14071 9/16 9/16 3-1/2 1-1/8 9/32 Uncoated Straight 8.00 188.74
.5625 14056250A 59001 9/16 9/16 3-1/2 1-1/8 9/32 ALtima® Straight 1.00 211.01
.5625 14056250T 58030 9/16 9/16 3-1/2 1-1/8 9/32 TiN Straight 1.00 211.01
.6250 14062500 14073 5/8 5/8 3-1/2 1-1/4 5/16 Uncoated Straight 21.00 209.7
.6250 14062500A 14028 5/8 5/8 3-1/2 1-1/4 5/16 ALtima® Straight 17.00 224.69
.6250 14062500T 14095 5/8 5/8 3-1/2 1-1/4 5/16 TiN Straight 1.00 224.69
.6250 14062500W 77184 5/8 5/8 3-1/2 1-1/4 5/16 Uncoated Straight 0.00 216.1
.6250 14062500C 14064 5/8 5/8 3-1/2 1-1/4 5/16 TiCN Straight 1.00 224.69
.6299 14062990 14075 16mm 16mm 89mm 30mm 8mm Uncoated Straight 0.00 179.74
.6299 14062990A 14030 16mm 16mm 89mm 30mm 8mm ALtima® Straight 0.00 191.73
.6299 14062990C 14066 16mm 16mm 89mm 30mm 8mm TiCN Straight 0.00 191.73
.6299 14062990T 14096 16mm 16mm 89mm 30mm 8mm TiN Straight 1.00 191.73
.6875 14068750 14077 11/16 3/4 4 1-3/8 11/32 Uncoated Straight 13.00 209.7
.7087 14070870 14079 18mm 18mm 102mm 35mm 9mm Uncoated Straight 12.00 265.13
.7087 14070870A 14990 18mm 18mm 102mm 35mm 9mm ALtima® Straight 0.00 307.34
.7500 14075000 14081 3/4 3/4 4 1-1/2 3/8 Uncoated Straight 31.00 308.54
.7500 14075000A 14032 3/4 3/4 4 1-1/2 3/8 ALtima® Straight 10.00 331.01
.7500 14075000C 14068 3/4 3/4 4 1-1/2 3/8 TiCN Straight 1.00 331.01
.7500 14075000T 14097 3/4 3/4 4 1-1/2 3/8 TiN Straight 0.00 331.01
.7874 14078740 14083 20mm 20mm 102mm 38mm 10mm Uncoated Straight 7.00 366.98
.7874 14078740A 14034 20mm 20mm 102mm 38mm 10mm ALtima® Straight 2.00 420.89
.7874 14078740C 14070 20mm 20mm 102mm 38mm 10mm TiCN Straight 0.00 420.89
.7874 14078740T 14098 20mm 20mm 102mm 38mm 10mm TiN Straight 2.00 420.89
.8662 14086620 14085 22mm 22mm 102mm 40mm 11mm Uncoated Straight 5.00 528.75
.8750 14087500 14087 7/8 7/8 4 1-1/2 7/16 Uncoated Straight 3.00 450.85
.8750 14087500T 58032 7/8 7/8 4 1-1/2 7/16 TiN Straight 2.00 494.06
.8750 14087500TW 99137 7/8 7/8 4 1-1/2 7/16 TiN Weldon 0.00 504.43
.8750 14087500A 11509 7/8 7/8 4 1-1/2 7/16 ALtima® Straight 19.00 494.06
.9843 14098430 14089 25mm 25mm 102mm 40mm 12.5mm Uncoated Straight 0.00 471.82
.9843 14098430A 54004 25mm 25mm 102mm 40mm 12.5mm ALtima® Straight 0.00 504.76
.9843 14098430C 54005 25mm 25mm 102mm 40mm 12.5mm TiCN Straight 0.00 504.76
.9843 14098430T 54003 25mm 25mm 102mm 40mm 12.5mm TiN Straight 2.00 504.76
1.0000 14010000 14019 1 1 4 1-1/2 1/2 Uncoated Straight 8.00 471.82
1.0000 14010000A 54001 1 1 4 1-1/2 1/2 ALtima® Straight 0.00 504.76
1.0000 14010000C 54002 1 1 4 1-1/2 1/2 TiCN Straight 0.00 504.76
1.0000 14010000T 54000 1 1 4 1-1/2 1/2 TiN Straight 5.00 504.76
1.0000 14010000TW 99138 1 1 4 1-1/2 1/2 TiN Weldon 0.00 515.13
