End Mills / 135B

Solid Carbide TuffCut® AL 2 Flute Ball Nose End Mill
Geometry allows tools to be run at extremely high chip loads - .040 /1mm and above. Designed for high speed machining. Performs equally well across a broad range of operating speeds - 4,000 RPM machines to 50,000 RPM.
  • 2 Flute
  • Solid carbide
  • Ball nose
  • Uncoated, available coated upon request
  • Center cutting
  • Stub and standard flute lengths
  • 37° Helix angle
  • For roughing applications
  • Zirconium coating also available

Materials

  • Non ISO
  • Non-Ferrous

Applications

  • Slotting
  • Traditional Roughing
  • 3D Surfacing
  • High Efficiency Milling
  • Finishing

Series Attributes

Downloads

Product Range

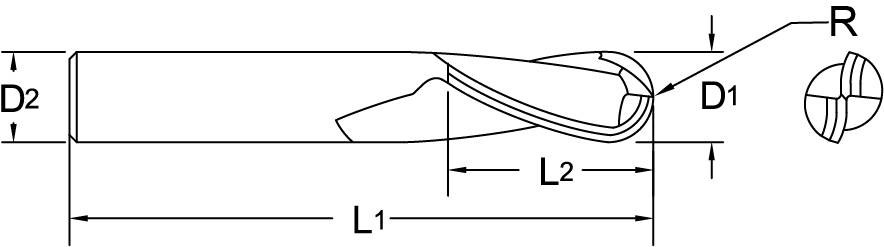

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Ball Radius (C) Coating Shank Type Available List Price
.1250 135B12500 13440 1/8 1/8 1-1/2 3/8 1/16 Uncoated Straight 70.00 43.71
.1250 135B12501 13442 1/8 1/8 2 1/2 1/16 Uncoated Straight 36.00 45.3
.1875 135B18750 13444 3/16 3/16 2 3/8 3/32 Uncoated Straight 23.00 45.74
.1875 135B18751 13446 3/16 3/16 2-1/2 5/8 3/32 Uncoated Straight 24.00 47.34
.1875 135B18750CE 77014 3/16 3/16 2 3/8 3/32 CERAedge® Straight 0.00 60.47
.2500 135B25000 13448 1/4 1/4 2-1/2 1/2 1/8 Uncoated Straight 61.00 50.13
.2500 135B25001 13450 1/4 1/4 2-1/2 3/4 1/8 Uncoated Straight 87.00 51.81
.2500 135B25001CE 77015 1/4 1/4 2-1/2 3/4 1/8 CERAedge® Straight 6.00 68.24
.2500 135B25001F 17533 1/4 1/4 2-1/2 3/4 1/8 Fordlube Straight 0.00 62.73
.3125 135B31250 13452 5/16 5/16 2-1/2 1/2 5/32 Uncoated Straight 12.00 69.56
.3125 135B31251 13454 5/16 5/16 2-1/2 13/16 5/32 Uncoated Straight 3.00 73.47
.3125 135B31250CE 77016 5/16 5/16 2-1/2 1/2 5/32 CERAedge® Straight 0.00 110.52
.3750 135B37500 13456 3/8 3/8 2-1/2 5/8 3/16 Uncoated Straight 3.00 79.76
.3750 135B37501 13458 3/8 3/8 2-1/2 1 3/16 Uncoated Straight 5.00 84.44
.3750 135B37501CE 77017 3/8 3/8 2-1/2 1 3/16 CERAedge® Straight 0.00 125.4
.4375 135B43750 13460 7/16 7/16 2-3/4 9/16 7/32 Uncoated Straight 36.00 94.52
.4375 135B43751 13462 7/16 7/16 2-3/4 1 7/32 Uncoated Straight 32.00 105.27
.5000 135B50000 13464 1/2 1/2 3 5/8 1/4 Uncoated Straight 5.00 127.88
.5000 135B50001 13466 1/2 1/2 3 1-1/4 1/4 Uncoated Straight 199.00 130.46
.5000 135B50002 13468 1/2 1/2 6 1-1/4 1/4 Uncoated Straight 21.00 183.12
.5000 135B50001A 77018 1/2 1/2 3 1-1/4 1/4 ALtima® Straight 4.00 152.96
.5000 135B50001CE 77019 1/2 1/2 3 1-1/4 1/4 CERAedge® Straight 4.00 189.07
.5000 135B50001F 77020 1/2 1/2 3 1-1/4 1/4 Fordlube Straight 0.00 156.35
.5000 135B50001ZR 77022 1/2 1/2 3 1-1/4 1/4 ZRN Straight 0.00 156.35
.6250 135B62500 13470 5/8 5/8 3-1/2 1-1/4 5/16 Uncoated Straight 13.00 239.25
.6250 135B62501 13472 5/8 5/8 4 1-5/8 5/16 Uncoated Straight 13.00 260.93
.6250 135B62500CE 77023 5/8 5/8 3-1/2 1-1/4 5/16 CERAedge® Straight 0.00 307.2
.7500 135B75000 13474 3/4 3/4 4 1 3/8 Uncoated Straight 17.00 366.53
.7500 135B75001 13476 3/4 3/4 4 1-5/8 3/8 Uncoated Straight 1.00 376.02
1.0000 135B10000 13478 1 1 4 1-1/2 1/2 Uncoated Straight 7.00 547.89
1.0000 135B10001 13480 1 1 5 2-1/4 1/2 Uncoated Straight 5.00 729.57
1.0000 135B10001W 77012 1 1 5 2-1/4 1/2 Uncoated Weldon 0.00 744.46
