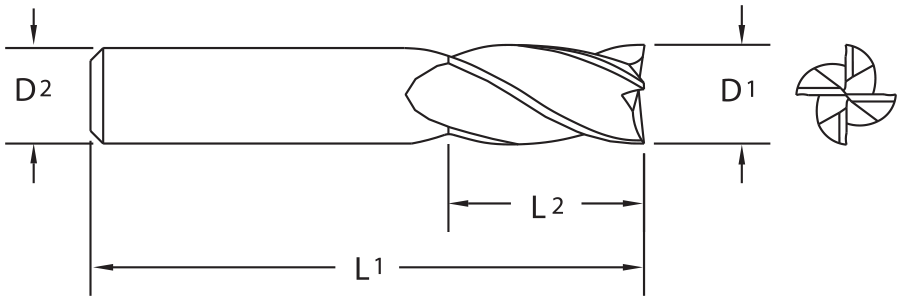

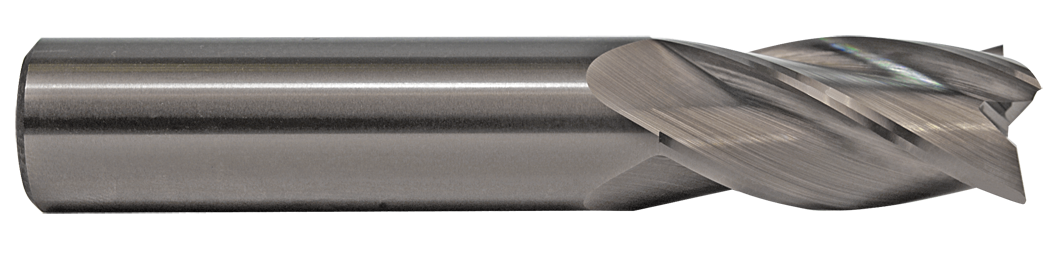

product photo product drawing

End Mills / 117

Solid Carbide TuffCut® GP 4 Flute End Mill, NC Tolerance
Recommended for close tolerance milling.
  • 4 Flute
  • Solid carbide
  • Uncoated
  • NC tolerances on cutting diameter - Imperial +.001" /-.000", Metric +.025mm/-.000mm
  • Cutting edge wear is decreased and tool life greatly improved
  • Center cutting
  • Standard flute lengths, square end
  • 30° Helix angle
  • For roughing and finishing applications
  • TiN and ALtima® coatings available

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Applications

  • Finishing

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Corner Radius Coating Shank Type Available List Price
.0156 11701560 11701 1/64 1/8 1-1/2 .040 Uncoated Straight 3.00 37.71
.0156 11701560A 10291 1/64 1/8 1-1/2 .040 ALtima® Straight 0.00 45.45
.0312 11703120 11703 1/32 1/8 1-1/2 5/64 Uncoated Straight 12.00 29.19
.0312 11703120A 10292 1/32 1/8 1-1/2 5/64 ALtima® Straight 0.00 35.66
.0394 11703940 11705 1mm 3mm 38mm 3mm Uncoated Straight 34.00 28.43
.0468 11704680 11707 3/64 1/8 1-1/2 7/64 Uncoated Straight 11.00 29.19
.0591 11705910 11709 1.5mm 3mm 38mm 6mm Uncoated Straight 22.00 26.01
.0591 11705910A 10295 1.5mm 3mm 38mm 6mm ALtima® Straight 2.00 29.97
.0625 11706250 11711 1/16 1/8 1-1/2 3/16 Uncoated Straight 2.00 22.79
.0625 11706250A 10296 1/16 1/8 1-1/2 3/16 ALtima® Straight 2.00 26.73
.0781 11707810 11713 5/64 1/8 1-1/2 15/64 Uncoated Straight 30.00 23.26
.0781 11707810A 10298 5/64 1/8 1-1/2 15/64 ALtima® Straight 0.00 27.23
.0787 11707870 11715 2mm 3mm 38mm 9mm Uncoated Straight 9.00 22.79
.0937 11709370 11717 3/32 1/8 1-1/2 9/32 Uncoated Straight 23.00 23.26
.0937 11709370A 10300 3/32 1/8 1-1/2 9/32 ALtima® Straight 0.00 27.23
.0984 11709840 11719 2.5mm 3mm 38mm 12mm Uncoated Straight 47.00 23.26
.1093 11710930 11723 7/64 1/8 1-1/2 21/64 Uncoated Straight 16.00 23.4
.1181 11711810 11725 3mm 3mm 38mm 12mm Uncoated Straight 122.00 21.74
.1250 11712500 11727 1/8 1/8 1-1/2 3/8 Uncoated Straight 94.00 21.74
.1250 11712500A 10308 1/8 1/8 1-1/2 3/8 ALtima® Straight 0.00 25.7
.1250 11712500T 10309 1/8 1/8 1-1/2 3/8 TiN Straight 0.00 25.7
.1250 11712500AW 76942 1/8 1/8 1-1/2 3/8 ALtima® Weldon 0.00 29.64
.1250 11712500TW 76943 1/8 1/8 1-1/2 3/8 TiN Weldon 1.00 29.64
.1378 11713780 11729 3.5mm 4mm 51mm 12mm Uncoated Straight 9.00 31.01
.1562 11715620 11731 5/32 3/16 2 1/2 Uncoated Straight 60.00 31.01
.1562 11715620A 76944 5/32 3/16 2 1/2 ALtima® Straight 0.00 38.65
.1575 11715750 11733 4mm 4mm 51mm 14mm Uncoated Straight 29.00 30.26
.1575 11715750A 10311 4mm 4mm 51mm 14mm ALtima® Straight 5.00 35.3
.1772 11717720 11735 4.5mm 5mm 51mm 14mm Uncoated Straight 37.00 32.24
.1875 11718750 11737 3/16 3/16 2 9/16 Uncoated Straight 138.00 30.26
.1875 11718750A 10594 3/16 3/16 2 9/16 ALtima® Straight 0.00 35.3
.1875 11718750T 10595 3/16 3/16 2 9/16 TiN Straight 22.00 35.3
.1875 11718750AW 76945 3/16 3/16 2 9/16 ALtima® Weldon 0.00 39.25
.1875 11718750TW 76946 3/16 3/16 2 9/16 TiN Weldon 22.00 39.25
.1968 11719680 11739 5mm 5mm 51mm 20mm Uncoated Straight 19.00 32.24
.1968 11719680T 17065 5mm 5mm 51mm 20mm TiN Straight 0.00 39.88
.2165 11721650 11741 5.5mm 6mm 64mm 20mm Uncoated Straight 46.00 40.12
.2165 11721650T 17210 5.5mm 6mm 64mm 20mm TiN Straight 0.00 49.46
.2187 11721870 11743 7/32 1/4 2-1/2 5/8 Uncoated Straight 45.00 40.12
.2362 11723620 11745 6mm 6mm 64mm 20mm Uncoated Straight 18.00 36.96
.2500 11725000 11747 1/4 1/4 2-1/2 3/4 Uncoated Straight 62.00 36.96
.2500 11725000A 10318 1/4 1/4 2-1/2 3/4 ALtima® Straight 8.00 47.22
.2500 11725000T 10319 1/4 1/4 2-1/2 3/4 TiN Straight 46.00 47.22
.2500 11725000TW 76947 1/4 1/4 2-1/2 3/4 TiN Weldon 20.00 51.17
.2756 11727560 11749 7mm 8mm 64mm 20mm Uncoated Straight 58.00 49.09
.2812 11728120 11751 9/32 5/16 2-1/2 3/4 Uncoated Straight 3.00 49.09
.2812 11728120T 76948 9/32 5/16 2-1/2 3/4 TiN Straight 0.00 57.62
.3125 11731250 11753 5/16 5/16 2-1/2 13/16 Uncoated Straight 14.00 50.61
.3125 11731250A 10322 5/16 5/16 2-1/2 13/16 ALtima® Straight 5.00 63.92
.3125 11731250T 10323 5/16 5/16 2-1/2 13/16 TiN Straight 12.00 63.92
.3125 11731250TW 76949 5/16 5/16 2-1/2 13/16 TiN Weldon 17.00 67.86
.3150 11731500 11755 8mm 8mm 64mm 20mm Uncoated Straight 42.00 45.14
.3150 11731500A 10324 8mm 8mm 64mm 20mm ALtima® Straight 0.00 58.46
.3150 11731500T 10325 8mm 8mm 64mm 20mm TiN Straight 23.00 58.46
.3543 11735430 11757 9mm 9mm 64mm 20mm Uncoated Straight 15.00 67.36
.3750 11737500 11759 3/8 3/8 2-1/2 7/8 Uncoated Straight 77.00 60.8
.3750 11737500A 10327 3/8 3/8 2-1/2 7/8 ALtima® Straight 10.00 75.51
.3750 11737500T 10328 3/8 3/8 2-1/2 7/8 TiN Straight 41.00 75.51
.3750 11737500TW 76950 3/8 3/8 2-1/2 7/8 TiN Weldon 18.00 79.45
.3937 11739370 11761 10mm 10mm 70mm 25mm Uncoated Straight 4.00 75.54
.3937 11739370A 10329 10mm 10mm 70mm 25mm ALtima® Straight 5.00 90.27
.4331 11743310 11763 11mm 11mm 70mm 25mm Uncoated Straight 16.00 92.25
.4375 11743750 11765 7/16 7/16 2-3/4 1 Uncoated Straight 22.00 78.59
.4375 11743750A 76951 7/16 7/16 2-3/4 1 ALtima® Straight 0.00 95.05
.4724 11747240 11767 12mm 12mm 76mm 25mm Uncoated Straight 130.00 92.4
.5000 11750000 11769 1/2 1/2 3 1 Uncoated Straight 17.00 99.4
.5000 11750000A 10331 1/2 1/2 3 1 ALtima® Straight 11.00 118.83
.5000 11750000T 10332 1/2 1/2 3 1 TiN Straight 24.00 118.83
.5000 11750000W 10333 1/2 1/2 3 1 Uncoated Weldon 0.00 108.47
.5000 11750000TW 76952 1/2 1/2 3 1 TiN Weldon 8.00 123.89
.5512 11755120 11771 14mm 14mm 89mm 30mm Uncoated Straight 13.00 148.66
.5625 11756250 11773 9/16 9/16 3-1/2 1-1/8 Uncoated Straight 1.00 176.32
.6250 11762500 11775 5/8 5/8 3-1/2 1-1/4 Uncoated Straight 13.00 196.08
.6250 11762500A 10334 5/8 5/8 3-1/2 1-1/4 ALtima® Straight 2.00 223.23
.6250 11762500T 10335 5/8 5/8 3-1/2 1-1/4 TiN Straight 0.00 223.23
.6250 11762500TW 75073 5/8 5/8 3-1/2 1-1/4 TiN Weldon 0.00 233.59
.6299 11762990 11777 16mm 16mm 89mm 30mm Uncoated Straight 4.00 167.2
.7087 11770870 11779 18mm 18mm 102mm 35mm Uncoated Straight 2.00 246.24
.7087 11770870A 17045 18mm 18mm 102mm 35mm ALtima® Straight 0.00 288.44
.7500 11775000 11781 3/4 3/4 4 1-1/2 Uncoated Straight 6.00 287.28
.7500 11775000T 10337 3/4 3/4 4 1-1/2 TiN Straight 1.00 325.37
.7500 11775000TW 10338 3/4 3/4 4 1-1/2 TiN Weldon 0.00 335.71
.7500 11775000A 76953 3/4 3/4 4 1-1/2 ALtima® Straight 0.00 295.72
.7874 11778740 11783 20mm 20mm 102mm 38mm Uncoated Straight 76.00 342.01
.8662 11786620 11785 22mm 22mm 102mm 40mm Uncoated Straight 0.00 492.46
.8750 11787500 11787 7/8 7/8 4 1-1/2 Uncoated Straight 5.00 419.52
.8750 11787500TW 58064 7/8 7/8 4 1-1/2 TiN Weldon 0.00 477.8
.8750 11787500T 10340 7/8 7/8 4 1-1/2 TiN Straight 0.00 470.15
.8750 11787500C 10339 7/8 7/8 4 1-1/2 TiCN Straight 0.00 470.15
.8750 11787500A 17611 7/8 7/8 4 1-1/2 ALtima® Straight 0.00 470.15
.9843 11798430 11789 25mm 25mm 102mm 40mm Uncoated Straight 0.00 437.75
1.0000 11710000 11721 1 1 4 1-1/2 Uncoated Straight 2.00 437.75
1.0000 11710000W 75072 1 1 4 1-1/2 Uncoated Weldon 0.00 452.63
