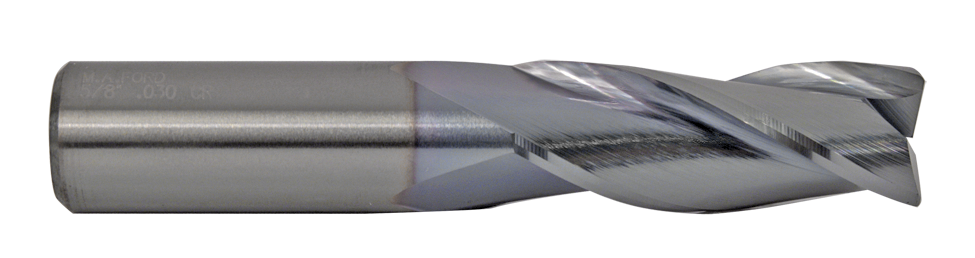

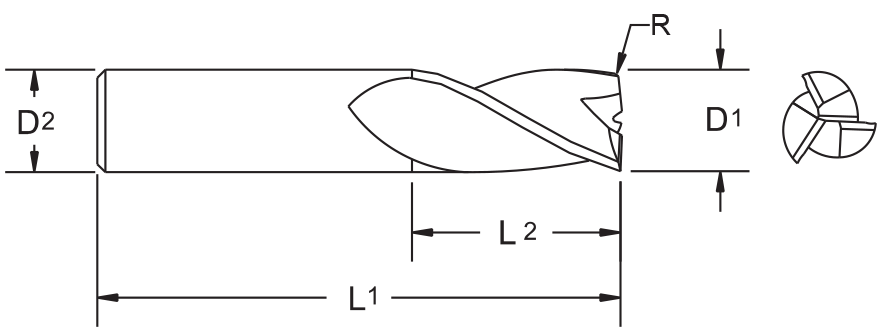

product photo product drawing

End Mills / 116C

Solid Carbide TuffCut® GP 3 Flute End Mill, Corner Radius with
TiCN Coating, Standard Length
Performs well in all materials including Stainless Steel, Inconel and Stellite. Produces long cuts at reasonable speeds on everyday equipment.  Exceptional tool life at moderate speeds and feeds.  Ideal for long cuts requiring accuracy and minimal tool wear deflection.  Perfect job shop tool.
  • 3 Flute
  • Solid carbide
  • TiCN coated, C=TiCN coated
  • Center cutting
  • Standard flute lengths
  • Corner Radius
  • 30° Helix angle
  • For roughing and finishing applications

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Neck Length (L3) Corner Radius Coating Shank Type Available List Price
.2812 11628122C 11468 9/32 5/16 2-1/2 3/4 0.02 TiCN Straight 10.00 59.48
.3125 11631252C 11469 5/16 5/16 2-1/2 13/16 0.02 TiCN Straight 13.00 61.39
.3438 11634382C 11500 11/32 3/8 2-1/2 7/8 0.02 TiCN Straight 65.00 52.29
.3750 11637502C 11369 3/8 3/8 2-1/2 1 0.02 TiCN Straight 21.00 73.54
.4062 11640622C 11370 13/32 7/16 2-3/4 1 0.02 TiCN Straight 6.00 111.74
.4375 11643752C 11382 7/16 7/16 2-3/4 1 0.02 TiCN Straight 4.00 95.13
.4688 11646882C 11383 15/32 1/2 3 1-1/4 0.02 TiCN Straight 10.00 111.89
.5000 11650002C 11371 1/2 1/2 3 1-1/4 0.02 TiCN Straight 12.00 120.11
.6250 11662502C 11373 5/8 5/8 3-1/2 1-5/8 0.02 TiCN Straight 3.00 236.65
.6250 11662503C 11374 5/8 5/8 3-1/2 1-5/8 0.03 TiCN Straight 9.00 236.65
.7500 11675002C 11375 3/4 3/4 4 1-1/2 0.02 TiCN Straight 6.00 347.79
.7500 11675003C 11376 3/4 3/4 4 1-1/2 0.03 TiCN Straight 2.00 347.79
