Burs / SM

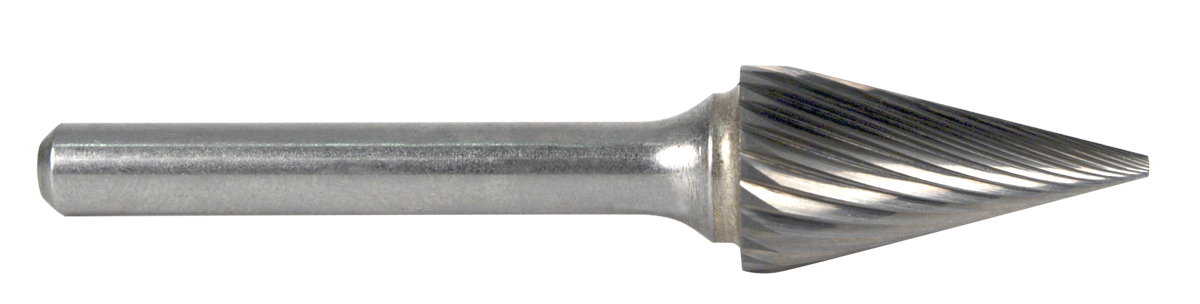

Solid Carbide Edge Hog® Bur
Conical

  • SCTI SM
  • Solid carbide 1/4" sizes and below, brazed construction over 1/4"
  • Inch and metric sizes
  • Single, double, and fine cuts available

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

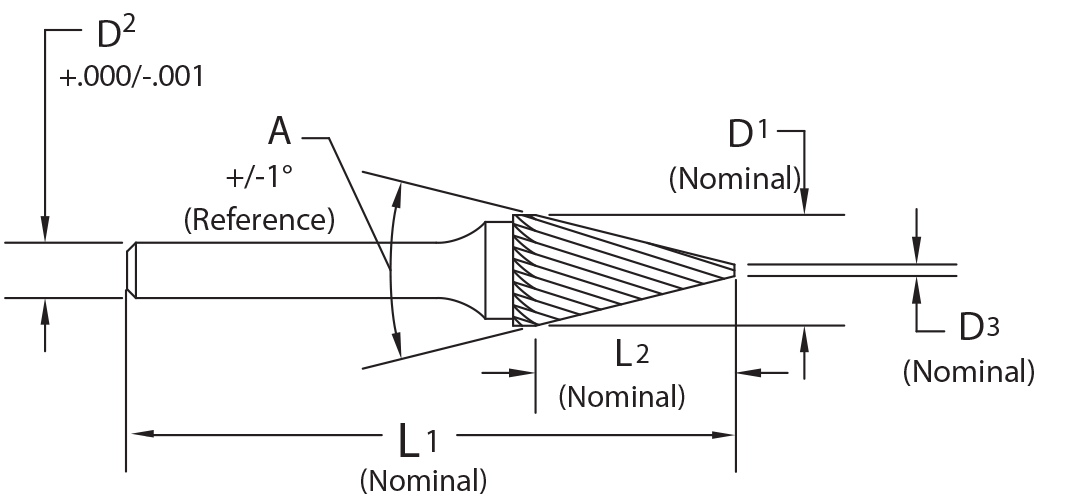

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) End Diameter (D3) Overall Length (L1) Flute Length (L2) Included Angle (A) Specification Type of Cut Coating Shank Type Available List Price
.1181 69120020M 69373 3mm 3mm 0.46mm 38mm 4.8mm 32° SM-45M Single Uncoated Straight 101.00 11.16
.1181 69120027M 69381 3mm 3mm 0.46mm 38mm 4.8mm 32° SM-45M-D Double Cut Uncoated Straight 17.00 11.16
.1181 69120030M 69389 3mm 3mm 0.46mm 38mm 4.8mm 32° SM-45M-F Fine Uncoated Straight 55.00 12.25
.1181 69125020M 69397 3mm 3mm 1.09mm 38mm 9.5mm 12° SM-41M Single Uncoated Straight 51.00 11.55
.1181 69125027M 69405 3mm 3mm 1.09mm 38mm 9.5mm 12° SM-41M-D Double Cut Uncoated Straight 2127.00 11.55
.1181 69125030M 69413 3mm 3mm 1.09mm 38mm 9.5mm 12° SM-41M-F Fine Uncoated Straight 16.00 12.81
.1181 69130020L3M 69830 3mm 3mm 0.36mm 76mm 11.1mm 14° SM-42L76M Single Uncoated Straight 48.00 14.31
.1181 69130020M 69421 3mm 3mm 0.36mm 38mm 11.1mm 14° SM-42M Single Uncoated Straight 1063.00 10.17
.1181 69130027L3M 69832 3mm 3mm 0.36mm 76mm 11.1mm 14° SM-42L76M-D Double Cut Uncoated Straight 0.00 14.31
.1181 69130027M 69429 3mm 3mm 0.36mm 38mm 11.1mm 14° SM-42M-D Double Cut Uncoated Straight 922.00 10.17
.1181 69130030M 69437 3mm 3mm 0.36mm 38mm 11.1mm 14° SM-42M-F Fine Uncoated Straight 98.00 11.29
.1181 69140020M 69445 3mm 3mm 1.14mm 38mm 16mm 7° SM-43M Single Uncoated Straight 518.00 10.48
.1181 69140027M 69453 3mm 3mm 1.14mm 38mm 16mm 7° SM-43M-D Double Cut Uncoated Straight 1843.00 10.48
.1181 69140030M 69461 3mm 3mm 1.14mm 38mm 16mm 7° SM-43M-F Fine Uncoated Straight 51.00 11.42
.1250 69120020 69369 1/8 1/8 .018 1-1/2 3/16 32° SM-45 Single Uncoated Straight 297.00 11.16
.1250 69120027 69377 1/8 1/8 .018 1-1/2 3/16 32° SM-45-D Double Cut Uncoated Straight 0.00 11.16
.1250 69120030 69385 1/8 1/8 .018 1-1/2 3/16 32° SM-45-F Fine Uncoated Straight 45.00 12.25
.1250 69125020 69393 1/8 1/8 .043 1-1/2 3/8 12° SM-41 Single Uncoated Straight 86.00 11.55
.1250 69125027 69401 1/8 1/8 .043 1-1/2 3/8 12° SM-41-D Double Cut Uncoated Straight 68.00 11.55
.1250 69125030 69409 1/8 1/8 .043 1-1/2 3/8 12° SM-41-F Fine Uncoated Straight 92.00 12.81
.1250 69130020 69417 1/8 1/8 .014 1-1/2 7/16 14° SM-42 Single Uncoated Straight 991.00 10.17
.1250 69130020L3 69829 1/8 1/8 .014 3 7/16 14° SM-42L3 Single Uncoated Straight 2.00 14.31
.1250 69130027 69425 1/8 1/8 .014 1-1/2 7/16 14° SM-42-D Double Cut Uncoated Straight 218.00 10.17
.1250 69130027L3 69831 1/8 1/8 .014 3 7/16 14° SM-42L3-D Double Cut Uncoated Straight 67.00 14.31
.1250 69130030 69433 1/8 1/8 .014 1-1/2 7/16 14° SM-42-F Fine Uncoated Straight 49.00 11.29
.1250 69140020 69441 1/8 1/8 .045 1-1/2 5/8 7° SM-43 Single Uncoated Straight 490.00 10.48
.1250 69140027 69449 1/8 1/8 .045 1-1/2 5/8 7° SM-43-D Double Cut Uncoated Straight 230.00 10.48
.1250 69140030 69457 1/8 1/8 .045 1-1/2 5/8 7° SM-43-F Fine Uncoated Straight 158.00 11.42
.1875 72100020 72217 3/16 1/8 .038 1-1/2 1/2 16° SM-53 Single Uncoated Straight 28.00 27.94
.1875 72100027 72225 3/16 1/8 .038 1-1/2 1/2 16° SM-53-D Double Cut Uncoated Straight 11.00 27.94
.1875 72100030 72233 3/16 1/8 .038 1-1/2 1/2 16° SM-53-F Fine Uncoated Straight 28.00 30.7
.1890 72100020M 72221 4.8mm 3mm 0.97mm 38mm 12.7mm 16° SM-53M Single Uncoated Straight 26.00 27.94
.1890 72100027M 72229 4.8mm 3mm 0.97mm 38mm 12.7mm 16° SM-53M-D Double Cut Uncoated Straight 0.00 27.94
.1890 72100030M 72237 4.8mm 3mm 0.97mm 38mm 12.7mm 16° SM-53M-F Fine Uncoated Straight 31.00 30.7
.2362 47250020M 47005 6mm 6mm 1.17mm 50mm 12.7mm 22° SM-1M Single Uncoated Straight 16.00 22.44
.2362 47250027M 47013 6mm 6mm 1.17mm 50mm 12.7mm 22° SM-1M-D Double Cut Uncoated Straight 74.00 22.44
.2362 47250030M 47021 6mm 6mm 1.17mm 50mm 12.7mm 22° SM-1M-F Fine Uncoated Straight 35.00 24.76
.2362 47250120M 47029 6mm 6mm 1.42mm 50mm 19mm 14° SM-2M Single Uncoated Straight 495.00 23.67
.2362 47250127M 47037 6mm 6mm 1.42mm 50mm 19mm 14° SM-2M-D Double Cut Uncoated Straight 145.00 23.67
.2362 47250130M 47045 6mm 6mm 1.42mm 50mm 19mm 14° SM-2M-F Fine Uncoated Straight 20.00 26.02
.2362 47250220M 47053 6mm 6mm 1.65mm 50mm 25mm 10° SM-3M Single Uncoated Straight 51.00 25.32
.2362 47250227M 47061 6mm 6mm 1.65mm 50mm 25mm 10° SM-3M-D Double Cut Uncoated Straight 76.00 25.32
.2362 47250230M 47069 6mm 6mm 1.65mm 50mm 25mm 10° SM-3M-F Fine Uncoated Straight 12.00 27.94
.2500 47250020 47001 1/4 1/4 .046 2 1/2 22° SM-1 Single Uncoated Straight 57.00 22.44
.2500 47250027 47009 1/4 1/4 .046 2 1/2 22° SM-1-D Double Cut Uncoated Straight 123.00 22.44
.2500 47250030 47017 1/4 1/4 .046 2 1/2 22° SM-1-F Fine Uncoated Straight 33.00 24.76
.2500 47250120 47025 1/4 1/4 .056 2 3/4 14° SM-2 Single Uncoated Straight 52.00 23.67
.2500 47250127 47033 1/4 1/4 .056 2 3/4 14° SM-2-D Double Cut Uncoated Straight 33.00 23.67
.2500 47250130 47041 1/4 1/4 .056 2 3/4 14° SM-2-F Fine Uncoated Straight 34.00 26.02
.2500 47250220 47049 1/4 1/4 .065 2 1 10° SM-3 Single Uncoated Straight 44.00 25.32
.2500 47250227 47057 1/4 1/4 .065 2 1 10° SM-3-D Double Cut Uncoated Straight 188.00 25.32
.2500 47250230 47065 1/4 1/4 .065 2 1 10° SM-3-F Fine Uncoated Straight 28.00 27.94
.2500 70070020 70157 1/4 1/8 2-1/8 1/2 22° SM-51 Single Uncoated Straight 6.00 18.17
.2500 70070027 70165 1/4 1/8 2-1/8 1/2 22° SM-51-D Double Cut Uncoated Straight 0.00 18.17
.2500 70070030 70173 1/4 1/8 2-1/8 1/2 22° SM-51-F Fine Uncoated Straight 31.00 20.1
.2520 70070020M 70161 6.4mm 3mm 54mm 12.7mm 22° SM-51M Single Uncoated Straight 0.00 18.17
.2520 70070027M 70169 6.4mm 3mm 54mm 12.7mm 22° SM-51M-D Double Cut Uncoated Straight 73.00 18.17
.2520 70070030M 70177 6.4mm 3mm 54mm 12.7mm 22° SM-51M-F Fine Uncoated Straight 35.00 20.1
.3740 47375020M 47077 9.5mm 6mm 1.32mm 63mm 16mm 28° SM-4M Single Uncoated Straight 111.00 34.95
.3740 47375027M 47085 9.5mm 6mm 1.32mm 63mm 16mm 28° SM-4M-D Double Cut Uncoated Straight 0.00 34.95
.3740 47375030M 47093 9.5mm 6mm 1.32mm 63mm 16mm 28° SM-4M-F Fine Uncoated Straight 47.00 38.4
.3750 47375020 47073 3/8 1/4 .052 2-3/4 5/8 28° SM-4 Single Uncoated Straight 37.00 34.95
.3750 47375027 47081 3/8 1/4 .052 2-3/4 5/8 28° SM-4-D Double Cut Uncoated Straight 0.00 34.95
.3750 47375030 47089 3/8 1/4 .052 2-3/4 5/8 28° SM-4-F Fine Uncoated Straight 1.00 38.4
.3750 47375020A 17681 3/8 1/4 .052 2-3/4 5/8 28° SM-4 ALtima® Straight 0.00 54.64
.5000 47500020 47097 1/2 1/4 .052 3 7/8 28° SM-5 Single Uncoated Straight 34.00 43.77
.5000 47500020M 47101 12.7mm 6mm 1.32mm 69mm 22mm 28° SM-5M Single Uncoated Straight 43.00 43.77
.5000 47500027 47105 1/2 1/4 .052 3 7/8 28° SM-5-D Double Cut Uncoated Straight 56.00 43.77
.5000 47500027M 47109 12.7mm 6mm 1.32mm 69mm 22mm 28° SM-5M-D Double Cut Uncoated Straight 43.00 43.77
.5000 47500030 47113 1/2 1/4 .052 3 7/8 28° SM-5-F Fine Uncoated Straight 18.00 48.05
.5000 47500030M 47117 12.7mm 6mm 1.32mm 69mm 22mm 28° SM-5M-F Fine Uncoated Straight 20.00 48.05
.6250 47625020 47121 5/8 1/4 .060 3-1/8 1 31° SM-6 Single Uncoated Straight 8.00 64.97
.6250 47625027 47129 5/8 1/4 .060 3-1/8 1 31° SM-6-D Double Cut Uncoated Straight 11.00 64.97
.6250 47625030 47137 5/8 1/4 .060 3-1/8 1 31° SM-6-F Fine Uncoated Straight 12.00 71.43
.6299 47625020M 47125 16mm 6mm 1.52mm 72mm 25mm 31° SM-6M Single Uncoated Straight 9.00 64.97
.6299 47625027M 47133 16mm 6mm 1.52mm 72mm 25mm 31° SM-6M-D Double Cut Uncoated Straight 110.00 64.97
.6299 47625030M 47141 16mm 6mm 1.52mm 72mm 25mm 31° SM-6M-F Fine Uncoated Straight 53.00 71.43
