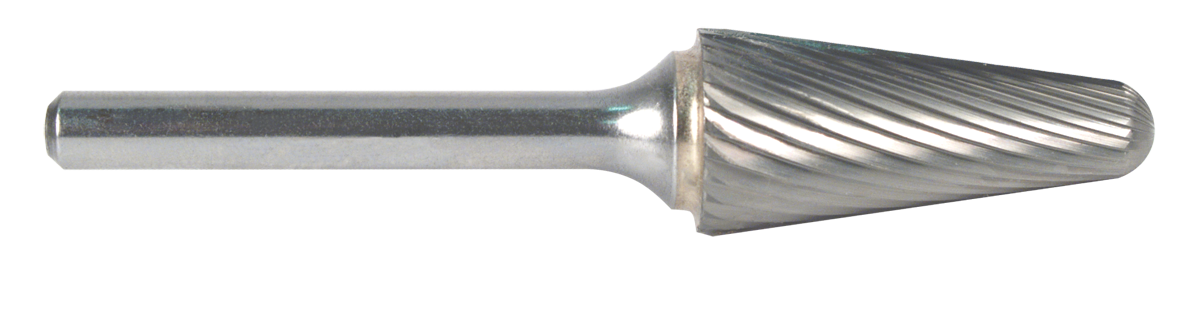

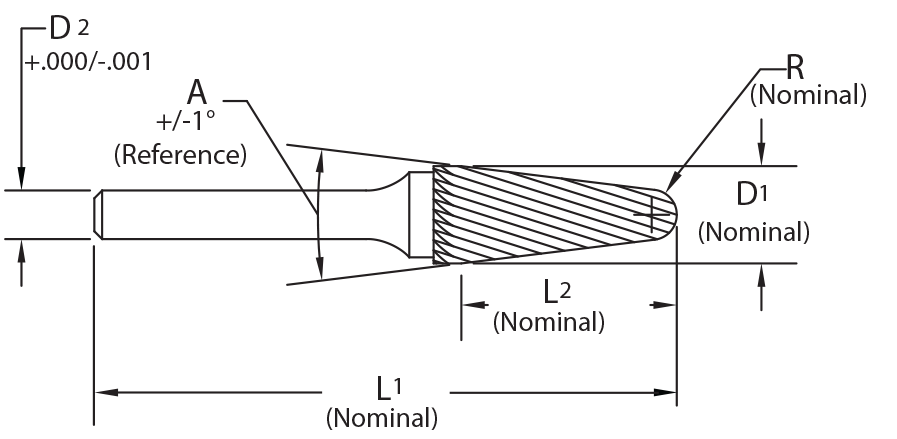

product photo product drawing

Burs / SL

Solid Carbide Edge Hog® Bur
Conical Radius End

  • SCTI SL
  • Solid carbide 1/4" sizes and below, brazed construction over 1/4"
  • Inch and metric sizes
  • Single, double, fine and shear cuts available

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Included Angle (A) Radius (R) Specification Type of Cut Coating Shank Type Available List Price
.1181 69145027M 69477 3mm 3mm 38mm 9.5mm 8° SL-41M-D Double Cut Uncoated Straight 242.00 11.16
.1181 69150020L3M 69834 3mm 3mm 76mm 12.7mm 8° SL-42L76M Single Uncoated Straight 41.00 14.6
.1181 69150020M 69493 3mm 3mm 38mm 12.7mm 8° SL-42M Single Uncoated Straight 1194.00 10.48
.1181 69150027L3M 69836 3mm 3mm 76mm 12.7mm 8° SL-42L76M-D Double Cut Uncoated Straight 209.00 14.6
.1181 69150027M 69501 3mm 3mm 38mm 12.7mm 8° SL-42M-D Double Cut Uncoated Straight 5349.00 10.48
.1181 69150030M 69509 3mm 3mm 38mm 12.7mm 8° SL-42M-F Fine Uncoated Straight 58.00 11.42
.1181 69145020M 69469 3mm 3mm 38mm 9.5mm 8° SL-41M Single Uncoated Straight 84.00 11.16
.1181 69145030M 69485 3mm 3mm 38mm 9.5mm 8° SL-41M-F Fine Uncoated Straight 72.00 12.25
.1250 69145020 69465 1/8 1/8 1-1/2 3/8 8° SL-41 Single Uncoated Straight 34.00 11.16
.1250 69145027 69473 1/8 1/8 1-1/2 3/8 8° SL-41-D Double Cut Uncoated Straight 23.00 11.16
.1250 69145030 69481 1/8 1/8 1-1/2 3/8 8° SL-41-F Fine Uncoated Straight 61.00 12.25
.1250 69150020 69489 1/8 1/8 1-1/2 1/2 8° SL-42 Single Uncoated Straight 318.00 10.48
.1250 69150027 69497 1/8 1/8 1-1/2 1/2 8° SL-42-D Double Cut Uncoated Straight 125.00 10.48
.1250 69150030 69505 1/8 1/8 1-1/2 1/2 8° SL-42-F Fine Uncoated Straight 119.00 11.42
.1875 72120020 72265 3/16 1/8 1-1/2 1/2 14° SL-53 Single Uncoated Straight 30.00 27.94
.1875 72120027 72273 3/16 1/8 1-1/2 1/2 14° SL-53-D Double Cut Uncoated Straight 28.00 27.94
.1875 72120030 72281 3/16 1/8 1-1/2 1/2 14° SL-53-F Fine Uncoated Straight 32.00 30.7
.1890 72120020M 72269 4.8mm 3mm 38mm 12.7mm 14° SL-53M Single Uncoated Straight 17.00 27.94
.1890 72120027M 72277 4.8mm 3mm 38mm 12.7mm 14° SL-53M-D Double Cut Uncoated Straight 32.00 27.94
.1890 72120030M 72285 4.8mm 3mm 38mm 12.7mm 14° SL-53M-F Fine Uncoated Straight 45.00 30.7
.2362 48250020M 48009 6mm 6mm 50mm 16mm 14° SL-1M Single Uncoated Straight 10.00 23.67
.2362 48250027M 48021 6mm 6mm 50mm 16mm 14° SL-1M-D Double Cut Uncoated Straight 217.00 23.67
.2362 48250030M 48033 6mm 6mm 50mm 16mm 14° SL-1M-F Fine Uncoated Straight 27.00 26.02
.2500 48250020 48001 1/4 1/4 2 5/8 14° SL-1 Single Uncoated Straight 46.00 23.67
.2500 48250027 48013 1/4 1/4 2 5/8 14° SL-1-D Double Cut Uncoated Straight 111.00 23.67
.2500 48250030 48025 1/4 1/4 2 5/8 14° SL-1-F Fine Uncoated Straight 22.00 26.02
.3125 48312520 48037 5/16 1/4 3 15/16 14° SL-2 Single Uncoated Straight 13.00 32.47
.3125 48312520L6 48816 5/16 1/4 7 15/16 14° SL-2L6 Single Uncoated Straight 24.00 45.57
.3125 48312527 48049 5/16 1/4 3 15/16 14° SL-2-D Double Cut Uncoated Straight 111.00 32.47
.3125 48312527L6 48821 5/16 1/4 7 15/16 14° SL-2L6-D Double Cut Uncoated Straight 30.00 45.57
.3125 48312530 48061 5/16 1/4 3 15/16 14° SL-2-F Fine Uncoated Straight 34.00 35.77
.3125 48312530L6 48826 5/16 1/4 7 15/16 14° SL-2L6-F Fine Uncoated Straight 4.00 50.09
.3150 48312520L6M 48817 8mm 6mm 176mm 24mm 14° SL-2L6M Single Uncoated Straight 3.00 45.57
.3150 48312520M 48045 8mm 6mm 71mm 24mm 14° SL-2M Single Uncoated Straight 13.00 32.47
.3150 48312527L6M 48822 8mm 6mm 176mm 24mm 14° SL-2L6M-D Double Cut Uncoated Straight 6.00 45.57
.3150 48312527M 48057 8mm 6mm 71mm 24mm 14° SL-2M-D Double Cut Uncoated Straight 121.00 32.47
.3150 48312530M 48069 8mm 6mm 71mm 24mm 14° SL-2M-F Fine Uncoated Straight 65.00 35.77
.3150 48312530L6M 48827 8mm 6mm 176mm 24mm 14° SL-2L6M-F Fine Uncoated Straight 0.00 50.09
.3740 48375020L6M 48832 9.5mm 6mm 180mm 28mm 14° SL-3L6M Single Uncoated Straight 12.00 48.72
.3740 48375020M 48081 9.5mm 6mm 75mm 28mm 14° SL-3M Single Uncoated Straight 381.00 34.82
.3740 48375027L6M 48837 9.5mm 6mm 180mm 28mm 14° SL-3L6M-D Double Cut Uncoated Straight 23.00 48.72
.3740 48375027M 48093 9.5mm 6mm 75mm 28mm 14° SL-3M-D Double Cut Uncoated Straight 1807.00 34.82
.3740 48375030M 48105 9.5mm 6mm 75mm 28mm 14° SL-3M-F Fine Uncoated Straight 81.00 38.26
.3740 48375150M 48117 9.5mm 6mm 75mm 28mm 14° SL-3NFM Shear Uncoated Straight 1325.00 51.2
.3740 48375030L6M 48842 9.5mm 6mm 180mm 28mm 14° SL-3L6M-F Fine Uncoated Straight 0.00 53.55
.3750 48375020 48073 3/8 1/4 3-3/16 1-1/8 14° SL-3 Single Uncoated Straight 142.00 34.82
.3750 48375020L6 48831 3/8 1/4 7-3/16 1-1/8 14° SL-3L6 Single Uncoated Straight 3.00 48.72
.3750 48375027 48085 3/8 1/4 3-3/16 1-1/8 14° SL-3-D Double Cut Uncoated Straight 97.00 34.82
.3750 48375027L6 48836 3/8 1/4 7-3/16 1-1/8 14° SL-3L6-D Double Cut Uncoated Straight 0.00 48.72
.3750 48375030 48097 3/8 1/4 3-3/16 1-1/8 14° SL-3-F Fine Uncoated Straight 40.00 38.26
.3750 48375030L6 48841 3/8 1/4 7-3/16 1-1/8 14° SL-3L6-F Fine Uncoated Straight 3.00 53.55
.3750 48375150 48601 3/8 1/4 3-3/16 1-1/8 14° SL-3NF Shear Uncoated Straight 32.00 51.2
.5000 48500020 48121 1/2 1/4 3-1/4 1-3/16 14° SL-4 Single Uncoated Straight 29.00 42.39
.5000 48500020L6 48846 1/2 1/4 7-1/4 1-3/16 14° SL-4L6 Single Uncoated Straight 22.00 59.46
.5000 48500020L6M 48847 12.7mm 6mm 182mm 30mm 14° SL-4L6M Single Uncoated Straight 10.00 59.46
.5000 48500020M 48129 12.7mm 6mm 77mm 30mm 14° SL-4M Single Uncoated Straight 61.00 42.39
.5000 48500027 48133 1/2 1/4 3-1/4 1-3/16 14° SL-4-D Double Cut Uncoated Straight 134.00 42.39
.5000 48500027L6 48851 1/2 1/4 7-1/4 1-3/16 14° SL-4L6-D Double Cut Uncoated Straight 13.00 59.46
.5000 48500027L6M 48852 12.7mm 6mm 182mm 30mm 14° SL-4L6M-D Double Cut Uncoated Straight 9.00 59.46
.5000 48500027M 48141 12.7mm 6mm 77mm 30mm 14° SL-4M-D Double Cut Uncoated Straight 445.00 42.39
.5000 48500030 48145 1/2 1/4 3-1/4 1-3/16 14° SL-4-F Fine Uncoated Straight 13.00 46.65
.5000 48500030L6 48856 1/2 1/4 7-1/4 1-3/16 14° SL-4L6-F Fine Uncoated Straight 10.00 65.36
.5000 48500030M 48153 12.7mm 6mm 77mm 30mm 14° SL-4M-F Fine Uncoated Straight 12.00 46.65
.5000 48500150 48621 1/2 1/4 3-1/4 1-3/16 14° SL-4NF Shear Uncoated Straight 388.00 68.41
.5000 48500150M 48165 12.7mm 6mm 77mm 30mm 14° SL-4NFM Shear Uncoated Straight 104.00 68.41
.5000 48500030L6M 48857 12.7mm 6mm 182mm 30mm 14° SL-4L6M-F Fine Uncoated Straight 0.00 65.36
.6250 48625020 48169 5/8 1/4 3-7/16 1-5/16 14° SL-6 Single Uncoated Straight 9.00 89.31
.6250 48625027 48177 5/8 1/4 3-7/16 1-5/16 14° SL-6-D Double Cut Uncoated Straight 1.00 89.31
.6250 48625030 48185 5/8 1/4 3-7/16 1-5/16 14° SL-6-F Fine Uncoated Straight 14.00 98.27
.6250 48625150 48641 5/8 1/4 3-7/16 1-5/16 14° SL-6NF Shear Uncoated Straight 216.00 124.82
.6299 48625020M 48173 16mm 6mm 80mm 33mm 14° SL-6M Single Uncoated Straight 17.00 89.31
.6299 48625027M 48181 16mm 6mm 80mm 33mm 14° SL-6M-D Double Cut Uncoated Straight 52.00 89.31
.6299 48625030M 48189 16mm 6mm 80mm 33mm 14° SL-6M-F Fine Uncoated Straight 7.00 98.27
.6299 48625150M 48201 16mm 6mm 80mm 33mm 14° SL-6NFM Shear Uncoated Straight 9.00 124.82
.7480 48750020M 48209 19mm 6mm 86mm 39mm 14° SL-7M Single Uncoated Straight 12.00 123.18
.7480 48750027M 48217 19mm 6mm 86mm 39mm 14° SL-7M-D Double Cut Uncoated Straight 79.00 123.18
.7480 48750030M 48225 19mm 6mm 86mm 39mm 14° SL-7M-F Fine Uncoated Straight 4.00 135.54
.7500 48750020 48205 3/4 1/4 3-5/8 1-9/16 14° SL-7 Single Uncoated Straight 13.00 123.18
.7500 48750027 48213 3/4 1/4 3-5/8 1-9/16 14° SL-7-D Double Cut Uncoated Straight 22.00 123.18
.7500 48750030 48221 3/4 1/4 3-5/8 1-9/16 14° SL-7-F Fine Uncoated Straight 12.00 135.54
