Burs / SK

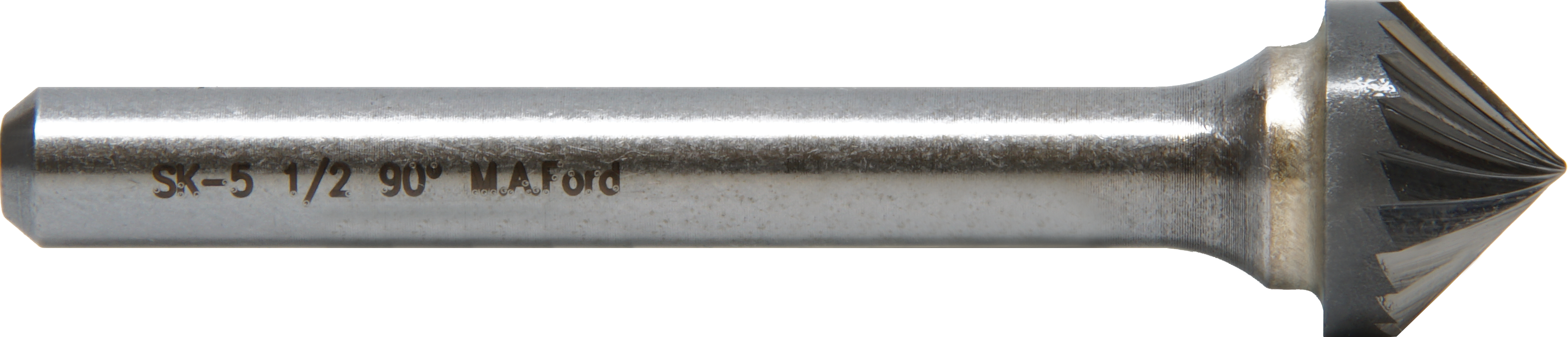

Solid Carbide Edge Hog® Bur
90 Degree Angle Tool

  • SCTI SK
  • Solid carbide 1/4" sizes and below, brazed construction over 1/4"
  • Inch and metric sizes
  • Single, double, and fine cuts available
  • Uncoated, coating available upon request

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

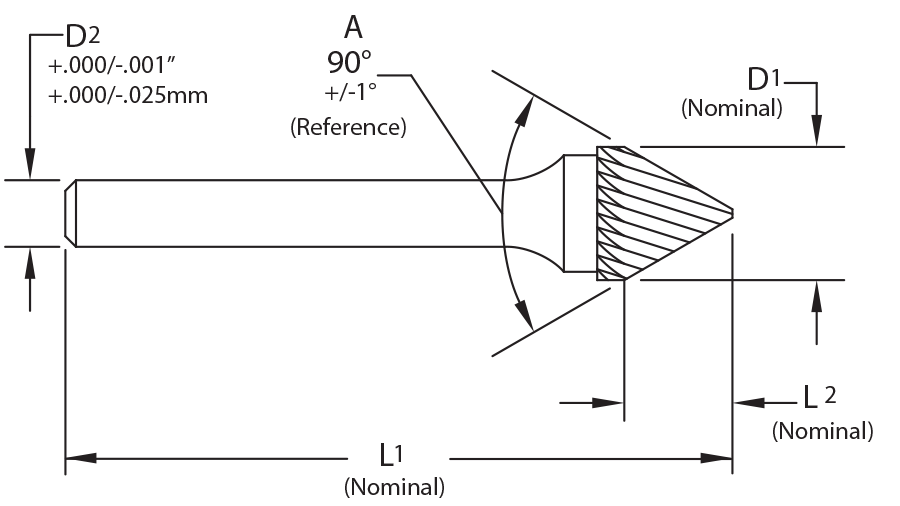

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Included Angle (A) Specification Type of Cut Coating Shank Type Available List Price
.1181 69115020M 69357 3mm 3mm 38mm 1.6mm 90° SK-82M Single Uncoated Straight 99.00 19.4
.1181 69115027M 69365 3mm 3mm 38mm 1.6mm 90° SK-82M-D Double Cut Uncoated Straight 4.00 19.4
.1181 69117527M 69371 3mm 3mm 38mm 1.6mm 90° SK-42M-D Double Cut Uncoated Straight 37.00 11.55
.1250 69115020 69353 1/8 1/8 1-1/2 1/16 90° SK-82 Single Uncoated Straight 71.00 19.4
.1250 69115027 69361 1/8 1/8 1-1/2 1/16 90° SK-82-D Double Cut Uncoated Straight 20.00 19.4
.1250 69117520 69366 1/8 1/8 1-1/2 1/16 90° SK-42 Single Uncoated Straight 28.00 11.55
.1250 69117527 69367 1/8 1/8 1-1/2 1/16 90° SK-42-D Double Cut Uncoated Straight 17.00 11.55
.2362 29702500M 29703 6mm 6mm 50mm 3mm SK- 1M Single Uncoated Straight 211.00 19.97
.2362 29702507M 29707 6mm 6mm 50mm 3mm SK- 1M-D Double Cut Uncoated Straight 12.00 20.78
.2500 29702500 29701 1/4 1/4 2 1/8 SK-1 Single Uncoated Straight 195.00 18.57
.2500 29702507 29705 1/4 1/4 2 1/8 SK-1-D Double Cut Uncoated Straight 40.00 20.78
.3740 29703750M 29711 9.5mm 6mm 52mm 4.8mm SK- 3M Single Uncoated Straight 19.00 26.99
.3740 29703757M 29715 9.5mm 6mm 52mm 4.8mm SK- 3M-D Double Cut Uncoated Straight 6.00 26.99
.3740 29703750MT 18889 9.5 6.0 52 4.75 90° SK-3M Single Uncoated Tang 0.00 46.68
.3750 29703750 29709 3/8 1/4 2-5/16 3/16 SK-3 Single Uncoated Straight 211.00 25.74
.3750 29703757 29713 3/8 1/4 2-5/16 3/16 SK-3-D Double Cut Uncoated Straight 4.00 26.99
.5000 29705000 29717 1/2 1/4 2-5/8 1/4 SK-5 Single Uncoated Straight 63.00 31.51
.5000 29705000M 29719 12.7mm 6mm 53mm 6.4mm SK- 5M Single Uncoated Straight 0.00 31.51
.5000 29705007 29721 1/2 1/4 2-5/8 1/4 SK-5-D Double Cut Uncoated Straight 15.00 33.02
.5000 29705007M 29723 12.7mm 6mm 53mm 6.4mm SK- 5M-D Double Cut Uncoated Straight 55.00 33.02
.6250 29706250 29725 5/8 1/4 2-31/64 5/16 SK-6 Single Uncoated Straight 97.00 41.82
.6250 29706257 29729 5/8 1/4 2-31/64 5/16 SK-6-D Double Cut Uncoated Straight 7.00 43.77
.6250 29706257A 75917 5/8 1/4 2-31/64 5/16 SD-6-D ALtima® Straight 7.00 54.72
.6299 29706250M 29727 16mm 6mm 56mm 8mm SK- 6M Single Uncoated Straight 6.00 41.82
.6299 29706257M 29731 16mm 6mm 56mm 8mm SK- 6M-D Double Cut Uncoated Straight 49.00 41.82
.7480 29707500M 29735 19mm 6mm 58mm 9.5mm SK-7M Single Uncoated Straight 7.00 65.58
.7480 29707507M 29739 19mm 6mm 58mm 9.5mm SK-7M-D Double Cut Uncoated Straight 21.00 65.58
.7500 29707500 29733 3/4 1/4 2-35/64 3/8 SK-7 Single Uncoated Straight 46.00 57.39
.7500 29707507 29737 3/4 1/4 2-35/64 3/8 SK-7-D Double Cut Uncoated Straight 6.00 57.39
.9843 29710000M 29743 25mm 6mm 61mm 12.7mm SK- 9M Single Uncoated Straight 45.00 92.07
.9843 29710007M 29747 25mm 6mm 61mm 12.7mm SK- 9M-D Double Cut Uncoated Straight 73.00 92.07
1.0000 29710000 29741 1 1/4 2-41/64 1/2 SK-9 Single Uncoated Straight 39.00 82.44
1.0000 29710007 29745 1 1/4 2-41/64 1/2 SK-9-D Double Cut Uncoated Straight 10.00 82.44
