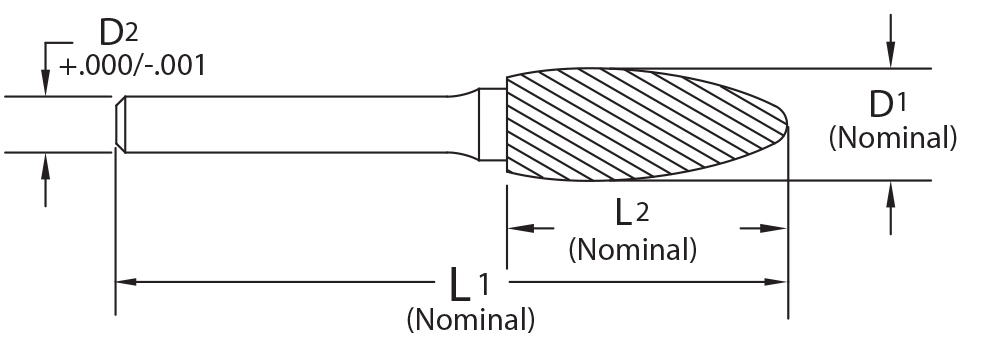

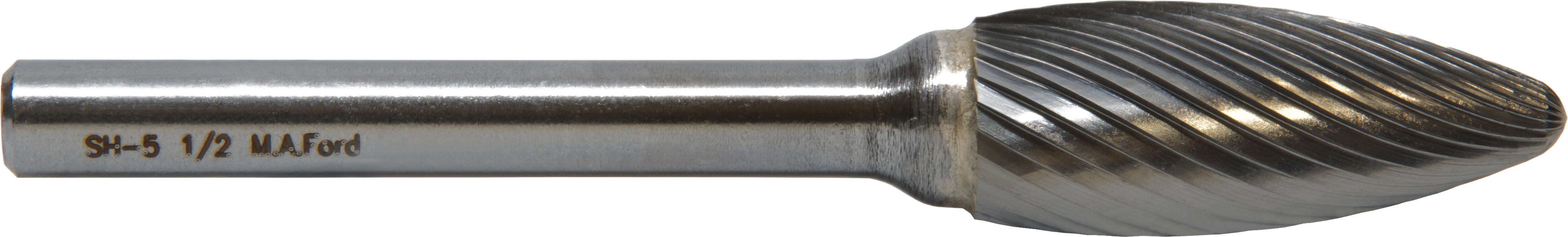

product photo product drawing

Burs / SH

Solid Carbide Edge Hog® Bur
Flame

  • SCTI SH
  • Solid carbide 1/4" sizes and below, brazed construction over 1/4"
  • Inch and metric sizes
  • Single, double, and fine cuts available

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Specification Type of Cut Coating Shank Type Available List Price
.1181 69160020L3M 69838 3mm 3mm 76mm 6mm SH-41L76M Single Uncoated Straight 65.00 14.6
.1181 69160020M 69517 3mm 3mm 38mm 6mm SH-41M Single Uncoated Straight 66.00 10.48
.1181 69160027M 69525 3mm 3mm 38mm 6mm SH-41M-D Double Cut Uncoated Straight 864.00 10.48
.1181 69160030M 69533 3mm 3mm 38mm 6mm SH-41M-F Fine Uncoated Straight 68.00 11.42
.1181 69160027L3M 69840 3mm 3mm 76mm 6mm SH-41L76M-D Double Cut Uncoated Straight 39.00 14.6
.1250 69160020 69513 1/8 1/8 1-1/2 1/4 SH-41 Single Uncoated Straight 1279.00 10.48
.1250 69160020L3 69837 1/8 1/8 3 1/4 SH-41L3 Single Uncoated Straight 45.00 14.6
.1250 69160027 69521 1/8 1/8 1-1/2 1/4 SH-41-D Double Cut Uncoated Straight 43.00 10.48
.1250 69160027L3 69839 1/8 1/8 3 1/4 SH-41L3-D Double Cut Uncoated Straight 70.00 14.6
.1250 69160030 69529 1/8 1/8 1-1/2 1/4 SH-41-F Fine Uncoated Straight 0.00 11.42
.1875 72070020 72145 3/16 1/8 1-1/2 3/8 SH-53 Single Uncoated Straight 107.00 26.7
.1875 72070027 72153 3/16 1/8 1-1/2 3/8 SH-53-D Double Cut Uncoated Straight 0.00 26.7
.1875 72070030 72161 3/16 1/8 1-1/2 3/8 SH-53-F Fine Uncoated Straight 33.00 29.32
.1890 72070020M 72149 4.8mm 3mm 38mm 9.5mm SH-53M Single Uncoated Straight 28.00 26.7
.1890 72070027M 72157 4.8mm 3mm 38mm 9.5mm SH-53M-D Double Cut Uncoated Straight 132.00 26.7
.1890 72070030M 72165 4.8mm 3mm 38mm 9.5mm SH-53M-F Fine Uncoated Straight 26.00 29.32
.2362 49250020M 49009 6mm 6mm 50mm 16mm SH-1M Single Uncoated Straight 14.00 28.35
.2362 49250027M 49021 6mm 6mm 50mm 16mm SH-1M-D Double Cut Uncoated Straight 55.00 28.35
.2362 49250030M 49033 6mm 6mm 50mm 16mm SH-1M-F Fine Uncoated Straight 16.00 31.25
.2500 49250020 49001 1/4 1/4 2 5/8 SH-1 Single Uncoated Straight 16.00 28.35
.2500 49250027 49013 1/4 1/4 2 5/8 SH-1-D Double Cut Uncoated Straight 56.00 28.35
.2500 49250030 49025 1/4 1/4 2 5/8 SH-1-F Fine Uncoated Straight 11.00 31.25
.3125 49312520 49037 5/16 1/4 2-3/4 3/4 SH-2 Single Uncoated Straight 17.00 31.93
.3125 49312520L6 49816 5/16 1/4 6-3/4 3/4 SH-2L6 Single Uncoated Straight 33.00 44.58
.3125 49312527 49049 5/16 1/4 2-3/4 3/4 SH-2-D Double Cut Uncoated Straight 52.00 31.93
.3125 49312527L6 49821 5/16 1/4 6-3/4 3/4 SH-2L6-D Double Cut Uncoated Straight 59.00 44.58
.3125 49312530 49061 5/16 1/4 2-3/4 3/4 SH-2-F Fine Uncoated Straight 1.00 35.1
.3125 49312530L6 49826 5/16 1/4 6-3/4 3/4 SH-2L6-F Fine Uncoated Straight 0.00 48.98
.3150 49312520L6M 49817 8mm 6mm 169mm 19mm SH-2L6M Single Uncoated Straight 30.00 44.58
.3150 49312520M 49045 8mm 6mm 64mm 19mm SH-2M Single Uncoated Straight 21.00 31.93
.3150 49312527L6M 49822 8mm 6mm 169mm 19mm SH-2L6M-D Double Cut Uncoated Straight 69.00 44.58
.3150 49312527M 49057 8mm 6mm 64mm 19mm SH-2M-D Double Cut Uncoated Straight 45.00 31.93
.3150 49312530M 49069 8mm 6mm 64mm 19mm SH-2M-F Fine Uncoated Straight 58.00 35.1
.3150 49312530L6M 49827 8mm 6mm 169mm 19mm SH-2L6M-F Fine Uncoated Straight 0.00 48.98
.5000 49500020 49109 1/2 1/4 3-1/4 1-1/4 SH-5 Single Uncoated Straight 17.00 58.21
.5000 49500020L6 49846 1/2 1/4 7-1/4 1-1/4 SH-5L6 Single Uncoated Straight 16.00 81.46
.5000 49500020L6M 49847 12.7mm 6mm 181mm 31mm SH-5L6M Single Uncoated Straight 26.00 81.46
.5000 49500020M 49117 12.7mm 6mm 76mm 31mm SH-5M Single Uncoated Straight 0.00 58.21
.5000 49500027 49121 1/2 1/4 3-1/4 1-1/4 SH-5-D Double Cut Uncoated Straight 4.00 58.21
.5000 49500027L6 49851 1/2 1/4 7-1/4 1-1/4 SH-5L6-D Double Cut Uncoated Straight 6.00 81.46
.5000 49500027L6M 49852 12.7mm 6mm 181mm 31mm SH-5L6M-D Double Cut Uncoated Straight 8.00 81.46
.5000 49500027M 49129 12.7mm 6mm 76mm 31mm SH-5M-D Double Cut Uncoated Straight 166.00 58.21
.5000 49500030 49133 1/2 1/4 3-1/4 1-1/4 SH-5-F Fine Uncoated Straight 25.00 64.01
.5000 49500030L6 49856 1/2 1/4 6-1/4 1-1/4 SH-5L6-F Fine Uncoated Straight 6.00 89.6
.5000 49500030M 49141 12.7mm 6mm 76mm 31mm SH-5M-F Fine Uncoated Straight 2.00 64.01
.5000 49500030L6M 49857 12.7mm 6mm 181mm 31mm SH-5L6M-F Fine Uncoated Straight 0.00 89.6
.6250 49625020 49145 5/8 1/4 3-7/16 1-7/16 SH-6 Single Uncoated Straight 10.00 89.87
.6250 49625027 49157 5/8 1/4 3-7/16 1-7/16 SH-6-D Double Cut Uncoated Straight 20.00 89.87
.6250 49625030 49169 5/8 1/4 3-7/16 1-7/16 SH-6-F Fine Uncoated Straight 0.00 98.81
.6299 49625020M 49153 16mm 6mm 81mm 36mm SH-6M Single Uncoated Straight 20.00 89.87
.6299 49625027M 49165 16mm 6mm 81mm 36mm SH-6M-D Double Cut Uncoated Straight 32.00 89.87
.6299 49625030M 49177 16mm 6mm 81mm 36mm SH-6M-F Fine Uncoated Straight 5.00 98.81
.7480 49750020M 49185 19mm 6mm 86mm 41mm SH-7M Single Uncoated Straight 37.00 113.81
.7480 49750027M 49193 19mm 6mm 86mm 41mm SH-7M-D Double Cut Uncoated Straight 66.00 113.81
.7480 49750030M 49201 19mm 6mm 86mm 41mm SH-7M-F Fine Uncoated Straight 0.00 125.23
.7500 49750020 49181 3/4 1/4 3-5/8 1-5/8 SH-7 Single Uncoated Straight 13.00 113.81
.7500 49750027 49189 3/4 1/4 3-5/8 1-5/8 SH-7-D Double Cut Uncoated Straight 23.00 113.81
.7500 49750030 49197 3/4 1/4 3-5/8 1-5/8 SH-7-F Fine Uncoated Straight 8.00 125.23
