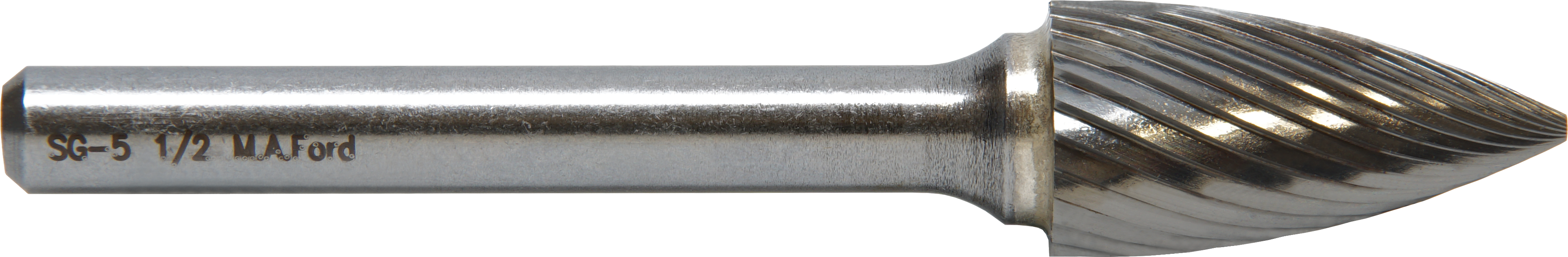

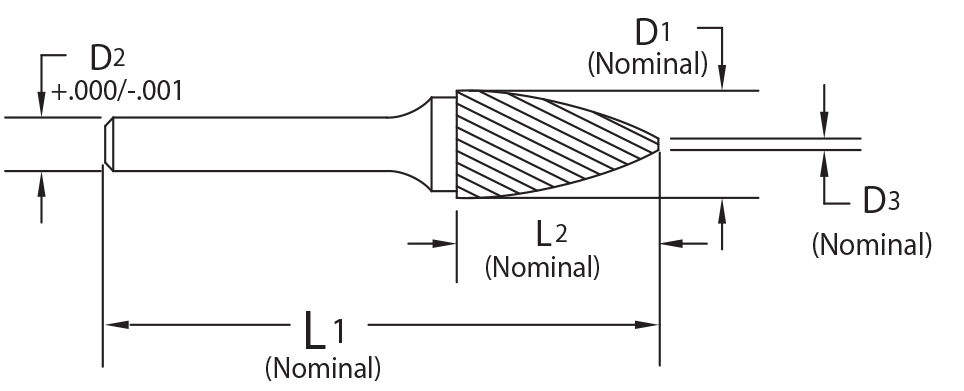

product photo product drawing

Burs / SG

Solid Carbide Edge Hog® Bur
Tree Shape Pointed End

  • SCTI SG
  • Solid carbide 1/4" sizes and below, brazed construction over 1/4"
  • Inch and metric sizes
  • Single, double, and fine cuts available

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) End Diameter (D3) Overall Length (L1) Flute Length (L2) Specification Type of Cut Coating Shank Type Available List Price
.1181 69090020M 69245 3mm 3mm 0.46mm 38mm 6mm SG-41M Single Uncoated Straight 108.00 11.55
.1181 69090027M 69253 3mm 3mm 0.46mm 38mm 6mm SG-41M-D Double Cut Uncoated Straight 404.00 11.55
.1181 69090030M 69261 3mm 3mm 0.46mm 38mm 6mm SG-41M-F Fine Uncoated Straight 5.00 12.81
.1181 69095020L3M 69822 3mm 3mm 0.46mm 76mm 8mm SG-42L76M Single Uncoated Straight 46.00 16.24
.1181 69095020M 69269 3mm 3mm 0.46mm 38mm 8mm SG-42M Single Uncoated Straight 25.00 11.55
.1181 69095027L3M 69824 3mm 3mm 0.46mm 76mm 8mm SG-42L76M-D Double Cut Uncoated Straight 14.00 16.24
.1181 69095027M 69277 3mm 3mm 0.46mm 38mm 8mm SG-42M-D Double Cut Uncoated Straight 185.00 11.55
.1181 69095030M 69285 3mm 3mm 0.46mm 38mm 8mm SG-42M-F Fine Uncoated Straight 390.00 12.81
.1181 69100020L3M 69826 3mm 3mm 0.46mm 76mm 9.5mm SG-43L76M Single Uncoated Straight 63.00 14.6
.1181 69100020M 69293 3mm 3mm 0.46mm 38mm 9.5mm SG-43M Single Uncoated Straight 181.00 10.48
.1181 69100027L3M 69828 3mm 3mm 0.46mm 76mm 9.5mm SG-43L76M-D Double Cut Uncoated Straight 154.00 14.6
.1181 69100027M 69301 3mm 3mm 0.46mm 38mm 9.5mm SG-43M-D Double Cut Uncoated Straight 226.00 10.48
.1181 69100030M 69309 3mm 3mm 0.46mm 38mm 9.5mm SG-43M-F Fine Uncoated Straight 72.00 11.42
.1250 69090020 69241 1/8 1/8 .018 1-1/2 1/4 SG-41 Single Uncoated Straight 180.00 11.55
.1250 69090027 69249 1/8 1/8 .018 1-1/2 1/4 SG-41-D Double Cut Uncoated Straight 41.00 11.55
.1250 69090030 69257 1/8 1/8 .018 1-1/2 1/4 SG-41-F Fine Uncoated Straight 7.00 12.81
.1250 69095020 69265 1/8 1/8 .018 1-1/2 5/16 SG-42 Single Uncoated Straight 53.00 11.55
.1250 69095020L3 69821 1/8 1/8 .018 3 5/16 SG-42L3 Single Uncoated Straight 11.00 16.24
.1250 69095027 69273 1/8 1/8 .018 1-1/2 5/16 SG-42-D Double Cut Uncoated Straight 28.00 11.55
.1250 69095027L3 69823 1/8 1/8 .018 3 5/16 SG-42L3-D Double Cut Uncoated Straight 5.00 16.24
.1250 69095030 69281 1/8 1/8 .018 1-1/2 5/16 SG-42-F Fine Uncoated Straight 84.00 12.81
.1250 69100020 69289 1/8 1/8 .018 1-1/2 3/8 SG-43 Single Uncoated Straight 253.00 10.48
.1250 69100020L3 69825 1/8 1/8 .018 3 3/8 SG-43L3 Single Uncoated Straight 72.00 14.6
.1250 69100027 69297 1/8 1/8 .018 1-1/2 3/8 SG-43-D Double Cut Uncoated Straight 81.00 10.48
.1250 69100027L3 69827 1/8 1/8 .018 3 3/8 SG-43L3-D Double Cut Uncoated Straight 47.00 14.6
.1250 69100030 69305 1/8 1/8 .018 1-1/2 3/8 SG-43-F Fine Uncoated Straight 502.00 11.42
.1875 72090020 72193 3/16 1/8 .025 1-1/2 1/2 SG-53 Single Uncoated Straight 179.00 24.49
.1875 72090027 72201 3/16 1/8 .025 1-1/2 1/2 SG-53-D Double Cut Uncoated Straight 10.00 24.49
.1875 72090030 72209 3/16 1/8 .025 1-1/2 1/2 SG-53-F Fine Uncoated Straight 37.00 26.99
.1890 72090020M 72197 4.8mm 3mm 0.64mm 38mm 12.7mm SG-53M Single Uncoated Straight 237.00 24.49
.1890 72090027M 72205 4.8mm 3mm 0.64mm 38mm 12.7mm SG-53M-D Double Cut Uncoated Straight 531.00 24.49
.1890 72090030M 72213 4.8mm 3mm 0.64mm 38mm 12.7mm SG-53M-F Fine Uncoated Straight 62.00 26.99
.2362 46250020L6M 46802 6mm 6mm 0.76mm 166mm 16mm SG-1L6M Single Uncoated Straight 0.00 30.27
.2362 46250020M 46009 6mm 6mm 0.76mm 50mm 16mm SG-1M Single Uncoated Straight 57.00 21.61
.2362 46250027L6M 46807 6mm 6mm 0.76mm 166mm 16mm SG-1L6M-D Double Cut Uncoated Straight 30.00 30.27
.2362 46250027M 46021 6mm 6mm 0.76mm 50mm 16mm SG-1M-D Double Cut Uncoated Straight 118.00 21.61
.2362 46250030M 46033 6mm 6mm 0.76mm 50mm 16mm SG-1M-F Fine Uncoated Straight 112.00 23.81
.2362 46250030L6M 46812 6mm 6mm 0.76mm 166mm 16mm SG-1L6M-F Fine Uncoated Straight 0.00 33.31
.2500 46250020 46001 1/4 1/4 .030 2 5/8 SG-1 Single Uncoated Straight 35.00 21.61
.2500 46250020L6 46801 1/4 1/4 .030 6-5/8 5/8 SG-1L6 Single Uncoated Straight 36.00 30.27
.2500 46250027 46013 1/4 1/4 .030 2 5/8 SG-1-D Double Cut Uncoated Straight 16.00 21.61
.2500 46250027L6 46806 1/4 1/4 .030 6-5/8 5/8 SG-1L6-D Double Cut Uncoated Straight 19.00 30.27
.2500 46250030 46025 1/4 1/4 .030 2 5/8 SG-1-F Fine Uncoated Straight 30.00 23.81
.2500 46250030L6 46811 1/4 1/4 .030 6-5/8 5/8 SG-1L6-F Fine Uncoated Straight 0.00 33.31
.2500 46250027A 18898 1/4 1/4 .030 2 5/8 SG-1-D Double ALtima® Straight 0.00 30.95
.2500 70060020 70133 1/4 1/8 2 1/2 SG-51 Single Uncoated Straight 65.00 18.17
.2500 70060027 70141 1/4 1/8 2 1/2 SG-51-D Double Cut Uncoated Straight 78.00 18.17
.2500 70060030 70149 1/4 1/8 2 1/2 SG-51-F Fine Uncoated Straight 44.00 20.1
.2520 70060020M 70137 6.4mm 3mm 51mm 12.7mm SG-51M Single Uncoated Straight 139.00 18.17
.2520 70060027M 70145 6.4mm 3mm 51mm 12.7mm SG-51M-D Double Cut Uncoated Straight 836.00 18.17
.2520 70060030M 70153 6.4mm 3mm 51mm 12.7mm SG-51M-F Fine Uncoated Straight 20.00 20.1
.3125 46312520 46037 5/16 1/4 .040 2-3/4 3/4 SG-2 Single Uncoated Straight 6.00 29.32
.3125 46312527 46049 5/16 1/4 .040 2-3/4 3/4 SG-2-D Double Cut Uncoated Straight 26.00 29.32
.3125 46312530 46061 5/16 1/4 .040 2-3/4 3/4 SG-2-F Fine Uncoated Straight 21.00 32.34
.3150 46312520M 46045 8mm 6mm 1.02mm 64mm 19mm SG-2M Single Uncoated Straight 23.00 29.32
.3150 46312527M 46057 8mm 6mm 1.02mm 64mm 19mm SG-2M-D Double Cut Uncoated Straight 526.00 29.32
.3150 46312530M 46069 8mm 6mm 1.02mm 64mm 19mm SG-2M-F Fine Uncoated Straight 91.00 32.34
.3740 46375020M 46081 9.5mm 6mm 1.02mm 64mm 19mm SG-3M Single Uncoated Straight 93.00 29.17
.3740 46375027L6M 46837 9.5mm 6mm 1.02mm 169mm 19mm SG-3L6M-D Double Cut Uncoated Straight 10.00 40.75
.3740 46375027M 46093 9.5mm 6mm 1.02mm 64mm 19mm SG-3M-D Double Cut Uncoated Straight 126.00 29.17
.3740 46375030M 46105 9.5mm 6mm 1.02mm 64mm 19mm SG-3M-F Fine Uncoated Straight 29.00 32.06
.3740 46375030L6M 46842 9.5mm 6mm 1.02mm 169mm 19mm SG-3L6M-F Fine Uncoated Straight 0.00 44.88
.3740 46375020L6M 46832 9.5mm 6mm 1.02mm 169mm 19mm SG-3L6M Single Uncoated Straight 5.00 40.75
.3750 46375020 46073 3/8 1/4 .040 2-3/4 3/4 SG-3 Single Uncoated Straight 22.00 29.17
.3750 46375020L6 46831 3/8 1/4 .040 6-3/4 3/4 SG-3L6 Single Uncoated Straight 14.00 40.75
.3750 46375027 46085 3/8 1/4 .040 2-3/4 3/4 SG-3-D Double Cut Uncoated Straight 67.00 29.17
.3750 46375027L6 46836 3/8 1/4 .040 6-3/4 3/4 SG-3L6-D Double Cut Uncoated Straight 23.00 40.75
.3750 46375030 46097 3/8 1/4 .040 2-3/4 3/4 SG-3-F Fine Uncoated Straight 12.00 32.06
.3750 46375030L6 46841 3/8 1/4 .040 6-3/4 3/4 SG-3L6-F Fine Uncoated Straight 2.00 44.88
.3937 46393020M 46098 10mm 6mm 1.14mm 65mm 20mm SG-3MZ Single Uncoated Straight 25.00 28.23
.3937 46393027M 46100 10mm 6mm 1.14mm 65mm 20mm SG-3MZ-D Double Cut Uncoated Straight 114.00 28.23
.3937 46393030M 46102 10mm 6mm 1.14mm 65mm 20mm SG-3MZ-F Fine Uncoated Straight 73.00 31.1
.4724 46472020M 46104 12mm 6mm 1.27mm 65mm 25mm SG-5MZ Single Uncoated Straight 24.00 38.4
.4724 46472027M 46106 12mm 6mm 1.27mm 65mm 25mm SG-5MZ-D Double Cut Uncoated Straight 118.00 38.4
.4724 46472030M 46108 12mm 6mm 1.27mm 65mm 25mm SG-5MZ-F Fine Uncoated Straight 67.00 42.27
.5000 46500020 46109 1/2 1/4 .050 3 1 SG-5 Single Uncoated Straight 48.00 39.65
.5000 46500020L6 46846 1/2 1/4 .050 7 1 SG-5L6 Single Uncoated Straight 13.00 55.47
.5000 46500020L6M 46847 12.7mm 6mm 1.27mm 175mm 25mm SG-5L6M Single Uncoated Straight 12.00 55.47
.5000 46500020M 46117 12.7mm 6mm 1.27mm 70mm 25mm SG-5M Single Uncoated Straight 13.00 39.65
.5000 46500027 46121 1/2 1/4 .050 3 1 SG-5-D Double Cut Uncoated Straight 43.00 39.65
.5000 46500027L6 46851 1/2 1/4 .050 7 1 SG-5L6-D Double Cut Uncoated Straight 20.00 55.47
.5000 46500027L6M 46852 12.7mm 6mm 1.27mm 175mm 25mm SG-5L6M-D Double Cut Uncoated Straight 59.00 55.47
.5000 46500027M 46129 12.7mm 6mm 1.27mm 70mm 25mm SG-5M-D Double Cut Uncoated Straight 186.00 39.65
.5000 46500030 46133 1/2 1/4 .050 3 1 SG-5-F Fine Uncoated Straight 55.00 43.63
.5000 46500030L6 46856 1/2 1/4 .050 7 1 SG-5L6-F Fine Uncoated Straight 4.00 60.98
.5000 46500030M 46141 12.7mm 6mm 1.27mm 70mm 25mm SG-5M-F Fine Uncoated Straight 13.00 43.63
.5000 46500120 46145 1/2 1/4 .050 2-3/4 3/4 SG-13 Single Uncoated Straight 13.00 39.65
.5000 46500120M 46149 12.7mm 6mm 1.27mm 64mm 19mm SG-13M Single Uncoated Straight 6.00 39.65
.5000 46500127 46153 1/2 1/4 .050 2-3/4 3/4 SG-13-D Double Cut Uncoated Straight 11.00 39.65
.5000 46500127M 46157 12.7mm 6mm 1.27mm 64mm 19mm SG-13M-D Double Cut Uncoated Straight 34.00 39.65
.5000 46500130M 46165 12.7mm 6mm 1.27mm 64mm 19mm SG-13M-F Fine Uncoated Straight 18.00 43.63
.5000 46500030L6M 46857 12.7mm 6mm 1.27mm 175mm 25mm SG-5L6M-F Fine Uncoated Straight 0.00 60.98
.5000 46500130 46161 1/2 1/4 .050 2-3/4 3/4 SG-13-F Fine Uncoated Straight 0.00 43.63
.5000 46500027A 18899 1/2 1/4 .050 3 1 SG-5-D Double ALtima® Straight 0.00 62.15
.6250 46625020 46169 5/8 1/4 .050 3 1 SG-6 Single Uncoated Straight 19.00 58.63
.6250 46625027 46181 5/8 1/4 .050 3 1 SG-6-D Double Cut Uncoated Straight 0.00 58.63
.6250 46625030 46193 5/8 1/4 .050 3 1 SG-6-F Fine Uncoated Straight 0.00 64.55
.6299 46625020M 46177 16mm 6mm 1.27mm 70mm 25mm SG-6M Single Uncoated Straight 9.00 58.63
.6299 46625027M 46189 16mm 6mm 1.27mm 70mm 25mm SG-6M-D Double Cut Uncoated Straight 34.00 58.63
.6299 46625030M 46201 16mm 6mm 1.27mm 70mm 25mm SG-6M-F Fine Uncoated Straight 18.00 64.55
.7480 46750020M 46209 19mm 6mm 1.27mm 70mm 25mm SG-7M Single Uncoated Straight 12.00 81.61
.7480 46750027M 46217 19mm 6mm 1.27mm 70mm 25mm SG-7M-D Double Cut Uncoated Straight 11.00 81.61
.7480 46750127M 46241 19mm 6mm 1.78mm 84mm 38mm SG-15M-D Double Cut Uncoated Straight 18.00 120.55
.7480 46750120M 46233 19mm 6mm 1.78mm 84mm 38mm SG-15M Single Uncoated Straight 14.00 120.55
.7480 46750030M 46225 19mm 6mm 1.27mm 70mm 25mm SG-7M-F Fine Uncoated Straight 0.00 89.72
.7480 46750130M 46249 19mm 6mm 1.78mm 84mm 38mm SG-15M-F Fine Uncoated Straight 0.00 132.54
.7500 46750020 46205 3/4 1/4 .050 3 1 SG-7 Single Uncoated Straight 24.00 81.61
.7500 46750027 46213 3/4 1/4 .050 3 1 SG-7-D Double Cut Uncoated Straight 38.00 81.61
.7500 46750030 46221 3/4 1/4 .050 3 1 SG-7-F Fine Uncoated Straight 5.00 89.72
.7500 46750120 46229 3/4 1/4 .070 3-1/2 1-1/2 SG-15 Single Uncoated Straight 15.00 120.55
.7500 46750127 46237 3/4 1/4 .070 3-1/2 1-1/2 SG-15-D Double Cut Uncoated Straight 0.00 120.55
.7500 46750130 46245 3/4 1/4 .070 3-1/2 1-1/2 SG-15-F Fine Uncoated Straight 0.00 132.54
