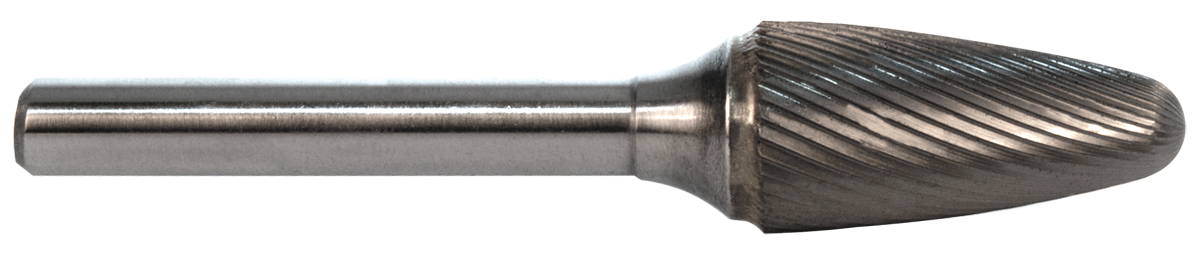

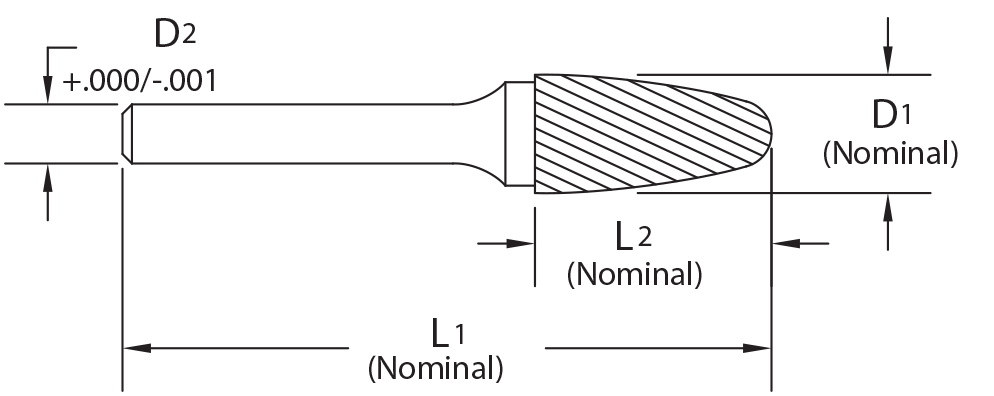

product photo product drawing

Burs / SF

Solid Carbide Edge Hog® Bur
Tree Shape Radius End

  • SCTI SF
  • Solid carbide 1/4" sizes and below, brazed construction over 1/4"
  • Inch and metric sizes
  • Single, double, fine and shear cuts available

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Specification Type of Cut Coating Shank Type Available List Price
.1181 45125020M 45005 3mm 6mm 50mm 12.7mm SF-11M Single Uncoated Straight 14.00 24.1
.1181 45125027M 45013 3mm 6mm 50mm 12.7mm SF-11M-D Double Cut Uncoated Straight 32.00 24.1
.1181 45125030M 45021 3mm 6mm 50mm 12.7mm SF-11M-F Fine Uncoated Straight 0.00 26.55
.1181 69070020M 69197 3mm 3mm 38mm 6mm SF-41M Single Uncoated Straight 143.00 11.55
.1181 69070027M 69205 3mm 3mm 38mm 6mm SF-41M-D Double Cut Uncoated Straight 281.00 11.55
.1181 69070030M 69213 3mm 3mm 38mm 6mm SF-41M-F Fine Uncoated Straight 8.00 12.81
.1181 69080020L3M 69818 3mm 3mm 76mm 12.7mm SF-42L76M Single Uncoated Straight 58.00 14.6
.1181 69080020M 69221 3mm 3mm 38mm 12.7mm SF-42M Single Uncoated Straight 333.00 10.48
.1181 69080027L3M 69820 3mm 3mm 76mm 12.7mm SF-42L76M-D Double Cut Uncoated Straight 187.00 14.6
.1181 69080027M 69229 3mm 3mm 38mm 12.7mm SF-42M-D Double Cut Uncoated Straight 1372.00 10.48
.1181 69080030M 69237 3mm 3mm 38mm 12.7mm SF-42M-F Fine Uncoated Straight 260.00 11.42
.1250 45125020 45001 1/8 1/4 2 1/2 SF-11 Single Uncoated Straight 8.00 24.1
.1250 45125027 45009 1/8 1/4 2 1/2 SF-11-D Double Cut Uncoated Straight 50.00 24.1
.1250 45125030 45017 1/8 1/4 2 1/2 SF-11-F Fine Uncoated Straight 5.00 26.55
.1250 69070020 69193 1/8 1/8 1-1/2 1/4 SF-41 Single Uncoated Straight 65.00 11.55
.1250 69070027 69201 1/8 1/8 1-1/2 1/4 SF-41-D Double Cut Uncoated Straight 30.00 11.55
.1250 69070030 69209 1/8 1/8 1-1/2 1/4 SF-41-F Fine Uncoated Straight 247.00 12.81
.1250 69080020 69217 1/8 1/8 1-1/2 1/2 SF-42 Single Uncoated Straight 510.00 10.48
.1250 69080027 69225 1/8 1/8 1-1/2 1/2 SF-42-D Double Cut Uncoated Straight 133.00 10.48
.1250 69080027L3 69819 1/8 1/8 3 1/2 SF-42L3-D Double Cut Uncoated Straight 58.00 14.6
.1250 69080030 69233 1/8 1/8 1-1/2 1/2 SF-42-F Fine Uncoated Straight 128.00 11.42
.1250 69080020L3 69817 1/8 1/8 3 1/2 SF-42L3 Single Uncoated Straight 41.00 14.6
.1875 72080020 72169 3/16 1/8 1-1/2 1/2 SF-53 Single Uncoated Straight 30.00 26.7
.1875 72080027 72177 3/16 1/8 1-1/2 1/2 SF-53-D Double Cut Uncoated Straight 11.00 26.7
.1875 72080030 72185 3/16 1/8 1-1/2 1/2 SF-53-F Fine Uncoated Straight 14.00 29.32
.1890 72080020M 72173 4.8mm 3mm 38mm 12.7mm SF-53M Single Uncoated Straight 23.00 26.7
.1890 72080027M 72181 4.8mm 3mm 38mm 12.7mm SF-53M-D Double Cut Uncoated Straight 115.00 26.7
.1890 72080030M 72189 4.8mm 3mm 38mm 12.7mm SF-53M-F Fine Uncoated Straight 19.00 29.32
.2362 45250020L6M 45802 6mm 6mm 166mm 16mm SF-1L6M Single Uncoated Straight 25.00 30.27
.2362 45250020M 45033 6mm 6mm 50mm 16mm SF-1M Single Uncoated Straight 65.00 21.61
.2362 45250027L6M 45807 6mm 6mm 166mm 16mm SF-1L6M-D Double Cut Uncoated Straight 67.00 30.27
.2362 45250027M 45045 6mm 6mm 50mm 16mm SF-1M-D Double Cut Uncoated Straight 144.00 21.61
.2362 45250030M 45057 6mm 6mm 50mm 16mm SF-1M-F Fine Uncoated Straight 67.00 23.81
.2362 45250030L6M 45812 6mm 6mm 166mm 16mm SF-1L6M-F Fine Uncoated Straight 0.00 33.31
.2500 45250020 45025 1/4 1/4 2 5/8 SF-1 Single Uncoated Straight 101.00 21.61
.2500 45250020L6 45801 1/4 1/4 6-5/8 5/8 SF-1L6 Single Uncoated Straight 11.00 30.27
.2500 45250027 45037 1/4 1/4 2 5/8 SF-1-D Double Cut Uncoated Straight 175.00 21.61
.2500 45250027L6 45806 1/4 1/4 6-5/8 5/8 SF-1L6-D Double Cut Uncoated Straight 0.00 30.27
.2500 45250030 45049 1/4 1/4 2 5/8 SF-1-F Fine Uncoated Straight 15.00 23.81
.2500 45250030L6 45811 1/4 1/4 6-5/8 5/8 SF-1L6-F Fine Uncoated Straight 3.00 33.31
.2500 45250027A 18896 1/4 1/4 2 5/8 SF-1-D Double ALtima® Straight 0.00 30.95
.2500 70050020 70109 1/4 1/8 2 1/2 SF-51 Single Uncoated Straight 340.00 17.05
.2500 70050027 70117 1/4 1/8 2 1/2 SF-51-D Double Cut Uncoated Straight 50.00 17.05
.2500 70050030 70125 1/4 1/8 2 1/2 SF-51-F Fine Uncoated Straight 27.00 18.71
.2520 70050020M 70113 6.4mm 3mm 51mm 12.7mm SF-51M Single Uncoated Straight 110.00 17.05
.2520 70050027M 70121 6.4mm 3mm 51mm 12.7mm SF-51M-D Double Cut Uncoated Straight 4034.00 17.05
.2520 70050030M 70129 6.4mm 3mm 51mm 12.7mm SF-51M-F Fine Uncoated Straight 42.00 18.71
.3740 45375020L6M 45832 9.5mm 6mm 169mm 19mm SF-3L6M Single Uncoated Straight 21.00 37.44
.3740 45375020M 45105 9.5mm 6mm 64mm 19mm SF-3M Single Uncoated Straight 132.00 26.7
.3740 45375027L6M 45837 9.5mm 6mm 169mm 19mm SF-3L6M-D Double Cut Uncoated Straight 64.00 37.44
.3740 45375027M 45117 9.5mm 6mm 64mm 19mm SF-3M-D Double Cut Uncoated Straight 124.00 26.7
.3740 45375030M 45129 9.5mm 6mm 64mm 19mm SF-3M-F Fine Uncoated Straight 7.00 29.46
.3740 45375150M 45141 9.5mm 6mm 64mm 19mm SF-3NFM Shear Uncoated Straight 212.00 39.76
.3740 45375030L6M 45842 9.5mm 6mm 169mm 19mm SF-3L6M-F Fine Uncoated Straight 4.00 41.15
.3750 45375020 45097 3/8 1/4 2-3/4 3/4 SF-3 Single Uncoated Straight 163.00 26.7
.3750 45375020L6 45831 3/8 1/4 6-3/4 3/4 SF-3L6 Single Uncoated Straight 132.00 37.44
.3750 45375027 45109 3/8 1/4 2-3/4 3/4 SF-3-D Double Cut Uncoated Straight 198.00 26.7
.3750 45375027L6 45836 3/8 1/4 6-3/4 3/4 SF-3L6-D Double Cut Uncoated Straight 31.00 37.44
.3750 45375030 45121 3/8 1/4 2-3/4 3/4 SF-3-F Fine Uncoated Straight 36.00 29.46
.3750 45375030L6 45841 3/8 1/4 6-3/4 3/4 SF-3L6-F Fine Uncoated Straight 22.00 41.15
.3750 45375150 45601 3/8 1/4 2-3/4 3/4 SF-3NF Shear Uncoated Straight 172.00 39.76
.4331 45437520M 45149 11mm 6mm 70mm 25mm SF-4M Single Uncoated Straight 79.00 40.47
.4331 45437527M 45157 11mm 6mm 70mm 25mm SF-4M-D Double Cut Uncoated Straight 165.00 40.47
.4331 45437530M 45165 11mm 6mm 70mm 25mm SF-4M-F Fine Uncoated Straight 1.00 44.58
.4375 45437520 45145 7/16 1/4 3 1 SF-4 Single Uncoated Straight 19.00 40.47
.4375 45437527 45153 7/16 1/4 3 1 SF-4-D Double Cut Uncoated Straight 14.00 40.47
.4375 45437530 45161 7/16 1/4 3 1 SF-4-F Fine Uncoated Straight 0.00 44.58
.4724 45472020M 45130 12mm 6mm 70mm 25mm SF-5MZ Single Uncoated Straight 16.00 39.48
.4724 45472027M 45132 12mm 6mm 70mm 25mm SF-5MZ-D Double Cut Uncoated Straight 133.00 39.48
.4724 45472030M 45134 12mm 6mm 70mm 25mm SF-5MZ-F Fine Uncoated Straight 88.00 43.47
.5000 45500020 45169 1/2 1/4 3 1 SF-5 Single Uncoated Straight 75.00 39.48
.5000 45500020L6 45846 1/2 1/4 7 1 SF-5L6 Single Uncoated Straight 21.00 55.31
.5000 45500020L6M 45847 12.7mm 6mm 175mm 25mm SF-5L6M Single Uncoated Straight 28.00 55.31
.5000 45500020M 45177 12.7mm 6mm 70mm 25mm SF-5M Single Uncoated Straight 48.00 39.48
.5000 45500027 45181 1/2 1/4 3 1 SF-5-D Double Cut Uncoated Straight 11.00 39.48
.5000 45500027L6 45851 1/2 1/4 7 1 SF-5L6-D Double Cut Uncoated Straight 30.00 55.31
.5000 45500027L6M 45852 12.7mm 6mm 175mm 25mm SF-5L6M-D Double Cut Uncoated Straight 41.00 55.31
.5000 45500027M 45189 12.7mm 6mm 70mm 25mm SF-5M-D Double Cut Uncoated Straight 0.00 39.48
.5000 45500030 45193 1/2 1/4 3 1 SF-5-F Fine Uncoated Straight 14.00 43.47
.5000 45500030L6 45856 1/2 1/4 7 1 SF-5L6-F Fine Uncoated Straight 0.00 60.83
.5000 45500030L6M 45857 12.7mm 6mm 175mm 25mm SF-5L6M-F Fine Uncoated Straight 0.00 60.83
.5000 45500030M 45201 12.7mm 6mm 70mm 25mm SF-5M-F Fine Uncoated Straight 32.00 43.47
.5000 45500120 45205 1/2 1/4 2-3/4 3/4 SF-13 Single Uncoated Straight 14.00 39.48
.5000 45500120M 45209 12.7mm 6mm 64mm 19mm SF-13M Single Uncoated Straight 35.00 39.48
.5000 45500127 45213 1/2 1/4 2-3/4 3/4 SF-13-D Double Cut Uncoated Straight 11.00 39.48
.5000 45500127M 45217 12.7mm 6mm 64mm 19mm SF-13M-D Double Cut Uncoated Straight 129.00 39.48
.5000 45500130 45221 1/2 1/4 2-3/4 3/4 SF-13-F Fine Uncoated Straight 0.00 43.47
.5000 45500130M 45225 12.7mm 6mm 64mm 19mm SF-13M-F Fine Uncoated Straight 0.00 43.47
.5000 45500150 45621 1/2 1/4 3 1 SF-5NF Shear Uncoated Straight 336.00 57.39
.5000 45500150M 45237 12.7mm 6mm 70mm 25mm SF-5NFM Shear Uncoated Straight 102.00 57.39
.5000 45500036 76394 1/2 1/4 3 1 SD-5-F Std Diam Uncoated Straight 2.00 52.16
.5000 45500027A 18897 1/2 1/4 3 1 SF-5-D Double ALtima® Straight 0.00 61.98
.6250 45625020 45241 5/8 1/4 3 1 SF-6 Single Uncoated Straight 10.00 59.46
.6250 45625027 45253 5/8 1/4 3 1 SF-6-D Double Cut Uncoated Straight 4.00 59.46
.6250 45625030 45265 5/8 1/4 3 1 SF-6-F Fine Uncoated Straight 25.00 65.36
.6250 45625150 45641 5/8 1/4 3 1 SF-6NF Shear Uncoated Straight 2.00 83.65
.6299 45625020M 45249 16mm 6mm 70mm 25mm SF-6M Single Uncoated Straight 19.00 59.46
.6299 45625027M 45261 16mm 6mm 70mm 25mm SF-6M-D Double Cut Uncoated Straight 43.00 59.46
.6299 45625030M 45273 16mm 6mm 70mm 25mm SF-6M-F Fine Uncoated Straight 6.00 65.36
.6299 45625150M 45285 16mm 6mm 70mm 25mm SF-6NFM Shear Uncoated Straight 29.00 83.65
.7480 45750020M 45293 19mm 6mm 76mm 31mm SF-14M Single Uncoated Straight 37.00 102.67
.7480 45750027M 45301 19mm 6mm 76mm 31mm SF-14M-D Double Cut Uncoated Straight 2.00 102.67
.7480 45750127M 45325 19mm 6mm 70mm 25mm SF-7M-D Double Cut Uncoated Straight 58.00 81.61
.7480 45750120M 45317 19mm 6mm 70mm 25mm SF-7M Single Uncoated Straight 18.00 81.61
.7480 45750130M 45333 19mm 6mm 70mm 25mm SF-7M-F Fine Uncoated Straight 5.00 89.72
.7480 45750030M 45309 19mm 6mm 76mm 31mm SF-14M-F Fine Uncoated Straight 0.00 112.84
.7480 45750220M 45341 19mm 6mm 84mm 38mm SF-15M Single Uncoated Straight 0.00 120.55
.7480 45750227M 45349 19mm 6mm 84mm 38mm SF-15M-D Double Cut Uncoated Straight 0.00 120.55
.7480 45750230M 45357 19mm 6mm 84mm 38mm SF-15M-F Fine Uncoated Straight 0.00 132.54
.7500 45750020 45289 3/4 1/4 3-1/4 1-1/4 SF-14 Single Uncoated Straight 4.00 102.67
.7500 45750027 45297 3/4 1/4 3-1/4 1-1/4 SF-14-D Double Cut Uncoated Straight 1.00 102.67
.7500 45750030 45305 3/4 1/4 3-1/4 1-1/4 SF-14-F Fine Uncoated Straight 14.00 112.84
.7500 45750120 45313 3/4 1/4 3 1 SF-7 Single Uncoated Straight 8.00 81.61
.7500 45750127 45321 3/4 1/4 3 1 SF-7-D Double Cut Uncoated Straight 25.00 81.61
.7500 45750130 45329 3/4 1/4 3 1 SF-7-F Fine Uncoated Straight 12.00 89.72
.7500 45750220 45337 3/4 1/4 3-1/2 1-1/2 SF-15 Single Uncoated Straight 20.00 120.55
.7500 45750227 45345 3/4 1/4 3-1/2 1-1/2 SF-15-D Double Cut Uncoated Straight 19.00 120.55
.7500 45750230 45353 3/4 1/4 3-1/2 1-1/2 SF-15-F Fine Uncoated Straight 4.00 132.54
