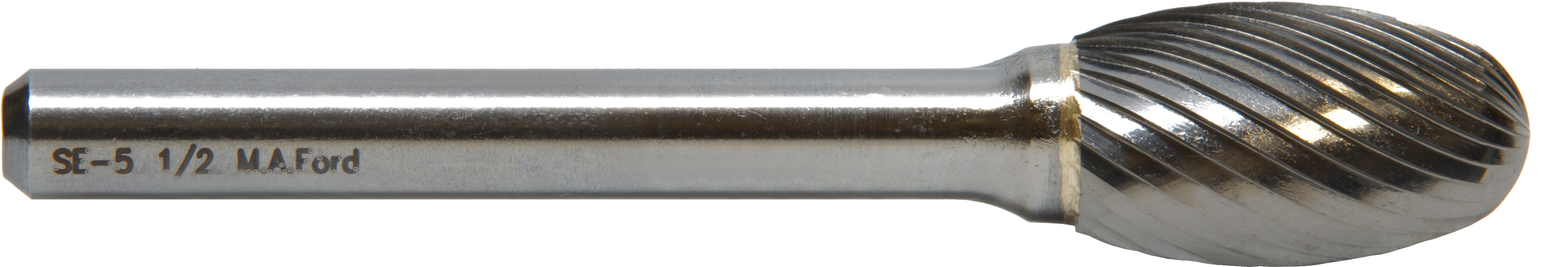

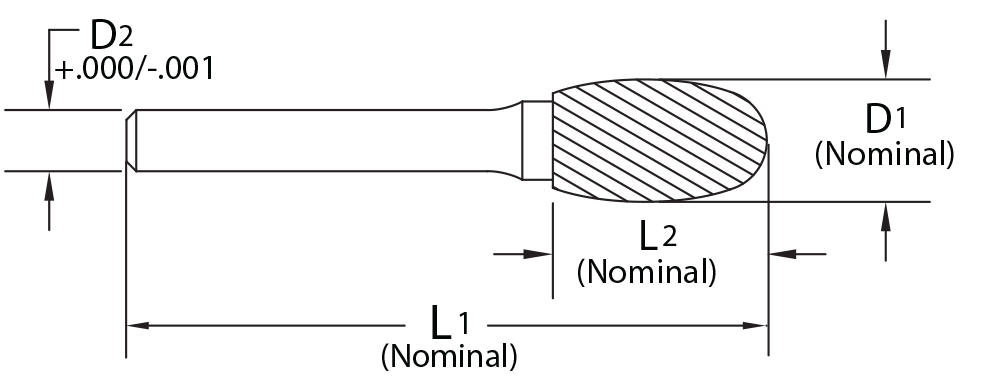

product photo product drawing

Burs / SE

Solid Carbide Edge Hog® Bur
Ellipitcal

  • SCTI SE
  • Solid carbide 1/4" sizes and below, brazed construction over 1/4"
  • Inch and metric sizes
  • Single, double, fine and shear cuts available

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Specification Type of Cut Coating Shank Type Available List Price
.1181 69060020L3M 69814 3mm 3mm 76mm 5.6mm SE-41L76M Single Uncoated Straight 59.00 14.6
.1181 69060020M 69173 3mm 3mm 38mm 5.6mm SE-41M Single Uncoated Straight 35.00 10.48
.1181 69060027L3M 69816 3mm 3mm 76mm 5.6mm SE-41L76M-D Double Cut Uncoated Straight 22.00 14.6
.1181 69060027M 69181 3mm 3mm 38mm 5.6mm SE-41M-D Double Cut Uncoated Straight 420.00 10.48
.1181 69060030M 69189 3mm 3mm 38mm 5.6mm SE-41M-F Fine Uncoated Straight 13.00 11.42
.1250 69060020 69169 1/8 1/8 1-1/2 7/32 SE-41 Single Uncoated Straight 22.00 10.48
.1250 69060027 69177 1/8 1/8 1-1/2 7/32 SE-41-D Double Cut Uncoated Straight 38.00 10.48
.1250 69060030 69185 1/8 1/8 1-1/2 7/32 SE-41-F Fine Uncoated Straight 89.00 11.42
.1250 69060020L3 69813 1/8 1/8 3 7/32 SE-41L3 Single Uncoated Straight 90.00 14.6
.1250 69060027L3 69815 1/8 1/8 3 7/32 SE-41L3-D Double Cut Uncoated Straight 79.00 14.6
.1875 72060020 72121 3/16 1/8 1-1/2 9/32 SE-53 Single Uncoated Straight 32.00 26.7
.1875 72060027 72129 3/16 1/8 1-1/2 9/32 SE-53-D Double Cut Uncoated Straight 23.00 26.7
.1875 72060030 72137 3/16 1/8 1-1/2 9/32 SE-53-F Fine Uncoated Straight 38.00 29.32
.1890 72060020M 72125 4.8mm 3mm 38mm 7mm SE-53M Single Uncoated Straight 36.00 26.7
.1890 72060027M 72133 4.8mm 3mm 38mm 7mm SE-53M-D Double Cut Uncoated Straight 78.00 26.7
.1890 72060030M 72141 4.8mm 3mm 38mm 7mm SE-53M-F Fine Uncoated Straight 8.00 29.32
.2362 44250020L6M 44802 6mm 6mm 159mm 9.5mm SE-1L6M Single Uncoated Straight 5.00 34.67
.2362 44250020M 44009 6mm 6mm 50mm 9.5mm SE-1M Single Uncoated Straight 154.00 24.76
.2362 44250027L6M 44807 6mm 6mm 159mm 9.5mm SE-1L6M-D Double Cut Uncoated Straight 1.00 34.67
.2362 44250027M 44021 6mm 6mm 50mm 9.5mm SE-1M-D Double Cut Uncoated Straight 347.00 24.76
.2362 44250030M 44033 6mm 6mm 50mm 9.5mm SE-1M-F Fine Uncoated Straight 3.00 27.26
.2362 44250030L6M 44812 6mm 6mm 159mm 9.5mm SE-1L6M-F Fine Uncoated Straight 3.00 38.14
.2500 44250020 44001 1/4 1/4 2 3/8 SE-1 Single Uncoated Straight 25.00 24.76
.2500 44250020L6 44801 1/4 1/4 6-3/8 3/8 SE-1L6 Single Uncoated Straight 17.00 34.67
.2500 44250027 44013 1/4 1/4 2 3/8 SE-1-D Double Cut Uncoated Straight 29.00 24.76
.2500 44250027L6 44806 1/4 1/4 6-3/8 3/8 SE-1L6-D Double Cut Uncoated Straight 84.00 34.67
.2500 44250030 44025 1/4 1/4 2 3/8 SE-1-F Fine Uncoated Straight 39.00 27.26
.2500 44250030L6 44811 1/4 1/4 6-3/8 3/8 SE-1L6-F Fine Uncoated Straight 0.00 38.14
.2500 44250027A 18894 1/4 1/4 2 3/8 SE-1-D Double ALtima® Straight 0.00 34.1
.2500 70040020 70085 1/4 1/8 1-7/8 3/8 SE-51 Single Uncoated Straight 19.00 17.05
.2500 70040027 70093 1/4 1/8 1-7/8 3/8 SE-51-D Double Cut Uncoated Straight 87.00 17.05
.2500 70040030 70101 1/4 1/8 1-7/8 3/8 SE-51-F Fine Uncoated Straight 35.00 18.71
.2520 70040020M 70089 6.4mm 3mm 48mm 9.5mm SE-51M Single Uncoated Straight 70.00 17.05
.2520 70040027M 70097 6.4mm 3mm 48mm 9.5mm SE-51M-D Double Cut Uncoated Straight 201.00 17.05
.2520 70040030M 70105 6.4mm 3mm 48mm 9.5mm SE-51M-F Fine Uncoated Straight 29.00 18.71
.3740 44375020L6M 44832 9.5mm 6mm 166mm 16mm SE-3L6M Single Uncoated Straight 19.00 38.96
.3740 44375020M 44081 9.5mm 6mm 60mm 16mm SE-3M Single Uncoated Straight 7.00 27.79
.3740 44375027L6M 44837 9.5mm 6mm 166mm 16mm SE-3L6M-D Double Cut Uncoated Straight 21.00 38.96
.3740 44375027M 44093 9.5mm 6mm 60mm 16mm SE-3M-D Double Cut Uncoated Straight 17.00 27.79
.3740 44375030M 44105 9.5mm 6mm 60mm 16mm SE-3M-F Fine Uncoated Straight 0.00 30.7
.3740 44375150M 44113 9.5mm 6mm 60mm 16mm SE-3NFM Shear Uncoated Straight 9.00 41.57
.3740 44375030L6M 44842 9.5mm 6mm 166mm 16mm SE-3L6M-F Fine Uncoated Straight 3.00 42.8
.3750 44375020 44073 3/8 1/4 2-5/8 5/8 SE-3 Single Uncoated Straight 51.00 27.79
.3750 44375020L6 44831 3/8 1/4 6-5/8 5/8 SE-3L6 Single Uncoated Straight 47.00 38.96
.3750 44375027 44085 3/8 1/4 2-5/8 5/8 SE-3-D Double Cut Uncoated Straight 232.00 27.79
.3750 44375027L6 44836 3/8 1/4 6-5/8 5/8 SE-3L6-D Double Cut Uncoated Straight 34.00 38.96
.3750 44375030 44097 3/8 1/4 2-5/8 5/8 SE-3-F Fine Uncoated Straight 21.00 30.7
.3750 44375030L6 44841 3/8 1/4 6-5/8 5/8 SE-3L6-F Fine Uncoated Straight 9.00 42.8
.3750 44375150 44601 3/8 1/4 2-5/8 5/8 SE-3NF Shear Uncoated Straight 2.00 41.57
.5000 44500020 44117 1/2 1/4 2-7/8 7/8 SE-5 Single Uncoated Straight 48.00 40.75
.5000 44500020L6 44846 1/2 1/4 6-7/8 7/8 SE-5L6 Single Uncoated Straight 4.00 56.98
.5000 44500020L6M 44847 12.7mm 6mm 172mm 22mm SE-5L6M Single Uncoated Straight 17.00 56.98
.5000 44500020M 44125 12.7mm 6mm 67mm 22mm SE-5M Single Uncoated Straight 32.00 40.75
.5000 44500027 44129 1/2 1/4 2-7/8 7/8 SE-5-D Double Cut Uncoated Straight 23.00 40.75
.5000 44500027L6 44851 1/2 1/4 6-7/8 7/8 SE-5L6-D Double Cut Uncoated Straight 0.00 56.98
.5000 44500027L6M 44852 12.7mm 6mm 172mm 22mm SE-5L6M-D Double Cut Uncoated Straight 14.00 56.98
.5000 44500027M 44137 12.7mm 6mm 67mm 22mm SE-5M-D Double Cut Uncoated Straight 77.00 40.75
.5000 44500030 44141 1/2 1/4 2-7/8 7/8 SE-5-F Fine Uncoated Straight 20.00 44.88
.5000 44500030L6 44856 1/2 1/4 6-7/8 7/8 SE-5L6-F Fine Uncoated Straight 0.00 62.76
.5000 44500030M 44149 12.7mm 6mm 67mm 22mm SE-5M-F Fine Uncoated Straight 33.00 44.88
.5000 44500150 44621 1/2 1/4 2-7/8 7/8 SE-5NF Shear Uncoated Straight 0.00 54.65
.5000 44500150M 44157 12.7mm 6mm 67mm 22mm SE-5NFM Shear Uncoated Straight 10.00 54.65
.5000 44500030L6M 44857 12.7mm 6mm 172mm 22mm SE-5L6M-F Fine Uncoated Straight 0.00 62.76
.6250 44625020 44161 5/8 1/4 3 1 SE-6 Single Uncoated Straight 5.00 60.55
.6250 44625027 44173 5/8 1/4 3 1 SE-6-D Double Cut Uncoated Straight 45.00 60.55
.6250 44625030 44185 5/8 1/4 3 1 SE-6-F Fine Uncoated Straight 1.00 66.61
.6250 44625150 44641 5/8 1/4 3 1 SE-6NF Shear Uncoated Straight 2.00 90.28
.6299 44625020M 44169 16mm 6mm 70mm 25mm SE-6M Single Uncoated Straight 1.00 60.55
.6299 44625027M 44181 16mm 6mm 70mm 25mm SE-6M-D Double Cut Uncoated Straight 29.00 60.55
.6299 44625030M 44193 16mm 6mm 70mm 25mm SE-6M-F Fine Uncoated Straight 10.00 66.61
.6299 44625150M 44201 16mm 6mm 70mm 25mm SE-6NFM Shear Uncoated Straight 9.00 90.28
.7480 44750020M 44209 19mm 6mm 70mm 25mm SE-7M Single Uncoated Straight 3.00 84.77
.7480 44750027M 44217 19mm 6mm 70mm 25mm SE-7M-D Double Cut Uncoated Straight 0.00 84.77
.7480 44750030M 44225 19mm 6mm 70mm 25mm SE-7M-F Fine Uncoated Straight 0.00 93.18
.7500 44750020 44205 3/4 1/4 3 1 SE-7 Single Uncoated Straight 15.00 84.77
.7500 44750027 44213 3/4 1/4 3 1 SE-7-D Double Cut Uncoated Straight 7.00 84.77
.7500 44750030 44221 3/4 1/4 3 1 SE-7-F Fine Uncoated Straight 14.00 93.18
