Burs / SC

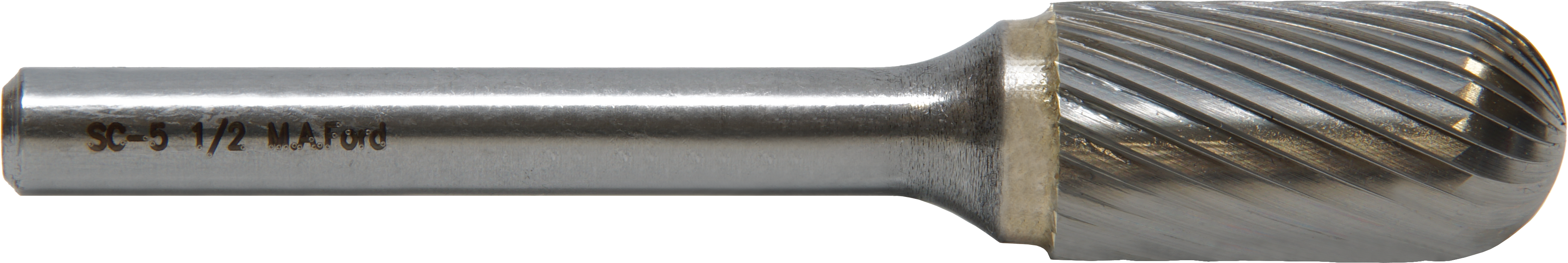

Solid Carbide Edge Hog® Bur
Cylindrical Radius End

  • SCTI SC
  • Solid carbide 1/4" sizes and below, brazed construction over 1/4"
  • Inch and metric sizes
  • Single, double, fine and shear cuts available

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

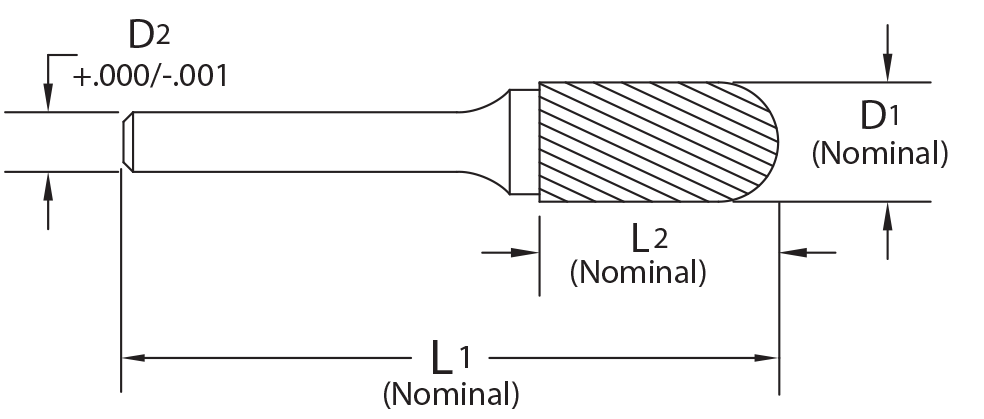

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Specification Type of Cut Coating Shank Type Available List Price
.0937 69040020 69097 3/32 1/8 1-1/2 7/16 SC-41 Single Uncoated Straight 1722.00 11.55
.0937 69040027 69105 3/32 1/8 1-1/2 7/16 SC-41-D Double Cut Uncoated Straight 209.00 11.55
.0937 69040030 69113 3/32 1/8 1-1/2 7/16 SC-41-F Fine Uncoated Straight 7.00 12.81
.0945 69040020M 69101 2.4mm 3mm 38mm 11.1mm SC-41M Single Uncoated Straight 7.00 11.55
.0945 69040027M 69109 2.4mm 3mm 38mm 11.1mm SC-41M-D Double Cut Uncoated Straight 169.00 11.55
.0945 69040030M 69117 2.4mm 3mm 38mm 11.1mm SC-41M-F Fine Uncoated Straight 498.00 12.81
.1181 42125020M 42025 3mm 6mm 50mm 12.7mm SC-11M Single Uncoated Straight 11.00 23.11
.1181 42125027M 42033 3mm 6mm 50mm 12.7mm SC-11M-D Double Cut Uncoated Straight 77.00 23.11
.1181 42125030M 42041 3mm 6mm 50mm 12.7mm SC-11M-F Fine Uncoated Straight 0.00 25.47
.1181 69030020L3M 69806 3mm 3mm 76mm 14.3mm SC-42L76M Single Uncoated Straight 77.00 14.31
.1181 69030020M 69077 3mm 3mm 38mm 14.3mm SC-42M Single Uncoated Straight 725.00 10.17
.1181 69030027L3M 69808 3mm 3mm 76mm 14.3mm SC-42L76M-D Double Cut Uncoated Straight 246.00 14.31
.1181 69030027M 69085 3mm 3mm 38mm 14.3mm SC-42M-D Double Cut Uncoated Straight 3752.00 10.17
.1181 69030030M 69093 3mm 3mm 38mm 14.3mm SC-42M-F Fine Uncoated Straight 75.00 11.29
.1250 42125020 42021 1/8 1/4 2 1/2 SC-11 Single Uncoated Straight 92.00 23.11
.1250 42125027 42029 1/8 1/4 2 1/2 SC-11-D Double Cut Uncoated Straight 5.00 23.11
.1250 42125030 42037 1/8 1/4 2 1/2 SC-11-F Fine Uncoated Straight 29.00 25.47
.1250 42125027A 18879 1/8 1/4 2 1/2 SC-11-D Double Cut ALtima® Straight 0.00 27.38
.1250 69030020 69073 1/8 1/8 1-1/2 9/16 SC-42 Single Uncoated Straight 16.00 10.17
.1250 69030020L3 69805 1/8 1/8 3 9/16 SC-42L3 Single Uncoated Straight 95.00 14.31
.1250 69030027 69081 1/8 1/8 1-1/2 9/16 SC-42-D Double Cut Uncoated Straight 394.00 10.17
.1250 69030027L3 69807 1/8 1/8 3 9/16 SC-42L3-D Double Cut Uncoated Straight 41.00 14.31
.1250 69030030 69089 1/8 1/8 1-1/2 9/16 SC-42-F Fine Uncoated Straight 48.00 11.29
.1562 42156220 42045 5/32 1/4 2 5/8 SC-13 Single Uncoated Straight 16.00 23.11
.1562 42156227 42053 5/32 1/4 2 5/8 SC-13-D Double Cut Uncoated Straight 7.00 23.11
.1562 42156230 42061 5/32 1/4 2 5/8 SC-13-F Fine Uncoated Straight 5.00 25.47
.1562 72020020 72025 5/32 1/8 1-1/2 1/2 SC-52 Single Uncoated Straight 12.00 27.94
.1562 72020027 72033 5/32 1/8 1-1/2 1/2 SC-52-D Double Cut Uncoated Straight 75.00 27.94
.1562 72020030 72041 5/32 1/8 1-1/2 1/2 SC-52-F Fine Uncoated Straight 80.00 30.7
.1575 42156220M 42049 4mm 6mm 50mm 16mm SC-13M Single Uncoated Straight 28.00 23.11
.1575 42156227M 42057 4mm 6mm 50mm 16mm SC-13M-D Double Cut Uncoated Straight 62.00 23.11
.1575 42156230M 42066 4mm 6mm 50mm 16mm SC-13M-F Fine Uncoated Straight 0.00 25.47
.1575 72020020M 72029 4mm 3mm 38mm 12.7mm SC-52M Single Uncoated Straight 7.00 27.94
.1575 72020027M 72037 4mm 3mm 38mm 12.7mm SC-52M-D Double Cut Uncoated Straight 355.00 27.94
.1575 72020030M 72045 4mm 3mm 38mm 12.7mm SC-52M-F Fine Uncoated Straight 8.00 30.7
.1875 42187520 42069 3/16 1/4 2 5/8 SC-14 Single Uncoated Straight 11.00 23.11
.1875 42187527 42077 3/16 1/4 2 5/8 SC-14-D Double Cut Uncoated Straight 41.00 23.11
.1875 42187530 42085 3/16 1/4 2 5/8 SC-14-F Fine Uncoated Straight 3.00 25.47
.1875 72040020 72073 3/16 1/8 1-1/2 1/2 SC-53 Single Uncoated Straight 30.00 25.06
.1875 72040027 72081 3/16 1/8 1-1/2 1/2 SC-53-D Double Cut Uncoated Straight 38.00 25.06
.1875 72040030 72089 3/16 1/8 1-1/2 1/2 SC-53-F Fine Uncoated Straight 15.00 27.53
.1890 42187520M 42073 4.8mm 6mm 50mm 16mm SC-14M Single Uncoated Straight 28.00 23.11
.1890 42187527M 42081 4.8mm 6mm 50mm 16mm SC-14M-D Double Cut Uncoated Straight 9.00 23.11
.1890 42187530M 42089 4.8mm 6mm 50mm 16mm SC-14M-F Fine Uncoated Straight 0.00 25.47
.1890 72040020M 72077 4.8mm 3mm 38mm 12.7mm SC-53M Single Uncoated Straight 93.00 25.06
.1890 72040027M 72085 4.8mm 3mm 38mm 12.7mm SC-53M-D Double Cut Uncoated Straight 315.00 25.06
.1890 72040030M 72093 4.8mm 3mm 38mm 12.7mm SC-53M-F Fine Uncoated Straight 4.00 27.53
.2362 42250020L6M 42802 6mm 6mm 166mm 16mm SC-1L6M Single Uncoated Straight 12.00 29.05
.2362 42250020M 42101 6mm 6mm 50mm 16mm SC-1M Single Uncoated Straight 58.00 20.78
.2362 42250027L6M 42807 6mm 6mm 166mm 16mm SC-1L6M-D Double Cut Uncoated Straight 61.00 29.05
.2362 42250027M 42113 6mm 6mm 50mm 16mm SC-1M-D Double Cut Uncoated Straight 873.00 20.78
.2362 42250030L6M 42812 6mm 6mm 166mm 16mm SC-1L6M-F Fine Uncoated Straight 0.00 31.93
.2362 42250030M 42125 6mm 6mm 50mm 16mm SC-1M-F Fine Uncoated Straight 9.00 22.84
.2500 42250020 42093 1/4 1/4 2 5/8 SC-1 Single Uncoated Straight 18.00 20.78
.2500 42250020L6 42801 1/4 1/4 6-5/8 5/8 SC-1L6 Single Uncoated Straight 12.00 29.05
.2500 42250027 42105 1/4 1/4 2 5/8 SC-1-D Double Cut Uncoated Straight 172.00 20.78
.2500 42250027L6 42806 1/4 1/4 6-5/8 5/8 SC-1L6-D Double Cut Uncoated Straight 8.00 29.05
.2500 42250030 42117 1/4 1/4 2 5/8 SC-1-F Fine Uncoated Straight 35.00 22.84
.2500 42250030L6 42811 1/4 1/4 6-5/8 5/8 SC-1L6-F Fine Uncoated Straight 4.00 31.93
.2500 42250027A 18878 1/4 1/4 2 5/8 SC-1-D Double Cut ALtima® Straight 0.00 30.12
.2500 70020020 70037 1/4 1/8 2 1/2 SC-51 Single Uncoated Straight 239.00 17.05
.2500 70020027 70045 1/4 1/8 2 1/2 SC-51-D Double Cut Uncoated Straight 120.00 17.05
.2500 70020030 70053 1/4 1/8 2 1/2 SC-51-F Fine Uncoated Straight 62.00 18.71
.2520 70020020M 70041 6.4mm 3mm 51mm 12.7mm SC-51M Single Uncoated Straight 31.00 17.05
.2520 70020027M 70049 6.4mm 3mm 51mm 12.7mm SC-51M-D Double Cut Uncoated Straight 493.00 17.05
.2520 70020030M 70057 6.4mm 3mm 51mm 12.7mm SC-51M-F Fine Uncoated Straight 24.00 18.71
.3125 42312520 42129 5/16 1/4 2-3/4 3/4 SC-2 Single Uncoated Straight 18.00 25.47
.3125 42312520L6 42816 5/16 1/4 6-3/4 3/4 SC-2L6 Single Uncoated Straight 28.00 35.65
.3125 42312527 42141 5/16 1/4 2-3/4 3/4 SC-2-D Double Cut Uncoated Straight 76.00 25.47
.3125 42312527L6 42821 5/16 1/4 6-3/4 3/4 SC-2L6-D Double Cut Uncoated Straight 26.00 35.65
.3125 42312530 42153 5/16 1/4 2-3/4 3/4 SC-2-F Fine Uncoated Straight 103.00 27.94
.3125 42312530L6 42826 5/16 1/4 6-3/4 3/4 SC-2L6-F Fine Uncoated Straight 4.00 39.08
.3150 42312520L6M 42817 8mm 6mm 169mm 19mm SC-2L6M Single Uncoated Straight 2.00 35.65
.3150 42312520M 42137 8mm 6mm 64mm 19mm SC-2M Single Uncoated Straight 107.00 25.47
.3150 42312527L6M 42822 8mm 6mm 169mm 19mm SC-2L6M-D Double Cut Uncoated Straight 11.00 35.65
.3150 42312527M 42149 8mm 6mm 64mm 19mm SC-2M-D Double Cut Uncoated Straight 115.00 25.47
.3150 42312530M 42161 8mm 6mm 64mm 19mm SC-2M-F Fine Uncoated Straight 25.00 27.94
.3150 42312530L6M 42827 8mm 6mm 169mm 19mm SC-2L6M-F Fine Uncoated Straight 0.00 39.08
.3740 42375020L6M 42832 9.5mm 6mm 169mm 19mm SC-3L6M Single Uncoated Straight 46.00 38.26
.3740 42375020M 42173 9.5mm 6mm 64mm 19mm SC-3M Single Uncoated Straight 141.00 27.26
.3740 42375027L6M 42837 9.5mm 6mm 169mm 19mm SC-3L6M-D Double Cut Uncoated Straight 0.00 38.26
.3740 42375027M 42185 9.5mm 6mm 64mm 19mm SC-3M-D Double Cut Uncoated Straight 1932.00 27.26
.3740 42375030M 42197 9.5mm 6mm 64mm 19mm SC-3M-F Fine Uncoated Straight 19.00 29.99
.3740 42375150M 42209 9.5mm 6mm 64mm 19mm SC-3NFM Shear Uncoated Straight 15.00 39.48
.3740 42375030L6M 42842 9.5mm 6mm 169mm 19mm SC-3L6M-F Fine Uncoated Straight 0.00 41.98
.3750 42375020 42165 3/8 1/4 2-3/4 3/4 SC-3 Single Uncoated Straight 52.00 27.26
.3750 42375020L6 42831 3/8 1/4 6-3/4 3/4 SC-3L6 Single Uncoated Straight 40.00 38.26
.3750 42375027 42177 3/8 1/4 2-3/4 3/4 SC-3-D Double Cut Uncoated Straight 168.00 27.26
.3750 42375027L6 42836 3/8 1/4 6-3/4 3/4 SC-3L6-D Double Cut Uncoated Straight 58.00 38.26
.3750 42375030 42189 3/8 1/4 2-3/4 3/4 SC-3-F Fine Uncoated Straight 22.00 29.99
.3750 42375030L6 42841 3/8 1/4 6-3/4 3/4 SC-3L6-F Fine Uncoated Straight 22.00 41.98
.3750 42375150 42601 3/8 1/4 2-3/4 3/4 SC-3NF Shear Uncoated Straight 191.00 39.48
.3750 42375026L6 10880 3/8 1/4 6-3/4 3/4 SC-3L6 Std Diam Uncoated Straight 18.00 45.83
.3750 42375026 76350 3/8 1/4 2-3/4 3/4 SC-3 Std Diam Uncoated Straight 0.00 32.77
.3937 42393020M 42198 10mm 6mm 65mm 20mm SC-3MZ Single Uncoated Straight 90.00 26.99
.3937 42393027M 42200 10mm 6mm 65mm 20mm SC-3MZ-D Double Cut Uncoated Straight 21.00 26.99
.3937 42393030M 42202 10mm 6mm 65mm 20mm SC-3MZ-F Fine Uncoated Straight 30.00 29.73
.4331 42437527M 42225 11mm 6mm 70mm 25mm SC-4M-D Double Cut Uncoated Straight 18.00 44.58
.4331 42437520M 42217 11mm 6mm 70mm 25mm SC-4M Single Uncoated Straight 5.00 44.58
.4331 42437530M 42233 11mm 6mm 70mm 25mm SC-4M-F Fine Uncoated Straight 0.00 48.98
.4375 42437520 42213 7/16 1/4 3 1 SC-4 Single Uncoated Straight 35.00 44.58
.4375 42437527 42221 7/16 1/4 3 1 SC-4-D Double Cut Uncoated Straight 11.00 44.58
.4375 42437530 42229 7/16 1/4 3 1 SC-4-F Fine Uncoated Straight 6.00 48.98
.4724 42472020M 42204 12mm 6mm 70mm 25mm SC-5MZ Single Uncoated Straight 24.00 42.39
.4724 42472027M 42206 12mm 6mm 70mm 25mm SC-5MZ-D Double Cut Uncoated Straight 56.00 42.39
.4724 42472030M 42208 12mm 6mm 70mm 25mm SC-5MZ-F Fine Uncoated Straight 5.00 46.65
.5000 42500020 42237 1/2 1/4 3 1 SC-5 Single Uncoated Straight 33.00 42.92
.5000 42500020L6 42846 1/2 1/4 7 1 SC-5L6 Single Uncoated Straight 71.00 59.98
.5000 42500020L6M 42847 12.7mm 6mm 175mm 25mm SC-5L6M Single Uncoated Straight 4.00 59.98
.5000 42500020M 42245 12.7mm 6mm 70mm 25mm SC-5M Single Uncoated Straight 19.00 42.92
.5000 42500027 42253 1/2 1/4 3 1 SC-5-D Double Cut Uncoated Straight 21.00 42.92
.5000 42500027L6 42851 1/2 1/4 7 1 SC-5L6-D Double Cut Uncoated Straight 138.00 59.98
.5000 42500027L6M 42852 12.7mm 6mm 175mm 25mm SC-5L6M-D Double Cut Uncoated Straight 51.00 59.98
.5000 42500027M 42261 12.7mm 6mm 70mm 25mm SC-5M-D Double Cut Uncoated Straight 187.00 42.92
.5000 42500030 42265 1/2 1/4 3 1 SC-5-F Fine Uncoated Straight 17.00 47.22
.5000 42500030L6 42856 1/2 1/4 7 1 SC-5L6-F Fine Uncoated Straight 5.00 66.08
.5000 42500030L6M 42857 12.7mm 6mm 175mm 25mm SC-5L6M-F Fine Uncoated Straight 2.00 66.08
.5000 42500030M 42273 12.7mm 6mm 70mm 25mm SC-5M-F Fine Uncoated Straight 14.00 47.22
.5000 42500150 42621 1/2 1/4 3 1 SC-5NF Shear Uncoated Straight 187.00 59.34
.5000 42500150M 42285 12.7mm 6mm 70mm 25mm SC-5NFM Shear Uncoated Straight 47.00 59.34
.5000 42500027A 18858 1/2 1/4 3 1 SC-5-D Double Cut ALtima® Straight 0.00 65.4
.6250 42625020 42289 5/8 1/4 3 1 SC-6 Single Uncoated Straight 0.00 58.77
.6250 42625027 42297 5/8 1/4 3 1 SC-6-D Double Cut Uncoated Straight 160.00 58.77
.6250 42625030 42305 5/8 1/4 3 1 SC-6-F Fine Uncoated Straight 20.00 64.66
.6250 42625150 42641 5/8 1/4 3 1 SC-6NF Shear Uncoated Straight 5.00 82.72
.6299 42625020M 42293 16mm 6mm 70mm 25mm SC-6M Single Uncoated Straight 24.00 58.77
.6299 42625027M 42301 16mm 6mm 70mm 25mm SC-6M-D Double Cut Uncoated Straight 134.00 58.77
.6299 42625030M 42309 16mm 6mm 70mm 25mm SC-6M-F Fine Uncoated Straight 0.00 64.66
.6299 42625150M 42321 16mm 6mm 70mm 25mm SC-6NFM Shear Uncoated Straight 11.00 82.72
.7480 42750020M 42329 19mm 6mm 70mm 25mm SC-7M Single Uncoated Straight 29.00 84.23
.7480 42750027M 42337 19mm 6mm 70mm 25mm SC-7M-D Double Cut Uncoated Straight 0.00 84.23
.7480 42750030M 42345 19mm 6mm 70mm 25mm SC-7M-F Fine Uncoated Straight 3.00 92.62
.7500 42750020 42325 3/4 1/4 3 1 SC-7 Single Uncoated Straight 32.00 84.23
.7500 42750027 42333 3/4 1/4 3 1 SC-7-D Double Cut Uncoated Straight 21.00 84.23
.7500 42750030 42341 3/4 1/4 3 1 SC-7-F Fine Uncoated Straight 13.00 92.62
.9843 42100020M 42005 25mm 6mm 70mm 25mm SC-9M Single Uncoated Straight 1.00 133.63
.9843 42100027M 42013 25mm 6mm 70mm 25mm SC-9M-D Double Cut Uncoated Straight 12.00 133.63
1.0000 42100020 42001 1 1/4 3 1 SC-9 Single Uncoated Straight 15.00 133.63
1.0000 42100027 42009 1 1/4 3 1 SC-9-D Double Cut Uncoated Straight 28.00 133.63
1.0000 42100030 42017 1 1/4 3 1 SC-9-F Fine Uncoated Straight 6.00 147.24
