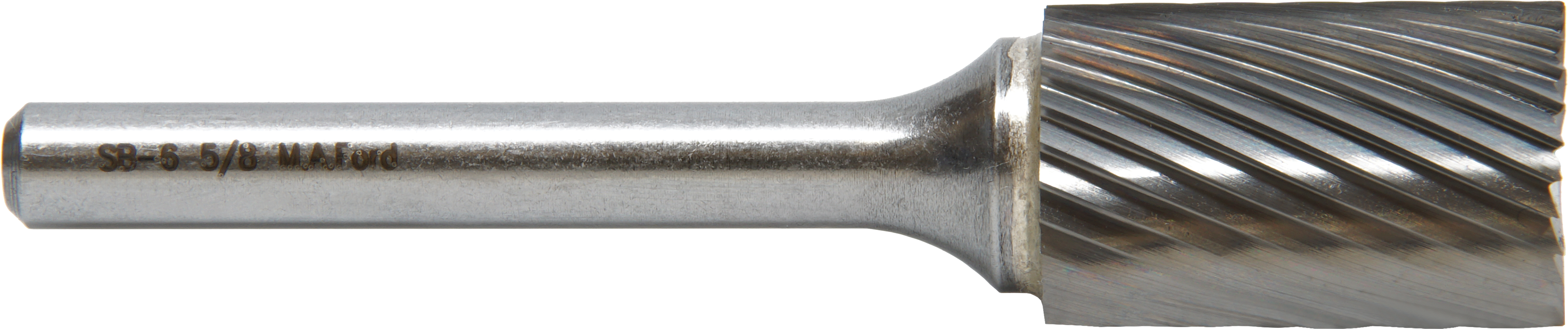

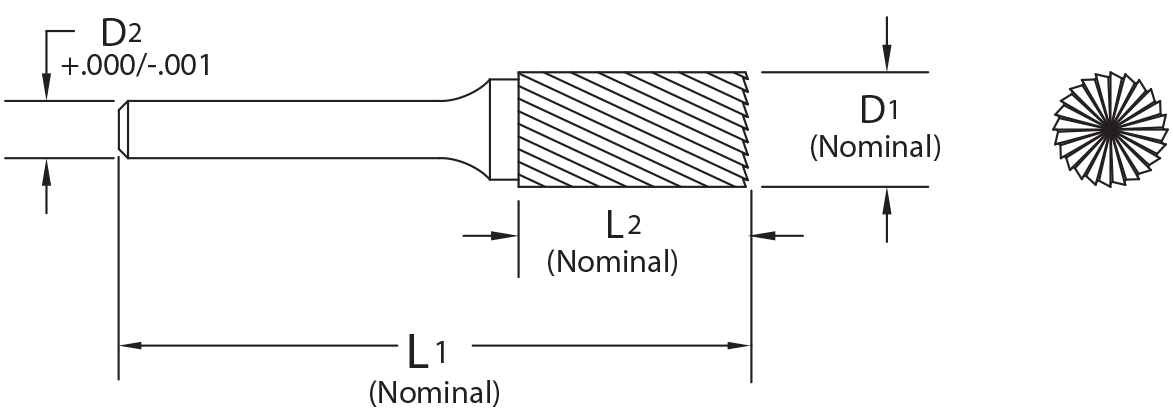

product photo product drawing

Burs / SB

Solid Carbide Edge Hog® Bur
Cylindrical Flat End End Cut

  • SCTI SB
  • Solid carbide 1/4" sizes and below, brazed construction over 1/4"
  • Inch and metric sizes
  • Single, double, fine and shear cuts available

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Specification Type of Cut Coating Shank Type Available List Price
.1181 41125020EM 41042 3mm 6mm 50mm 12.7mm SB-11M Single Uncoated Straight 77.00 23.81
.1181 41125027EM 41054 3mm 6mm 50mm 12.7mm SB-11M-D Double Cut Uncoated Straight 155.00 23.81
.1181 41125030EM 41066 3mm 6mm 50mm 12.7mm SB-11M-F Fine Uncoated Straight 17.00 26.16
.1250 41125020E 41041 1/8 1/4 2 1/2 SB-11 Single Uncoated Straight 58.00 23.81
.1250 41125027E 41053 1/8 1/4 2 1/2 SB-11-D Double Cut Uncoated Straight 25.00 23.81
.1250 41125030E 41065 1/8 1/4 2 1/2 SB-11-F Fine Uncoated Straight 2.00 26.16
.1562 41156220E 41077 5/32 1/4 2 5/8 SB-13 Single Uncoated Straight 4.00 23.81
.1562 41156227E 41089 5/32 1/4 2 5/8 SB-13-D Double Cut Uncoated Straight 11.00 23.81
.1575 41156220EM 41078 4mm 6mm 50mm 16mm SB-13M Single Uncoated Straight 4.00 23.81
.1575 41156227EM 41090 4mm 6mm 50mm 16mm SB-13M-D Double Cut Uncoated Straight 32.00 23.81
.1575 41156230EM 41102 4mm 6mm 50mm 16mm SB-13M-F Fine Uncoated Straight 0.00 26.16
.1875 41187520E 41113 3/16 1/4 2 5/8 SB-14 Single Uncoated Straight 10.00 23.81
.1875 41187527E 41125 3/16 1/4 2 5/8 SB-14-D Double Cut Uncoated Straight 16.00 23.81
.1875 41187530E 41137 3/16 1/4 2 5/8 SB-14-F Fine Uncoated Straight 29.00 26.16
.1890 41187520EM 41114 4.8mm 6mm 50mm 16mm SB-14M Single Uncoated Straight 0.00 23.81
.1890 41187527EM 41126 4.8mm 6mm 50mm 16mm SB-14M-D Double Cut Uncoated Straight 27.00 23.81
.1890 41187530EM 41138 4.8mm 6mm 50mm 16mm SB-14M-F Fine Uncoated Straight 0.00 26.16
.2362 41250020EM 41150 6mm 6mm 50mm 16mm SB-1M Single Uncoated Straight 0.00 20.92
.2362 41250027EM 41162 6mm 6mm 50mm 16mm SB-1M-D Double Cut Uncoated Straight 208.00 20.92
.2362 41250030EM 41174 6mm 6mm 50mm 16mm SB-1M-F Fine Uncoated Straight 13.00 22.98
.2500 41250020E 41149 1/4 1/4 2 5/8 SB-1 Single Uncoated Straight 26.00 20.92
.2500 41250027E 41161 1/4 1/4 2 5/8 SB-1-D Double Cut Uncoated Straight 97.00 20.92
.2500 41250030E 41173 1/4 1/4 2 5/8 SB-1-F Fine Uncoated Straight 199.00 22.98
.2500 70000020E 70001 1/4 1/8 1-11/16 3/16 SB-51 Single Uncoated Straight 6.00 27.39
.2520 70000020EM 70003 6.4mm 3mm 43mm 4.8mm SB-51M Single Uncoated Straight 78.00 27.39
.2520 70000027EM 70007 6.4mm 3mm 43mm 4.8mm SB-51M-D Double Cut Uncoated Straight 108.00 27.39
.2520 70000030EM 70011 6.4mm 3mm 43mm 4.8mm SB-51M-F Fine Uncoated Straight 43.00 30.15
.3125 41312520E 41185 5/16 1/4 2-3/4 3/4 SB-2 Single Uncoated Straight 9.00 27.79
.3125 41312527E 41197 5/16 1/4 2-3/4 3/4 SB-2-D Double Cut Uncoated Straight 81.00 27.79
.3125 41312530E 41209 5/16 1/4 2-3/4 3/4 SB-2-F Fine Uncoated Straight 7.00 30.57
.3150 41312520EM 41186 8mm 6mm 64mm 19mm SB-2M Single Uncoated Straight 65.00 27.79
.3150 41312527EM 41198 8mm 6mm 64mm 19mm SB-2M-D Double Cut Uncoated Straight 109.00 27.79
.3150 41312530EM 41210 8mm 6mm 64mm 19mm SB-2M-F Fine Uncoated Straight 69.00 30.57
.3740 41375020EM 41222 9.5mm 6mm 64mm 19mm SB-3M Single Uncoated Straight 28.00 29.59
.3740 41375027EM 41234 9.5mm 6mm 64mm 19mm SB-3M-D Double Cut Uncoated Straight 152.00 29.59
.3740 41375030EM 41246 9.5mm 6mm 64mm 19mm SB-3M-F Fine Uncoated Straight 12.00 32.47
.3740 41375150EM 41271 9.5mm 6mm 64mm 19mm SB-3NFM Shear Uncoated Straight 7.00 43.47
.3750 41375020E 41221 3/8 1/4 2-3/4 3/4 SB-3 Single Uncoated Straight 5.00 29.59
.3750 41375027E 41233 3/8 1/4 2-3/4 3/4 SB-3-D Double Cut Uncoated Straight 0.00 29.59
.3750 41375030E 41245 3/8 1/4 2-3/4 3/4 SB-3-F Fine Uncoated Straight 9.00 32.47
.3750 41375150E 41606 3/8 1/4 2-3/4 3/4 SB-3NF Shear Uncoated Straight 99.00 43.47
.3937 41393020EM 41256 10mm 6mm 65mm 20mm SB-3MZ Single Uncoated Straight 10.00 29.17
.3937 41393027EM 41258 10mm 6mm 65mm 20mm SB-3MZ-D Double Cut Uncoated Straight 87.00 29.17
.3937 41393030EM 41260 10mm 6mm 65mm 20mm SB-3MZ-F Fine Uncoated Straight 48.00 32.19
.4331 41437520EM 41278 11mm 6mm 70mm 25mm SB-4M Single Uncoated Straight 38.00 46.39
.4331 41437527EM 41290 11mm 6mm 70mm 25mm SB-4M-D Double Cut Uncoated Straight 38.00 46.39
.4331 41437530EM 41302 11mm 6mm 70mm 25mm SB-4M-F Fine Uncoated Straight 0.00 51.08
.4375 41437520E 41277 7/16 1/4 3 1 SB-4 Single Uncoated Straight 1.00 46.39
.4375 41437527E 41289 7/16 1/4 3 1 SB-4-D Double Cut Uncoated Straight 0.00 46.39
.4375 41437530E 41301 7/16 1/4 3 1 SB-4-F Fine Uncoated Straight 2.00 51.08
.4724 41472020EM 41268 12mm 6mm 70mm 25mm SB-5MZ Single Uncoated Straight 64.00 45.27
.4724 41472027EM 41270 12mm 6mm 70mm 25mm SB-5MZ-D Double Cut Uncoated Straight 93.00 45.27
.4724 41472030EM 41272 12mm 6mm 70mm 25mm SB-5MZ-F Fine Uncoated Straight 54.00 49.82
.5000 41500020E 41313 1/2 1/4 3 1 SB-5 Single Uncoated Straight 61.00 45.83
.5000 41500020EM 41314 12.7mm 6mm 70mm 25mm SB-5M Single Uncoated Straight 35.00 45.83
.5000 41500027E 41325 1/2 1/4 3 1 SB-5-D Double Cut Uncoated Straight 184.00 45.83
.5000 41500027EM 41326 12.7mm 6mm 70mm 25mm SB-5M-D Double Cut Uncoated Straight 0.00 45.83
.5000 41500030E 41337 1/2 1/4 3 1 SB-5-F Fine Uncoated Straight 20.00 50.37
.5000 41500030EM 41338 12.7mm 6mm 70mm 25mm SB-5M-F Fine Uncoated Straight 4.00 50.37
.5000 41500150E 41621 1/2 1/4 3 1 SB-5NF Shear Uncoated Straight 27.00 62.76
.5000 41500150EM 41363 12.7mm 6mm 70mm 25mm SB-5NFM Shear Uncoated Straight 48.00 62.76
.6250 41625020E 41369 5/8 1/4 3 1 SB-6 Single Uncoated Straight 15.00 58.91
.6250 41625027E 41381 5/8 1/4 3 1 SB-6-D Double Cut Uncoated Straight 0.00 58.91
.6250 41625030E 41393 5/8 1/4 3 1 SB-6-F Fine Uncoated Straight 9.00 64.83
.6250 41625150E 41636 5/8 1/4 3 1 SB-6NF Shear Uncoated Straight 3.00 88.07
.6299 41625020EM 41370 16mm 6mm 70mm 25mm SB-6M Single Uncoated Straight 12.00 58.91
.6299 41625027EM 41382 16mm 6mm 70mm 25mm SB-6M-D Double Cut Uncoated Straight 40.00 58.91
.6299 41625030EM 41394 16mm 6mm 70mm 25mm SB-6M-F Fine Uncoated Straight 2.00 64.83
.6299 41625150EM 41419 16mm 6mm 70mm 25mm SB-6NFM Shear Uncoated Straight 6.00 88.07
.7480 41750020EM 41426 19mm 6mm 70mm 25mm SB-7M Single Uncoated Straight 5.00 93.59
.7480 41750027EM 41438 19mm 6mm 70mm 25mm SB-7M-D Double Cut Uncoated Straight 33.00 93.59
.7480 41750030EM 41450 19mm 6mm 70mm 25mm SB-7M-F Fine Uncoated Straight 20.00 102.94
.7480 41750227EM 41510 19mm 6mm 64mm 19mm SB-16M-D Double Cut Uncoated Straight 2.00 93.59
.7480 41750127EM 41474 19mm 6mm 58mm 12.7mm SB-15M-D Double Cut Uncoated Straight 0.00 85.31
.7480 41750130EM 41486 19mm 6mm 58mm 12.7mm SB-15M-F Fine Uncoated Straight 0.00 93.74
.7480 41750220EM 41498 19mm 6mm 64mm 19mm SB-16M Single Uncoated Straight 0.00 93.59
.7480 41750230EM 41522 19mm 6mm 64mm 19mm SB-16M-F Fine Uncoated Straight 0.00 102.94
.7480 41750120EM 41462 19mm 6mm 58mm 12.7mm SB-15M Single Uncoated Straight 0.00 85.31
.7500 41750020E 41425 3/4 1/4 3 1 SB-7 Single Uncoated Straight 0.00 93.59
.7500 41750027E 41437 3/4 1/4 3 1 SA-7-D Uncoated Straight 23.00 93.59
.7500 41750030E 41449 3/4 1/4 3 1 SB-7-F Fine Uncoated Straight 0.00 102.94
.7500 41750120E 41461 3/4 1/4 2-1/2 1/2 SB-15 Single Uncoated Straight 5.00 85.31
.7500 41750127E 41473 3/4 1/4 2-1/2 1/2 SB-15-D Double Cut Uncoated Straight 7.00 85.31
.7500 41750130E 41485 3/4 1/4 2-1/2 1/2 SB-15-F Fine Uncoated Straight 2.00 93.74
.7500 41750220E 41497 3/4 1/4 2-3/4 3/4 SB-16 Single Uncoated Straight 0.00 93.59
.7500 41750227E 41509 3/4 1/4 2-3/4 3/4 SB-16-D Double Cut Uncoated Straight 10.00 93.59
.7500 41750230E 41521 3/4 1/4 2-3/4 3/4 SB-16-F Fine Uncoated Straight 0.00 102.94
.9843 41100020EM 41006 25mm 6mm 70mm 25mm SB-9M Single Uncoated Straight 6.00 130.73
.9843 41100027EM 41018 25mm 6mm 70mm 25mm SB-9M-D Double Cut Uncoated Straight 13.00 130.73
.9843 41100030EM 41030 25mm 6mm 70mm 25mm SB-9M-F Fine Uncoated Straight 0.00 144.5
1.0000 41100020E 41005 1 1/4 3 1 SB-9 Single Uncoated Straight 8.00 130.73
1.0000 41100027E 41017 1 1/4 3 1 SB-9-D Double Cut Uncoated Straight 25.00 130.73
1.0000 41100030E 41029 1 1/4 3 1 SB-9-F Fine Uncoated Straight 0.00 144.5
