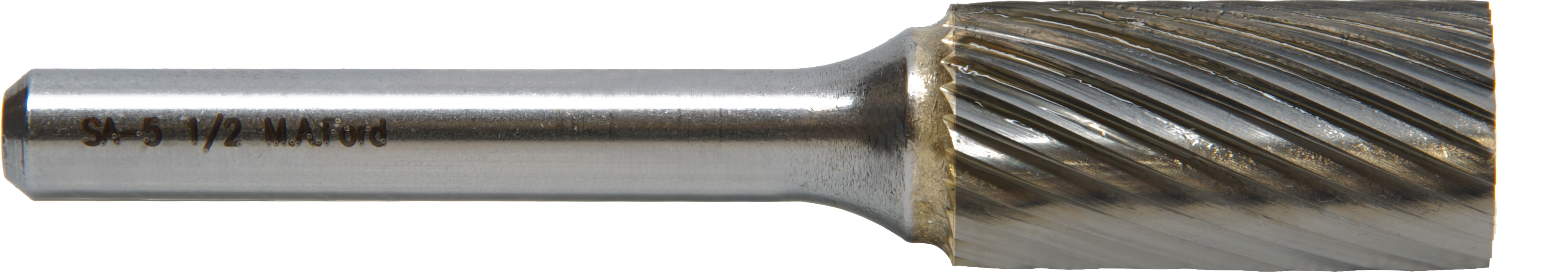

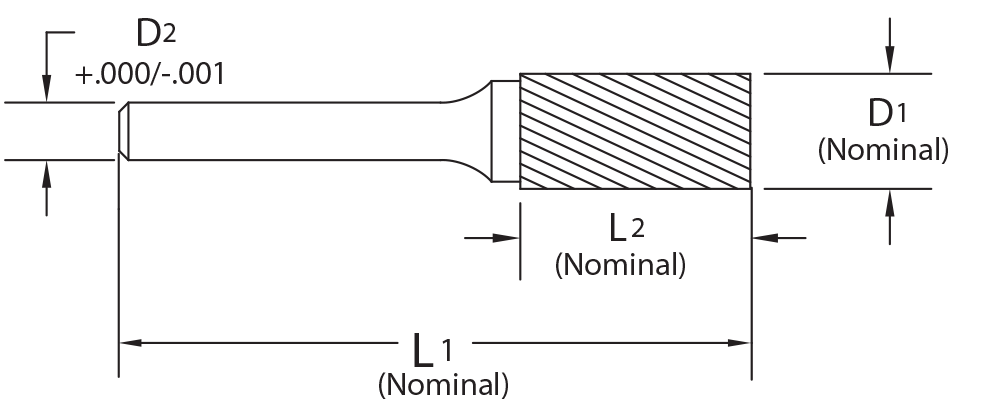

product photo product drawing

Burs / SA

Solid Carbide Edge Hog® Bur
Cylindrical Flat End

  • SCTI SA
  • Solid carbide 1/4" sizes and below, brazed construction over 1/4"
  • Inch and metric sizes
  • Single, double, fine and shear cuts available

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Specification Type of Cut Coating Shank Type Available List Price
.0625 69000020 69001 1/16 1/8 1-1/2 1/4 SA-41 Single Uncoated Straight 90.00 11.55
.0625 69000027 69009 1/16 1/8 1-1/2 1/4 SA-41-D Double Cut Uncoated Straight 66.00 11.55
.0625 69000030 69017 1/16 1/8 1-1/2 1/4 SA-41-F Fine Uncoated Straight 94.00 12.81
.0630 69000020M 69005 1.6mm 3mm 38mm 6mm SA-41M Single Uncoated Straight 56.00 11.55
.0630 69000027M 69013 1.6mm 3mm 38mm 6mm SA-41M-D Double Cut Uncoated Straight 48.00 11.55
.0630 69000030M 69021 1.6mm 3mm 38mm 6mm SA-41M-F Fine Uncoated Straight 7.00 12.81
.0937 69020020 69049 3/32 1/8 1-1/2 7/16 SA-42 Single Uncoated Straight 78.00 11.55
.0937 69020027 69057 3/32 1/8 1-1/2 7/16 SA-42-D Double Cut Uncoated Straight 18.00 11.55
.0937 69020030 69065 3/32 1/8 1-1/2 7/16 SA-42-F Fine Uncoated Straight 33.00 12.81
.0945 69020020M 69053 2.4mm 3mm 38mm 11.1mm SA-42M Single Uncoated Straight 60.00 11.55
.0945 69020027M 69061 2.4mm 3mm 38mm 11.1mm SA-42M-D Double Cut Uncoated Straight 118.00 11.55
.0945 69020030M 69069 2.4mm 3mm 38mm 11.1mm SA-42M-F Fine Uncoated Straight 59.00 12.81
.1181 41125020M 41045 3mm 6mm 50mm 12.7mm SA-11M Single Uncoated Straight 45.00 19.81
.1181 41125027M 41057 3mm 6mm 50mm 12.7mm SA-11M-D Double Cut Uncoated Straight 228.00 19.81
.1181 41125030M 41069 3mm 6mm 50mm 12.7mm SA-11M-F Fine Uncoated Straight 33.00 21.89
.1181 69010020L3M 69802 3mm 3mm 76mm 14.3mm SA-43L76M Single Uncoated Straight 94.00 14.6
.1181 69010020M 69029 3mm 3mm 38mm 14.3mm SA-43M Single Uncoated Straight 100.00 10.48
.1181 69010027L3M 69804 3mm 3mm 76mm 14.3mm SA-43L76M-D Double Cut Uncoated Straight 105.00 14.6
.1181 69010027M 69037 3mm 3mm 38mm 14.3mm SA-43M-D Double Cut Uncoated Straight 3967.00 10.48
.1181 69010030M 69045 3mm 3mm 38mm 14.3mm SA-43M-F Fine Uncoated Straight 77.00 11.42
.1250 41125020 41037 1/8 1/4 2 1/2 SA-11 Single Uncoated Straight 29.00 19.81
.1250 41125027 41049 1/8 1/4 2 1/2 SA-11-D Double Cut Uncoated Straight 40.00 19.81
.1250 41125030 41061 1/8 1/4 2 1/2 SA-11-F Fine Uncoated Straight 26.00 21.89
.1250 69010020 69025 1/8 1/8 1-1/2 9/16 SA-43 Single Uncoated Straight 383.00 10.48
.1250 69010020L3 69801 1/8 1/8 3 9/16 SA-43L3 Single Uncoated Straight 85.00 14.6
.1250 69010027 69033 1/8 1/8 1-1/2 9/16 SA-43-D Double Cut Uncoated Straight 401.00 10.48
.1250 69010027L3 69803 1/8 1/8 3 9/16 SA-43L3-D Double Cut Uncoated Straight 47.00 14.6
.1250 69010030 69041 1/8 1/8 1-1/2 9/16 SA-43-F Fine Uncoated Straight 95.00 11.42
.1562 41156220 41073 5/32 1/4 2 5/8 SA-13 Single Uncoated Straight 33.00 19.81
.1562 41156227 41085 5/32 1/4 2 5/8 SA-13-D Double Cut Uncoated Straight 45.00 19.81
.1562 72010020 72001 5/32 1/8 1-1/2 1/2 SA-52 Single Uncoated Straight 24.00 24.49
.1562 72010027 72009 5/32 1/8 1-1/2 1/2 SA-52-D Double Cut Uncoated Straight 29.00 24.49
.1562 72010030 72017 5/32 1/8 1-1/2 1/2 SA-52-F Fine Uncoated Straight 21.00 26.99
.1575 41156220M 41081 4mm 6mm 50mm 16mm SA-13M Single Uncoated Straight 332.00 19.81
.1575 41156227M 41093 4mm 6mm 50mm 16mm SA-13M-D Double Cut Uncoated Straight 209.00 19.81
.1575 41156230M 41105 4mm 6mm 50mm 16mm SA-13M-F Fine Uncoated Straight 0.00 21.89
.1575 72010020M 72005 4mm 3mm 38mm 12.7mm SA-52M Single Uncoated Straight 63.00 24.49
.1575 72010027M 72013 4mm 3mm 38mm 12.7mm SA-52M-D Double Cut Uncoated Straight 108.00 24.49
.1575 72010030M 72021 4mm 3mm 38mm 12.7mm SA-52M-F Fine Uncoated Straight 56.00 26.99
.1875 41187520 41109 3/16 1/4 2 5/8 SA-14 Single Uncoated Straight 89.00 19.81
.1875 41187527 41121 3/16 1/4 2 5/8 SA-14-D Double Cut Uncoated Straight 37.00 19.81
.1875 41187530 41133 3/16 1/4 2 5/8 SA-14-F Fine Uncoated Straight 62.00 21.89
.1875 72030020 72049 3/16 1/8 1-1/2 1/2 SA-53 Single Uncoated Straight 159.00 26.7
.1875 72030027 72057 3/16 1/8 1-1/2 1/2 SA-53-D Double Cut Uncoated Straight 8.00 26.7
.1875 72030030 72065 3/16 1/8 1-1/2 1/2 SA-53-F Fine Uncoated Straight 13.00 29.32
.1890 41187520M 41117 4.8mm 6mm 50mm 16mm SA-14M Single Uncoated Straight 11.00 19.81
.1890 41187527M 41129 4.8mm 6mm 50mm 16mm SA-14M-D Double Cut Uncoated Straight 46.00 19.81
.1890 41187530M 41141 4.8mm 6mm 50mm 16mm SA-14M-F Fine Uncoated Straight 0.00 21.89
.1890 72030020M 72053 4.8mm 3mm 38mm 12.7mm SA-53M Single Uncoated Straight 32.00 26.7
.1890 72030027M 72061 4.8mm 3mm 38mm 12.7mm SA-53M-D Double Cut Uncoated Straight 209.00 26.7
.1890 72030030M 72069 4.8mm 3mm 38mm 12.7mm SA-53M-F Fine Uncoated Straight 14.00 29.32
.2362 41250020M 41153 6mm 6mm 50mm 16mm SA-1M Single Uncoated Straight 68.00 17.46
.2362 41250027M 41165 6mm 6mm 50mm 16mm SA-1M-D Double Cut Uncoated Straight 130.00 17.46
.2362 41250030M 41177 6mm 6mm 50mm 16mm SA-1M-F Fine Uncoated Straight 46.00 19.14
.2362 41250020MT 18888 6.0 6.0 50 16 SA-1M Single Uncoated Tang 0.00 26.8
.2500 41250020 41145 1/4 1/4 2 5/8 SA-1 Single Uncoated Straight 229.00 17.46
.2500 41250027 41157 1/4 1/4 2 5/8 SA-1-D Double Cut Uncoated Straight 393.00 17.46
.2500 41250030 41169 1/4 1/4 2 5/8 SA-1-F Fine Uncoated Straight 94.00 19.14
.2500 70010020 70013 1/4 1/8 2 1/2 SA-51 Single Uncoated Straight 62.00 17.05
.2500 70010027 70021 1/4 1/8 2 1/2 SA-51-D Double Cut Uncoated Straight 439.00 17.05
.2500 70010030 70029 1/4 1/8 2 1/2 SA-51-F Fine Uncoated Straight 55.00 18.71
.2520 70010020M 70017 6.4mm 3mm 51mm 12.7mm SA-51M Single Uncoated Straight 28.00 17.05
.2520 70010027M 70025 6.4mm 3mm 51mm 12.7mm SA-51M-D Double Cut Uncoated Straight 494.00 17.05
.2520 70010030M 70033 6.4mm 3mm 51mm 12.7mm SA-51M-F Fine Uncoated Straight 38.00 18.71
.3125 41312520 41181 5/16 1/4 2-3/4 3/4 SA-2 Single Uncoated Straight 55.00 23.11
.3125 41312527 41193 5/16 1/4 2-3/4 3/4 SA-2-D Double Cut Uncoated Straight 375.00 23.11
.3125 41312530 41205 5/16 1/4 2-3/4 3/4 SA-2-F Fine Uncoated Straight 86.00 25.47
.3150 41312520M 41189 8mm 6mm 64mm 19mm SA-2M Single Uncoated Straight 105.00 23.11
.3150 41312527M 41201 8mm 6mm 64mm 19mm SA-2M-D Double Cut Uncoated Straight 307.00 23.11
.3150 41312530M 41213 8mm 6mm 64mm 19mm SA-2M-F Fine Uncoated Straight 4.00 25.47
.3740 41375020M 41225 9.5mm 6mm 64mm 19mm SA-3M Single Uncoated Straight 18.00 24.64
.3740 41375027M 41237 9.5mm 6mm 64mm 19mm SA-3M-D Double Cut Uncoated Straight 122.00 24.64
.3740 41375030M 41249 9.5mm 6mm 64mm 19mm SA-3M-F Fine Uncoated Straight 8.00 27.13
.3740 41375150M 41269 9.5mm 6mm 64mm 19mm SA-3NFM Shear Uncoated Straight 53.00 36.2
.3750 41375020 41217 3/8 1/4 2-3/4 3/4 SA-3 Single Uncoated Straight 48.00 24.64
.3750 41375027 41229 3/8 1/4 2-3/4 3/4 SA-3-D Double Cut Uncoated Straight 227.00 24.64
.3750 41375030 41241 3/8 1/4 2-3/4 3/4 SA-3-F Fine Uncoated Straight 25.00 27.13
.3750 41375150 41601 3/8 1/4 2-3/4 3/4 SA-3NF Shear Uncoated Straight 87.00 36.2
.3937 41393020M 41250 10mm 6mm 65mm 20mm SA-3MZ Single Uncoated Straight 6.00 24.35
.3937 41393027M 41252 10mm 6mm 65mm 20mm SA-3MZ-D Double Cut Uncoated Straight 64.00 24.35
.3937 41393030M 41254 10mm 6mm 65mm 20mm SA-3MZ-F Fine Uncoated Straight 29.00 26.84
.4331 41437520M 41281 11mm 6mm 70mm 25mm SA-4M Single Uncoated Straight 13.00 38.67
.4331 41437527M 41293 11mm 6mm 70mm 25mm SA-4M-D Double Cut Uncoated Straight 0.00 38.67
.4331 41437530M 41305 11mm 6mm 70mm 25mm SA-4M-F Fine Uncoated Straight 9.00 42.53
.4375 41437520 41273 7/16 1/4 3 1 SA-4 Single Uncoated Straight 28.00 38.67
.4375 41437527 41285 7/16 1/4 3 1 SA-4-D Double Cut Uncoated Straight 17.00 38.67
.4375 41437530 41297 7/16 1/4 3 1 SA-4-F Fine Uncoated Straight 16.00 42.53
.4724 41472020M 41262 12mm 6mm 70mm 25mm SA-5MZ Single Uncoated Straight 48.00 37.71
.4724 41472027M 41264 12mm 6mm 70mm 25mm SA-5MZ-D Double Cut Uncoated Straight 56.00 37.71
.4724 41472030M 41266 12mm 6mm 70mm 25mm SA-5MZ-F Fine Uncoated Straight 8.00 41.57
.5000 41500020 41309 1/2 1/4 3 1 SA-5 Single Uncoated Straight 135.00 38.14
.5000 41500020M 41317 12.7mm 6mm 70mm 25mm SA-5M Single Uncoated Straight 0.00 38.14
.5000 41500027 41321 1/2 1/4 3 1 SA-5-D Double Cut Uncoated Straight 290.00 38.14
.5000 41500027M 41329 12.7mm 6mm 70mm 25mm SA-5M-D Double Cut Uncoated Straight 267.00 38.14
.5000 41500030 41333 1/2 1/4 3 1 SA-5-F Fine Uncoated Straight 30.00 41.98
.5000 41500030M 41341 12.7mm 6mm 70mm 25mm SA-5M-F Fine Uncoated Straight 4.00 41.98
.5000 41500150 41616 1/2 1/4 3 1 SA-5NF Shear Uncoated Straight 0.00 52.44
.5000 41500150M 41361 12.7mm 6mm 70mm 25mm SA-5NFM Shear Uncoated Straight 50.00 52.44
.6250 41625020 41365 5/8 1/4 3 1 SA-6 Single Uncoated Straight 43.00 49.14
.6250 41625027 41377 5/8 1/4 3 1 SA-6-D Double Cut Uncoated Straight 63.00 49.14
.6250 41625030 41389 5/8 1/4 3 1 SA-6-F Fine Uncoated Straight 13.00 54.08
.6250 41625150 41631 5/8 1/4 3 1 SA-6NF Shear Uncoated Straight 19.00 73.36
.6299 41625020M 41373 16mm 6mm 70mm 25mm SA-6M Single Uncoated Straight 0.00 49.14
.6299 41625027M 41385 16mm 6mm 70mm 25mm SA-6M-D Double Cut Uncoated Straight 88.00 49.14
.6299 41625030M 41397 16mm 6mm 70mm 25mm SA-6M-F Fine Uncoated Straight 7.00 54.08
.6299 41625150M 41417 16mm 6mm 70mm 25mm SA-6NFM Shear Uncoated Straight 9.00 73.36
.7480 41750220M 41501 19mm 6mm 64mm 19mm SA-16M Single Uncoated Straight 18.00 78.04
.7480 41750227M 41513 19mm 6mm 64mm 19mm SA-16M-D Double Cut Uncoated Straight 2.00 78.04
.7480 41750020M 41429 19mm 6mm 70mm 25mm SA-7M Single Uncoated Straight 6.00 78.04
.7480 41750027M 41441 19mm 6mm 70mm 25mm SA-7M-D Double Cut Uncoated Straight 3.00 78.04
.7480 41750030M 41453 19mm 6mm 70mm 25mm SA-7M-F Fine Uncoated Straight 0.00 85.87
.7480 41750120M 41465 19mm 6mm 58mm 12.7mm SA-15M Single Uncoated Straight 8.00 71
.7480 41750130M 41489 19mm 6mm 58mm 12.7mm SA-15M-F Fine Uncoated Straight 0.00 78.14
.7480 41750230M 41525 19mm 6mm 64mm 19mm SA-16M-F Fine Uncoated Straight 2.00 85.87
.7480 41750127M 41477 19mm 6mm 58mm 12.7mm SA-15M-D Double Cut Uncoated Straight 0.00 71
.7500 41750020 41421 3/4 1/4 3 1 SA-7 Single Uncoated Straight 9.00 78.04
.7500 41750027 41433 3/4 1/4 3 1 SA-7-D Double Cut Uncoated Straight 21.00 78.04
.7500 41750030 41445 3/4 1/4 3 1 SA-7-F Fine Uncoated Straight 21.00 85.87
.7500 41750120 41457 3/4 1/4 2-1/2 1/2 SA-15 Single Uncoated Straight 20.00 71
.7500 41750127 41469 3/4 1/4 2-1/2 1/2 SA-15-D Double Cut Uncoated Straight 9.00 71
.7500 41750130 41481 3/4 1/4 2-1/2 1/2 SA-15-F Fine Uncoated Straight 39.00 78.14
.7500 41750220 41493 3/4 1/4 2-3/4 3/4 SA-16 Single Uncoated Straight 8.00 78.04
.7500 41750227 41505 3/4 1/4 2-3/4 3/4 SA-16-D Double Cut Uncoated Straight 0.00 78.04
.7500 41750230 41517 3/4 1/4 2-3/4 3/4 SA-16-F Fine Uncoated Straight 7.00 85.87
.9843 41100020M 41009 25mm 6mm 70mm 25mm SA-9M Single Uncoated Straight 6.00 108.85
.9843 41100027M 41021 25mm 6mm 70mm 25mm SA-9M-D Double Cut Uncoated Straight 25.00 108.85
.9843 41100030M 41033 25mm 6mm 70mm 25mm SA-9M-F Fine Uncoated Straight 54.00 119.72
1.0000 41100020 41001 1 1/4 3 1 SA-9 Single Uncoated Straight 55.00 108.85
1.0000 41100027 41013 1 1/4 3 1 SA-9-D Double Cut Uncoated Straight 17.00 108.85
1.0000 41100030 41025 1 1/4 3 1 SA-9-F Fine Uncoated Straight 85.00 119.72
